| PERFORMANCE SPECIFICATIONS | ||||
|---|---|---|---|---|
| Model | TR4000WX | TR6000WX | TR8000WX | TR8500WX |
| Rating Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Cell Configuration | 3.2V100Ah/16S1P | 3.2V100Ah/16S2P | 3.2V280Ah/16S1P | 3.2V314Ah/16S1P |
| Rating Capacity | 100Ah | 200Ah | 280Ah | 314Ah |
| Rated Energy (kWh) | 5.12kWh | 10.24kWh | 14.34kWh | 16.07kWh |
| Max Charge/Discharge | 100A | 200A | 200A | 200A |
| Voltage Range | 44.8V~58.4V | |||
| Scalability | Up to 15 parallel | |||
| Communication | CAN / RS485 / RS232 / WIFI | |||
| Cycle Life | ≥8000 Cycles @ 25℃ | |||
| Design Life | ≥15 Years (25°C) | |||

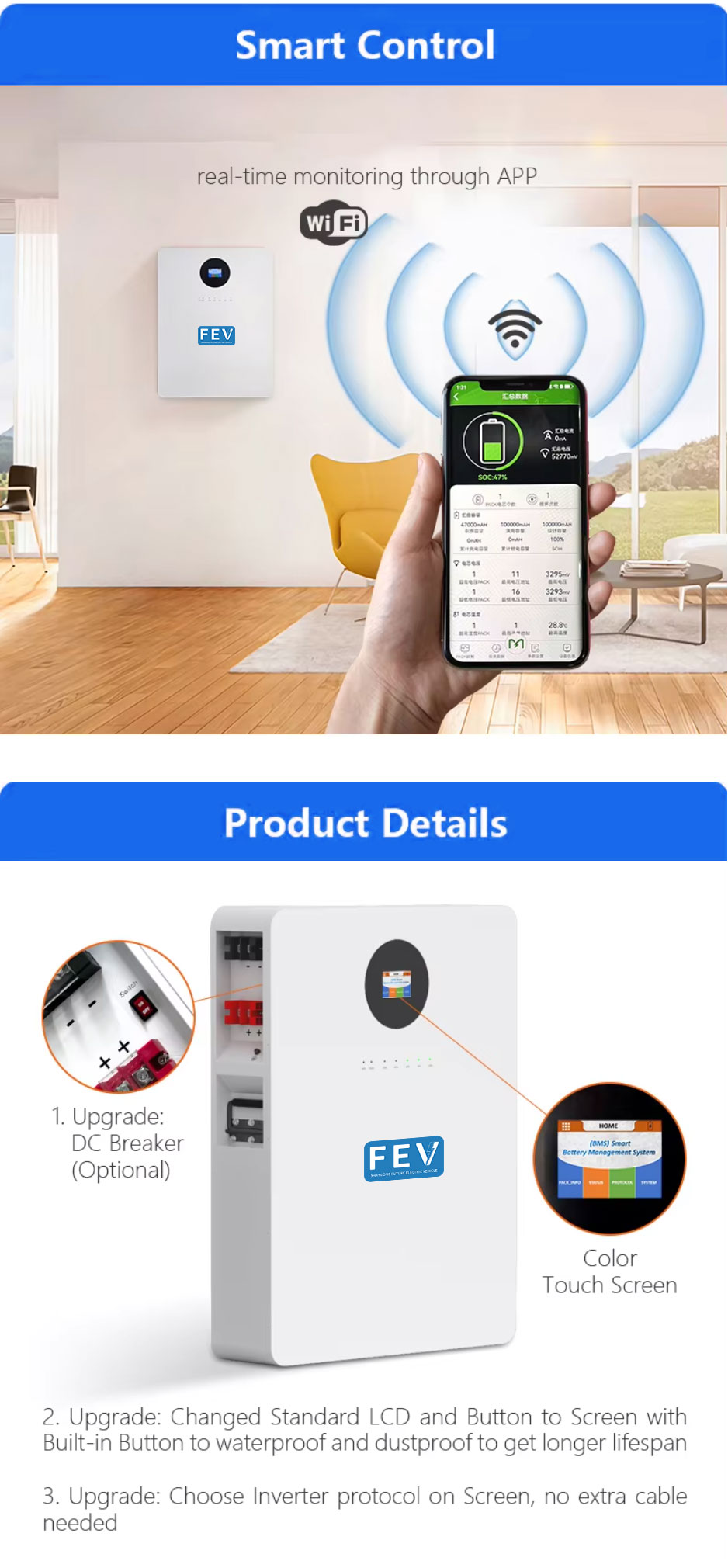

| Display | LCD color touch display | |||
| MECHANICAL SPECIFICATIONS | ||||
| Weight (Net) | 53kg | 99.5kg | 132.5kg | 134kg |
| Dimension (W/D/H) | 600*500*167mm | 850x650x167mm | 850x650x245mm | 850x650x245mm |

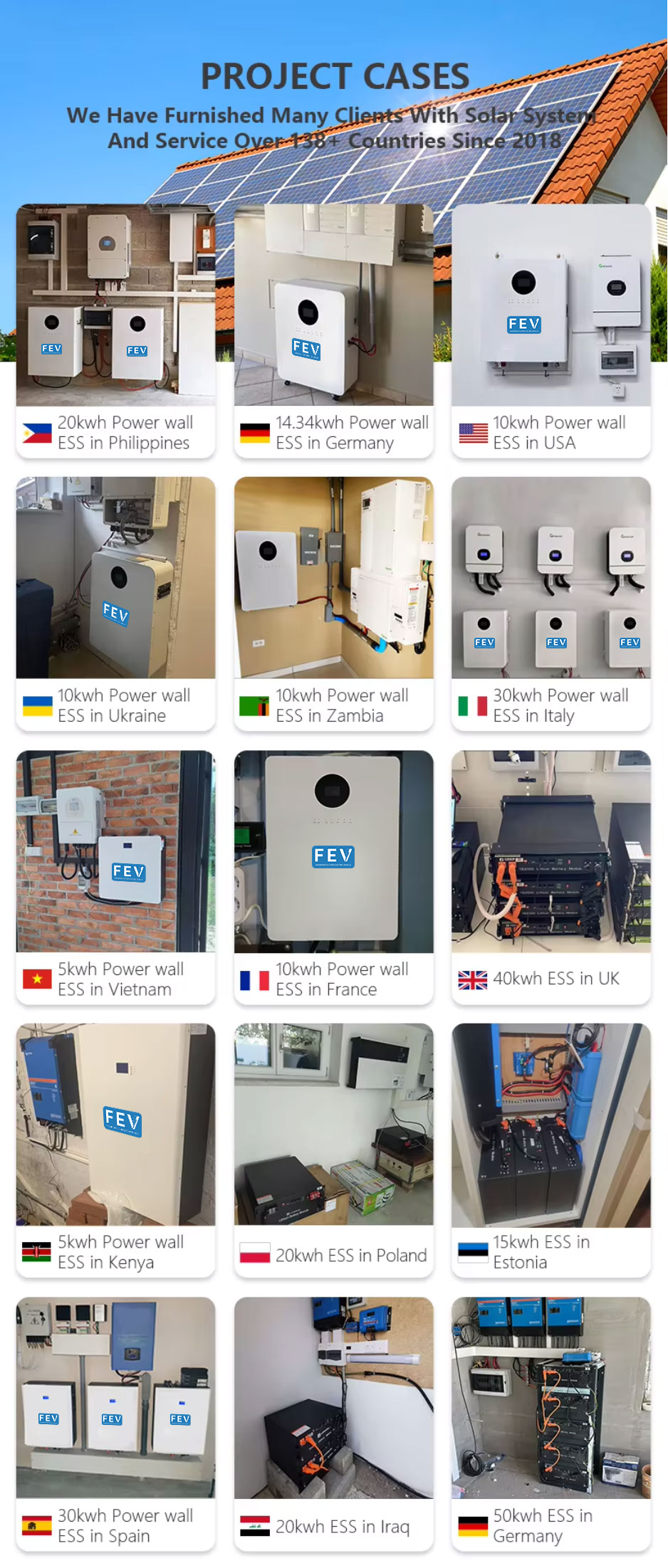

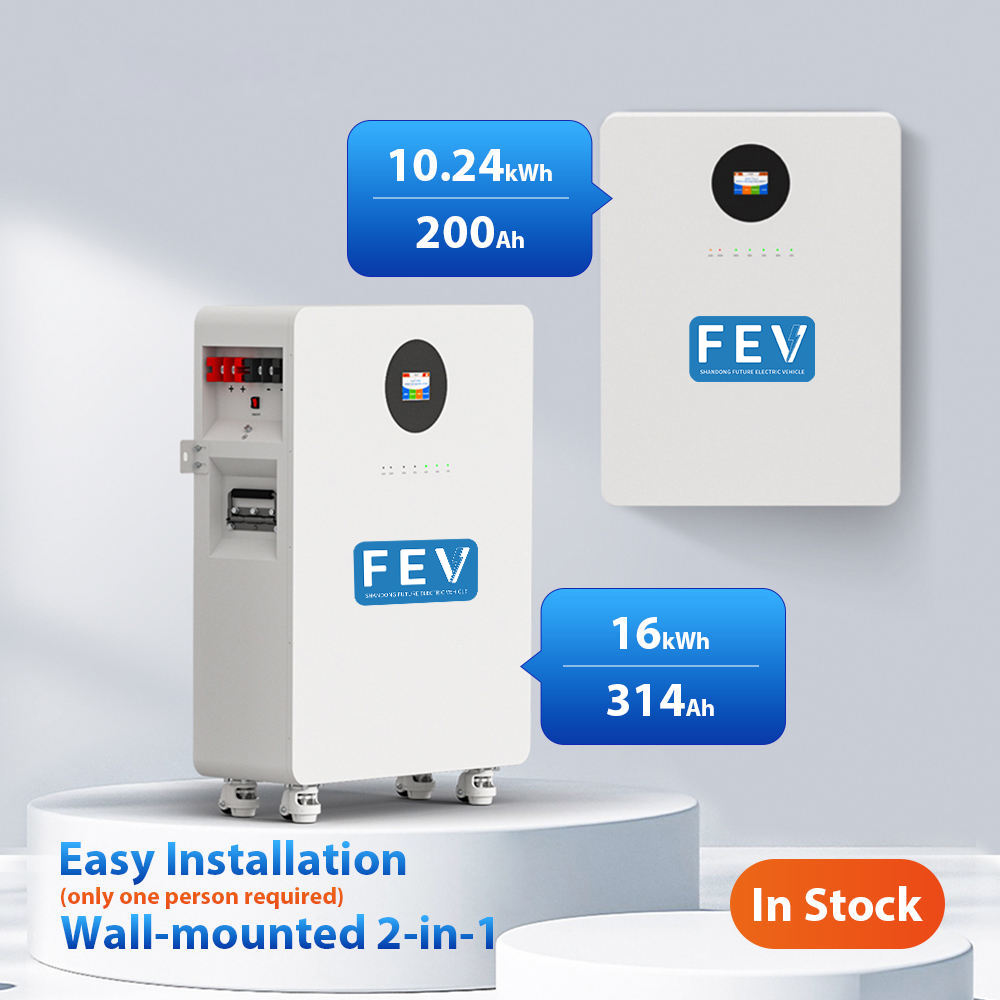

| Installation Mode | Wall Mounted | |||
| IP Grade | IP54 (optional) | |||
| SECURITY AND CERTIFICATION | ||||
| Pack Safety | UN38.3, MSDS, IEC62619(CB), CE-EMC | |||
| Cell Safety | UN38.3, MSDS, IEC62619, CE, UL1973, UL2054 | |||
| Protection | Smart BMS, Breaker and Aerogel Fireproofing (optional) | |||
| ENVIRONMENTAL SPECIFICATIONS | ||||
| Operating Temp | Charge: 0℃~65℃; Discharge: -20℃~65℃ | |||
| Altitude | ≤3000m | |||
| Humidity | ≤95% (Non-condensing) | |||
