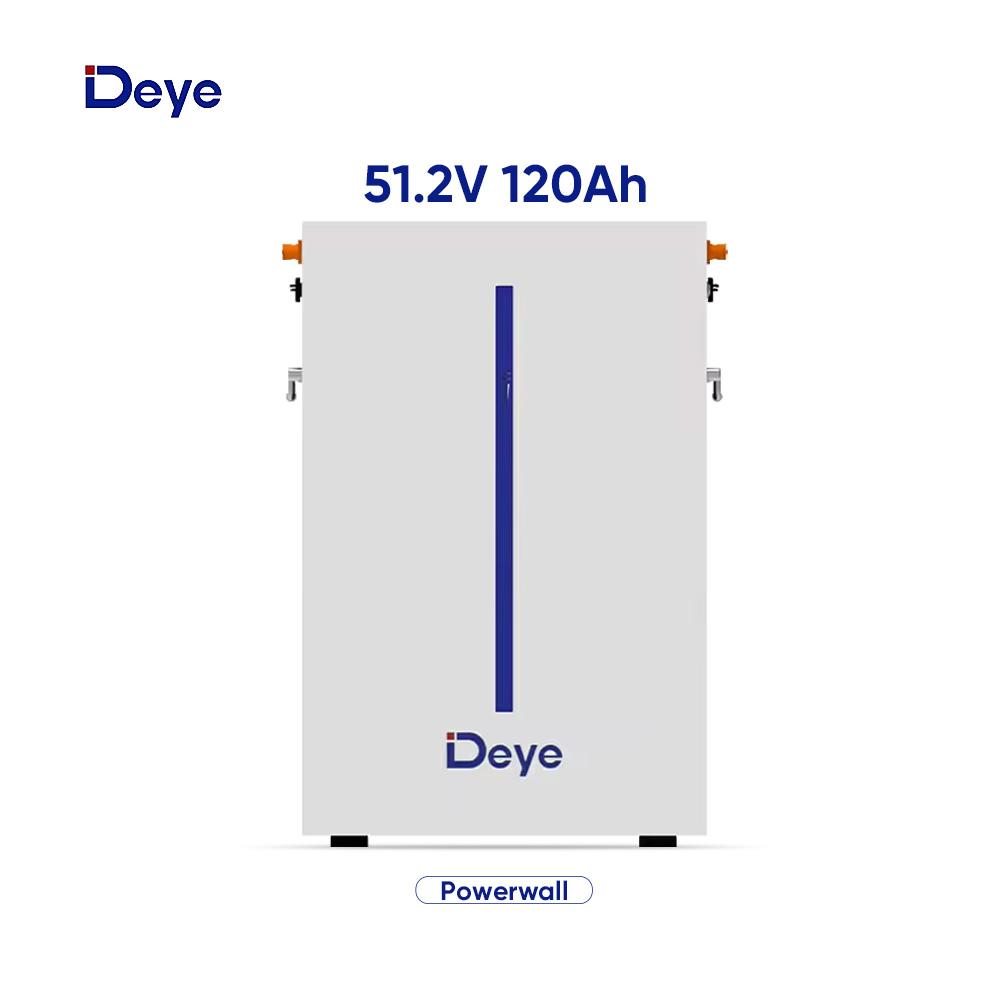

Deye Lithium Battery LiFePO4 Battery 48v 51.2v 120ah 6kWh Powerwall for Solar Storage System

Send Inquiry

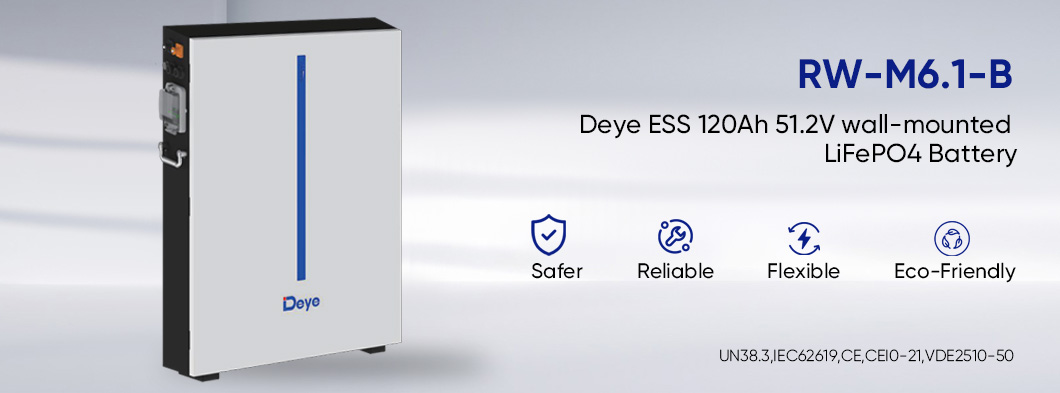

Product Description

Technical Parameter

Model	RW-M6.1-B
Main Parameter
Battery Chemistry	LiFePO4
Battery Capacity(Ah)	120 Ah
Scalability	Max. 32 pcs in Parallel(196kWh)
Nominal Voltage(V)	51.2V
Operating Voltage(V)	43.2~57.6V
Energy(kWh)	6.14kWh
Usable Energy(kWh)	5.53kWh
Recommend Charge/Discharge Current(A)	60A
Max.Charge/Discharge Current	100A
Peak Power Charge/Discharge Current	150A
Other Parameter
Recommend Depth of Discharge	90%
Dimension(W/H/D,mm)	510740145mm
Weight Approximate(kg)	58kg
Master LED Indicator	5LED(SOC:20%~SOC100%), 3LED(working,alarming,protecting)
IP Rating of Enclosure	IP65
Operating Temperature	Charge:0~55℃/ Discharge:-20℃~55℃
Storage Temperature	0℃~35℃
Humidity	5%~95%
Altitude	≤2000m
Cycle Life	≥6000（25℃±2℃, 0.5C, 90%DOD, 70%EOL）

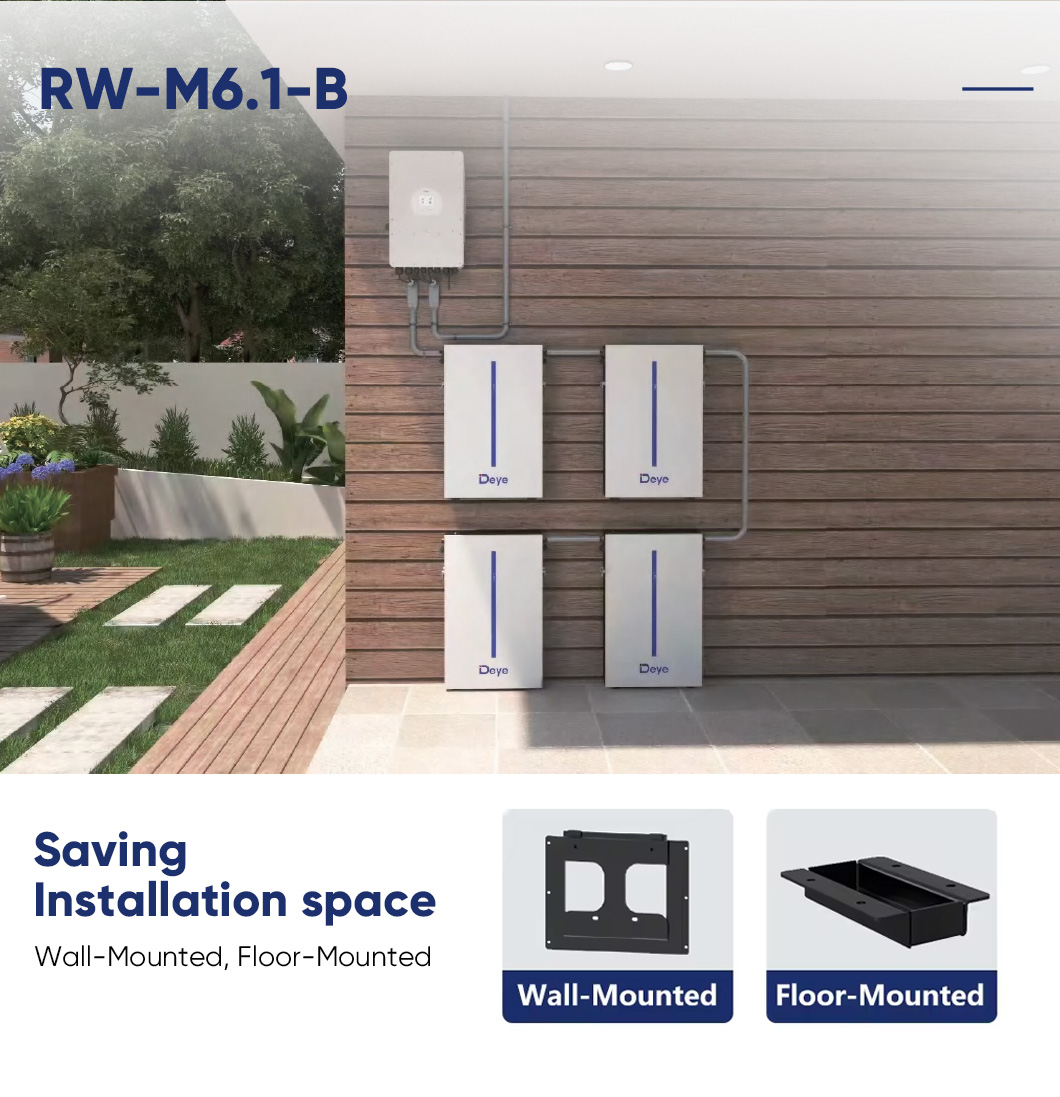

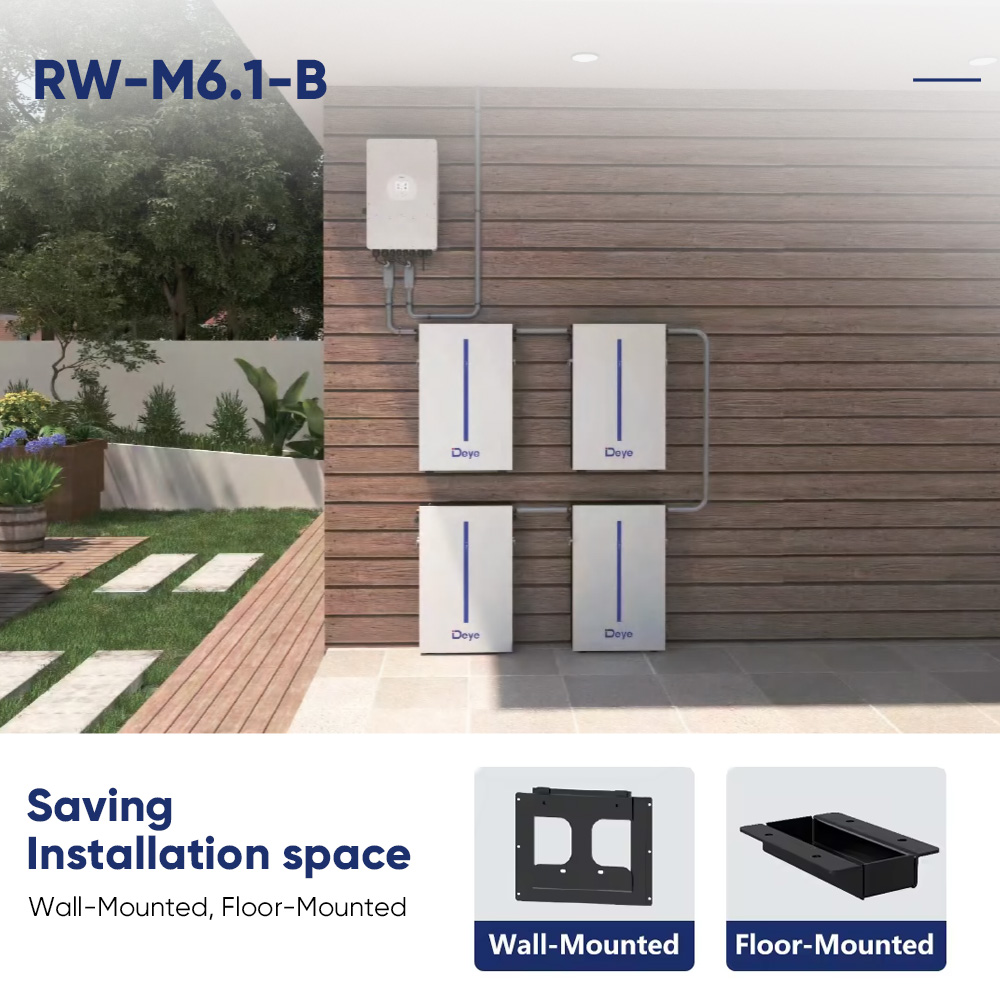

Installation	Wall-Mounted, Floor-Mounted
Communication Port	CAN2.0, RS485
Warranty Period	10 Years
Certification	UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50

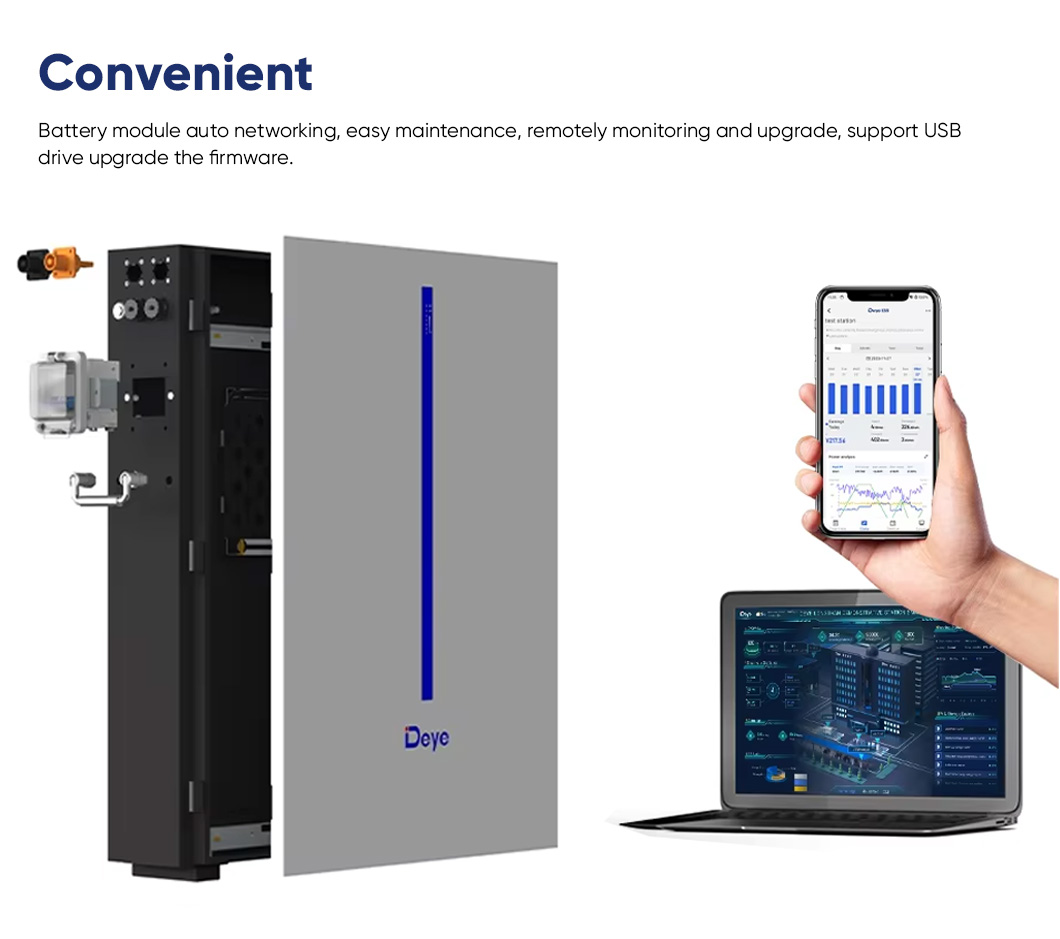

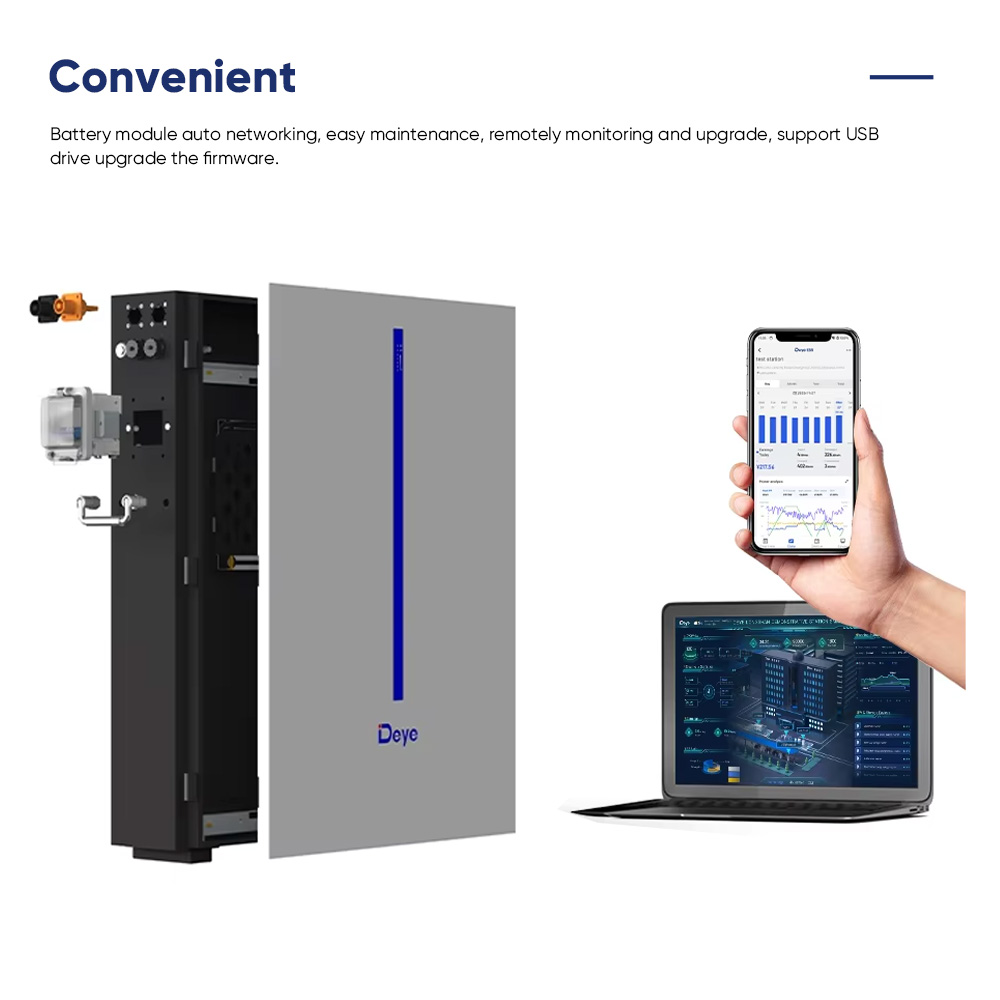

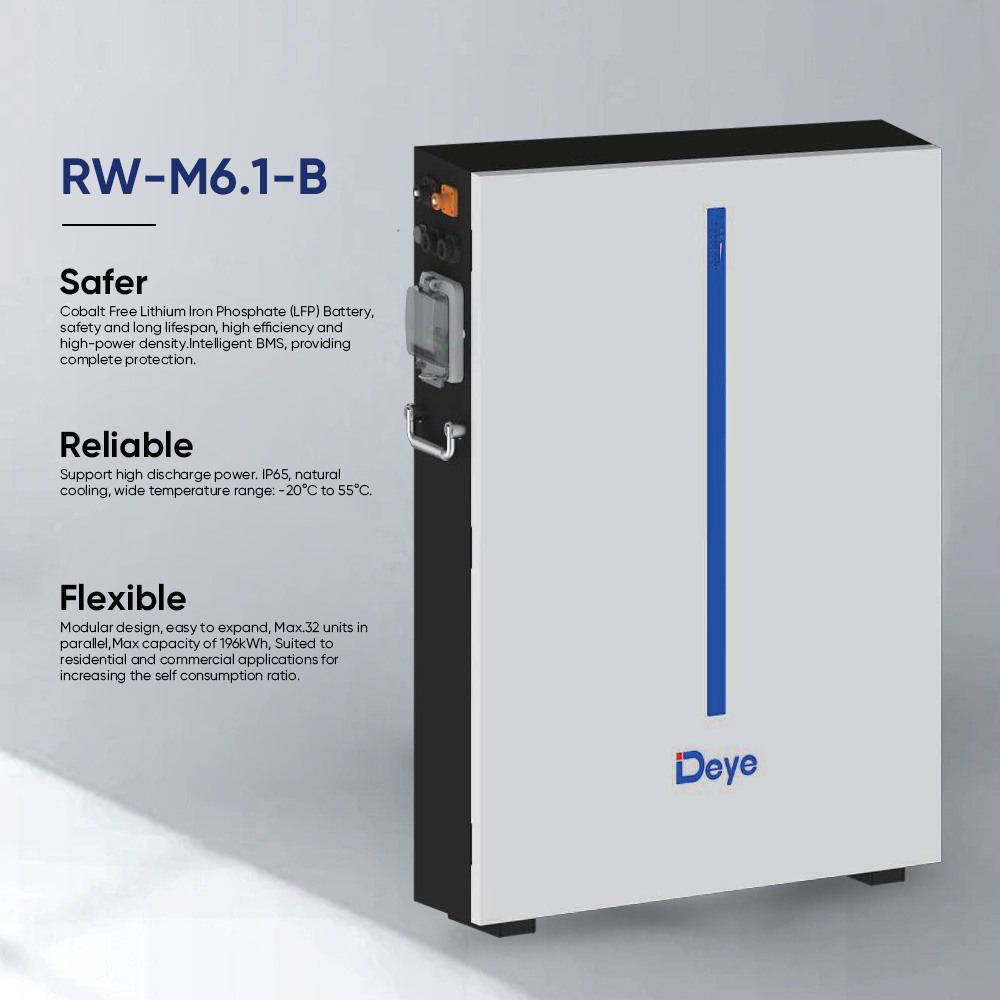

Product Characteristics & Details

Certificates

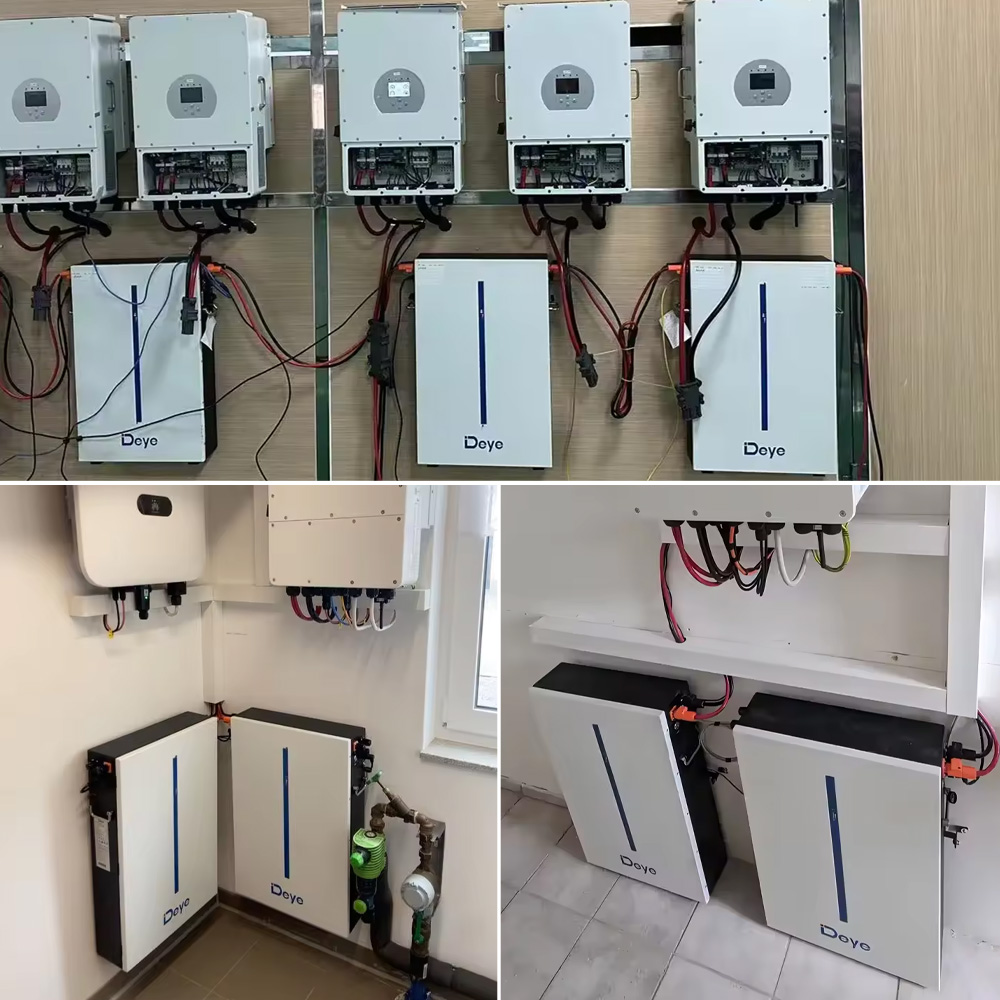

Projects

Frequently Asked Questions

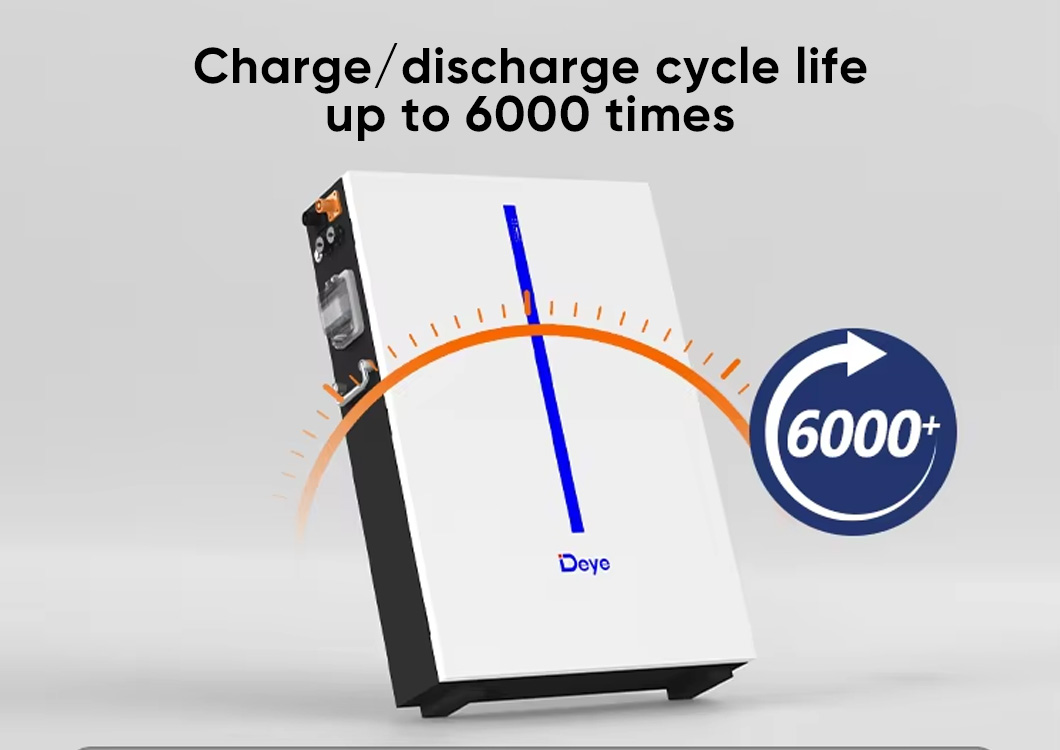

Q1: What is the cycle life of the RW-M6.1-B battery?

The battery offers a long cycle life of ≥6000 cycles at 25℃, 0.5C, and 90% Depth of Discharge (DOD).

Q2: How many batteries can be connected in parallel?

The system is highly scalable, supporting up to 32 units in parallel, reaching a total capacity of 196kWh.

Q3: Is this battery suitable for outdoor installation?

Yes, the enclosure has an IP65 rating, making it resistant to dust and water, suitable for both indoor and outdoor environments.

Q4: What communication interfaces are available?

The battery supports CAN2.0 and RS485 communication ports for seamless integration with inverters and monitoring systems.

Q5: What is the warranty period for the RW-M6.1-B?

The product comes with a comprehensive 10-year warranty, ensuring long-term reliability and performance.

Q6: What certifications does the battery have?

It is fully certified with international standards including UN38.3, IEC62619, CE, CEI 0-21, and VDE2510-50.
