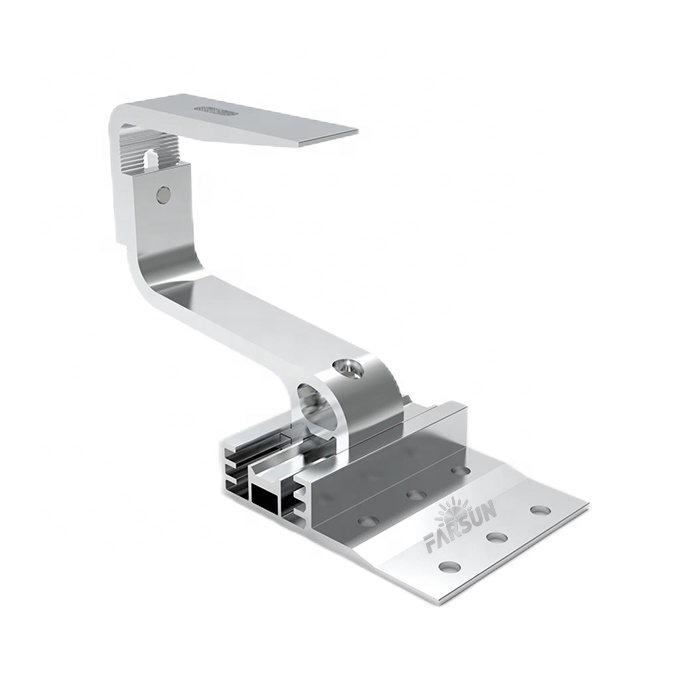

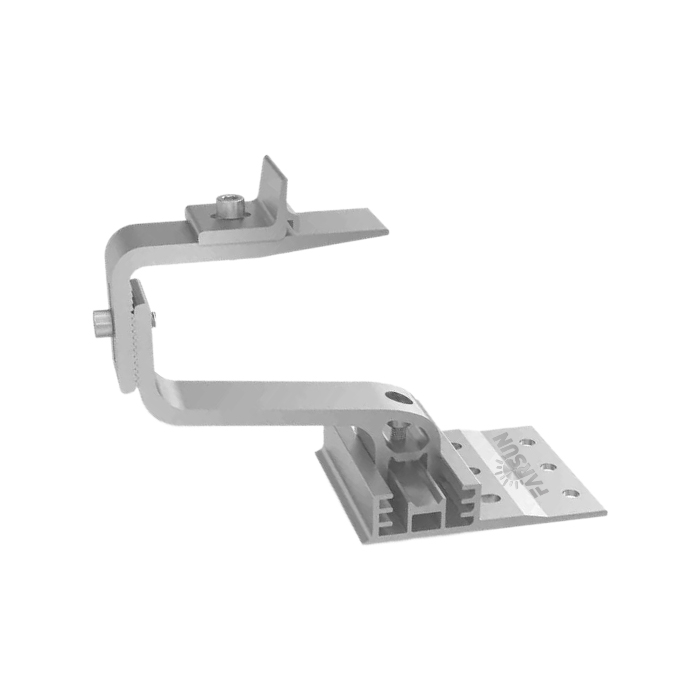

FarSun PV Panel Mounting System Railless Tile Roof PV Roof Hook

Products Description

FarSun PV Panel Mounting System Railless Tile Roof PV Roof Hook

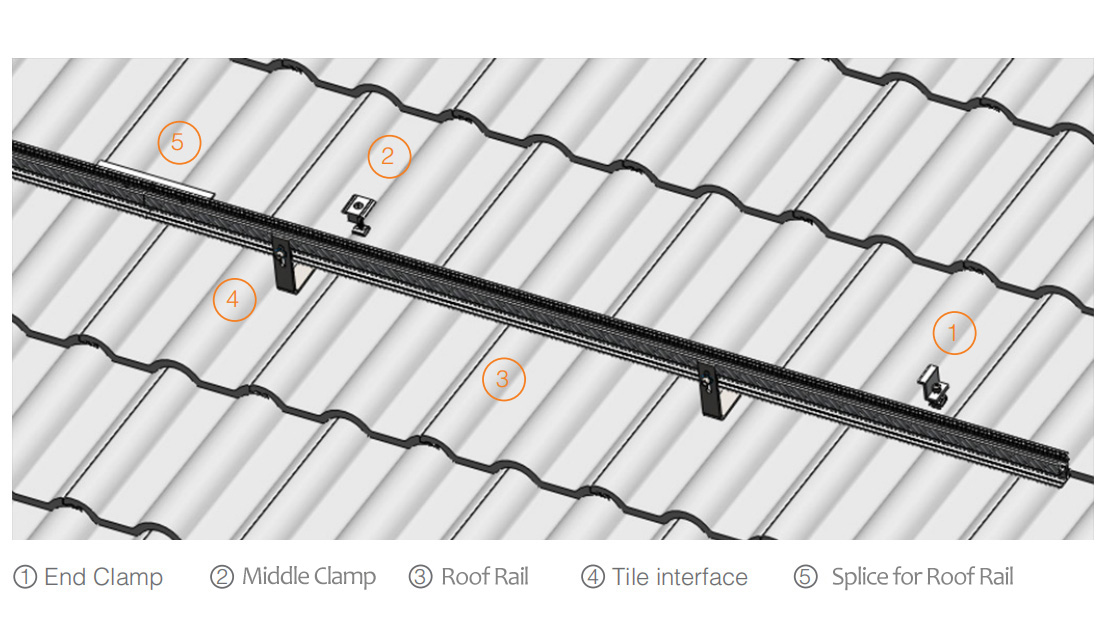

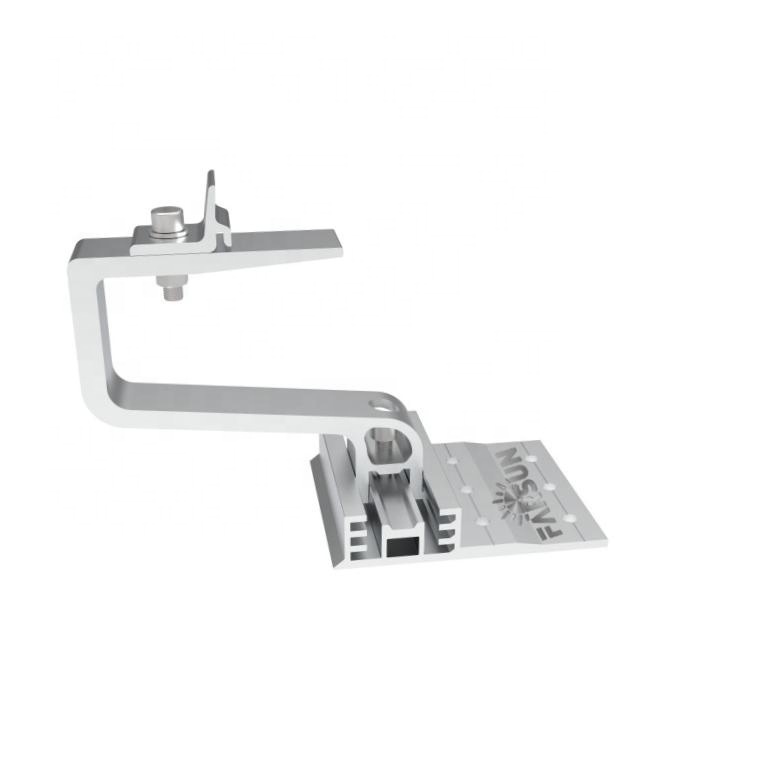

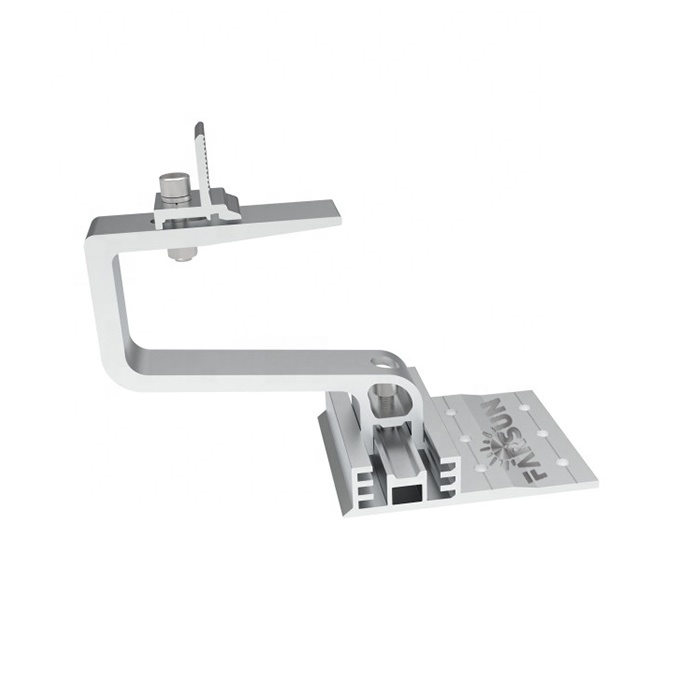

FARSUN Tile Roof Hooks System is a perfect solution for installing solar systems on roofs that use flat interlocking tile or concrete tile. No Tile augmentation is necessary to achieve a low profile install that lays flat.

Technical Parameter
Application	Tile Roof Mounting
Wind Load	≤ 60m/s
Snow Load	≤ 1.6KN/m²
Panel Orientation	Horizontal or Vertical
Standards	ASCE_7-10, EN1090, JIS8955:2017, IBC2009
Materials	SUS304 and AL6005-T5
Warranty	10 years warranty and 25 years service life

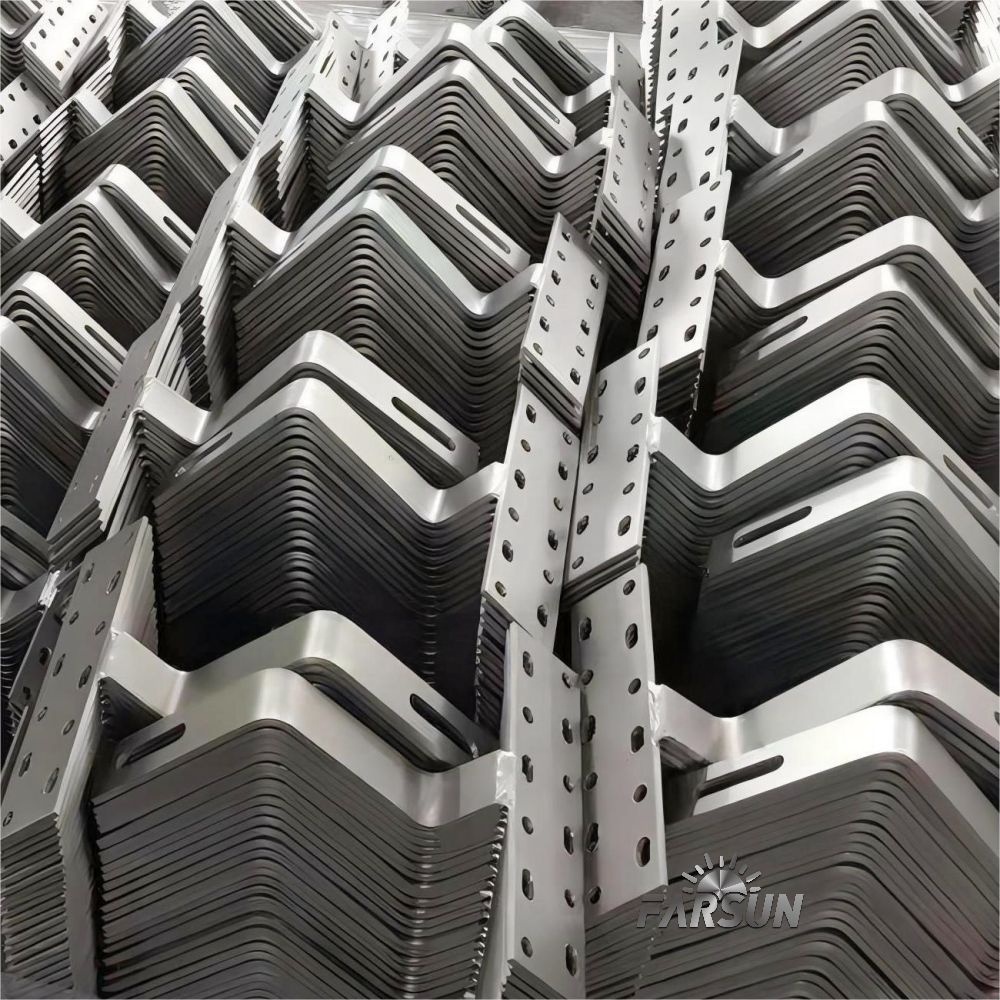

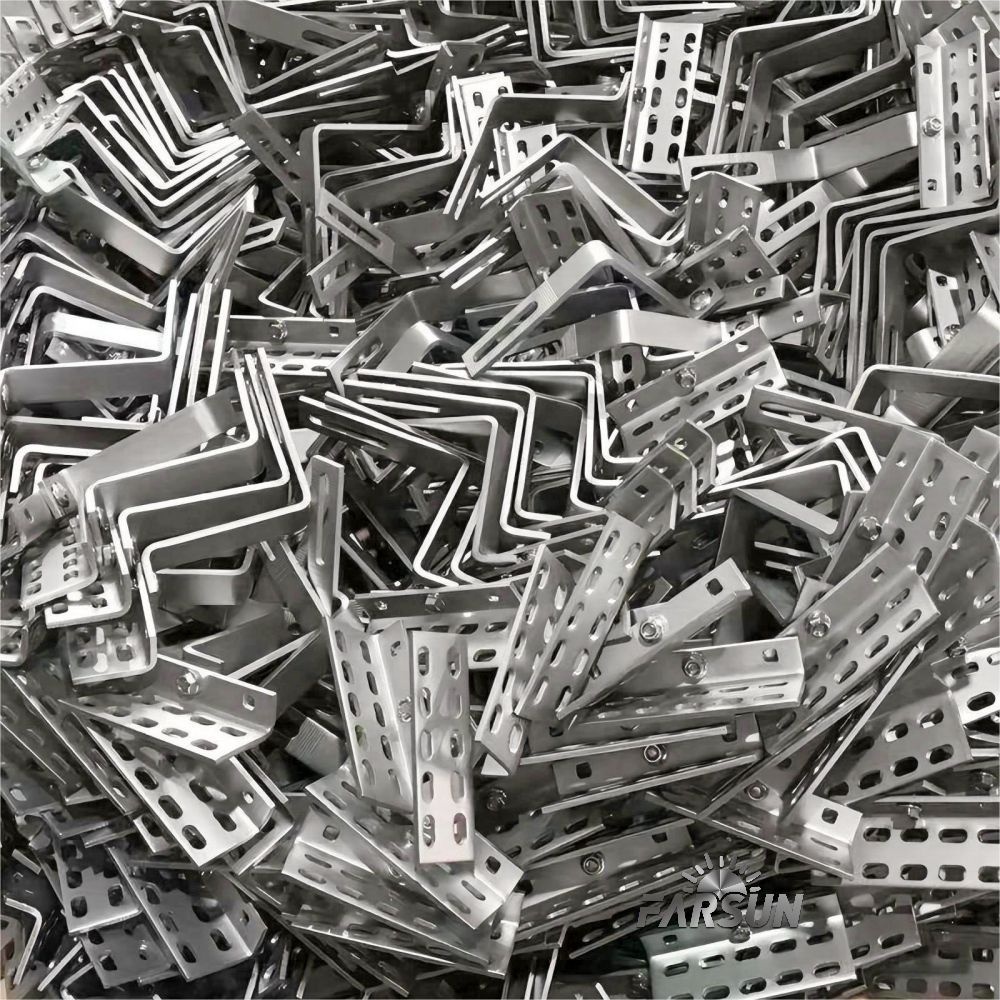

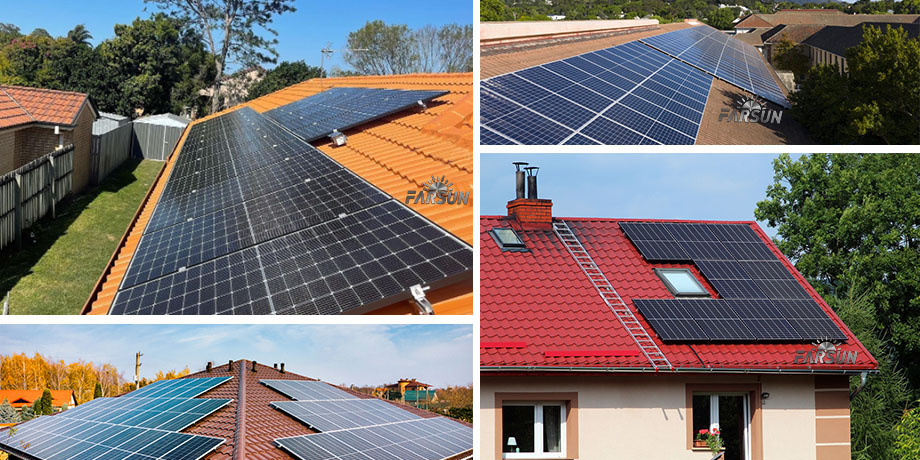

Factory Show

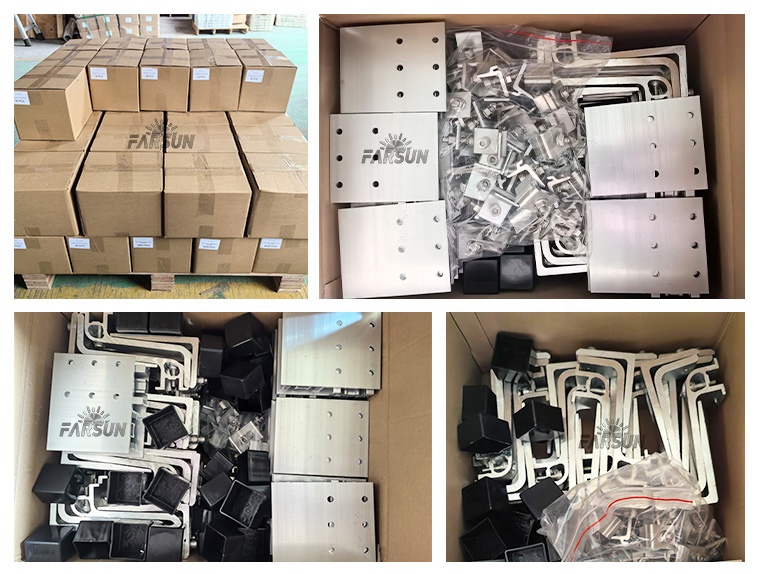

Packing Details:

📦

Wooden box for small parts and accessories.

🏗️

Steel pallet for long item of mounting rail and beam.

⏰

Delivery Time: 7-15 days.

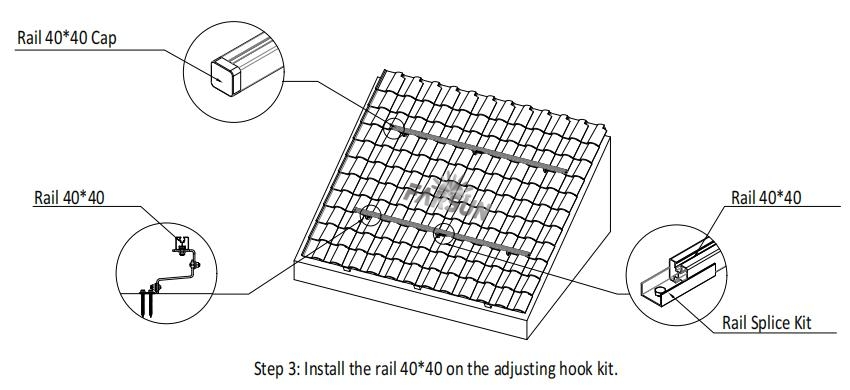

Installation Instructions

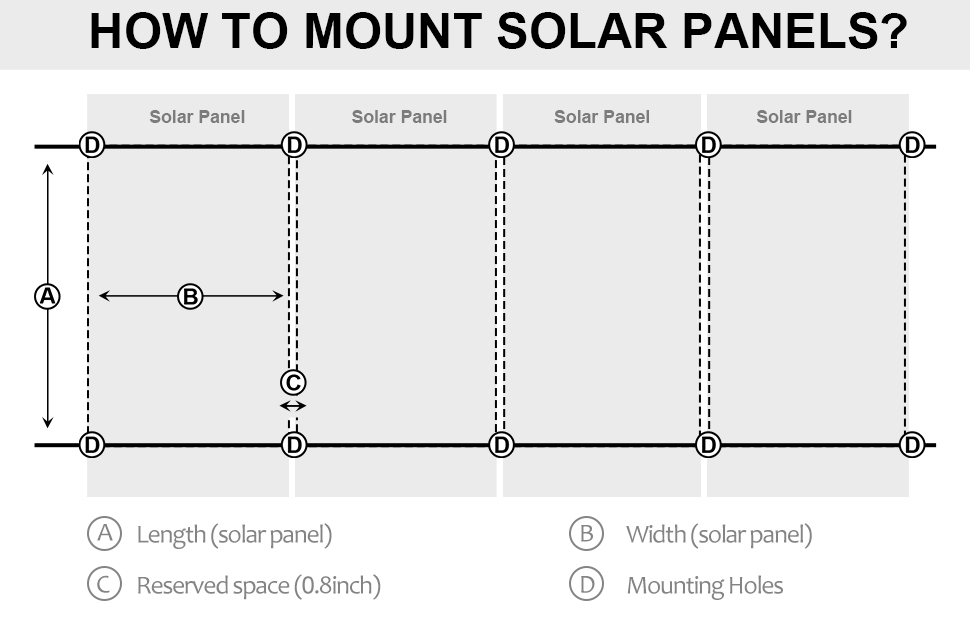

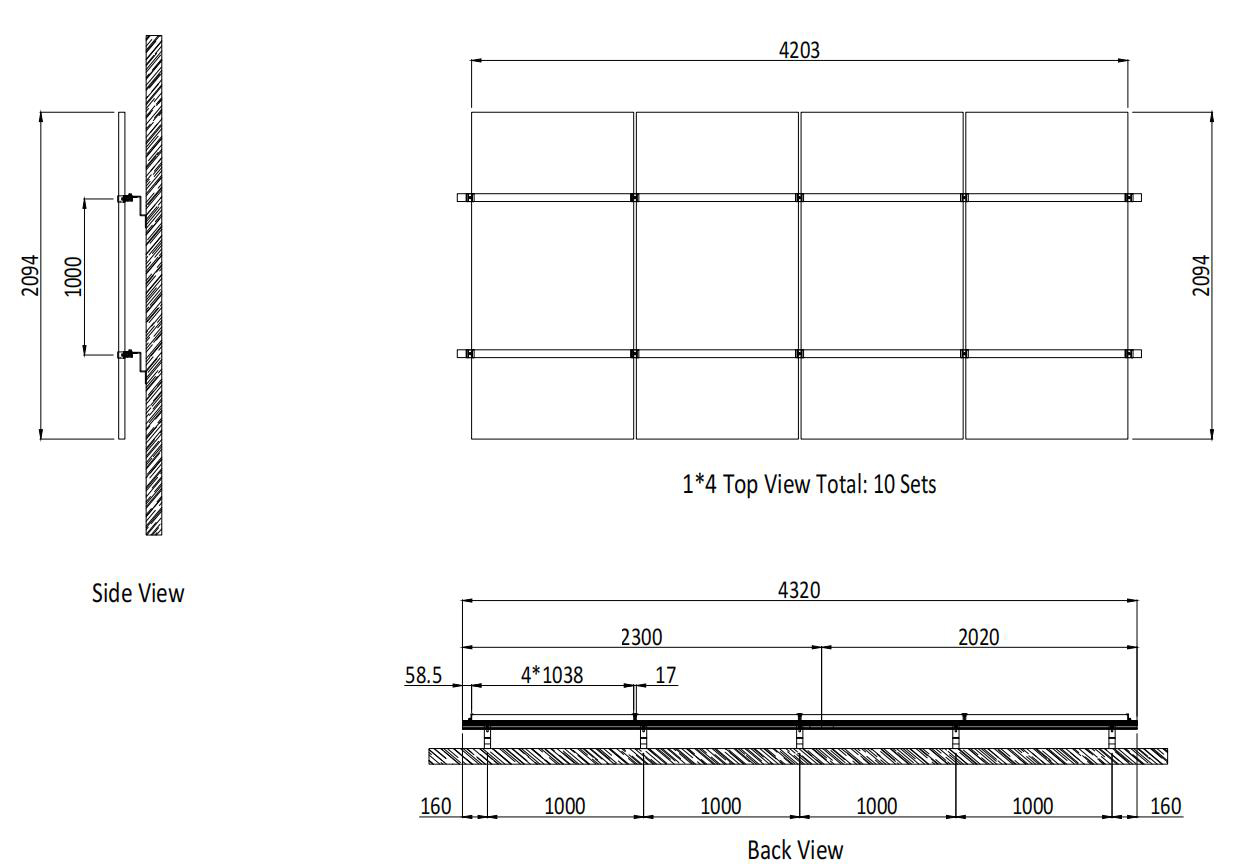

More Details & Free Design

1. What is dimension of the solar panel? _____mm Length x_____mm Width x____mm Thickness

2. How many panels will be mounted for the project? _______PCS.

3. What is your planned panel layout? ________Nos. in a row × ________Nos. in a column

4. What's wind speed and snow load? ___m/s wind speed and____KN/m2 snow load

5. What installation orientation for solar panel? _______(Horizontal or Vertical)

Frequently Asked Questions

What materials are the tile roof hooks made of?

The hooks are made of high-quality SUS304 stainless steel and AL6005-T5 aluminum, ensuring high corrosion resistance and durability.

Can these hooks withstand extreme weather conditions?

Yes, they are designed to handle wind loads up to 60m/s and snow loads up to 1.6KN/m², complying with international standards like ASCE_7-10 and JIS8955.

What type of roofs are these hooks compatible with?

The system is specifically designed for solar installations on flat interlocking tile or concrete tile roofs.

Is it necessary to modify the tiles during installation?

No, the design allows for a low-profile installation that lays flat without the need for tile augmentation.

What is the expected service life and warranty?

The product comes with a 10-year warranty and is designed for a service life of up to 25 years.

How are the mounting components packed for shipping?

Small parts and accessories are packed in wooden boxes, while long mounting rails and beams are secured on steel pallets for safe transport.
