📋 Product Parameters

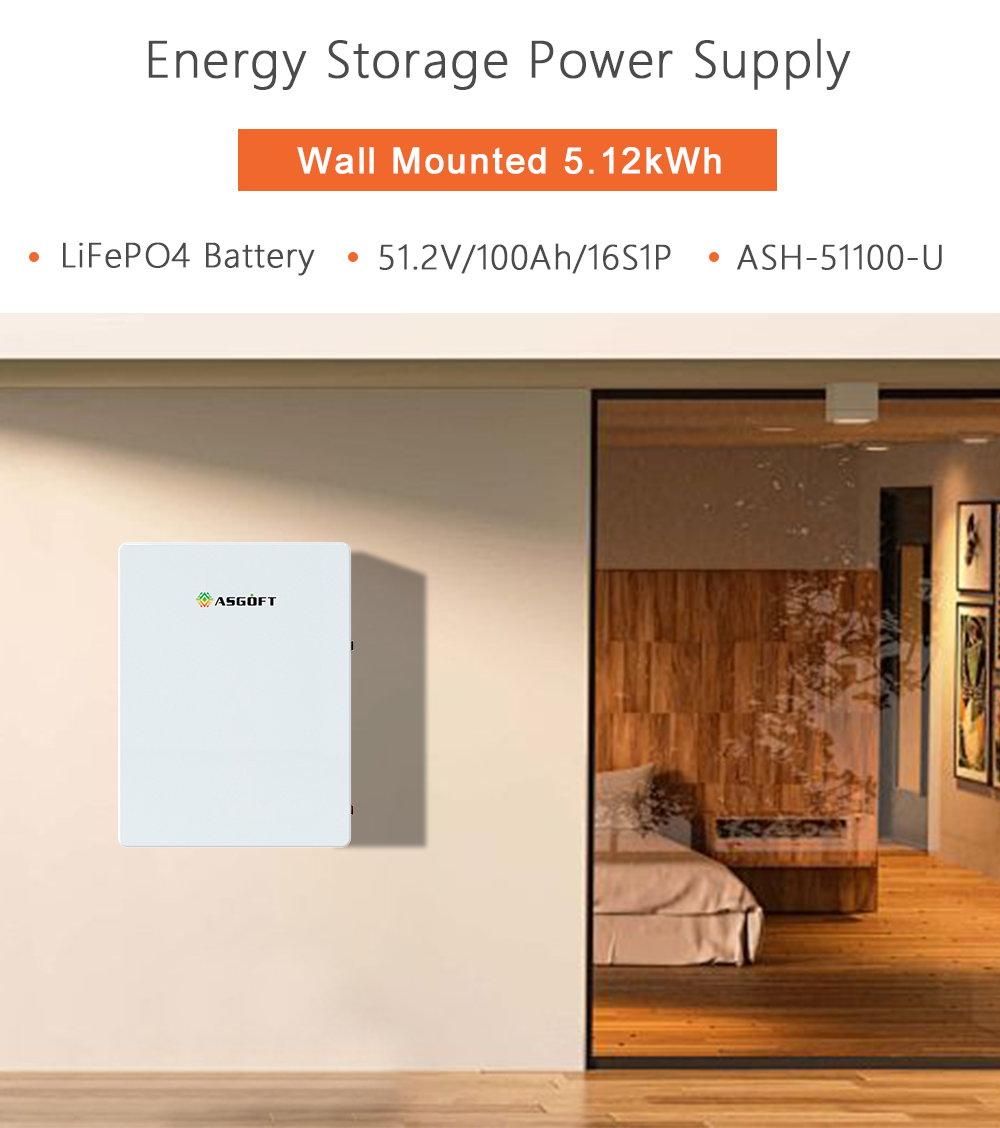

| Mode | ASH-51100-U |
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Charging Cut-off Voltage | 57.6V |
| Discharging End-off Voltage | 40V |
| Recommended Charge / Discharge Current | 50A |
| Max. Power Charge / Discharge Current | 100A |
| Peak Power Charge / Discharge Current | 200A(5s) |
| Weight | 45kg |

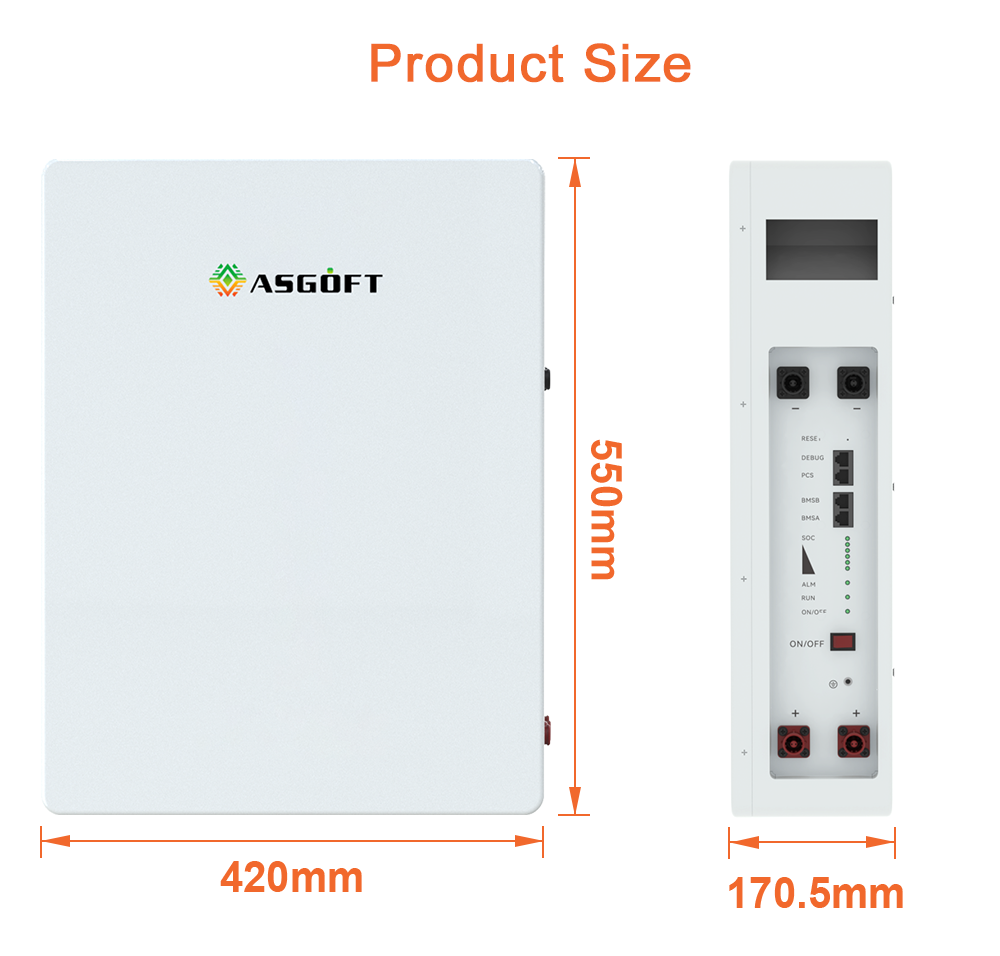

| Max. Dimension(L*W*H) | 550*420*170.5mm |
| Charging Temp. Range | 0-50℃ |
| Discharging Temp. Range | -20-60℃ |

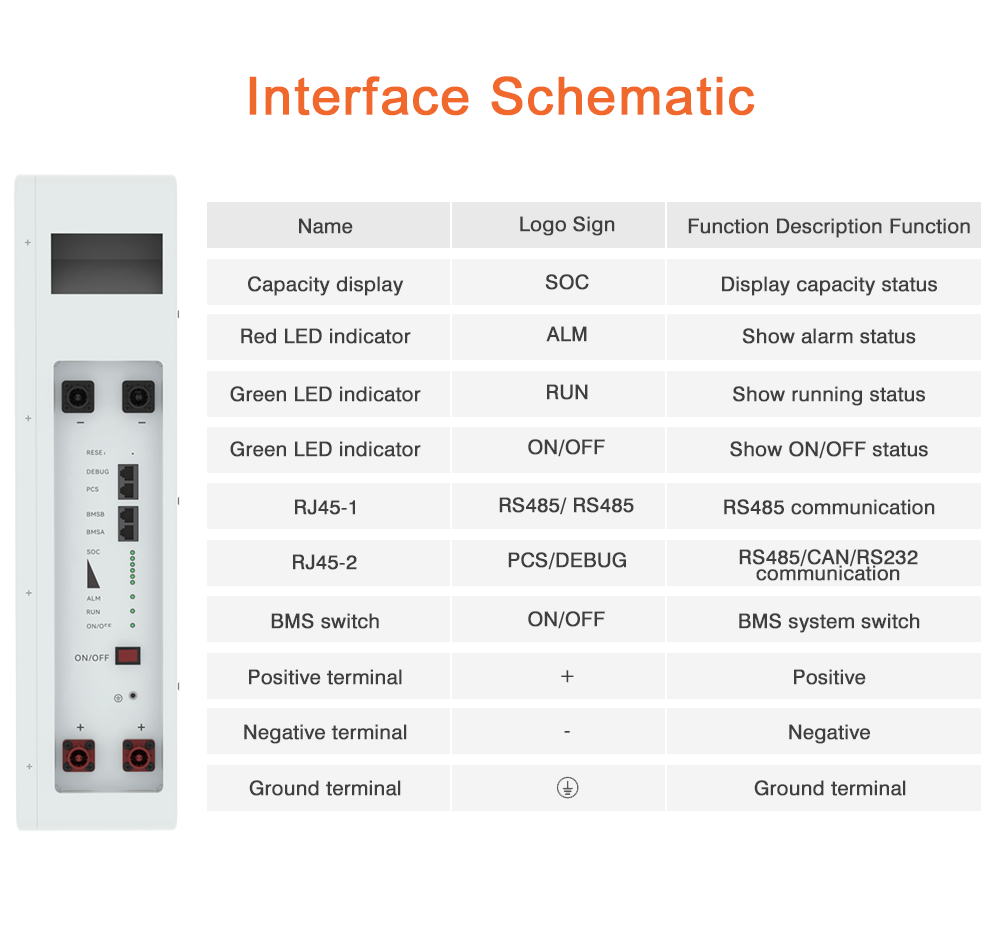

| Communication | CAN / RS485 |
| Warranty | 10 Years |
| Calendar Life | ≥5000 Cycles |
| Scalability | IP20 |
| Compatible Inverters | Victron/SMA/Goodwe/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc. |
| Certification & Safety Standard | TUV/CE/IEC62619/UN38.3 |
⭐ Our products have overseas warehouses in Germany
⭐ Welcome OEM/ODM Orders
🚚 Logistics & Transportation
❓ Frequently Asked Questions
Do you support OEM?
Yes. OEM & ODM are available.
How long is the warranty on the product?
We provide 2-year warranty service for free, and we can also provide 10-year warranty service if you need it.
How do you ensure product quality?
All of our products undergo rigorous testing before leaving the factory, and the defective rate is less than 0.2%.
Can I buy one sample for testing?
Sure, we support sample testing to ensure the product meets your requirements.
How to solve technical problems?
We have professional engineers to provide you with free after-sales service consultation 24 hours a day, so that your problems can be easily solved.
What is the product delivery time?
Sample: 2-3 working days. Order: within 3-15 working days depending on the quantities. OEM order: 7-25 working days after sample confirmation.
