Hybrid Smart MPPT Solar Charge Controller WiFi Auto 12V24V48V 100A 60A Lead-Acid Lithium LiFePO4 150V Battery Charge

1 / 5

Hybrid Smart MPPT Solar Charge Controller WiFi Auto 12V24V48V 100A 60A Lead-Acid Lithium LiFePO4 150V Battery Charge

Send Inquiry

Product Description

Specification

Model	60 A
Charging Mode	MPPT Automatic Maximum Power Point Tracking
Charging Method	Three stages : Constant Current ( MPPT), Balanced Charging, Floating Charge
System Type	12 V/ 24 V/ 48 V (Automatic Identification/ Manual Setting)
System Identification Voltage Range	12V: DC 9V-15V \| 24V: DC 18V-30V \| 48V: DC 36V-60V
Soft Start / Dynamic Response	Time: ≤10 s \| Recovery Time: ≤500 us
Static Power	≤2 W
Machine Efficiency	≥96.5%
PV Module Utilization	≤99.97%
Input Characteristics
MPPT Operating Voltage Range	12V: DC 18V-150V \| 24V: DC 34V-150V \| 48V: DC 65V-150V
Input Low Voltage Protection	Point: 12V: DC 16V / 24V: DC 30V / 48V: DC 60V \| Recovery: 12V: DC 18V / 24V: DC 34V / 48V: DC 65V
Limit / Overvoltage	Limit Input: DC 160 V \| Protection: DC 150 V \| Recovery: DC 145 V
Maximum Solar Panel Input Power	12V System: 700W \| 24V System: 1400W \| 48V System: 2800W
Output Characteristics
Optional Battery Type	Lead-acid maintenance-free Battery, Gel Battery, Liquid Battery, Lithium Battery (Customizable)

Packing & Delivery

📦 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

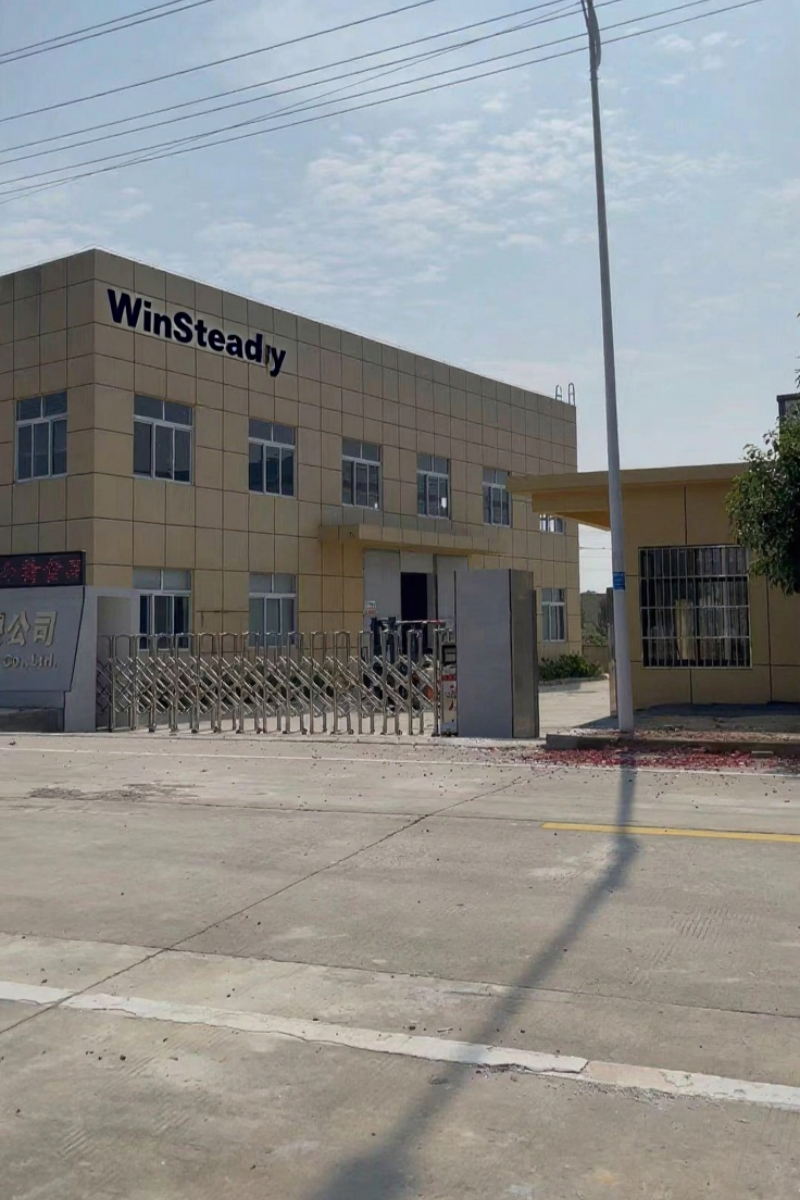

🛡️Reliable Partner Since 2017: Integrated Factory & Trader with 7 Years Expertise.

📜Global Certifications: CE, FCC, UN38.3 compliance.

🔋Core Products: Residential/Commercial Energy Storage, Portable Power Stations (300W-2000W), High-Efficiency Solar Panels, and Solar Kits.

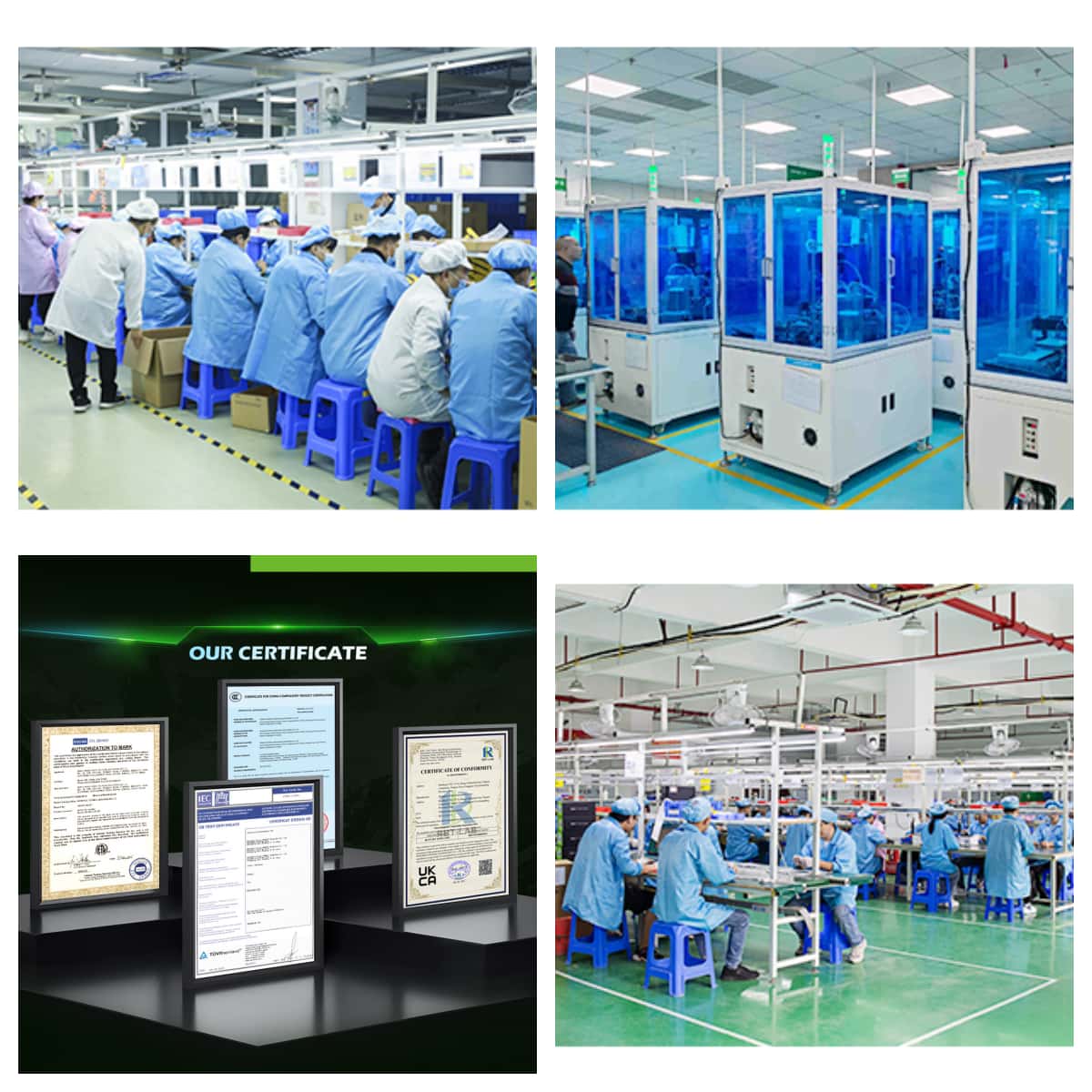

🏭Production Power: 5,000㎡ production base with strict QC and 20,000+ units monthly capacity.

💡R&D Focus: 15+ engineers launching 10+ new models yearly.

FAQ

Q1: Do you offer OEM/ODM customization?

Yes. We can customize battery capacity (Wh), solar panel size/wattage, branding (logo/packaging), and output ports (USB-C PD/AC/etc.).

Q2: Why choose LiFePO4 batteries over standard lithium-ion?

LiFePO4 offers 3,000+ life cycles, zero fire/explosion risk (thermally stable), wider temperature tolerance (-20°C to 60°C), and a 2-year warranty.

Q3: What certifications do your products hold?

All products comply with CE, FCC, RoHS, UN38.3, PSE (Japan), and KC (Korea). MSDS/ISO reports are available upon request.

Q4: What safety protections are built-in?

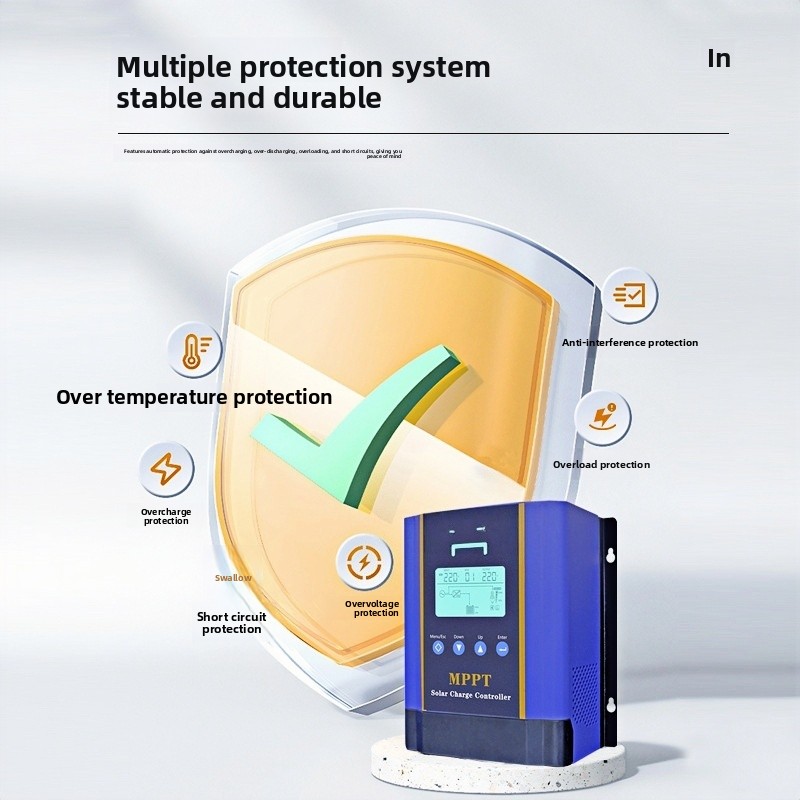

An advanced Battery Management System (BMS) includes Overcharge/over-discharge protection, Short-circuit/overload prevention, and temperature control.

Q5: What is the minimum order quantity (MOQ) and delivery time?

Standard MOQ is 2-5 units. Samples take approx 15 days, while bulk orders are completed in 15-30 days.

Q6: What if products are defective?

We provide a 2-year warranty. Replacements are typically shipped within 7 days, and we offer 24/7 technical support.
