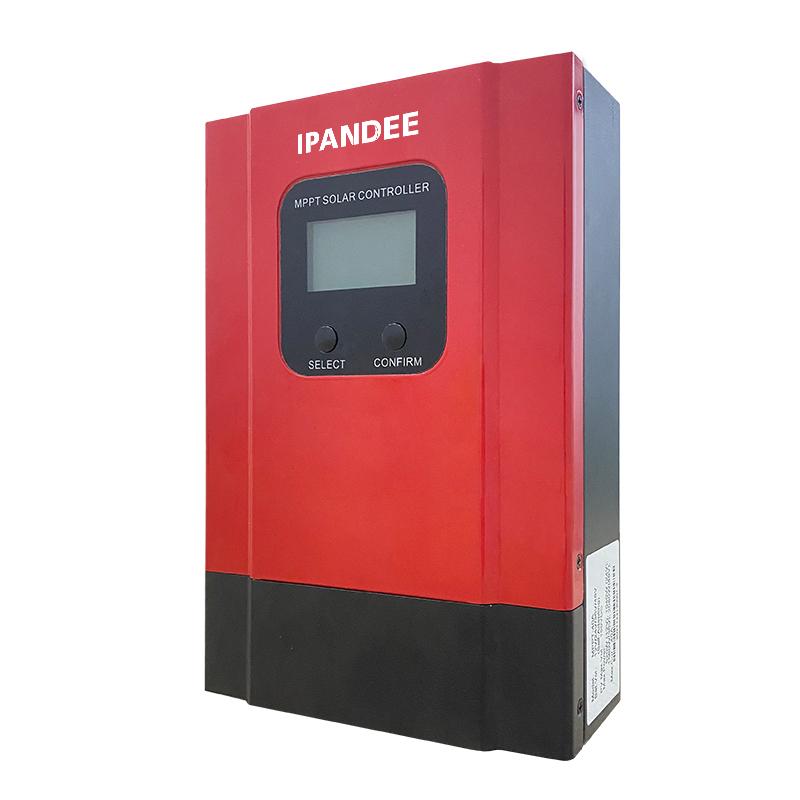

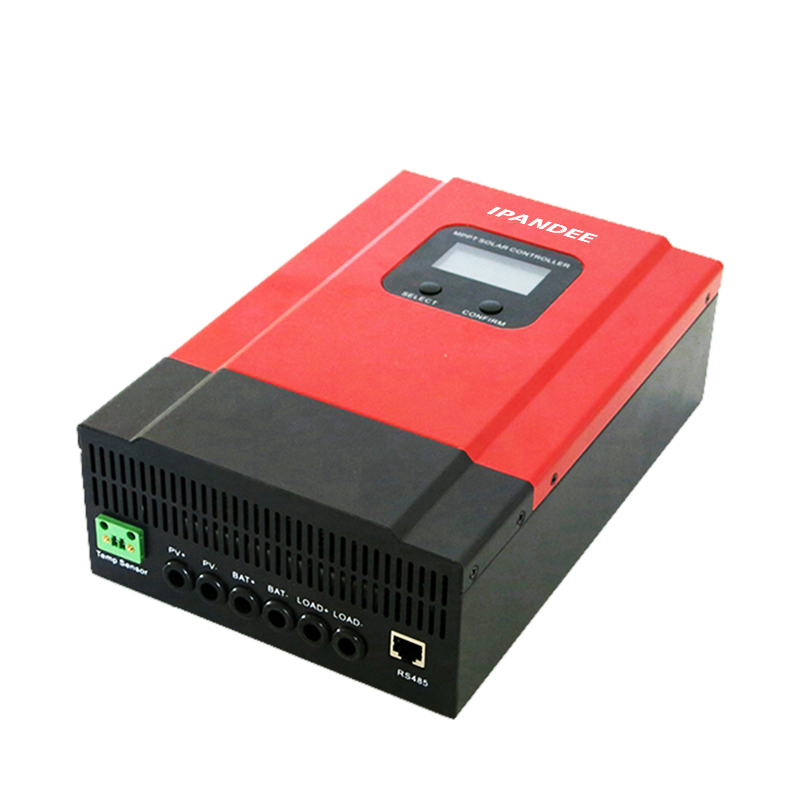

Ipandee Photovoltaic Off-Grid System Auto Esmart3 20-60A 12V 24V 36V 48V 36Volt Solar Charge Controller Mppt With Wifi App

📋 Products Description

Esmart series			E20	E30	E40	E50	E60
Product Category	MPPT efficiency		≥99.5%
	Standby power		0.5W~1.2W
	Heat-Dissipating method		Air-cooled
	System voltage		Auto
Input Characteristics	Max.PV input voltage(Voc)		DC150V
	Rated PV Power	12V system	260W	390W	520W	650W	780W
		24V system	520W	780W	1040W	1300W	1560W
		36V system	780W	1170W	1560W	1950W	2340W
		48V system	1040W	1560W	2080W	2600W	3120W
Charge Characteristics	Battery types		Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER),Li-ion(LIT)
	Rated charge current		20A	30A	40A	50A	60A
	Charge method		3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
Communication	Display		HD LCD backlight display

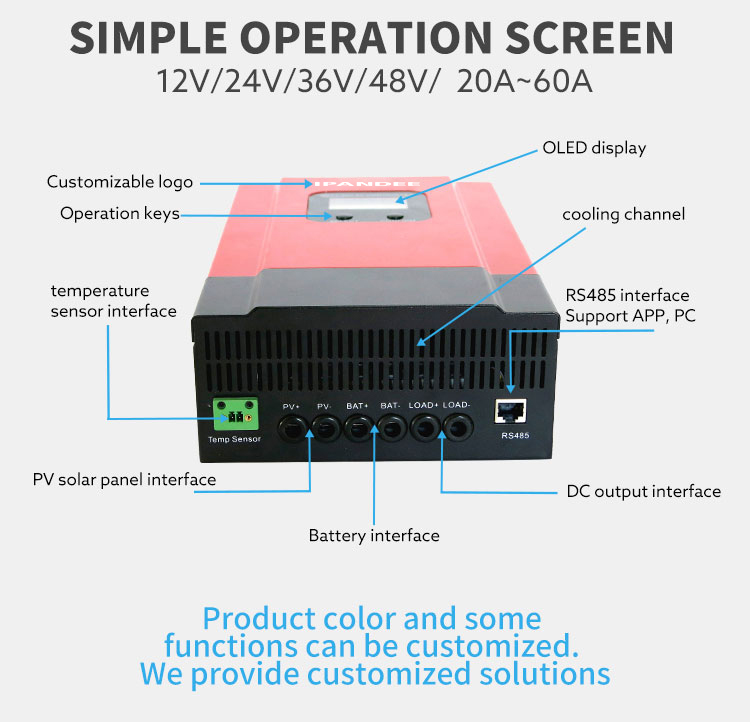

Communication	Communication Port		8-pin RJ45 / RS485 / Support WiFi APP & PC Software
Physical Parameters	N.Weight (KG)		2.3			2.6

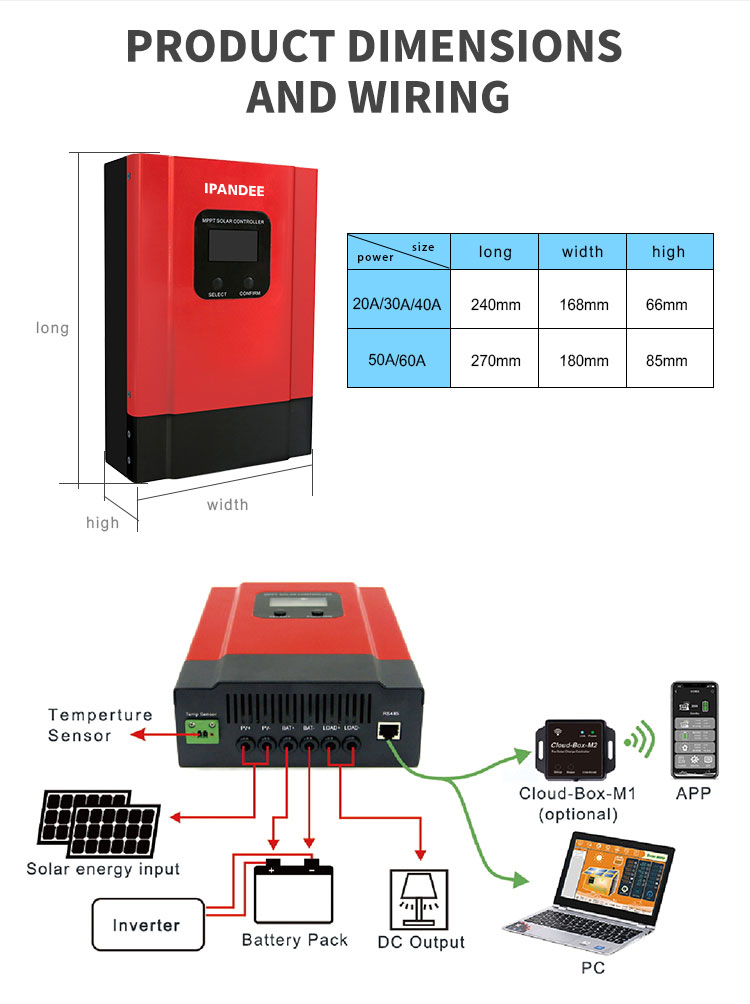

Physical Parameters	Product size (mm)		240x168x66			270x180x85

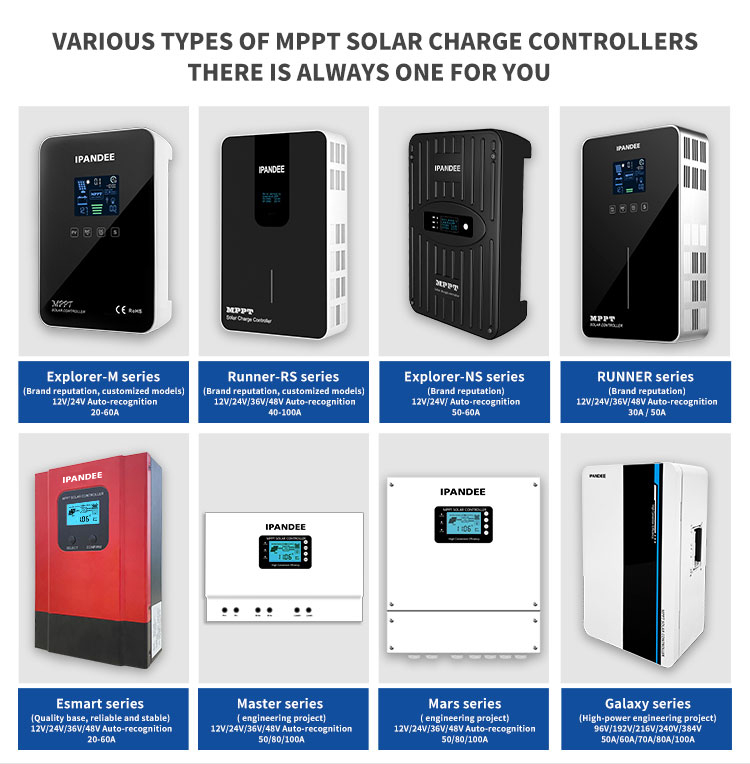

🌟 Recommend Products

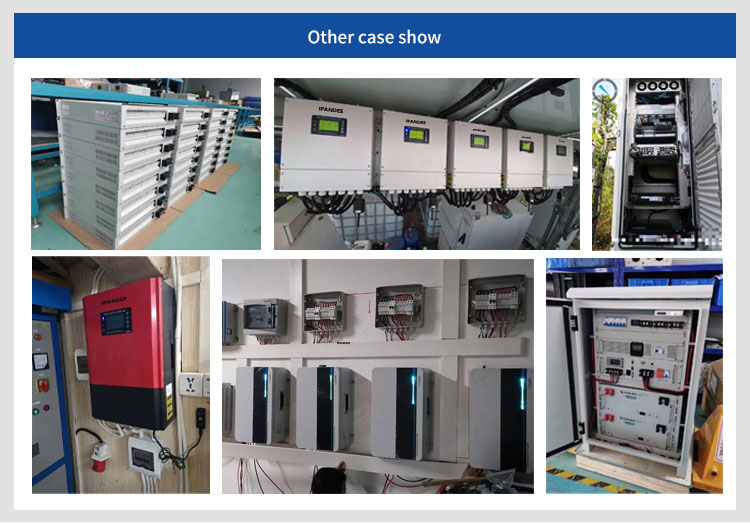

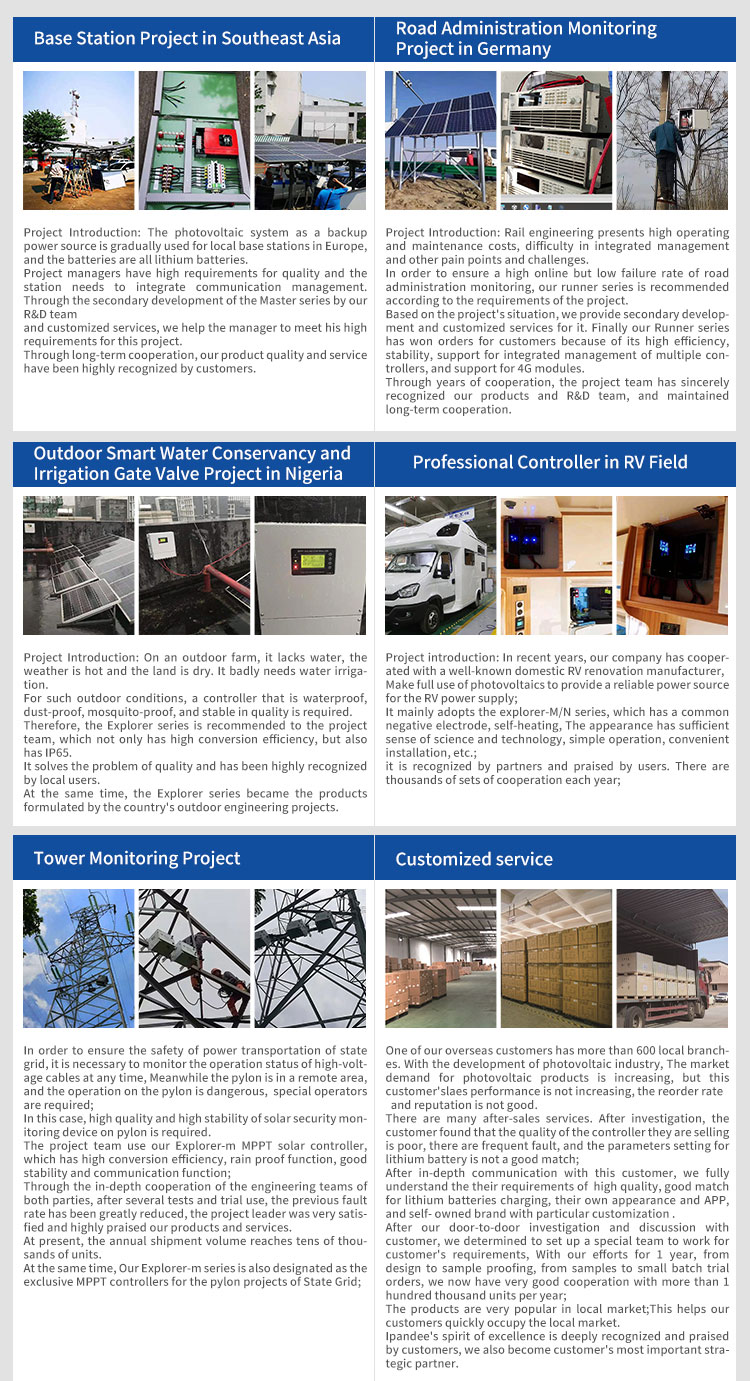

🏗️ Marketing And Project Cases

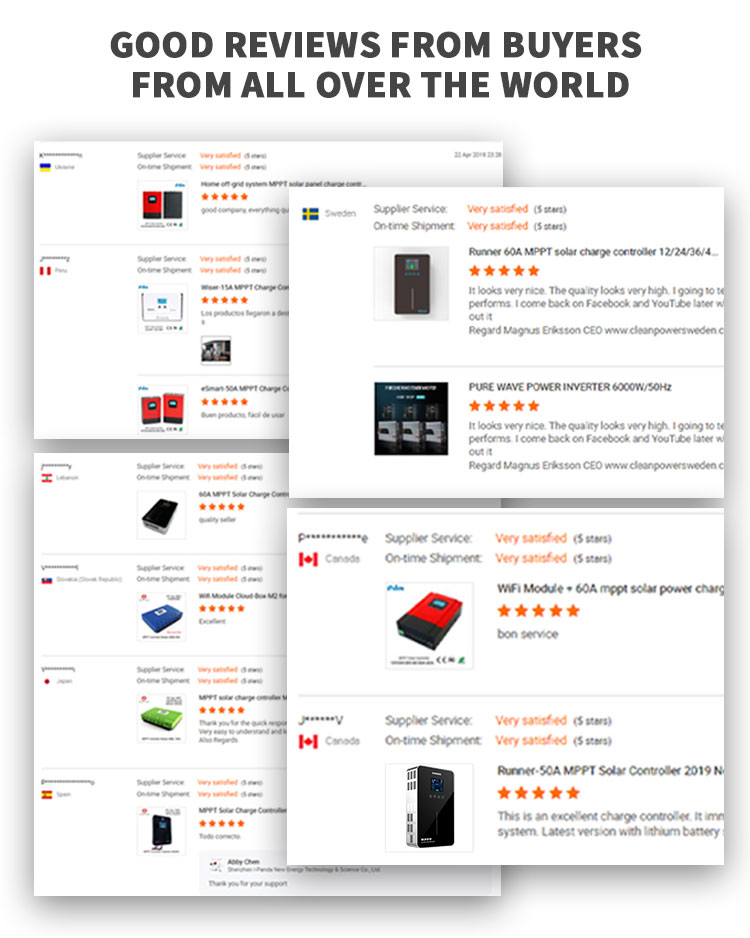

💬 Customer Feedback

📜 Certifications

🎪 Exhibition

🏢 Company Profile

❓ FAQ

Are you a manufacturer or trading company?

We are a state-level high-tech enterprise with 11 years experience that integrates R&D and manufacturing solar charge controllers.

Can I buy one sample for testing?

Yes, we can provide regular samples or customized samples to meet all kinds of testing needs.

Do you support OEM and ODM services?

Yes, as a factory manufacturer, we support RTS, drop shipping, and OEM/ODM projects (MOQ > 200 Pcs/Model).

How to choose a right MPPT solar charge controller?

Share your requirements with us, and our professional team will recommend the most suitable MPPT controller based on your system needs.

What is the delivery time for orders?

3 days for samples or stock items; 7-15 days for bulk orders depending on the quantity and specifications.

What is the warranty and after-sales support?

We provide a 24-month warranty and life-time free technical support. Extended warranty options are also available.
