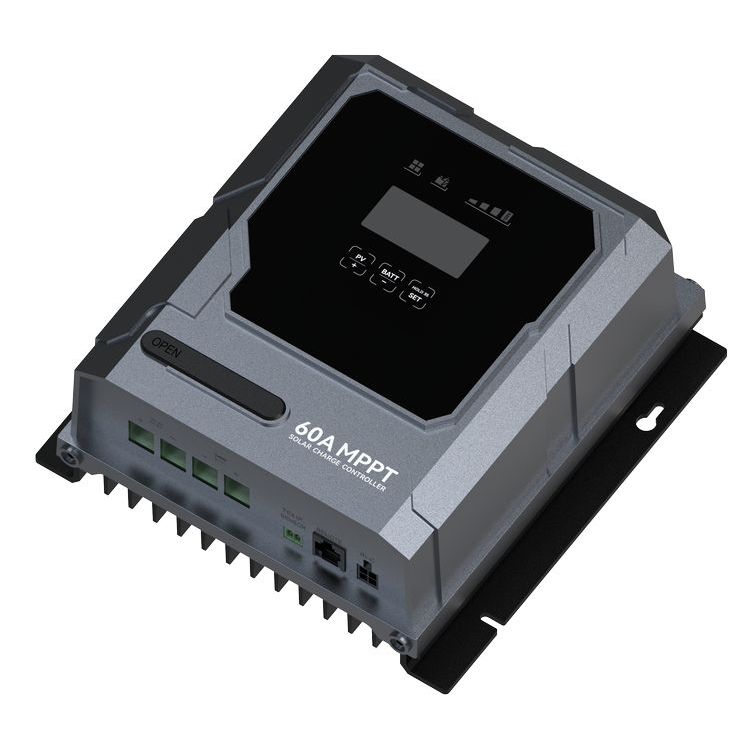

Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
1 / 5
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging
Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging

Intelligent MPPT Solar Controller 60A Solar Voltage Stabilizing Charging Controller 12V 24V with Solar Panel Charging

Send Inquiry

Product Description

Technical Specifications
Smart Charge Controller PA2460
System Nominal Voltage 12/24V Auto Recognition
Max PV Open Circuit Voltage 100Vdc
Charging Technology MPPT (Maximum Power Point Tracking)
Max PV Charging Current 60A
Battery Type Compatibility Crystal, Gel, AGM, WET, Calcium/LCO, LFP, LTO
Housing Case Color Black/Gray
IP Grade IP43 for inside PCBA, IP22 for connection area
Weight 1.9 kg
Dimensions (L*W*H) 201mm × 195mm × 85mm
Product Overview
Smart Charge Controller Specification
Manufacturing & Quality Control

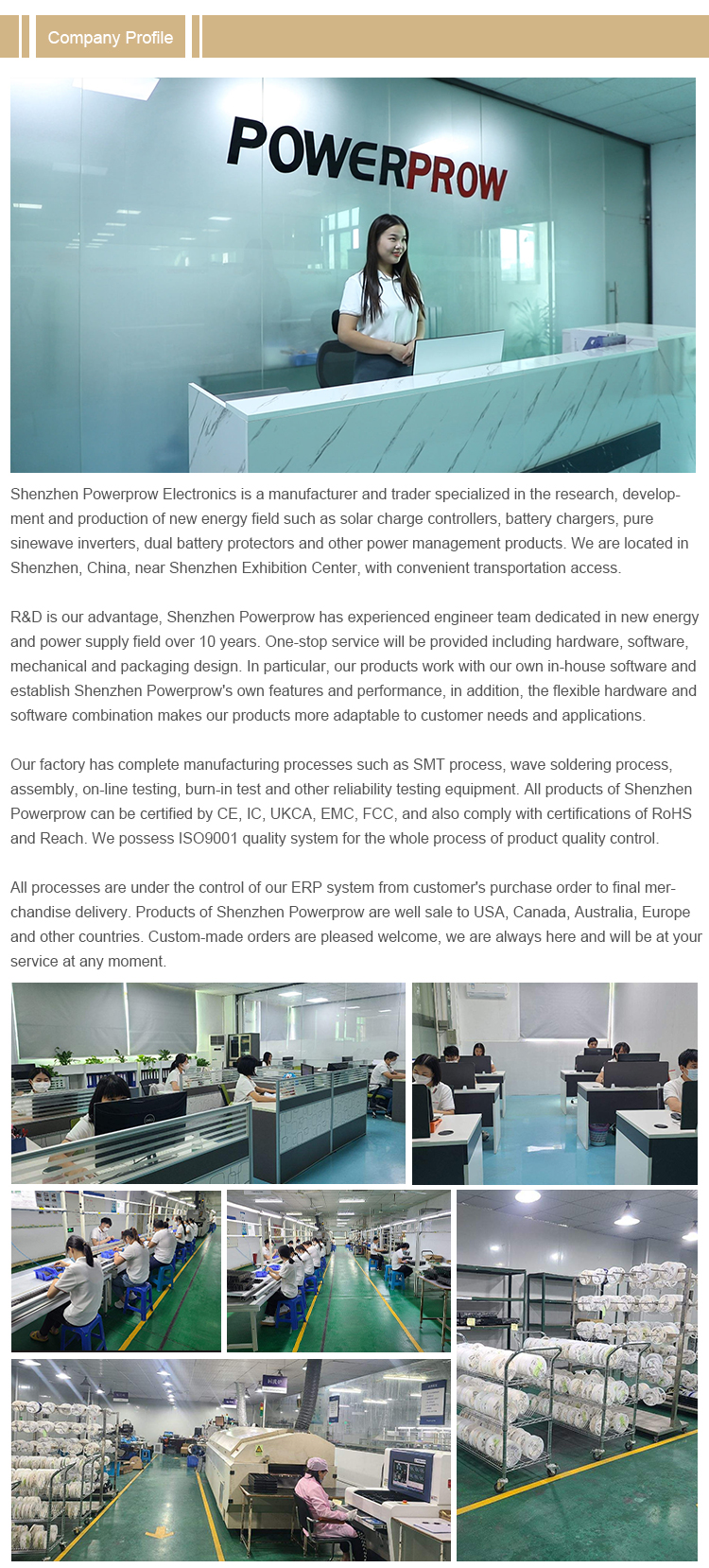

Production Process 1

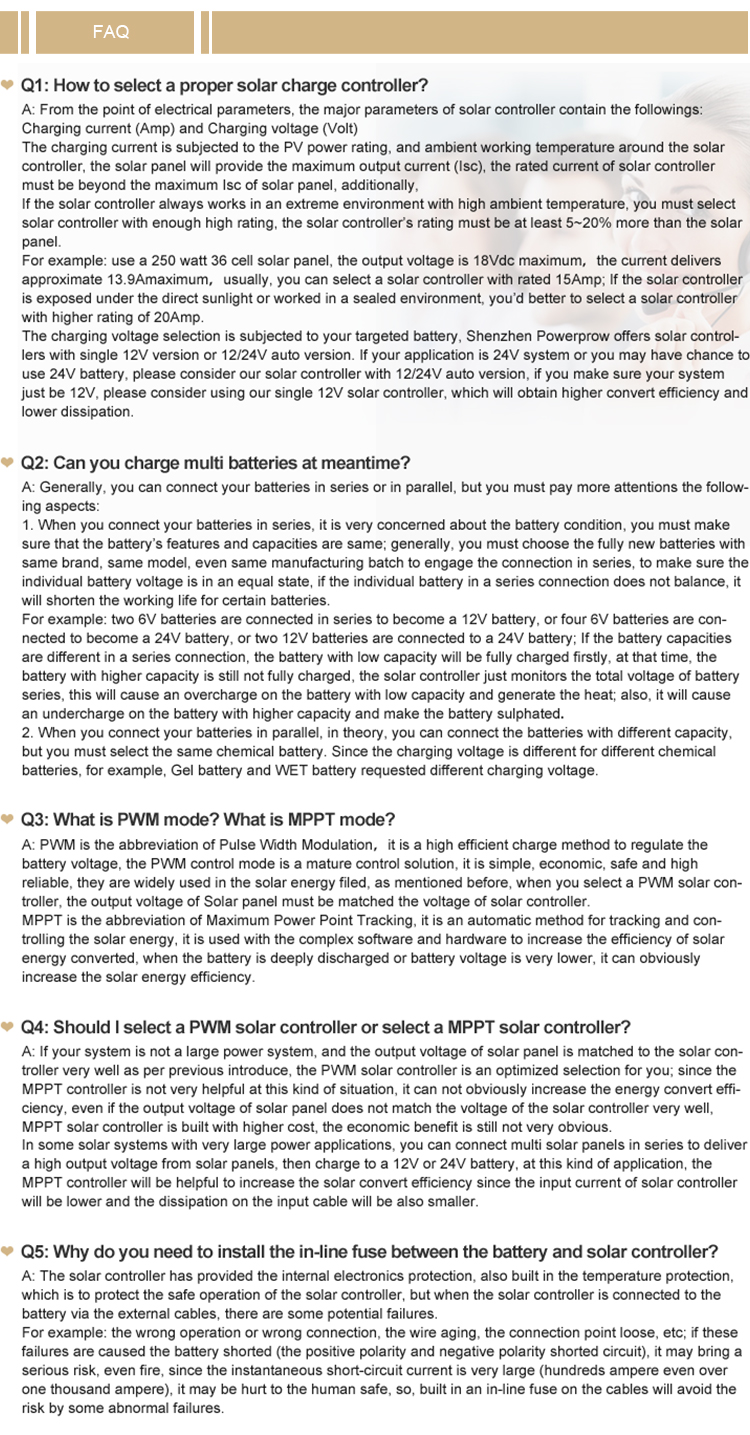

Production Process 2
Production Process 3
Frequently Asked Questions
What is the advantage of MPPT technology in this controller?
MPPT technology allows the controller to track the maximum power point of the solar array, ensuring higher efficiency and up to 30% more power harvest compared to PWM controllers.
Does the controller support lithium batteries?
Yes, the PA2460 features presets for various battery types, including LFP (Lithium Iron Phosphate) and LTO (Lithium Titanate Oxide).
Is the system voltage manually set?
No, the controller features an auto-recognition function for 12V and 24V systems, simplifying the installation process.
What is the maximum solar input voltage?
The controller can handle a maximum PV open circuit voltage (Voc) of up to 100Vdc.
What does the IP43 rating signify?
The internal PCBA is protected to IP43 standards, offering protection against solid objects and light water spray, while the connection area is rated IP22.
What are the physical dimensions of the PA2460?
The controller measures 201mm in length, 195mm in width, and 85mm in height, with a weight of 1.9kg.
