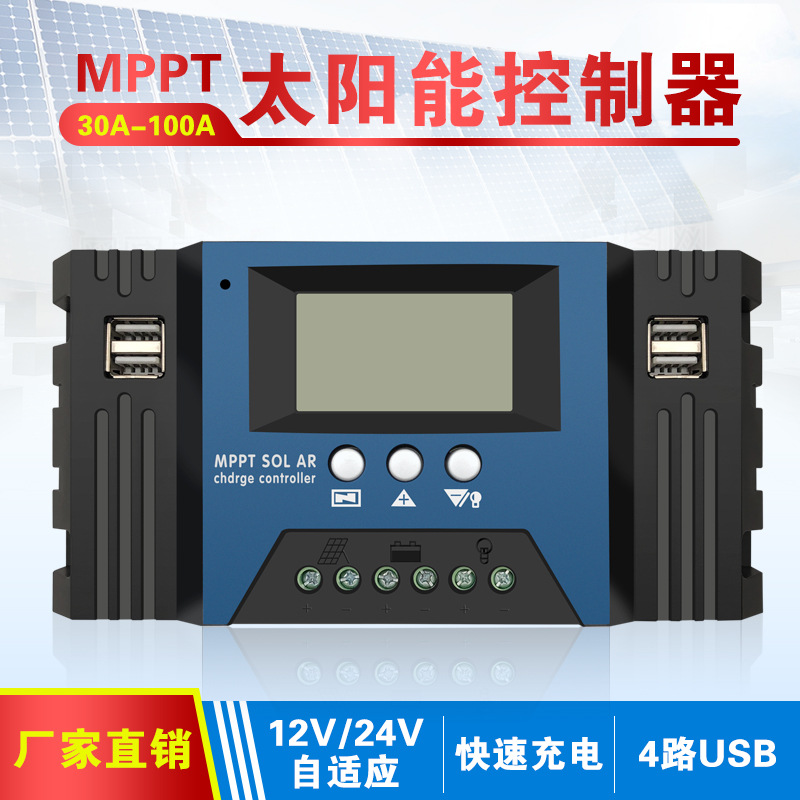

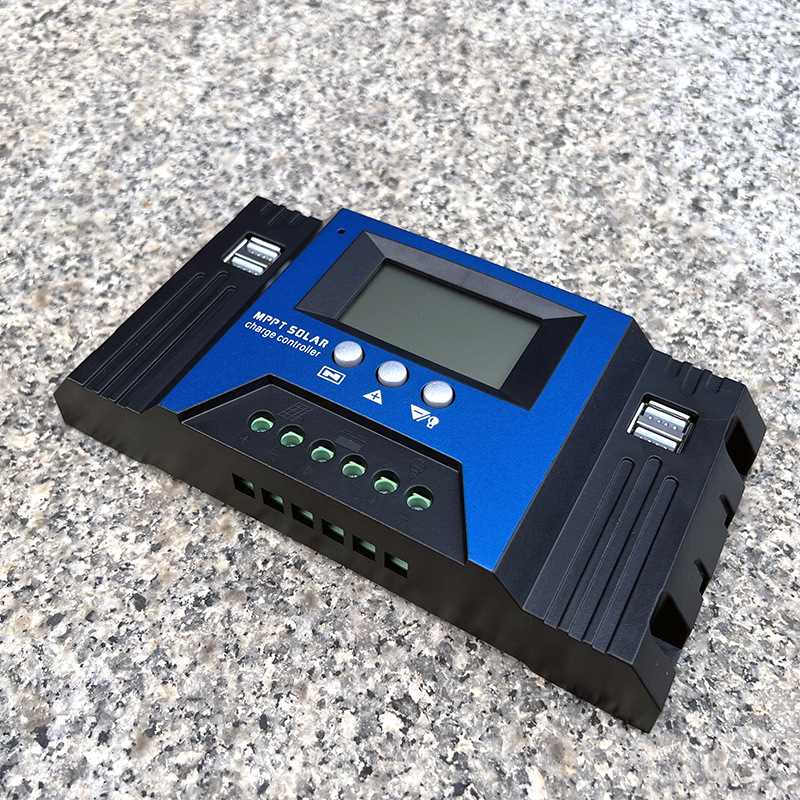

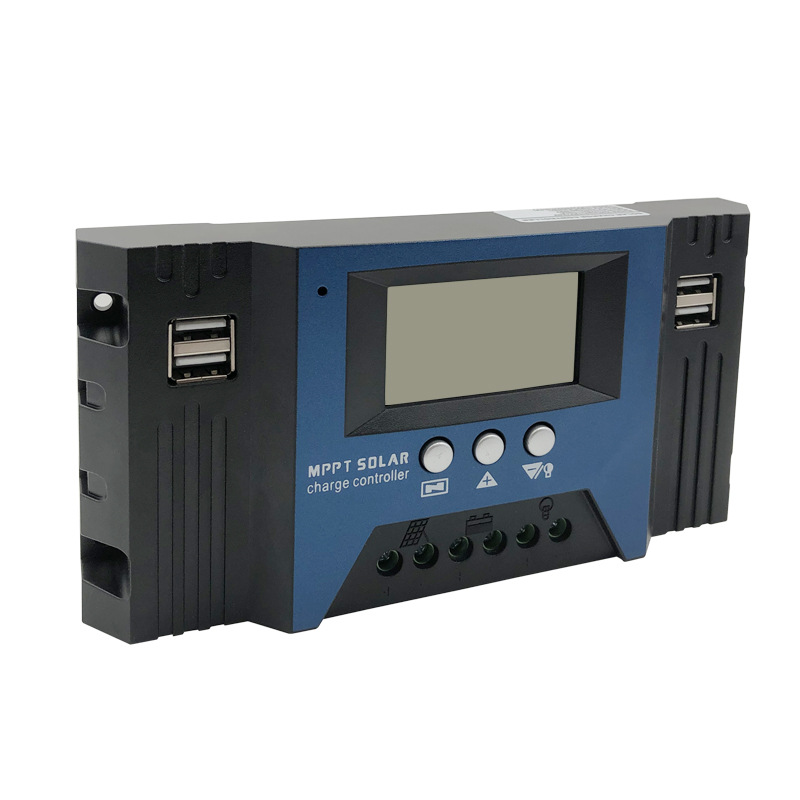

The 100A MPPT Solar Charge Controller is an industrial-grade smart PV system controller designed for outdoor and home off-grid power generation. Featuring high-precision AD sampling and advanced MPP tracking technology, it ensures maximum efficiency for solar energy harvesting. This controller supports multiple battery types and is optimized for e-commerce platforms like Amazon, eBay, and AliExpress.
Compatible with Lead-acid (12V/24V Auto), Lithium-ion, and LiFePO4 batteries.
Equipped with an industrial-grade main control chip and 16-level AD sampling accuracy for precise MPP tracking.
Real-time display of charging/discharging current, cumulative power generation, and temperature.
Built-in protection against overheating, overcurrent, short circuit, open circuit, and reverse connection with auto-recovery.
Features 5V/2A MAX USB ports, supporting mobile device charging including iOS devices.
Utilizes a bidirectional MOS tube anti-backflow circuit for ultra-low heat performance.
| System Voltage | 12V / 24V Auto-adaptive |
|---|---|
| Rated Charging Current | 30A | 40A | 50A | 60A | 100A |
| Rated Discharge Current | 10A | 20A | 20A | 30A | 30A |
| Max PV Voltage | 23V (for 12V Battery) | 46V (for 24V Battery) |
| Battery Cut-off (Full) | B1: Lead-acid (14.2V) | B2: Ternary Lithium (12.2V) | B3: LiFePO4 (14.6V) |
| Float Charge Voltage | 14.2 V (Default, Adjustable) |
| Discharge Cut-off | 10.7 V (Default, Adjustable) |
| Discharge Recovery | 12.6 V (Default, Adjustable) |
| Standby Current | <10mA |
| Operating Temp | -35°C to +60°C |
| USB Output | 5V / 2A MAX |
Environment: Install the controller and battery in a well-ventilated area, away from high temperatures, humidity, and flammable materials. Do not block the controller's vents or install it inside a vehicle without proper ventilation.
