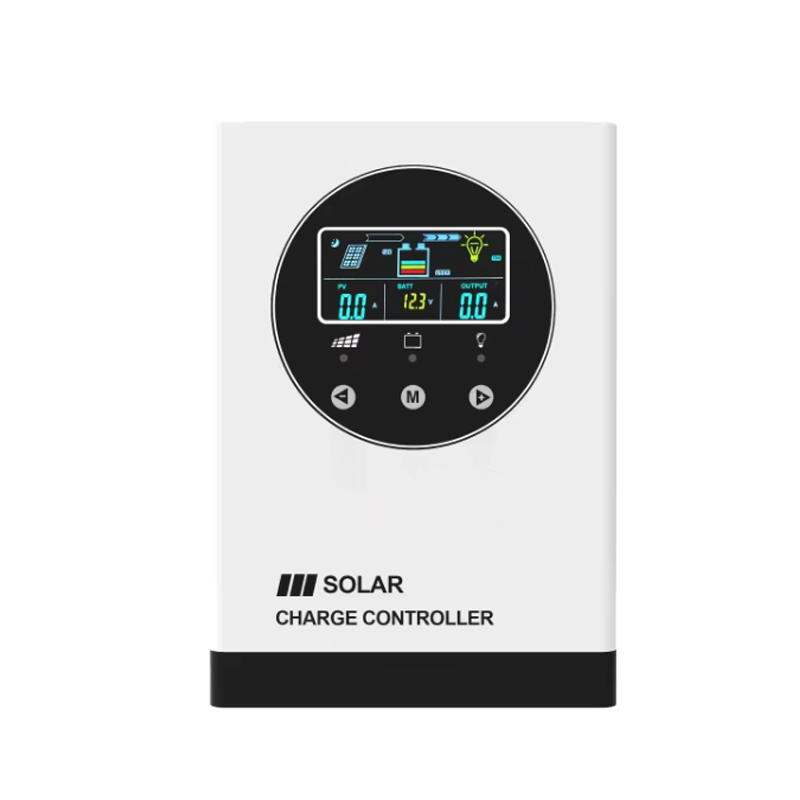

30A-100A MPPT Solar Charge Controller 12V/24V/36V/48V Smart Controller for Home/RV/Commercial Solar System

Send Inquiry

Product Description

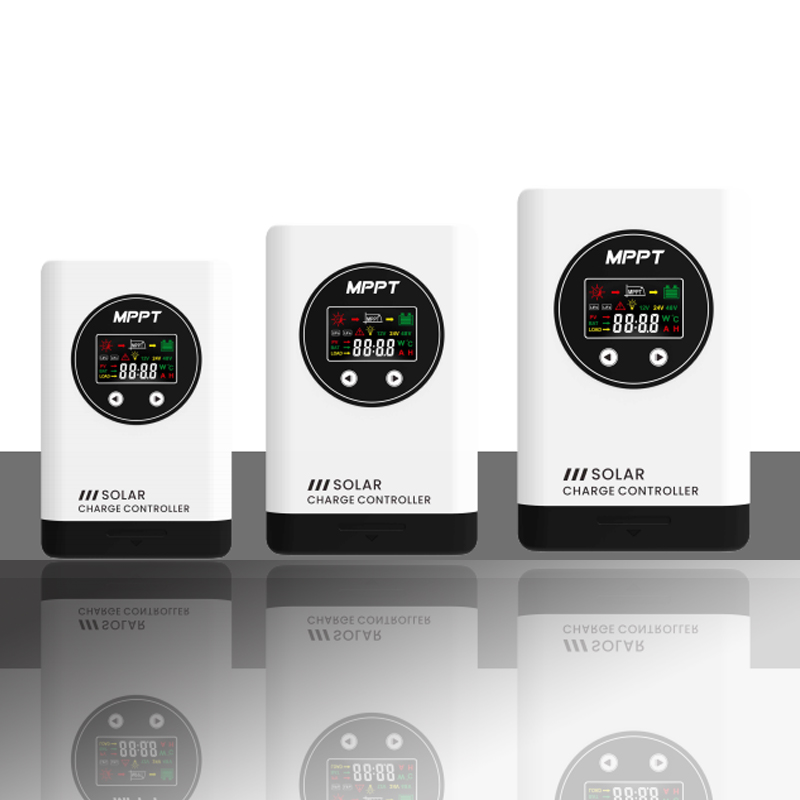

30A/40A/50A/60A/80A/100A MPPT Solar Charger Controller

Configuration Details

Model		MPPT-30A	MPPT-40A	MPPT-50A	MPPT-60A	MPPT-80A	MPPT-100A
Maximum PV Open Circuit Voltage		<150V
PV Input Voltage Range		20V/40V/60V
System Voltage		12V/24V/36V/48V Auto
Rated Charge Current		30A	40A	50A	60A	80A	100A
PV Max Input Power	12V	390W	520W	650W	780W	1040W	1300W
	24V	780W	1040W	1300W	1560W	2080W	2600W
	36V	1170W	1560W	1950W	2340W	3120W	3900W
	48V	1560W	2080W	2600W	3120W	4160W	5200W
Rated Discharge Current		20A		30A		40A	40A
Charging Control Mode		Multi-stage (MPPT, Absorption, Float, Equalization, CV)
Float Charge		13.8V/27.6V/41.4V/55.2V
Absorption Charge		14.4V/28.8V/43.2V/57.6V
Working Temperature Range		-20℃ ~ +55℃
Battery Type		GEL, SLD, FLD, USER, Lithium batteries customization
Product Size (mm)		240x181x80	240x181x80	265x192x110	265x192x110	295x212x120	295x212x120

Product Display

Technical Features

⚡

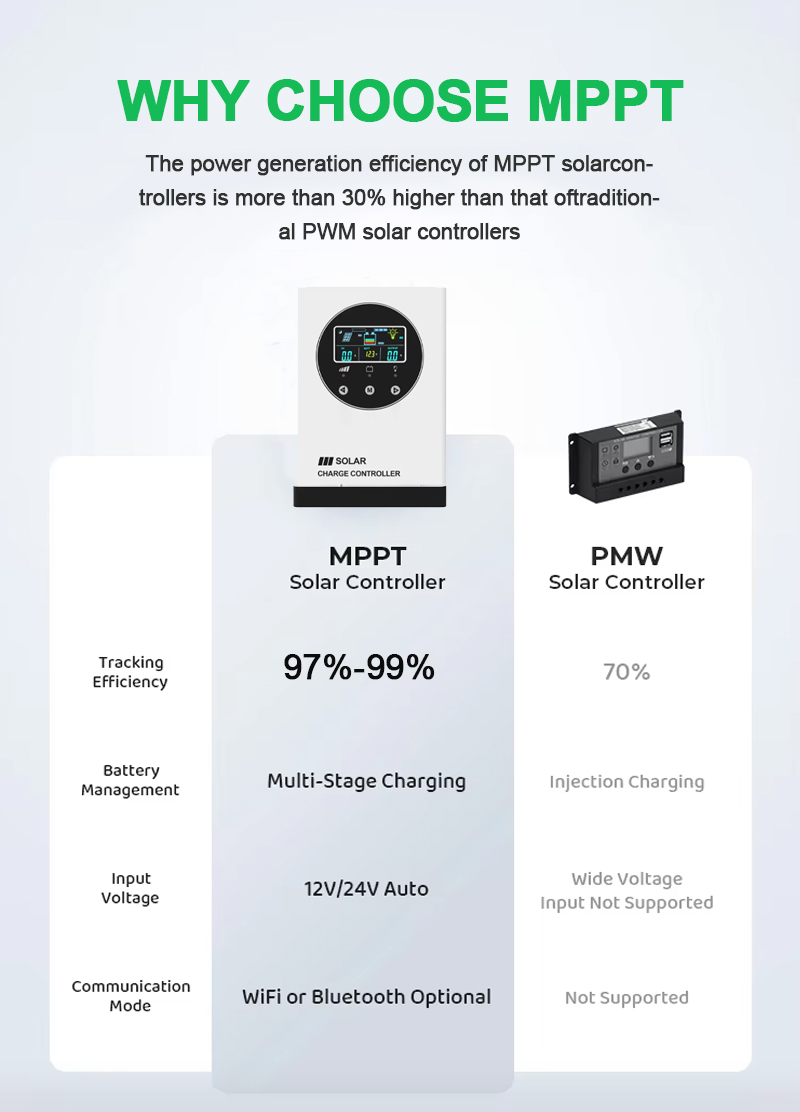

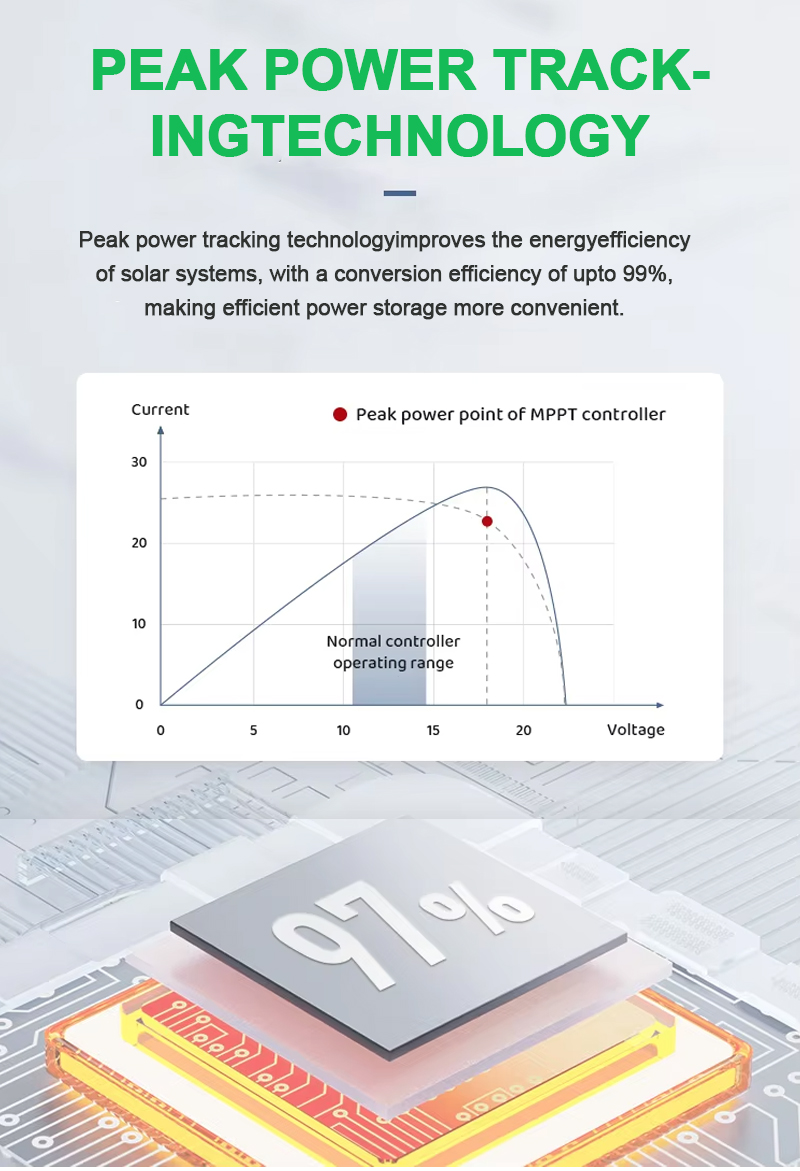

High-efficiency MPPT algorithm for maximum solar energy utilization.

🔋

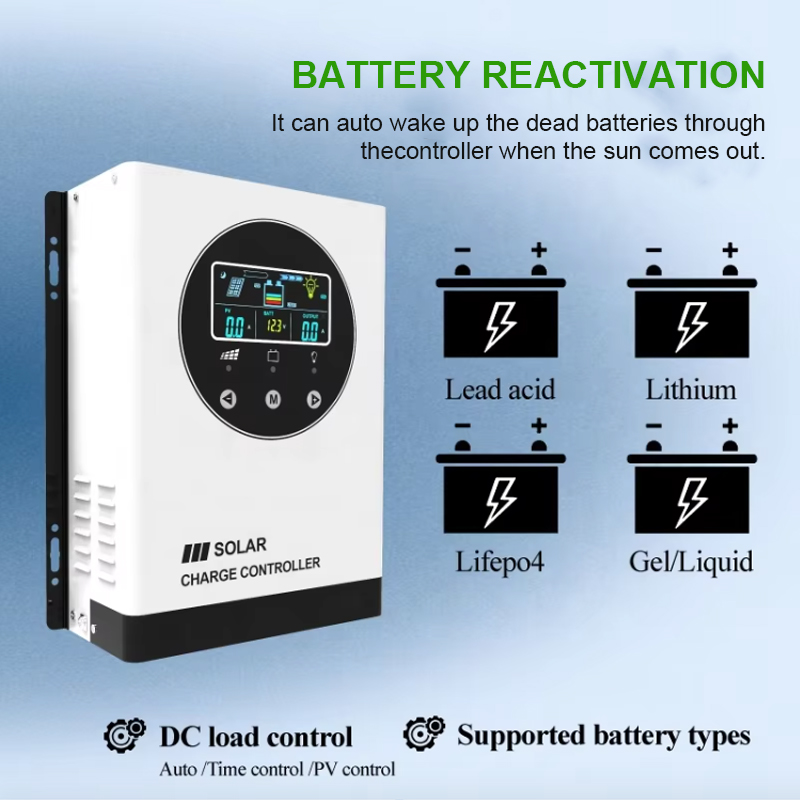

Compatible with various battery types including Lithium and Lead-acid.

🛠️

Multi-load control modes: Light control, timing, and 24h work.
