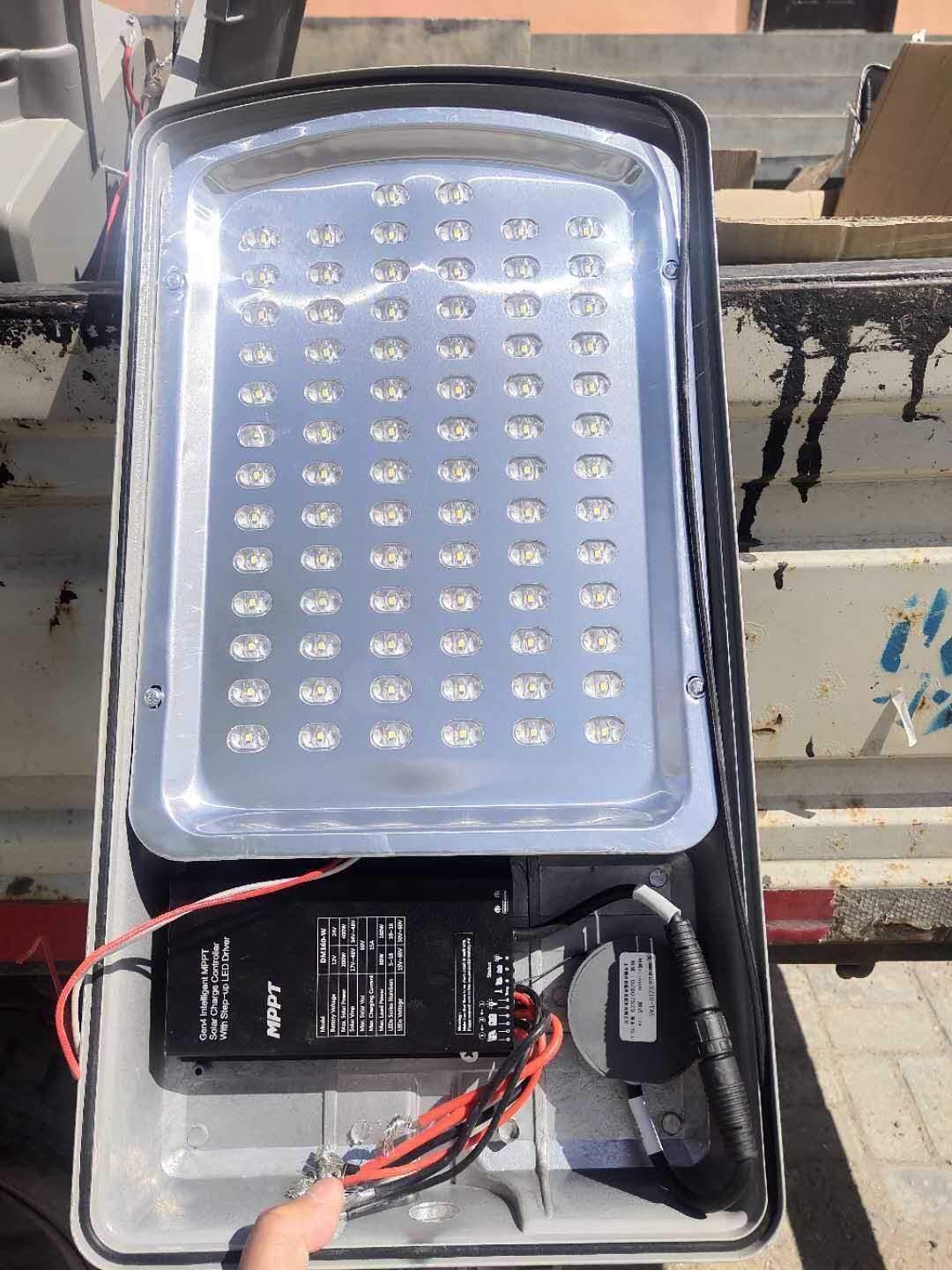

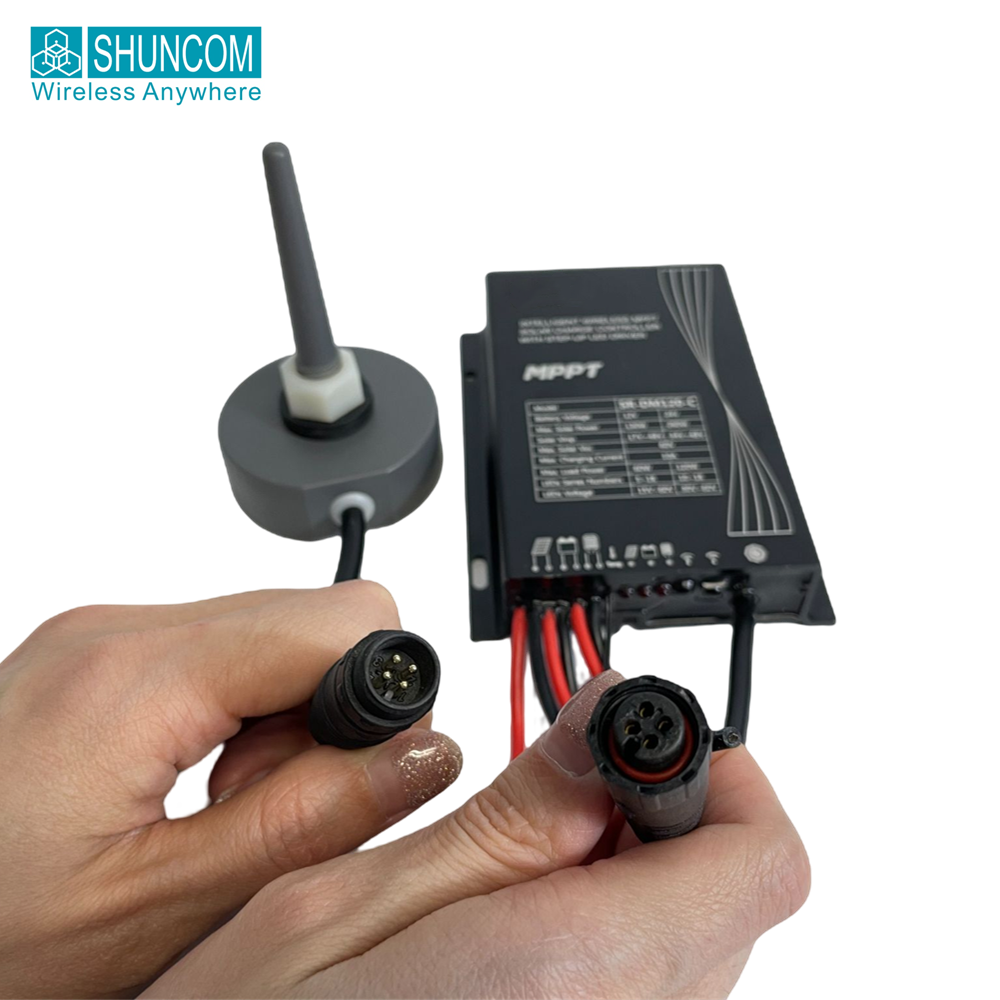

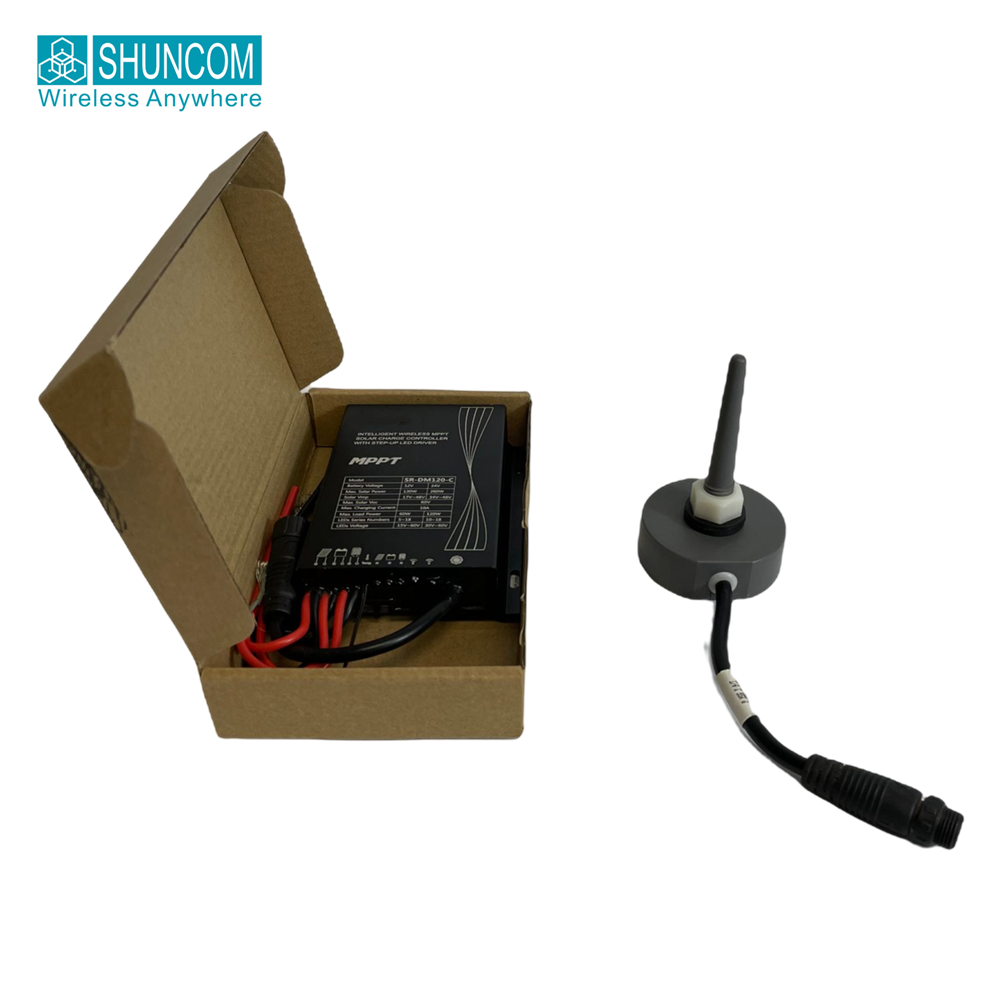

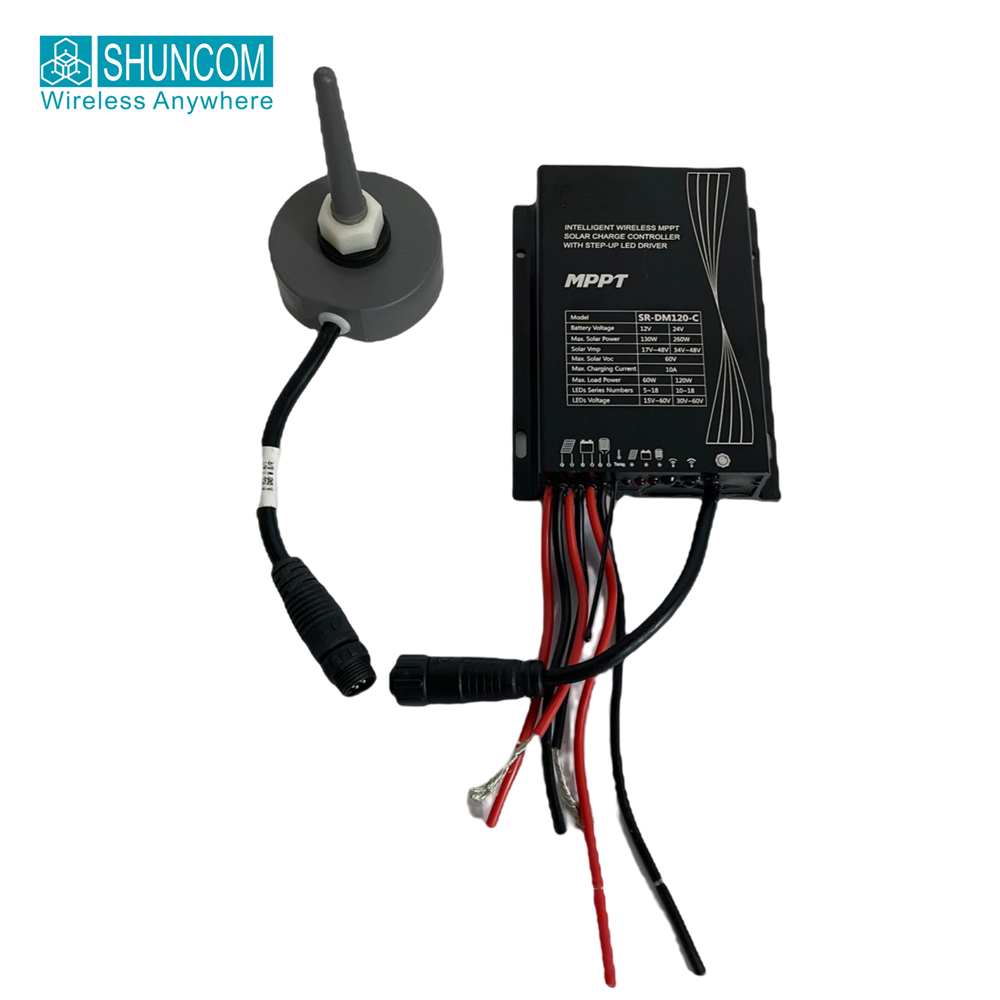

MPPT solar charge controller with Smart street lighting system

Send Inquiry

Product Description

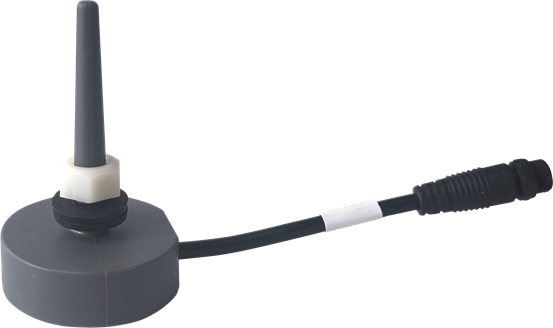

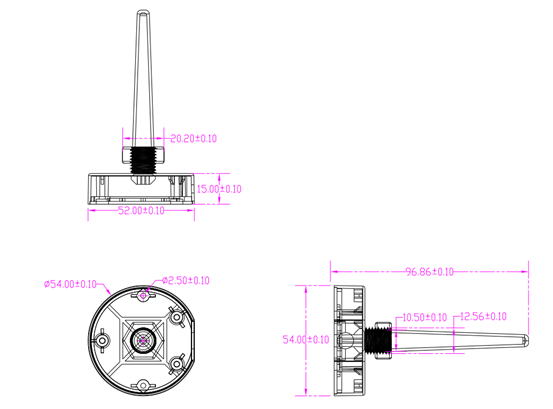

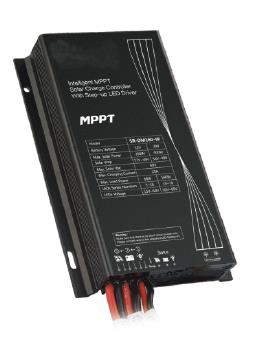

Product Dimensions

Product Description

Specification of SZ10-TA5
Item	Value
Supply Voltage	DC4-6V/6-24V
Transmission Distance	400M (in ideal working environment)
Wireless Channels	16
Working Temperature	-40℃ ～ +75℃
Transmitting Power	18dBm
Rx Sensitivity	-104dBm
Interface Type	RS485/RS232 (Modbus protocol)
Modulation Mode	DSSS
Wireless Communication Speed	Fixed at 250K
Channel Detection	CSMA/CA
Network Structure	Star Network

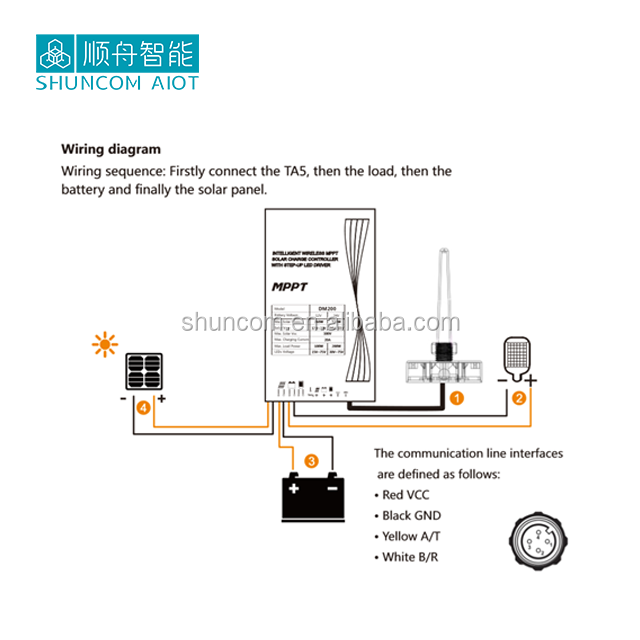

Wiring Method

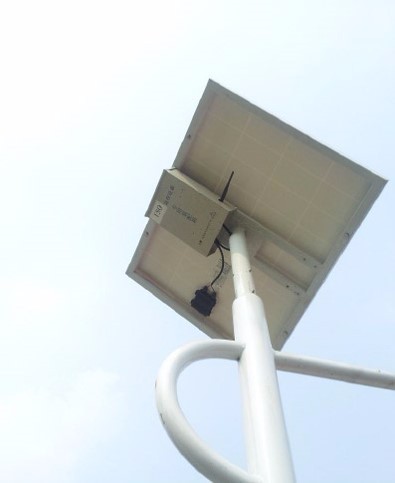

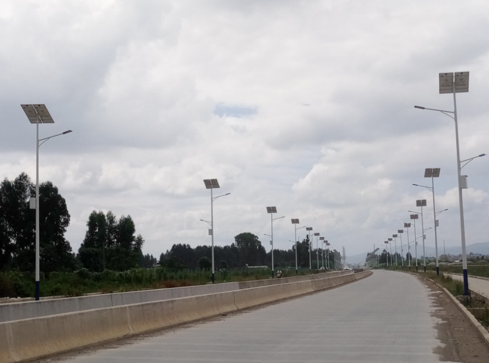

Applications

Visual Reference

FAQ

Can I have a sample order for the light Controller?

Yes, we welcome sample orders from our clients to check product quality and to do testing.

What about the lead time?

The lead time for a sample order is generally 3-5 days, and it takes around 1-2 weeks to dispatch for volume orders.

Do you have any MOQ limits for light Controller order?

We set low MOQ, and a sample order of 5 pcs light controllers is available.

How many lighting controllers can a gateway usually control?

A gateway can control 200 lighting controllers under normal circumstances.

What is the maximum transmission distance for the SZ10-TA5?

The transmission distance is approximately 400 meters in an ideal working environment.

What communication protocols are supported by the interface?

The device supports RS485/RS232 interfaces using the standard Modbus protocol.
