NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
1 / 5
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System
NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System

NEW Smart PWM 30/40/50A Solar Controller 12v24v Charging and Discharging Automatic Adaptation Off-grid System

Send Inquiry

Product Description

Products Description

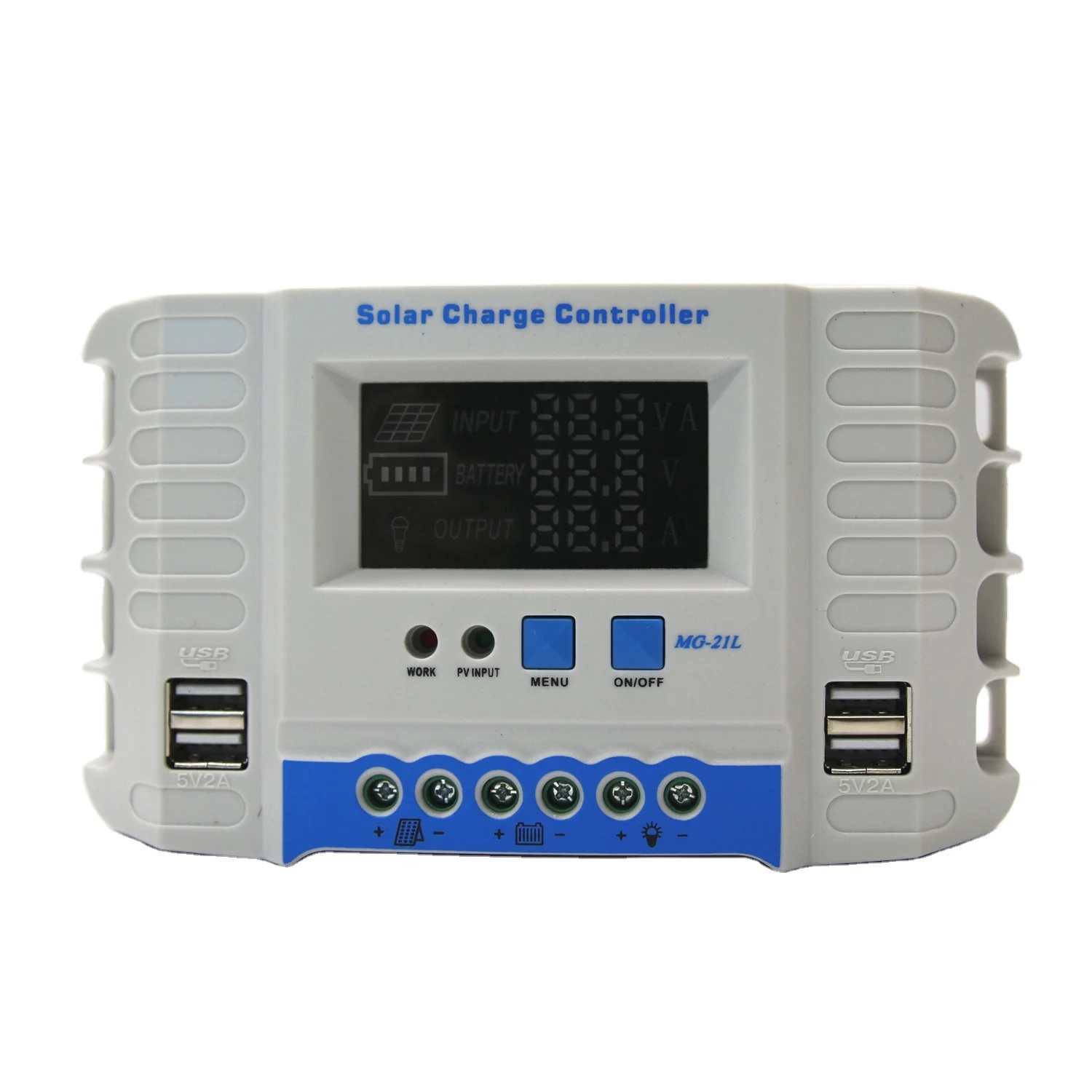

Solar Controller Overview

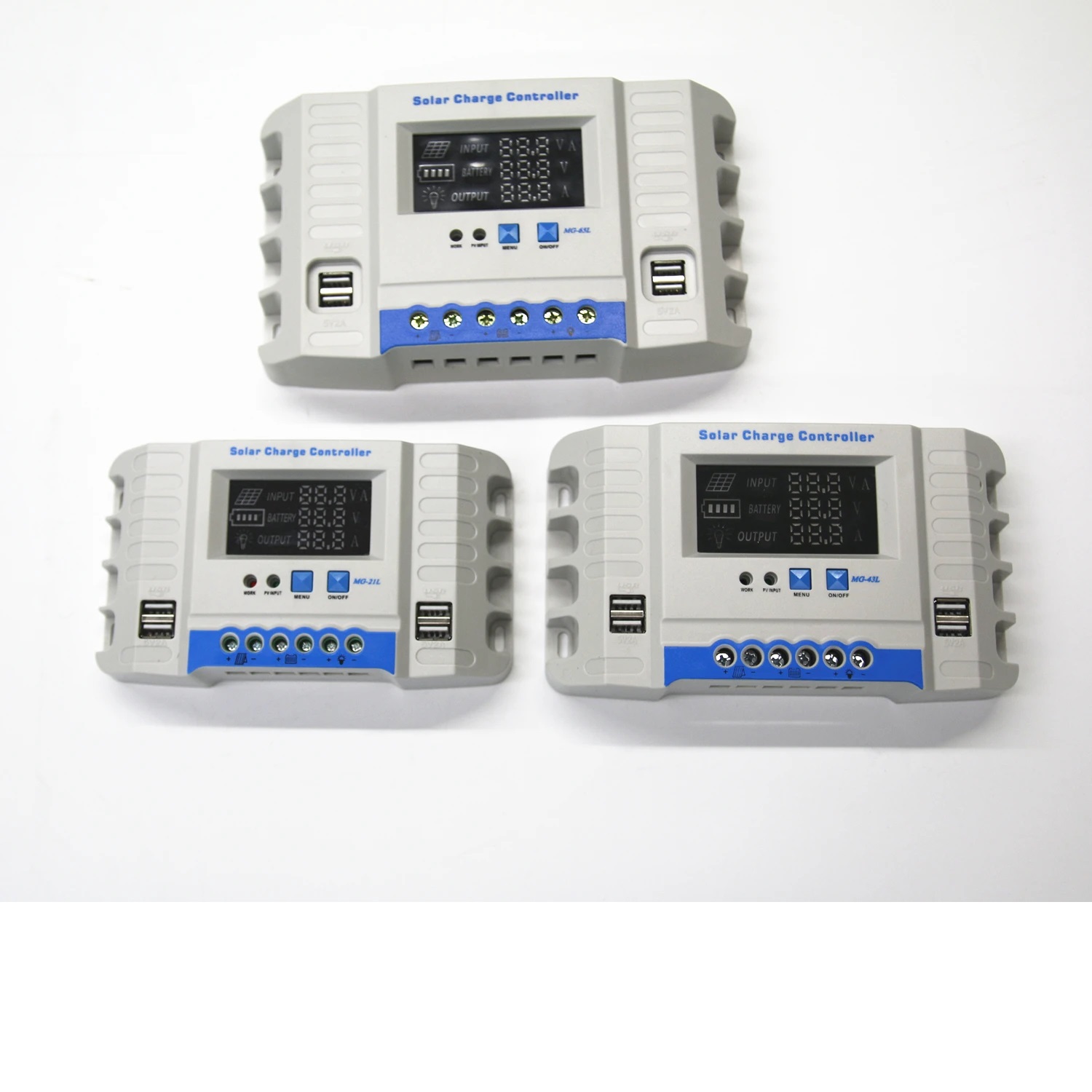

Solar Controller Display
Details Images

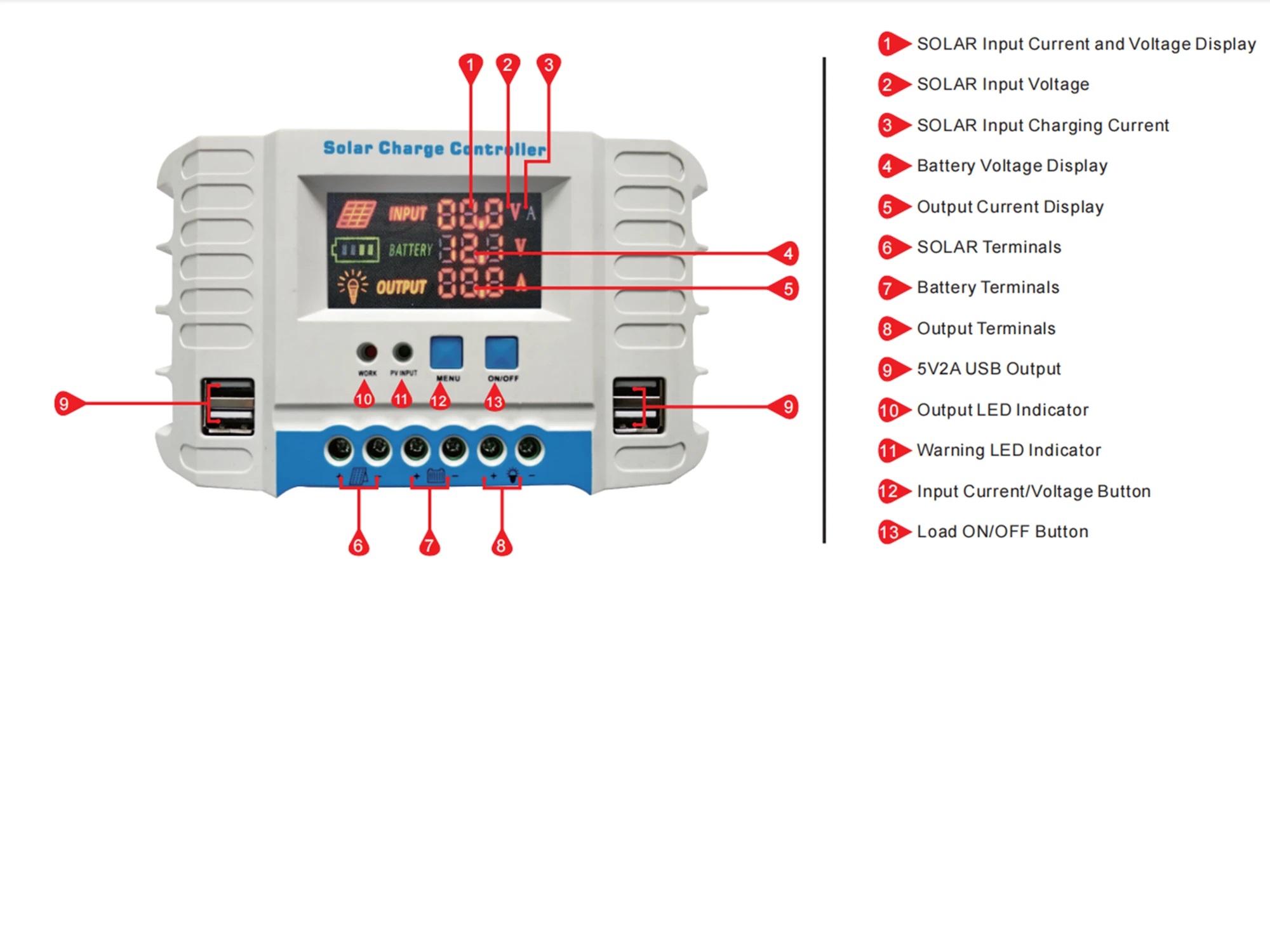

Component Details
Technical Specification
System voltage 12v/24v
Rated charging current 10A/20A/30A
Rated discharge current 20A
Floating charge voltage 13.7V (adjustable range: 12.7~15V)
Discharge cut-off voltage 10.7V (adjustable range: 9~12V)
USB output 5V/2A *4
Size 180*100*60mm
Key Features
✔ 1. Clock timing function
✔ 2. Built-in four 5V 2.1A USB interfaces
✔ 3. Extreme Low Power Consumption
✔ 4. Built-in IR self-learning infrared remote control
✔ 5. Display digital LCD with backlight
✔ 6. Adjustable charging voltage (14.2V - 15.2V)
✔ 7. Light and Time control modes
✔ 8. Reverse and short circuit protection
✔ 9. Designed for 12V/24V auto solar power system
✔ 10. Hanging style design for easy installation
✔ 11. Available in 50A capacity
✔ 12. Automatic memory retention of user settings
Applications

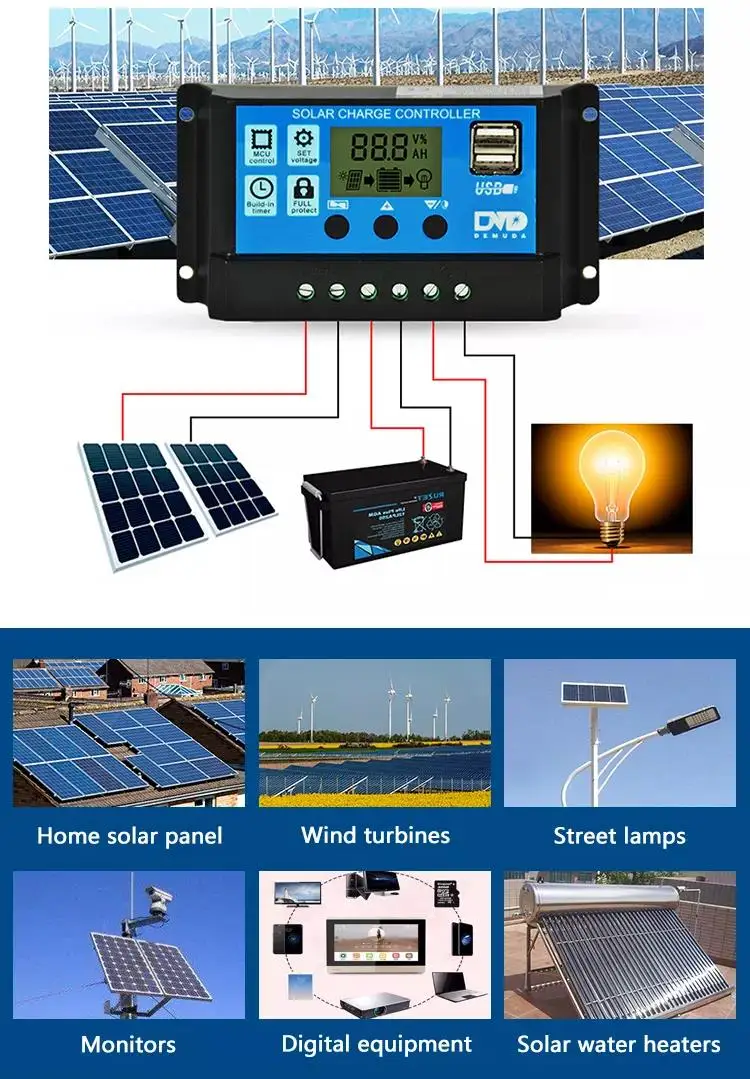

Application Scenario
Frequently Asked Questions
Is this controller compatible with both 12V and 24V systems?
Yes, this solar charge controller is designed for 12V/24V auto-sensing solar power systems.
How many USB devices can I charge simultaneously?
The unit features four built-in 5V/2A USB interfaces, allowing you to charge multiple mobile devices at once.
Can I adjust the charging and discharge voltages?
Yes, the floating charge voltage (12.7V-15V) and discharge cut-off voltage (9V-12V) are fully adjustable to suit your battery type.
Does the controller have a display for nighttime use?
Yes, it is equipped with a digital LCD display that includes a backlight for easy reading in low-light conditions.
What safety protections are built into the device?
The controller includes essential safety features such as reverse protection and short circuit protection.
What is the IR remote control function for?
It features a built-in IR self-learning infrared remote control specifically designed to turn DC loads on and off remotely.
