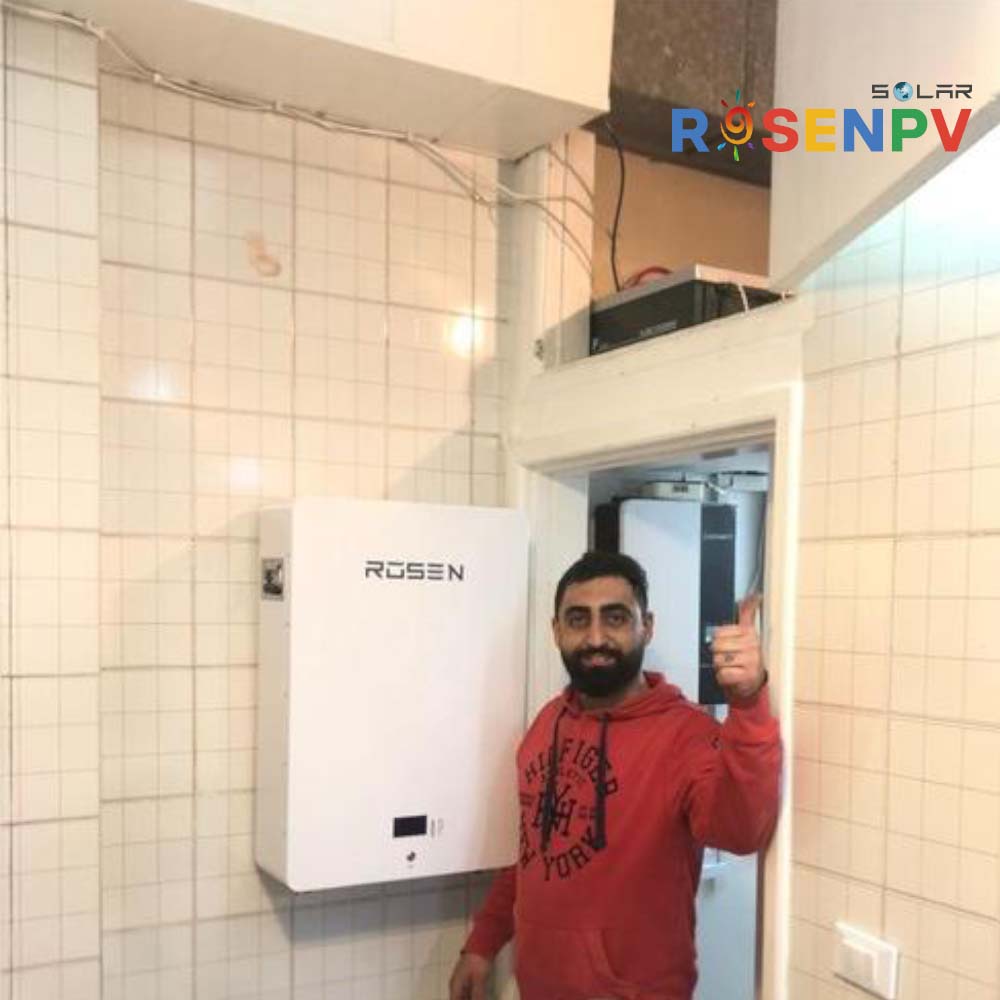

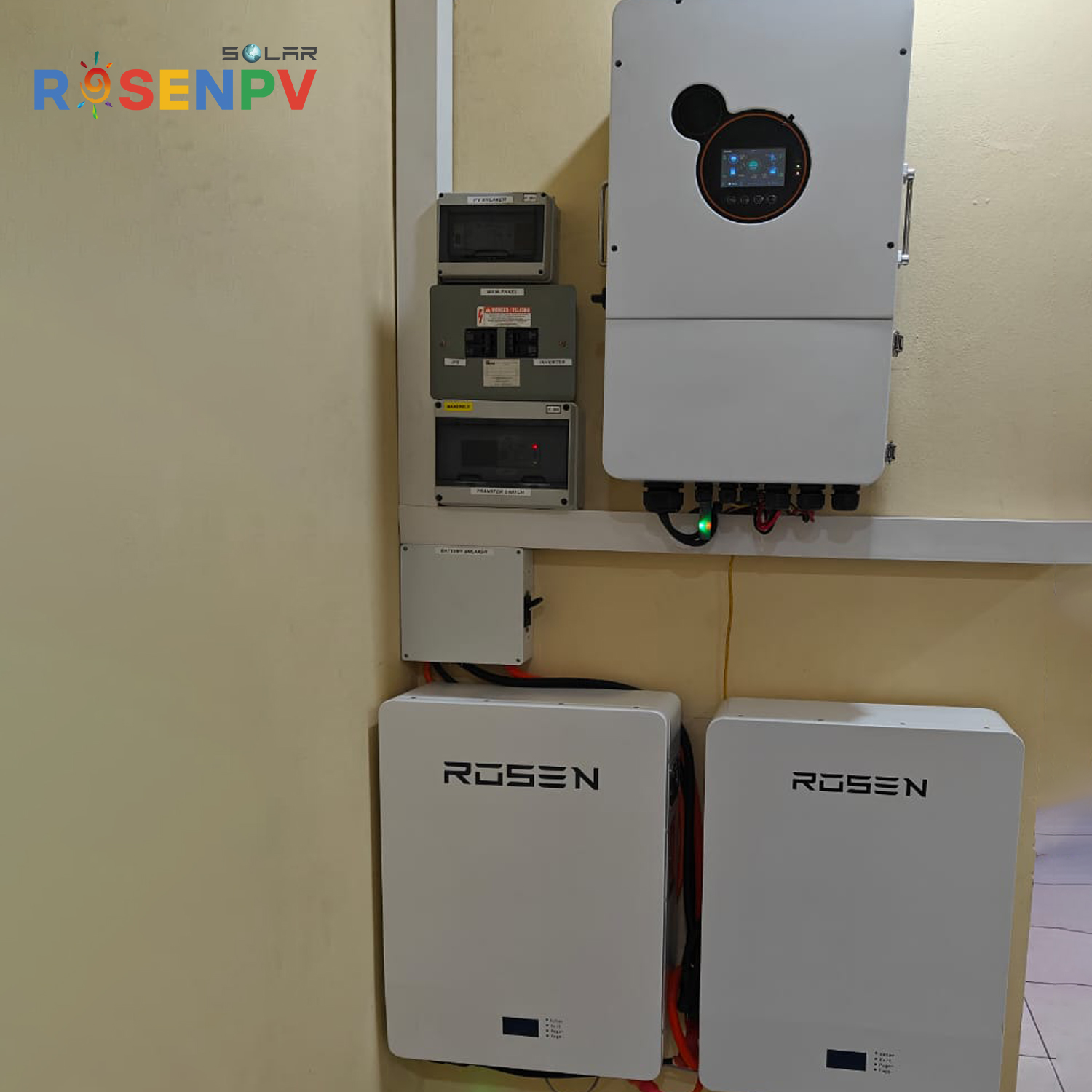

5kW 10kW 20kW Solar System 10000Watts 10kva Hybrid Home Power System Single Phase Solar Inverter With Wi-Fi Monitor

1 / 5

5kW 10kW 20kW Solar System 10000Watts 10kva Hybrid Home Power System Single Phase Solar Inverter With Wi-Fi Monitor

Send Inquiry

Product Description

System Configuration

Item	5KW	10KW	15KW
Half Cell Solar Panel	10 pieces	20 pieces	30 pieces
PV Combiner Box	DC Breaker/Combiner/Short-Circuit Protection/Lightning Protector	2 inputs 2 outputs	3 inputs 3 outputs
Hybrid Inverter (On and Off Grid)	5kw	10kw	15kw
WIFI Module Monitor	1 set	1 set	1 set
Solar Battery	Lithium Powerwall with BMS/GEL	Lithium Powerwall with BMS/GEL	Lithium Powerwall with BMS/GEL
PV Cable	4/6mm²	4/6mm²	4/6mm²
Mounting Bracket	Tile Roof/Ground	Tile Roof/Ground	Tile Roof/Ground
MC4 Connector	10pcs	20pcs	30pcs
Installation Tool Box	1 set	1 set	1 set
Installation Manual	Yes	Yes	Yes

Technical Specification

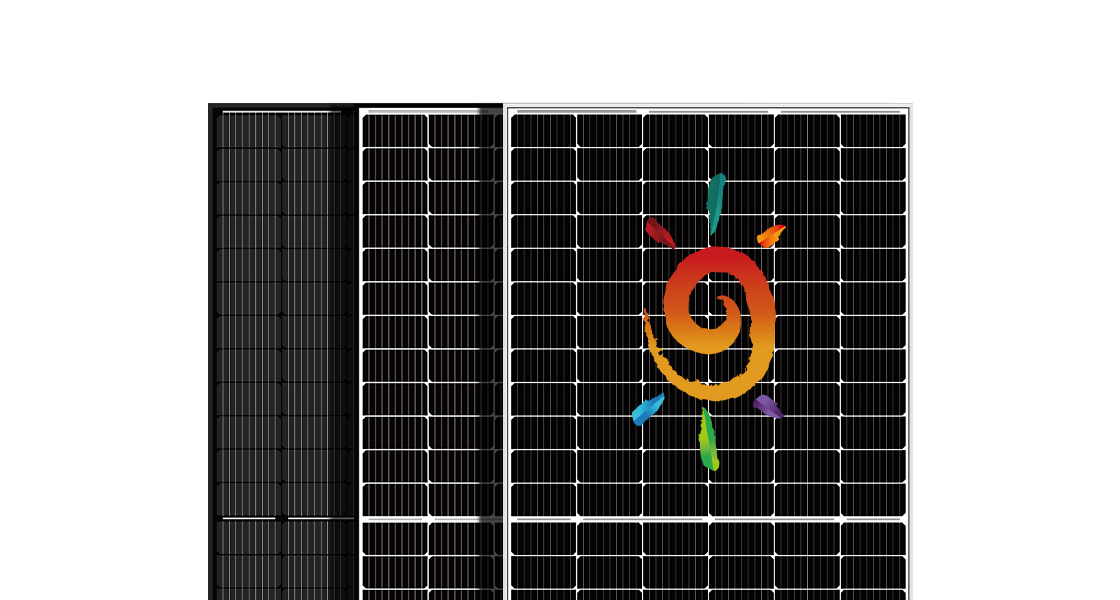

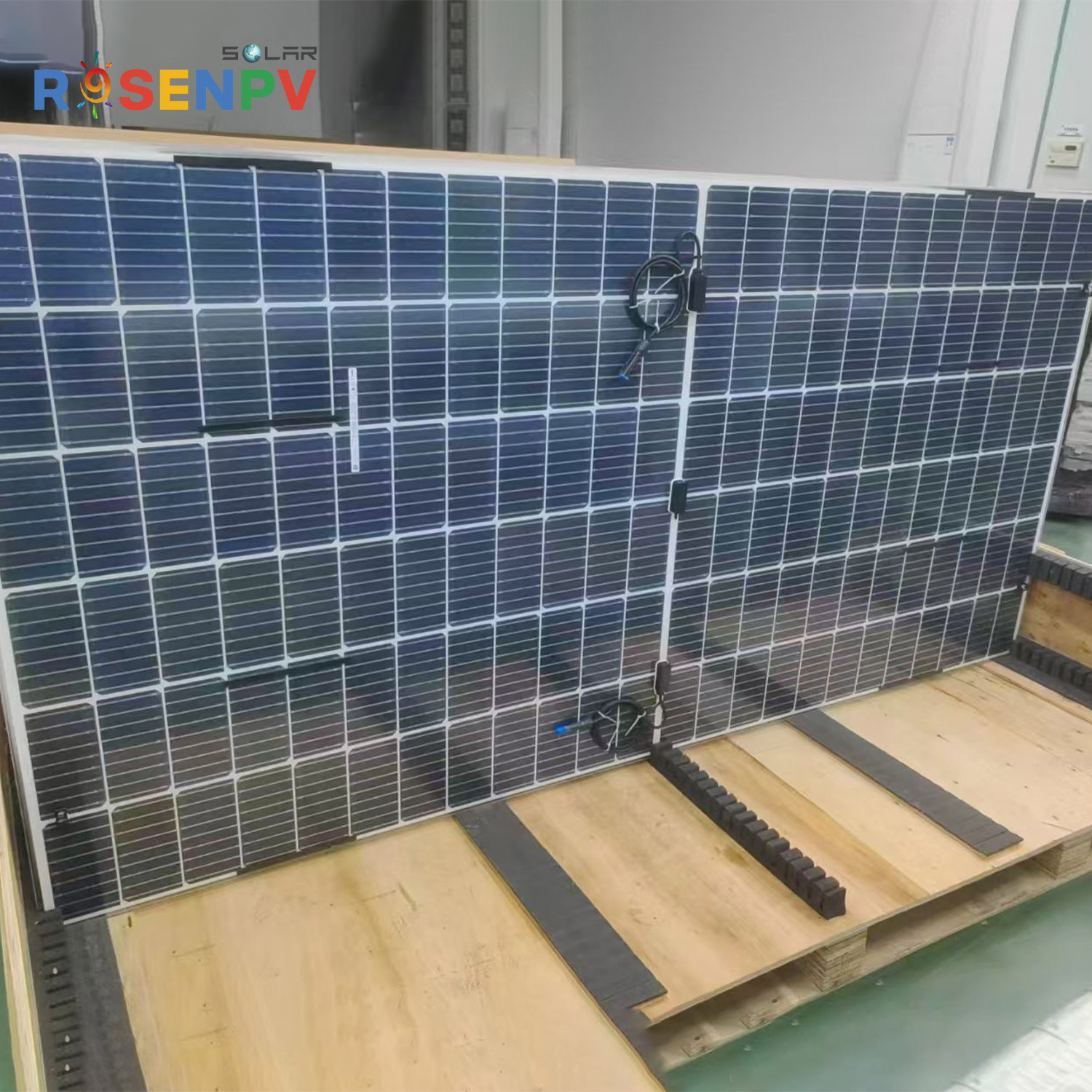

Solar Panels

Optional Mono/Poly Blue/Black Panels
High Efficiency with Half Cell PERC panels available
9BB/10BB/12BB PV cell Mono 182mm/210mm
Wind/Snow Load 2400Pa / 5400Pa*
Silver/Black Panels OEM/ODM
Anti-PID

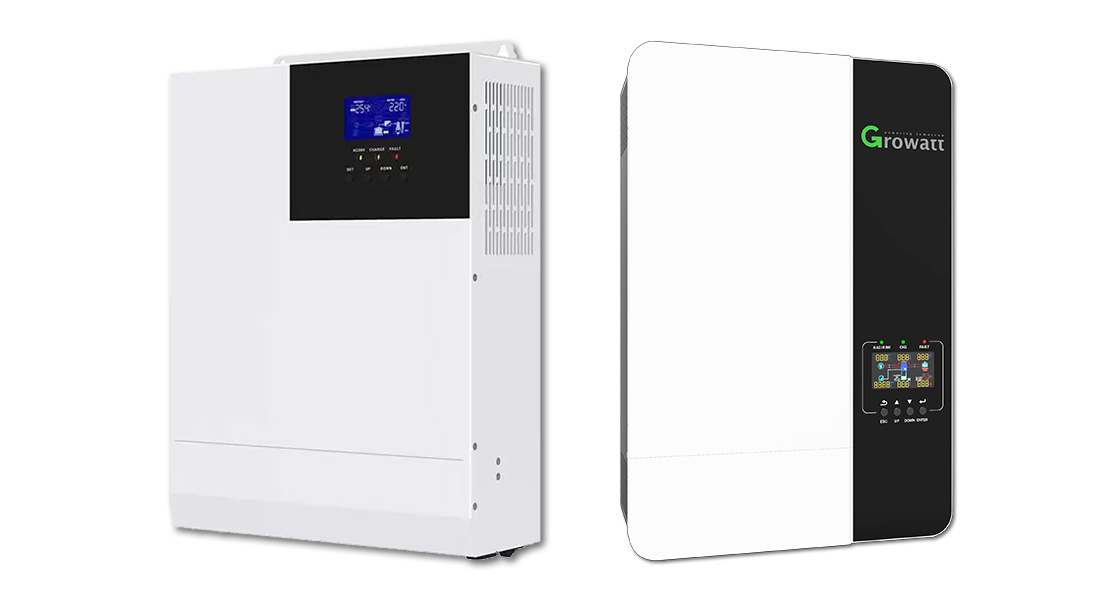

Hybrid On Grid Inverter

Single Phase/Three Phase AC Voltage
Intelligent cloud platform monitoring, realizing one-key APP real-time monitoring
Support RS232, RS485, GPRS, WIFI and other communication methods
Low and High Voltage with BMS and communication for Lithium battery

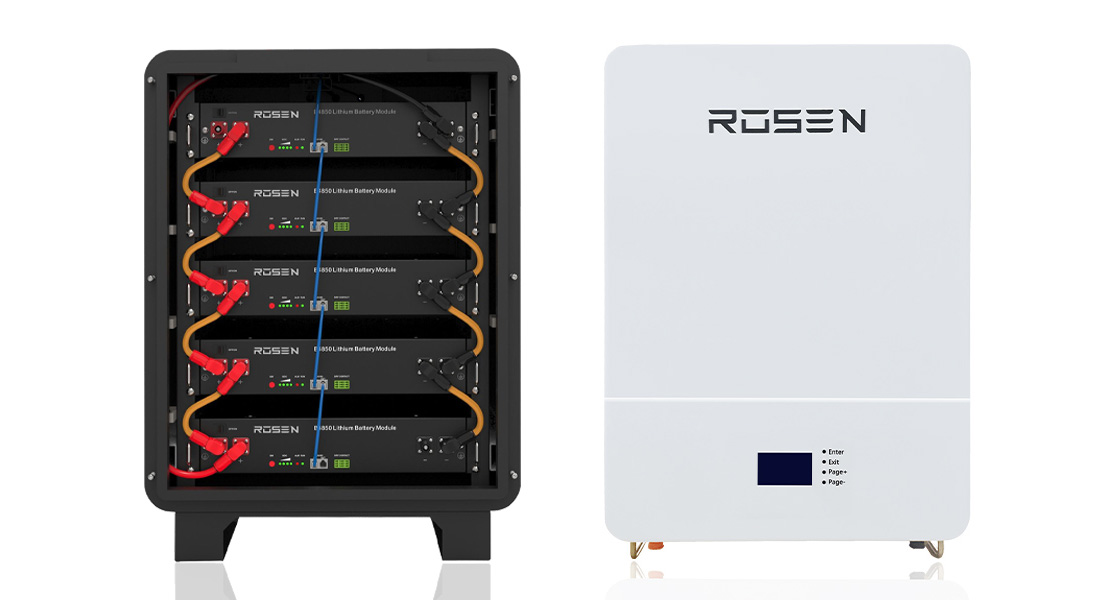

Solar Battery

48V LV Storage 96V/192V/384V HV Battery Optional
Lithium ion LifePO4 Module or Powerwall Optional
Matched BMS and communication for hybrid inverters
Lead Acid Deep Cycle Battery Storage

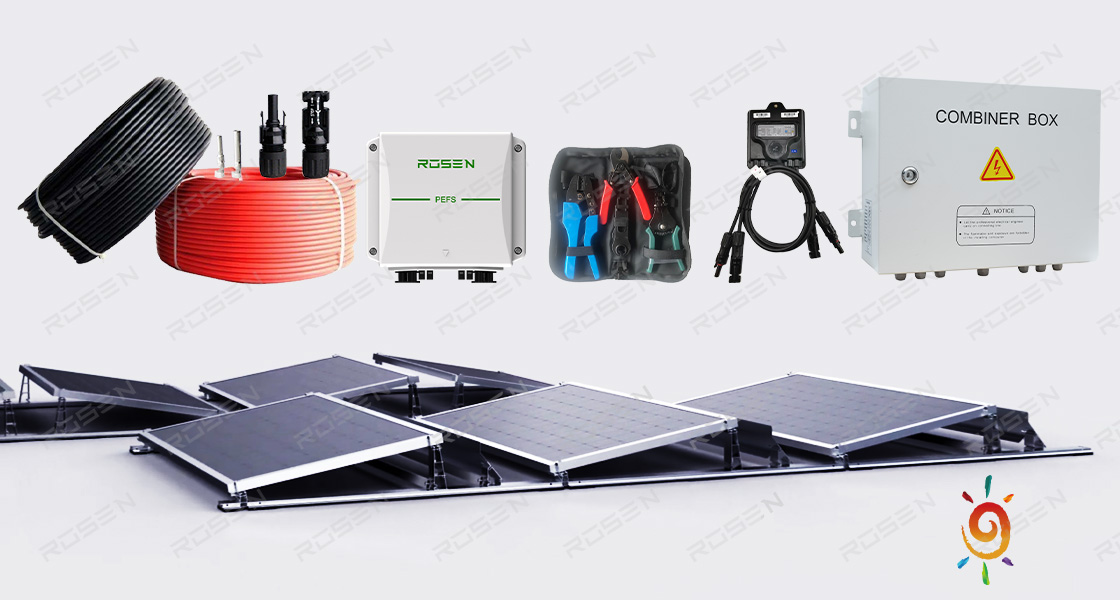

EPC Accessories

Tile or color steel roof tile/ground installation
DC Breaker/Combiner/Short-Circuit Protection/Lightning Protector/Firefighter Safety Smart Switch
DC Cable & MC4 Connector & Installation Tool Box

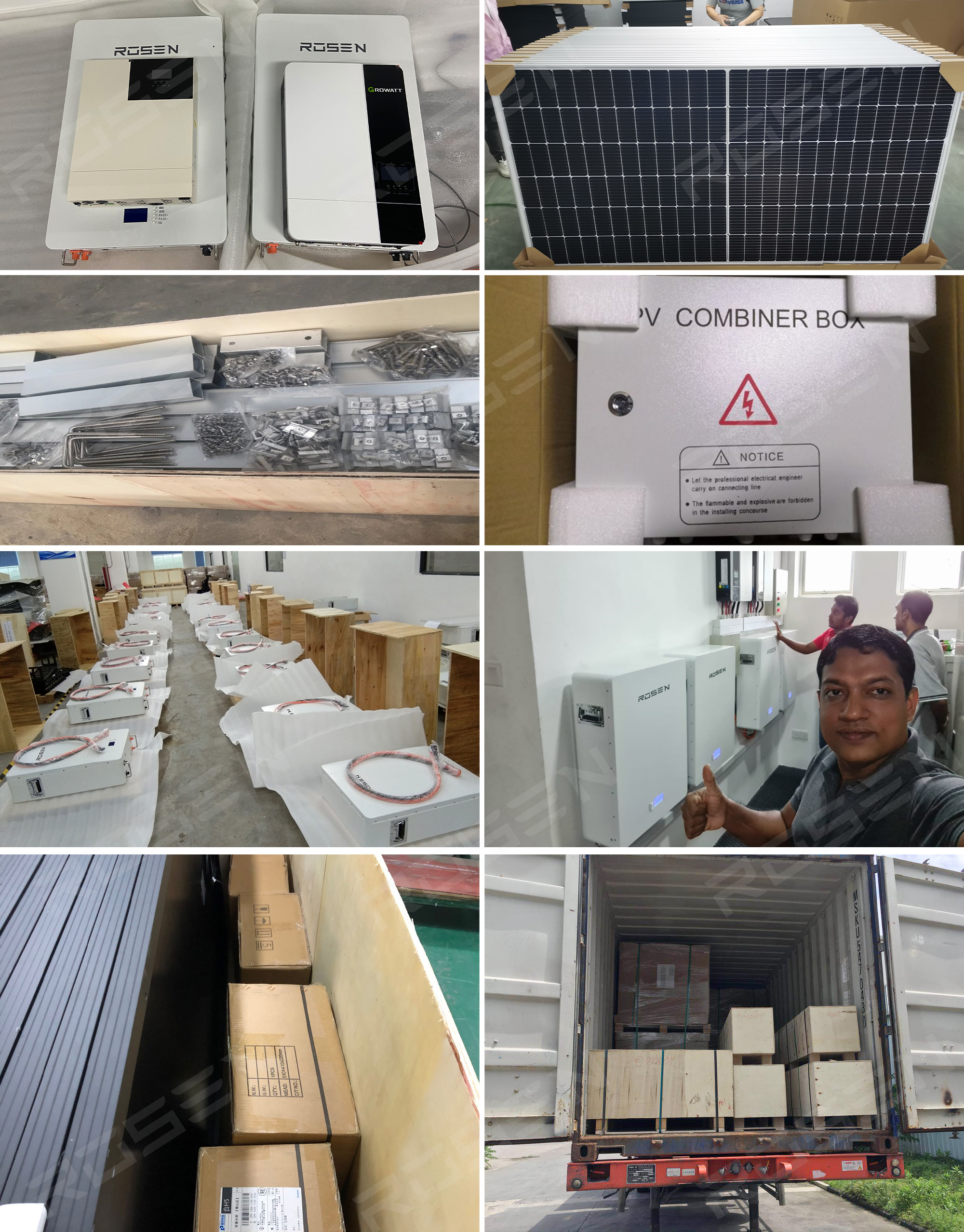

Packaging & Delivery

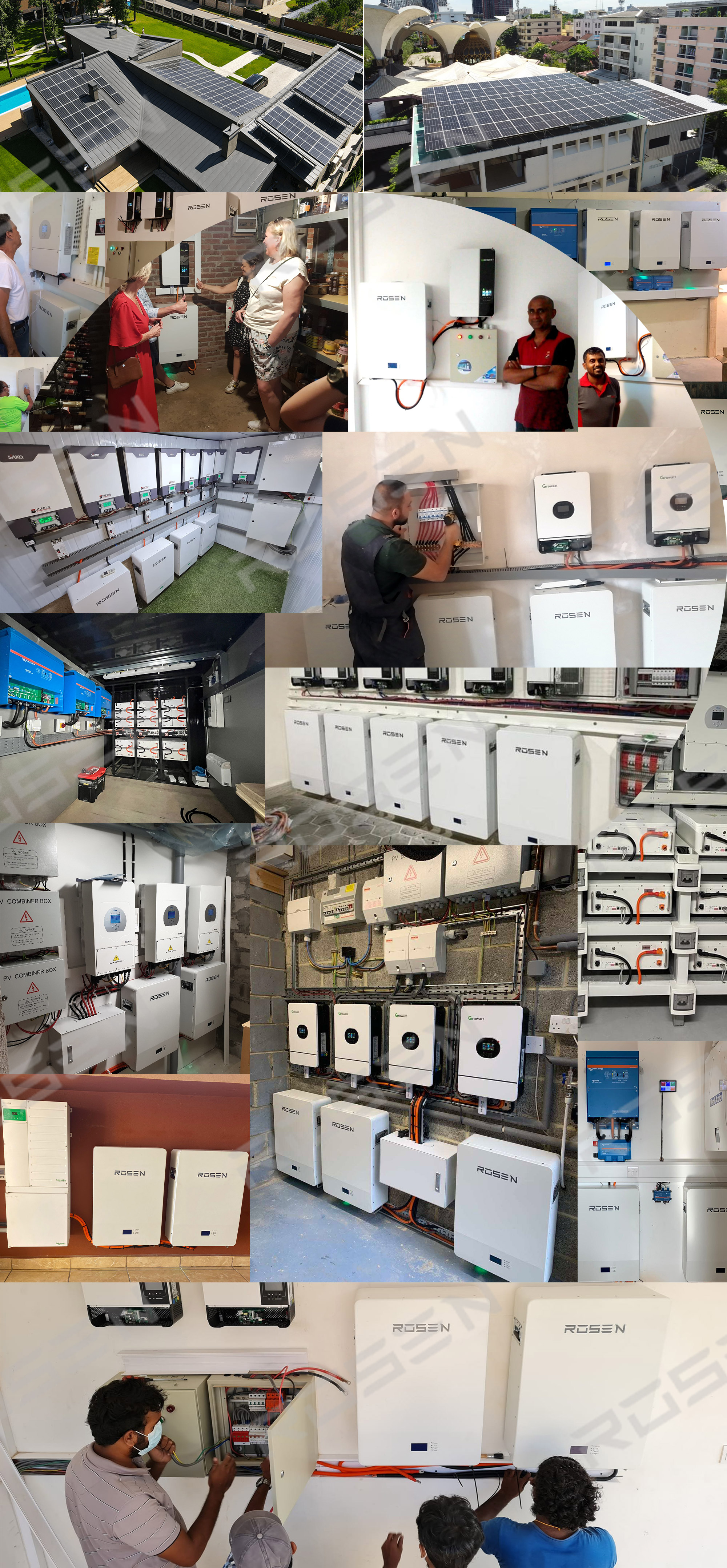

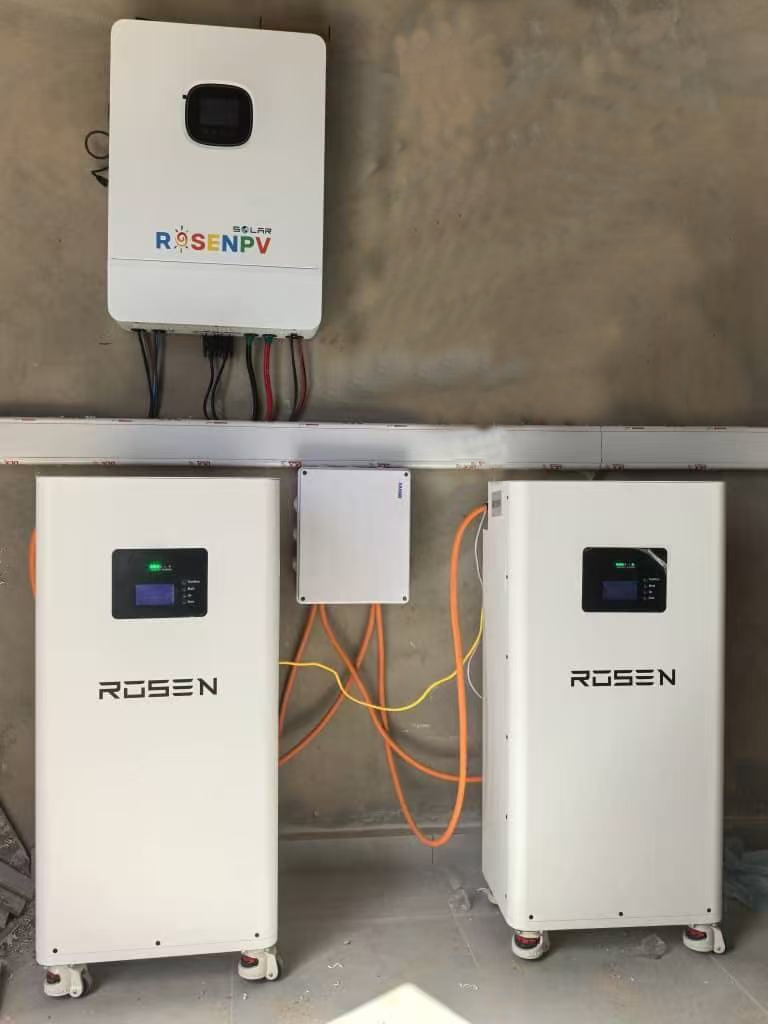

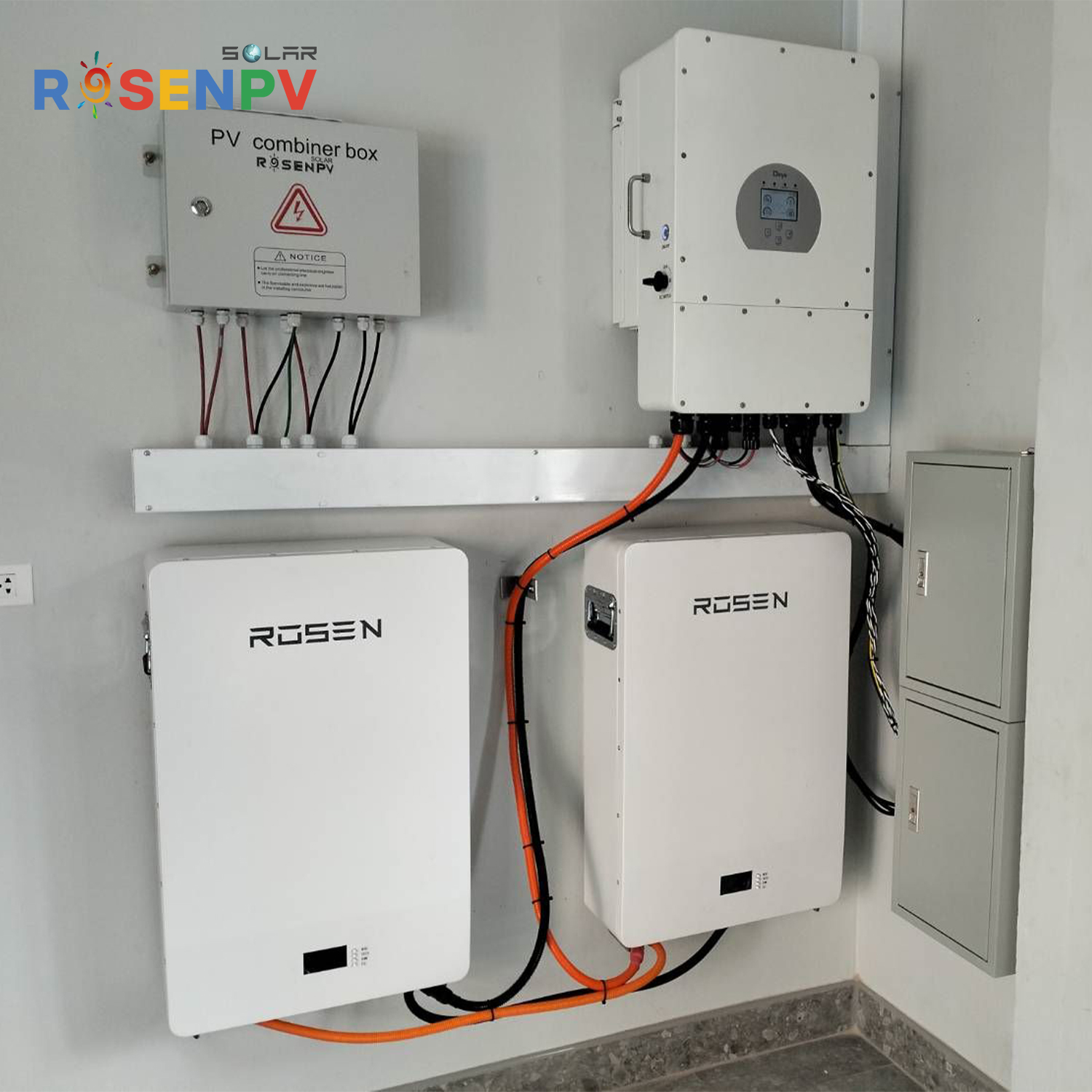

Projects

Our Support

Frequently Asked Questions

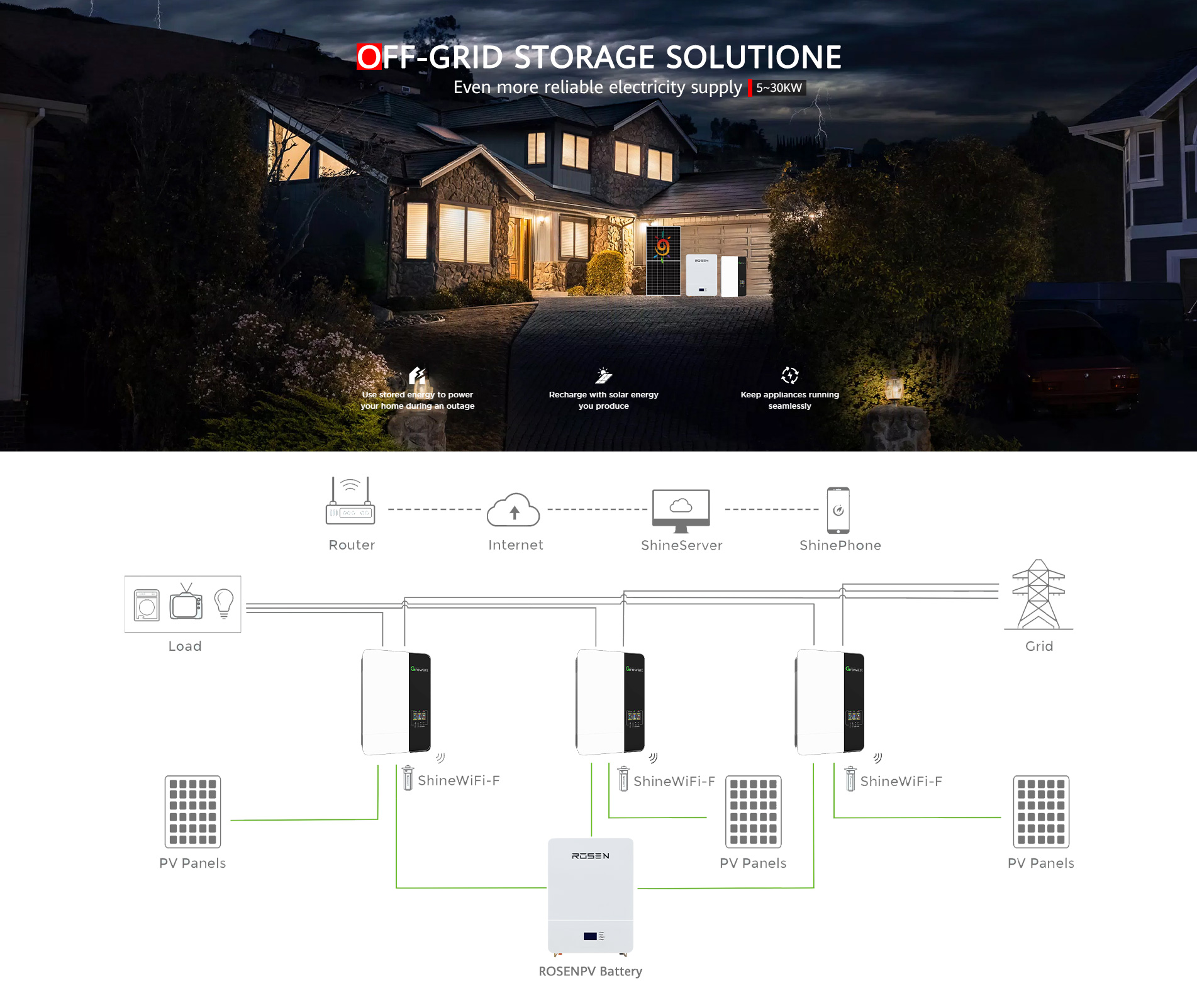

1. What is the difference between On-Grid, Off-Grid, and Hybrid solar systems?

On-grid systems are connected to the public electricity grid and redirect excess generated power back to the grid. Off-grid systems are fully independent, utilizing batteries to store generated energy. Hybrid systems combine both features, allowing you to run off battery power during outages while remaining connected to the grid.

2. How long do solar panels and battery storage units typically last?

High-quality Half-Cell PERC solar panels generally come with a performance lifespan of 25 to 30 years. Lithium-ion LiFePO4 batteries generally provide 6,000+ deep cycles, translating to 10 to 15 years of operational life depending on daily use and maintenance.

3. Can I monitor the system's performance remotely?

Yes. The systems feature intelligent cloud platform monitoring through an integrated WIFI/GPRS module. You can check real-time energy production, consumption, battery levels, and system health status directly from a dedicated mobile application or computer.

4. What type of installation brackets are provided, and can they withstand extreme weather?

We offer mounting brackets optimized for tile roofs, color steel roofs, and flat ground. The mounting structures are engineered with premium materials to resist heavy wind and snow loads, ensuring long-term structural integrity in harsh climates.

5. Is the system safe against lightning strikes or short circuits?

Yes, our PV combiner boxes are equipped with DC Breakers, short-circuit protection, lightning protectors, and firefighting safety smart switches. These accessories are designed to automatically shut down or redirect current in case of anomalies to protect your property and the system.
