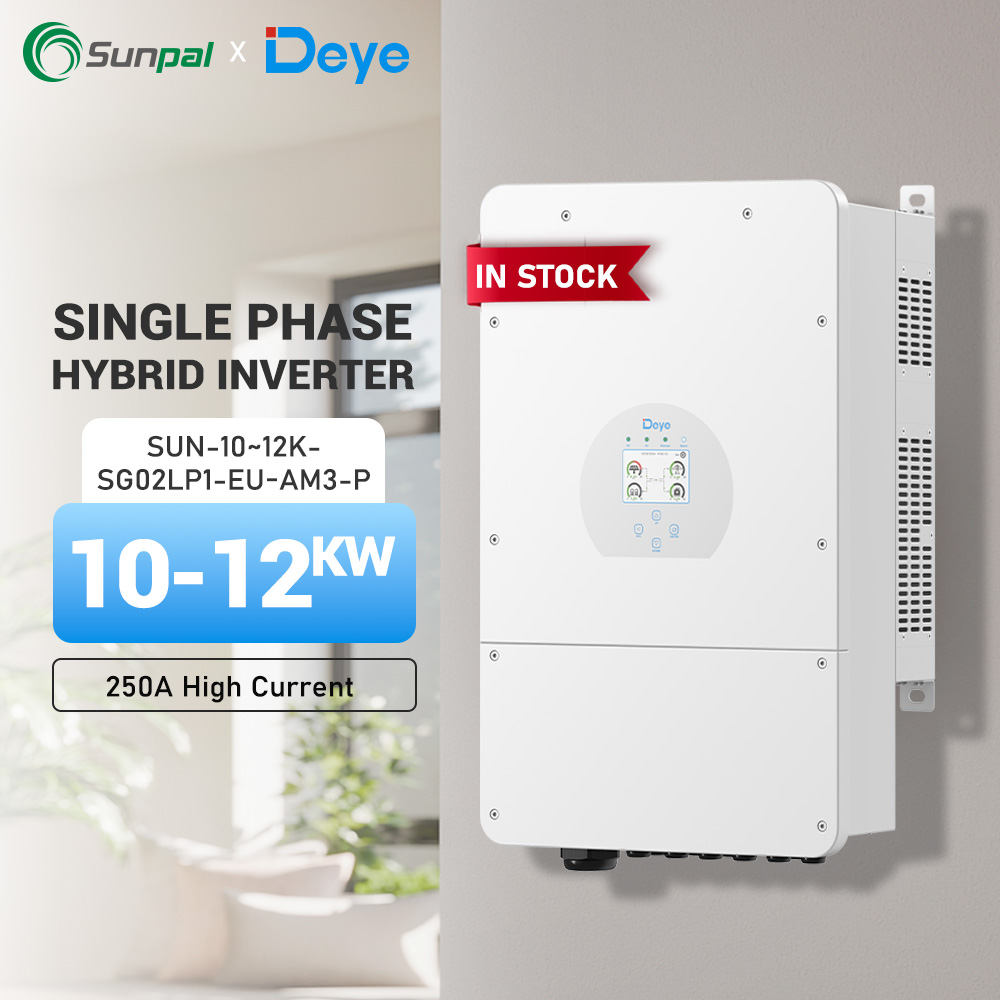

| Technical Data | SUN-10K-SG02 LP1-EU-AM3-P | SUN-12K-SG02 LP1-EU-AM3-P | |
|---|---|---|---|
| Battery Input Data | Battery Type | Lead-acid or Lithium-ion | |
| Battery Voltage Range (V) | 40V-60V | ||
| Max. Charging Current (A) | 220A | 250A | |
| Max. Discharging Current (A) | 220A | 250A | |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of Battery Input | 1 | ||
| PV String Input Data | Max. DC Input Power (W) | 20000W | 24000W |
| Max. DC Input Voltage (V) | 500V | ||
| MPPT Range (V) | 150-425V | ||
| Start-up Voltage (V) | 125V | ||
| Max. Input Current (A) | 32+32+32 A | 18A+18A | |
| No. of MPPT Trackers | 3 | 3/2+2+2 | |
| No. of Strings Per MPPT Tracker | 2+2+2 | ||
| AC Output Data | Rated AC Output and UPS Power (W) | 10000W | 12000W |
| Peak Power (off grid) | 2 times of rated power, 10 S | ||
| Max. AC Input (A) | 50A | 60A | |
| Max. Output Current (A) | 47.9A | 57.4A | |
| Grid Connection Form | L+N+PE | ||
| Efficiency | Max. Efficiency | 97.6% | |
| Interface | Communication Interface | RS485/RS232/CAN | |
| General Data | Permissible Altitude | 2000m | |
| Permissible Ambient Humidity | 0-100% | ||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | ||
| Ingress Protection (IP) Rating | IP 65 | ||
| Type of Cooling | Intelligent Air Cooling | ||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
