| SPECIFICATIONS (STC) | |||||
|---|---|---|---|---|---|

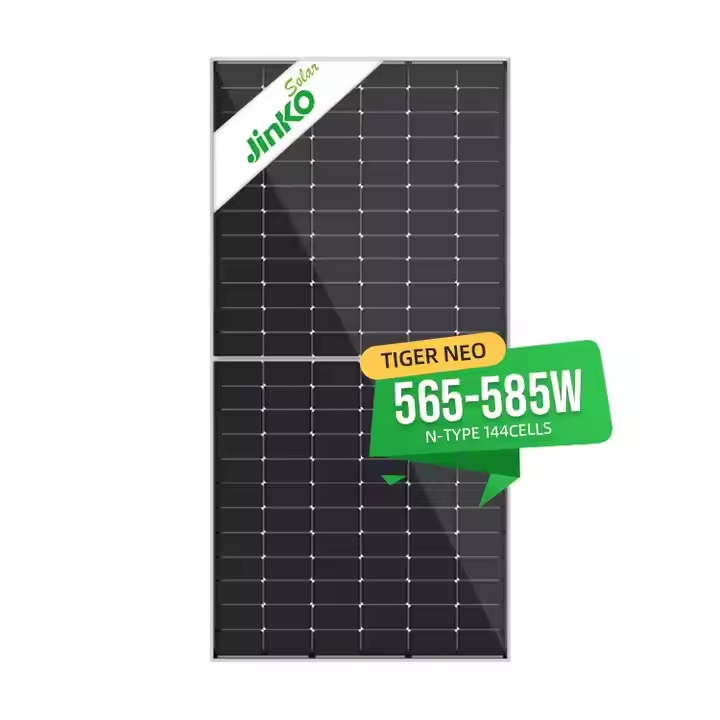

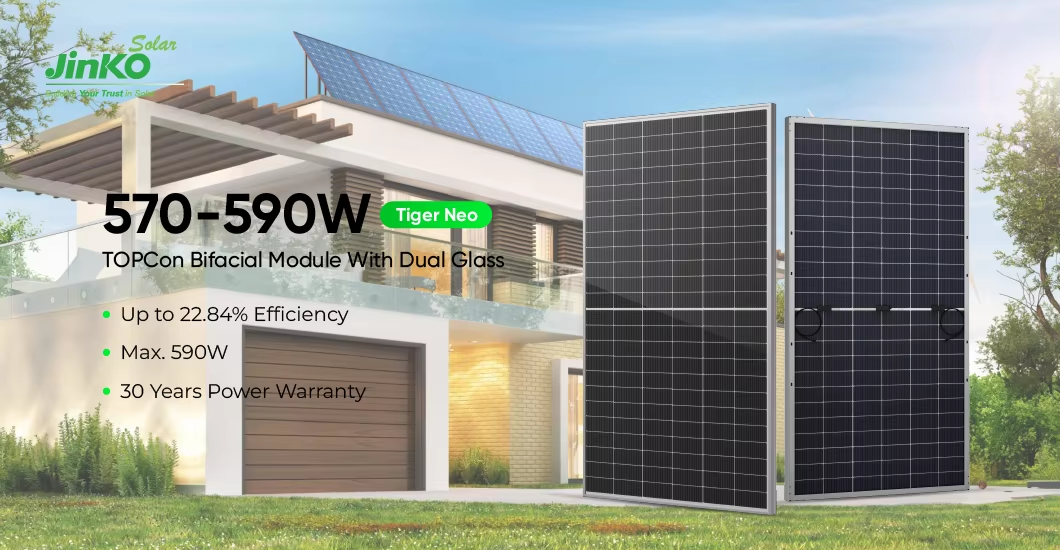

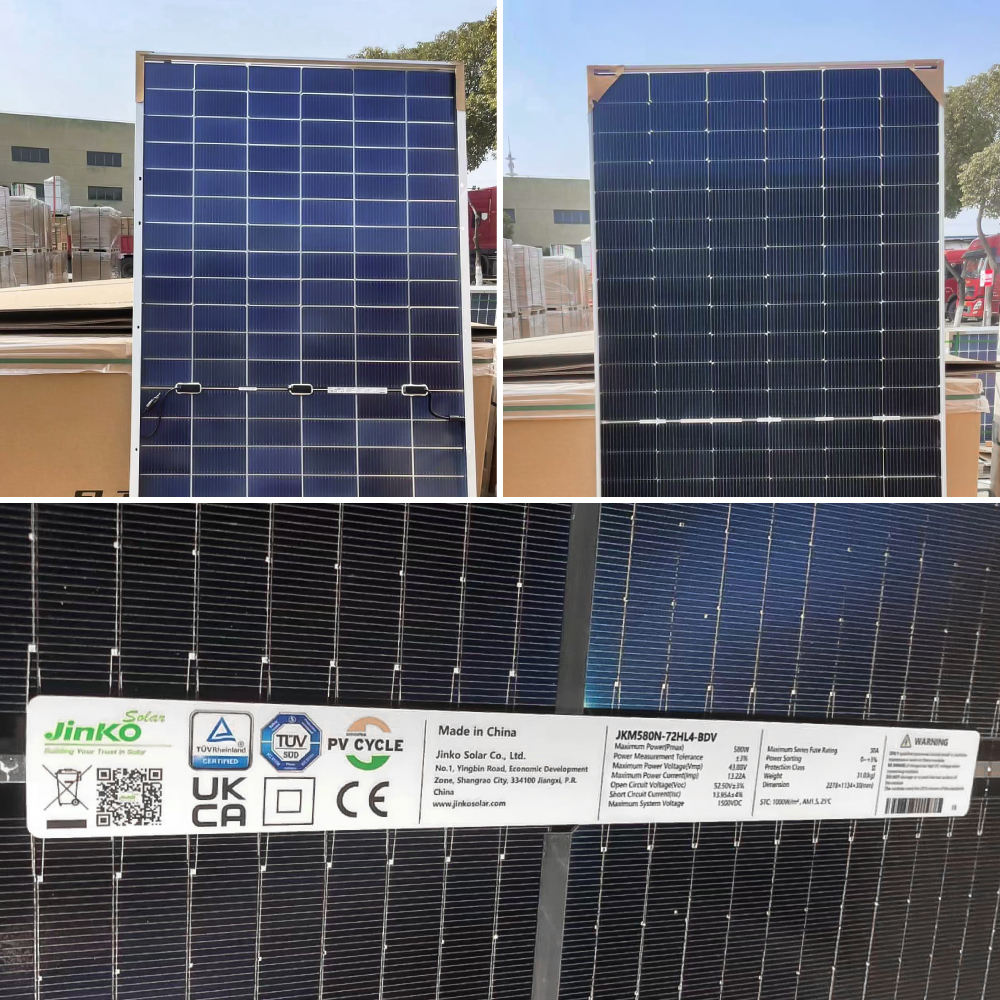

| Module Type | JKM575N-72HL4-BDV | JKM580N-72HL4-BDV | JKM585N-72HL4-BDV | JKM590N-72HL4-BDV | JKM595N-72HL4-BDV |
| Maximum Power (Pmax) | 575Wp | 580Wp | 585Wp | 590Wp | 595Wp |
| Maximum Power Voltage (Vmp) | 43.73V | 43.88V | 44.02V | 44.17V | 44.31V |
| Maximum Power Current (Imp) | 13.15A | 13.22A | 13.29A | 13.36A | 13.43A |
| Open-circuit Voltage (Voc) | 52.3V | 52.5V | 52.7V | 52.9V | 53.1V |
| Short-circuit Current (Isc) | 13.89A | 13.95A | 14.01A | 14.07A | 14.13A |
| Module Efficiency (%) | 21.26% | 22.45% | 22.65% | 22.84% | 23.03% |
| BIFACIAL OUTPUT-REARSIDE POWER GAIN | ||||||
|---|---|---|---|---|---|---|
| 5% Gain | Maximum Power (Pmax) | 578Wp | 583Wp | 588Wp | 593Wp | 599Wp |
| Module Efficiency (%) | 22.36% | 22.56% | 22.77% | 22.97% | 23.17% | |
| 15% Gain | Maximum Power (Pmax) | 633Wp | 638Wp | 644Wp | 650Wp | 656Wp |
| Module Efficiency (%) | 24.48% | 24.71% | 24.93% | 25.15% | 25.37% | |
| 25% Gain | Maximum Power (Pmax) | 688Wp | 694Wp | 700Wp | 706Wp | 713Wp |
| Module Efficiency (%) | 26.61% | 26.86% | 27.10% | 27.34% | 27.58% | |

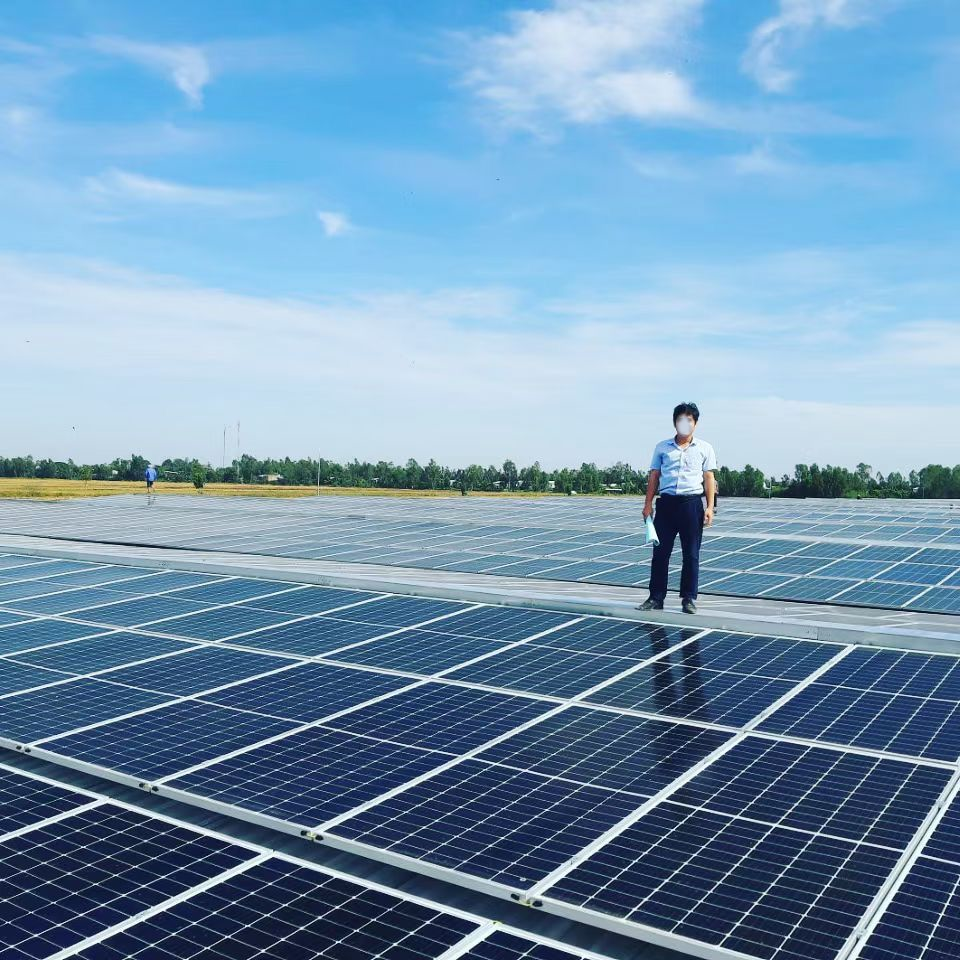

Solar panel project in Lebanon

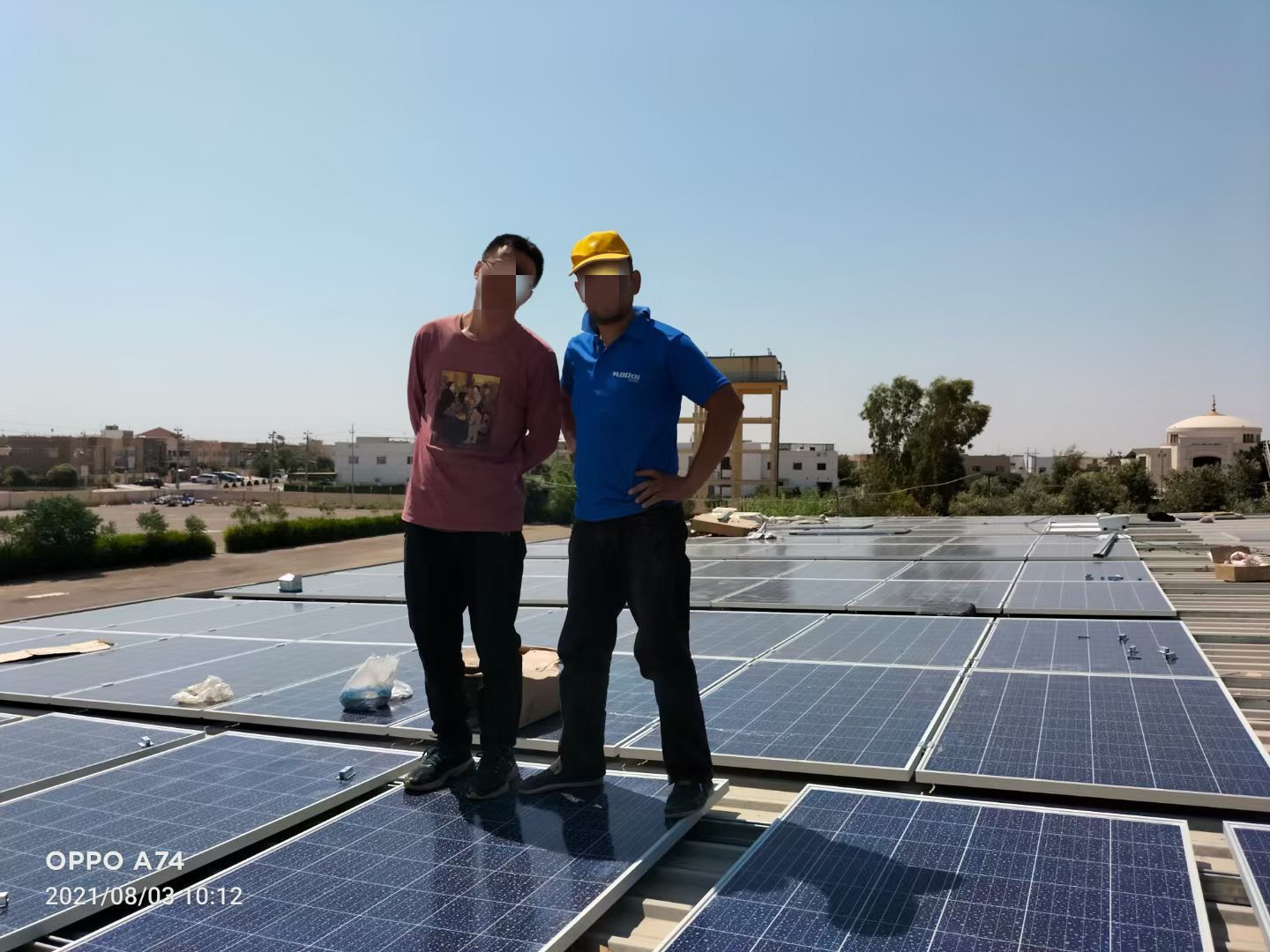

Solar panel project in UAE

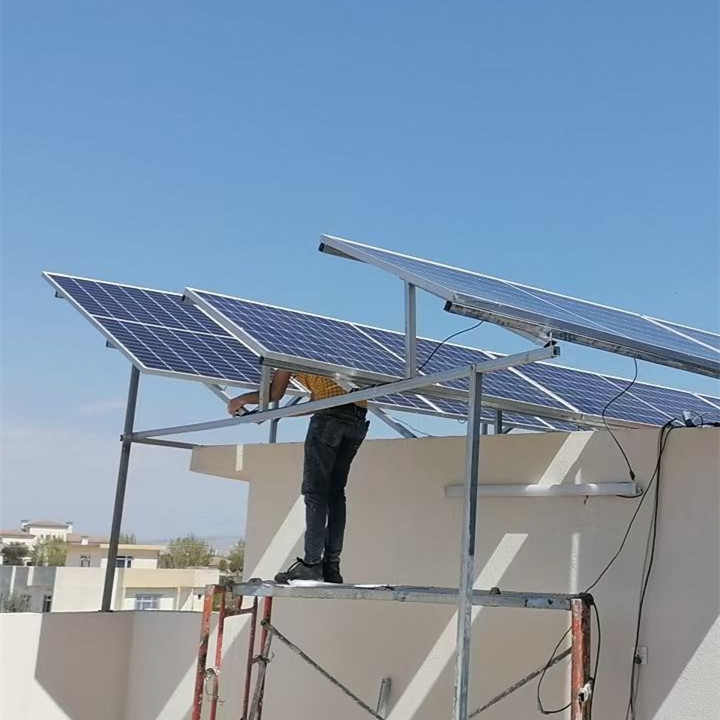

Solar panel project in Germany

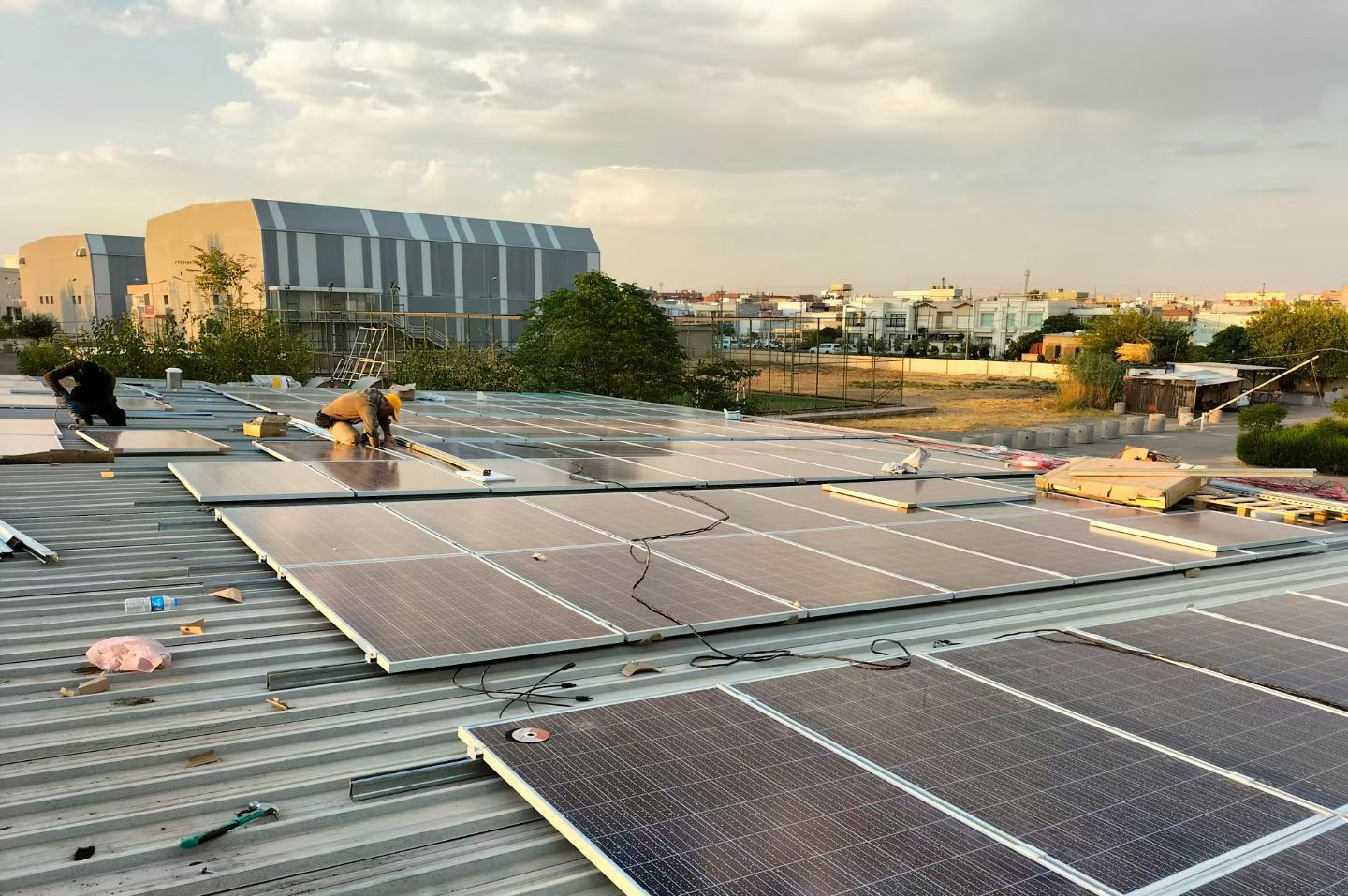

Solar panel project in Saudi Arabia
