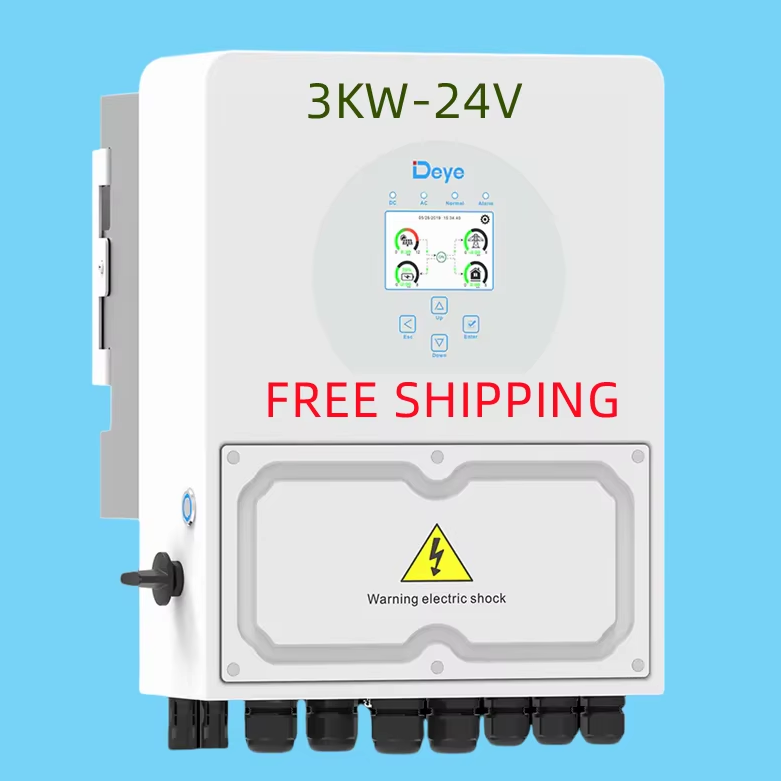

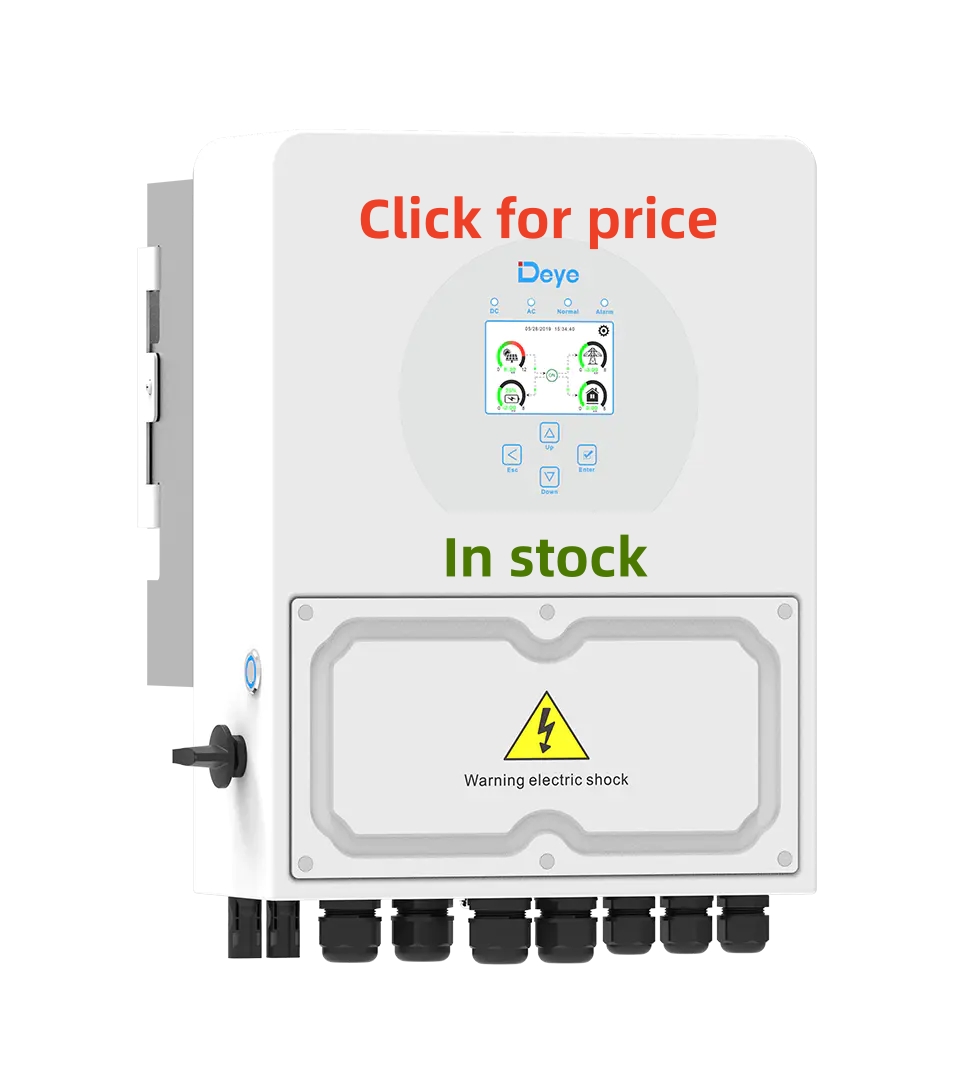

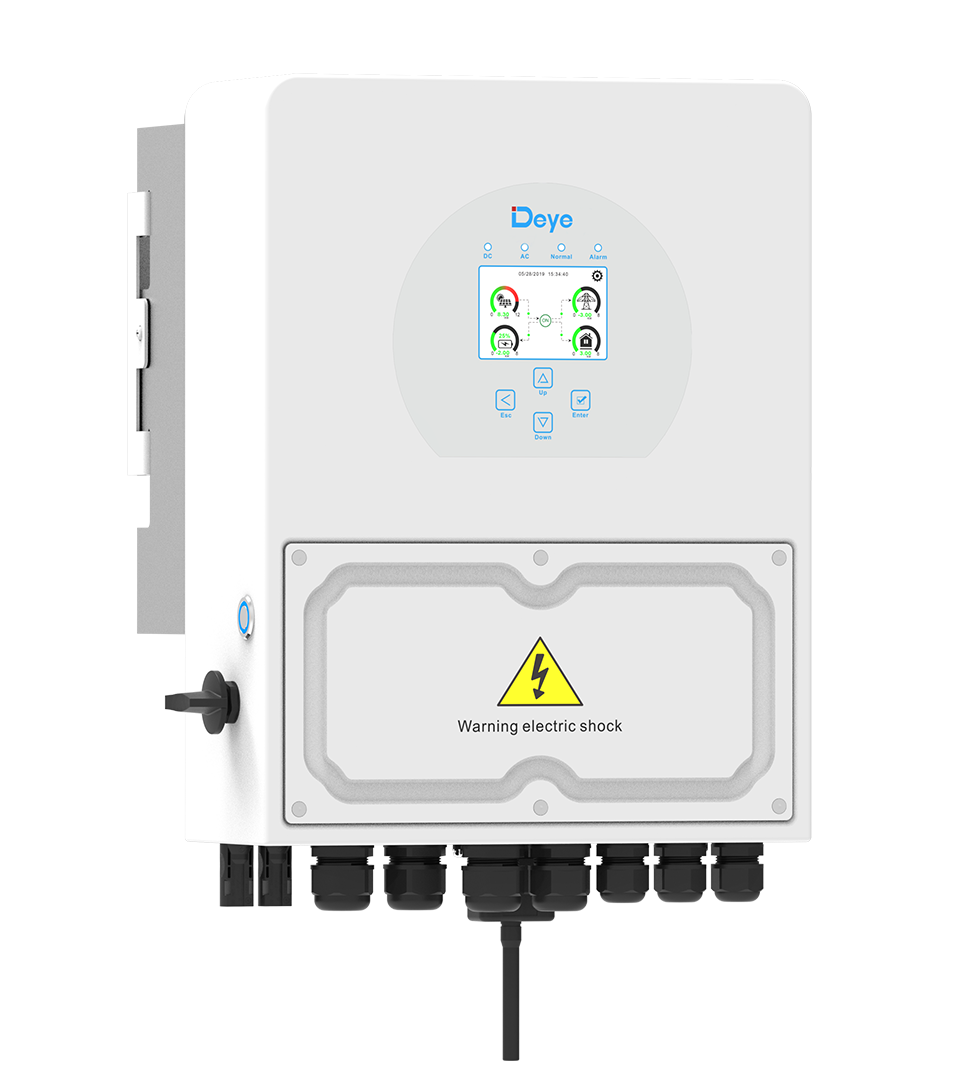

| Model | SUN-3K-SG04LP1-24-EU | SUN-3K-SG04LP1-EU | SUN-3.6K-SG04LP1-EU | SUN-5K-SG04LP1-EU | SUN-6K-SG04LP1-EU | |
| Battery Input Data | ||||||
| Battery Type | Lead-acid or Lithium-ion | |||||
| Battery Voltage Range (V) | 20~30 | 40~60 | 40~60 | 40~60 | 40~60 | |
| Max. Charging Current (A) | 140A | 70A | 90A | 120A | 135A | |
| Max. Discharging Current (A) | 140A | 70A | 90A | 120A | 135A | |
| Charging Curve | 3 Stages / Equalization | |||||
| External Temperature Sensor | Yes | |||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
| PV String Input Data | ||||||
| Max. DC Input Power (W) | 3900W | 3900W | 4680W | 6500W | 7800W | |
| PV Input Voltage (V) | 370V (125V~500V) | |||||
| MPPT Range (V) | 150~425V | |||||
| Start-up Voltage (V) | 250~425V | |||||
| PV Input Current (A) | 13A | 13A | 13A+13A | |||
| Max. PV ISC (A) | 17A | 17A | 17A+17A | |||
| No.of MPPT Trackers | 1 | 1 | 2 | |||
| No.of Strings Per MPPT Tracker | 1 | 1 | 1+1 | |||
| AC Output Data | ||||||
| Rated AC Output and UPS Power (W) | 3000W | 3000W | 3600W | 5000W | 6000W | |
| Max. AC Output Power (W) | 3300W | 3300W | 3690W | 5500W | 6600W | |
| Peak Power (off grid) | 2 times of rated power, 10 S | |||||
| AC Output Rated Current (A) | 13.6 | 13.6 | 16.4 | 22.7 | 27.3 | |
| Max. AC Current (A) | 15 | 15 | 18 | 25 | 30 | |
| Max. Continuous AC Passthrough (A) | 35A | 40A | ||||
| Power Factor | 0.8 leading to 0.8 lagging | |||||
| Output Frequency and Voltage | 50/60Hz; 220/230 / 240Vac (single phase) | |||||
| Grid Type | Single Phase | |||||
