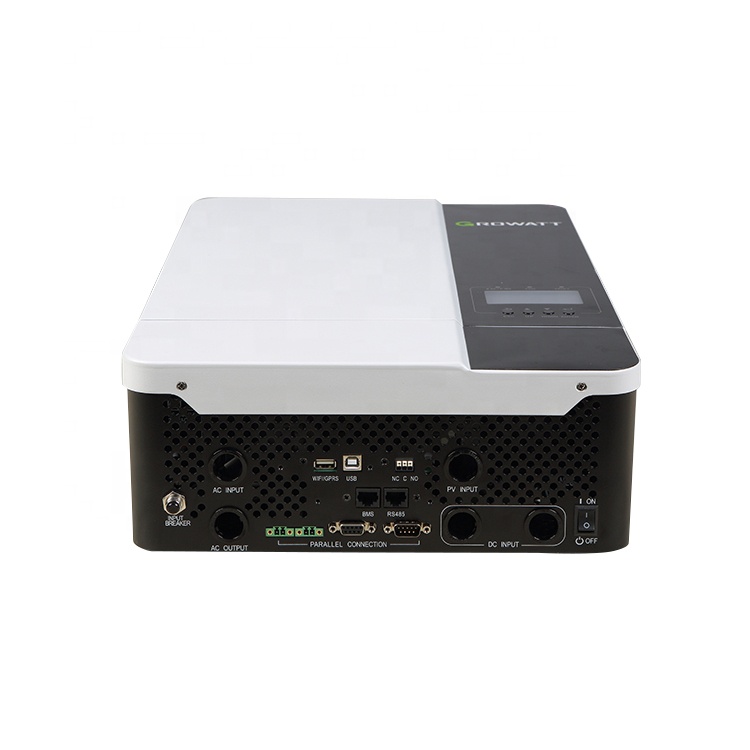

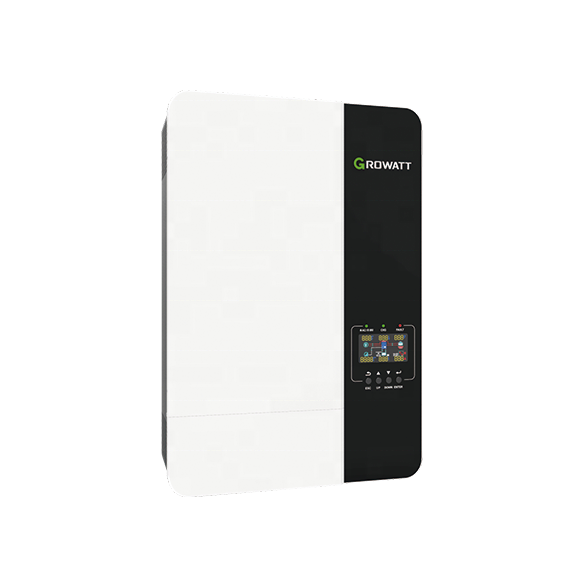

| Datesheet | SPF 3000ES | SPF 3500ES | SPF 5000ES |
| Battery Voltage | 48VDC | ||
| Battery Type | Lithium/Lead acid | ||
| INVERTER OUTPUT | |||
| Rated Power | 3000VA/3000W | 3500VA/3500W | 5000VA/5000W |
| Parallel Capability | NO | Yes, 6 units maximum | |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | ||
| Surge Power | 6000VA | 7000VA | 10000VA |
| Efficiency(Peak) | 93% | ||
| Waveform | Pure sine wave | ||
| Transfer Time | 10ms typical, 20ms MAX | ||
| SOLAR CHARGE | |||
| Maximum PV Array Power | 4000W | 4500W | 6000W |
| MPPT Range @ Operating Voltage | 120VDC - 430VDC | ||
| Number of Independent MPPT Trackers/Strings per MPP Tracker | 1/1 | ||
| Maximum PV Array Open Circuit Voltage | 450VDC | ||
| Maximum Solar Charge Current | 60A | 80A | 100A |
| AC CHARGER | |||
| Charger Current | 60A | 80A | |
| AC Input Voltage | 230VAC | ||
| Selectable Voltage Range | 170-280VAC (for personal computers); 90-280 VAC (For Home Appliance) | ||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||
| PHYSICAL | |||
| Protection Degree | IP20 | ||
| Dimension(W/H/D) | 330/485/135mm | ||
| Net Weight | 11.5kg | 11.5kg | 12kg |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Altitude | < 2000m | ||
| Operating Temperature | 0°C - 55°C | ||
| Storage Temperature | -15°C - 60°C | ||
