Product Description

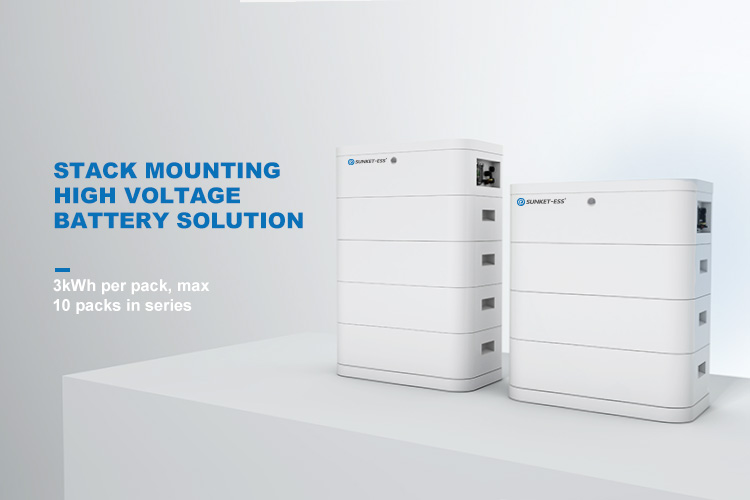

Banner Product Display Battery Detail
The LFP 9kWh/HV home battery is modular in 2.88 kWh increments, providing a capacity range of 8.64kWh-28.8kWh per stack. This also allows for easy servicing and future expansion. With continuous output at up to 14.4kW, true full-home backup is here.
Product Introduction
Features
The lithium iron phosphate battery (LiFePO4 or LFP) is the safest of the mainstream lithium battery types. A single LFP cell has a nominal voltage of 3.2V. A 57.6V LFP battery consists of 18 cells connected in series. LFP is the chemistry of choice for very demanding applications.
✔
Rugged - It can operate in deficit mode during long periods of time.
✔
High round trip efficiency.
✔
High energy density - More capacity with less weight and volume.
✔
High charge and discharge currents - Fast charges and discharges are possible.
✔
Flexible charge voltages.
Technical Specifications
Module Type LFP 9kWh LFP 12kWh LFP 15kWh LFP 18kWh LFP 21kWh LFP 24kWh LFP 27kWh LFP 30kWh
Usable Energy 8.64kWh 11.52kWh 14.40kWh 17.28kWh 20.16kWh 23.04kWh 25.92kWh 28.80kWh
Battery Module LFP 3000 / HV : 57.6V 50Ah
Number of Modules 3 4 5 6 7 8 9 10
Nominal Voltage 172.8V 230.4V 288V 345.6V 403.2V 460.6V 518.4V 576V
Operating Voltage 135-197.1V 180-262.8V 225-328.5V 270-394.2V 315-459.9V 360-525.6V 405-591.3V 450-657V
Dis-/Charge Current 25 / 50A
Weight 102kg 131kg 160kg 189kg 218kg 247kg 276kg 305kg
Dimension (mm) 670*330*697 670*330*855 670*330*1013 670*330*1171 670*330*1329 670*330*1487 670*330*1645 670*330*1803
Safety CE, UN38.3, IEC62619, IEC63056, IEC62477

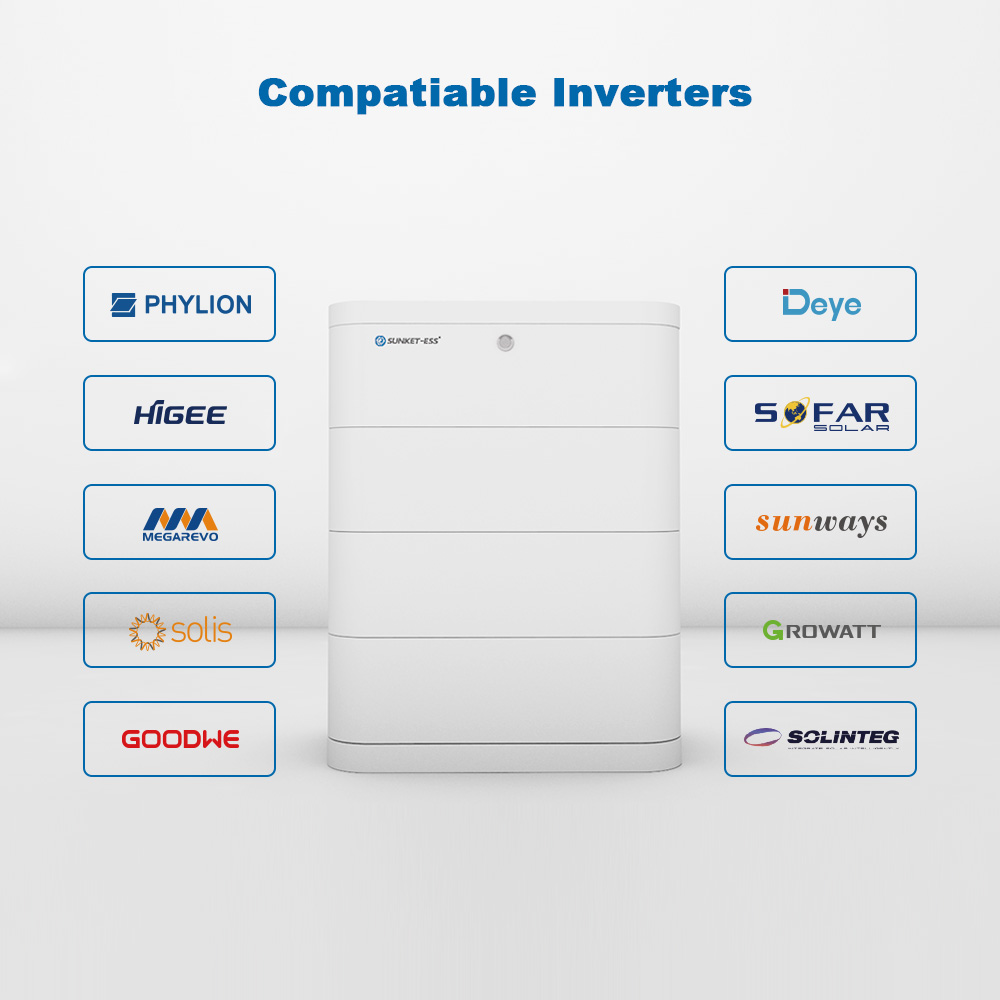

Compatible Inverters
Compatible Inverters

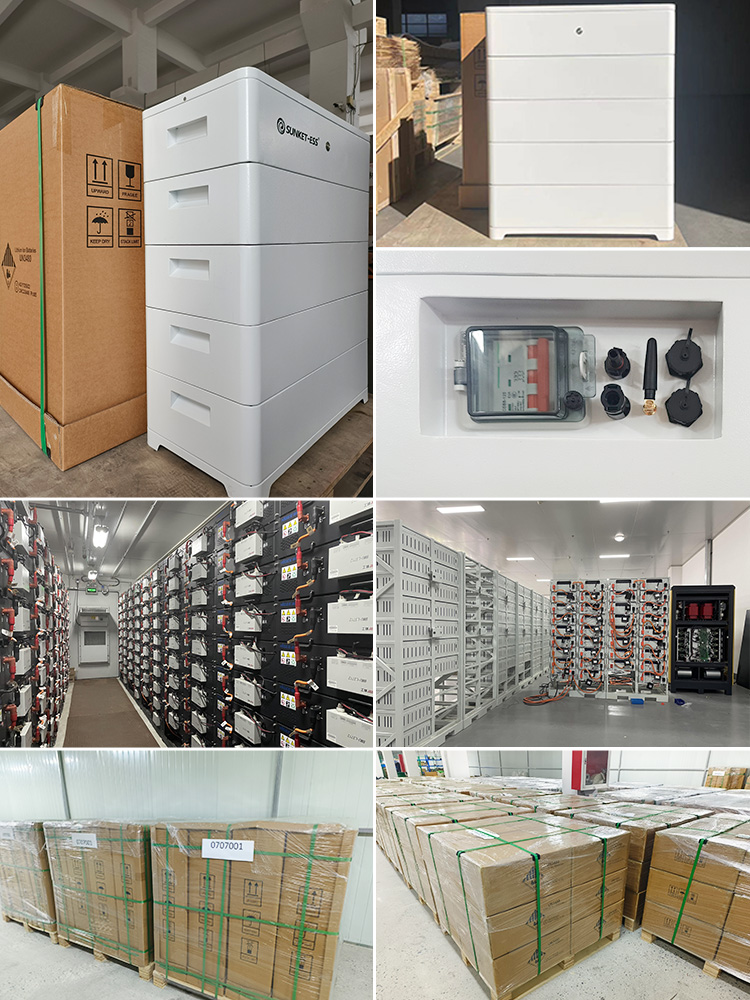

Professional Packing
Packaging

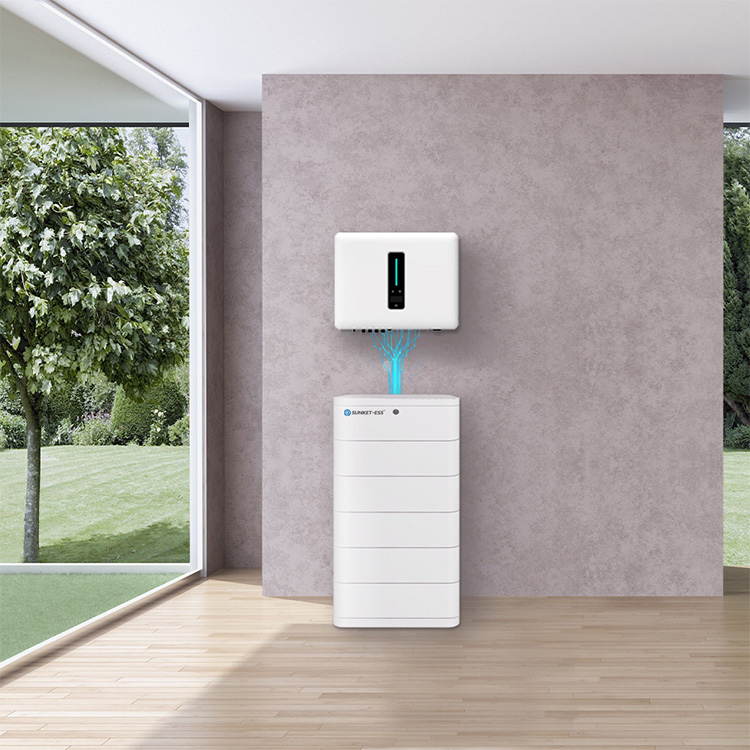

Project Case
Project Case
Recommend Products

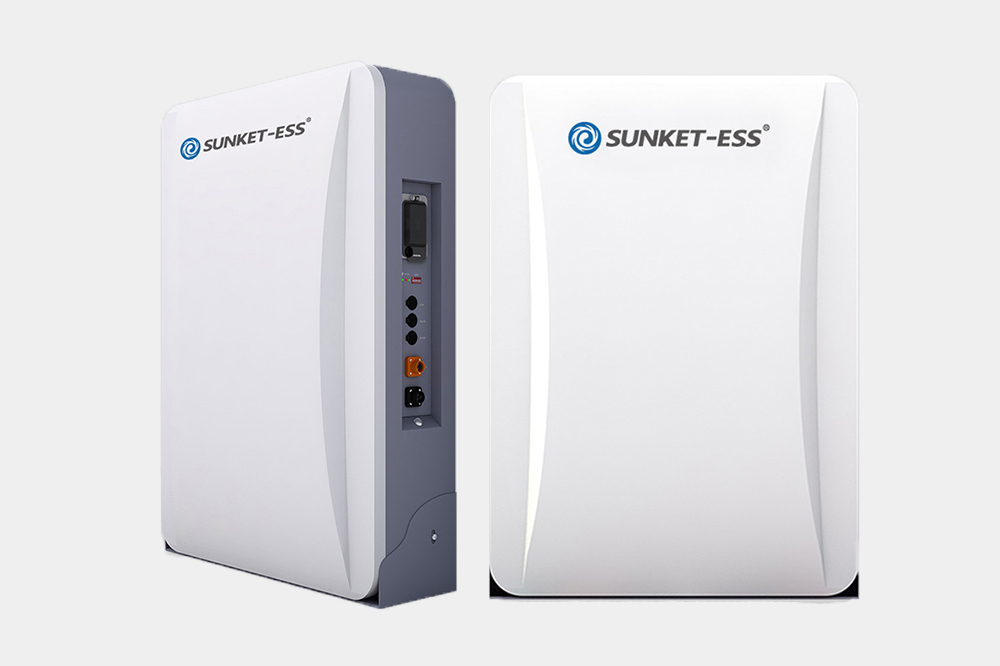

Wall Mounted
Wall Mounted Series

Wall Mounted Battery Solution
48v/51.2v
5kWh (100AH) / 10kWh (200AH)

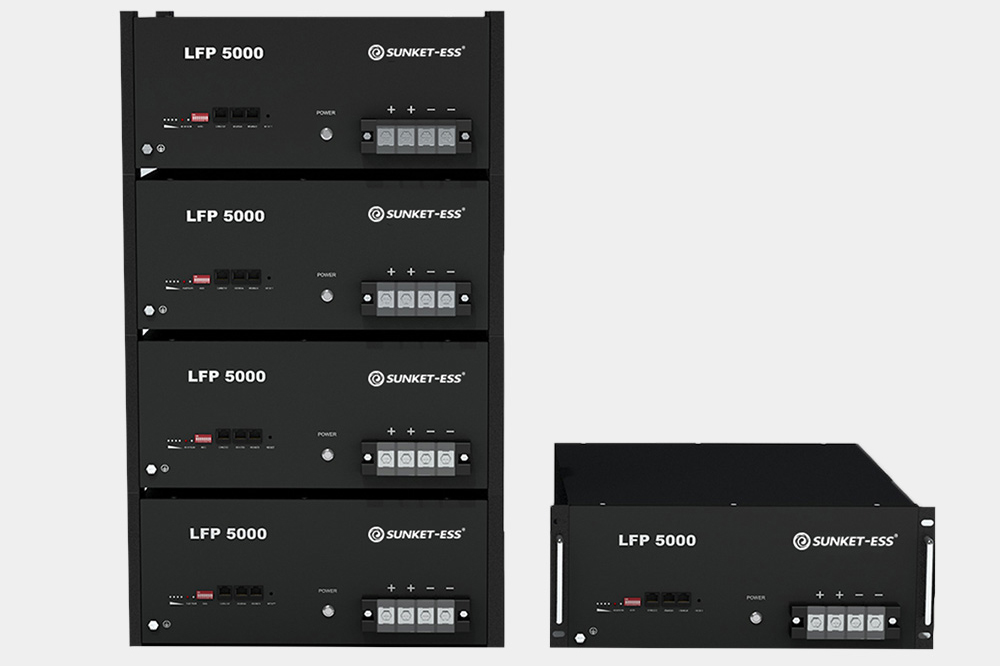

Rack Mounted Series

Rack Mounted Battery Solution
51.2V
5kWh-80kWh

Rack Mounted

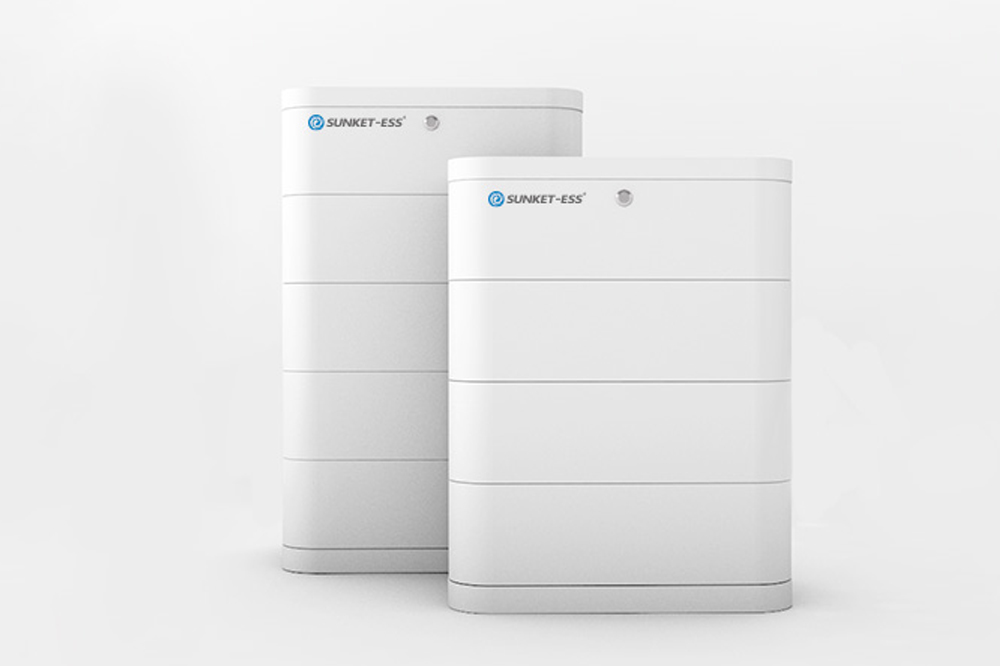

Stack Mounted
Stack Mounted Series

Stack Mounted High Voltage Battery Solution
Voltage 172.8V-576V
9kWh-30kWh

Frequently Asked Questions
What is the capacity range of the LFP 9kWh/HV series?
The system is modular and can be configured from 8.64kWh up to 28.8kWh per stack using 2.88kWh increments.
Why choose LiFePO4 (LFP) chemistry for home energy storage?
LiFePO4 is the safest mainstream lithium technology, offering high thermal stability, long cycle life, and high efficiency even in demanding conditions.
Is the system compatible with my existing inverter?
Our high-voltage LFP batteries are compatible with a wide range of leading professional hybrid inverters in the market.
Can I expand the battery capacity in the future?
Yes, the modular design allows for easy addition of battery modules to increase your storage capacity as your energy needs grow.
What safety certifications do these batteries hold?
Our batteries comply with international safety standards including CE, UN38.3, IEC62619, IEC63056, and IEC62477.
What is the maximum power output for the full stack?
The LFP HV series can provide a continuous output of up to 14.4kW, making it suitable for full-home backup solutions.
