Sunket EU Germany Stock Stacked Lithium Iron Batteries Pack 20kw LIFEPO4 Battery 20kwh Solar Energy Storage Battery

1 / 5

Sunket EU Germany Stock Stacked Lithium Iron Batteries Pack 20kw LIFEPO4 Battery 20kwh Solar Energy Storage Battery

Send Inquiry

Product Description

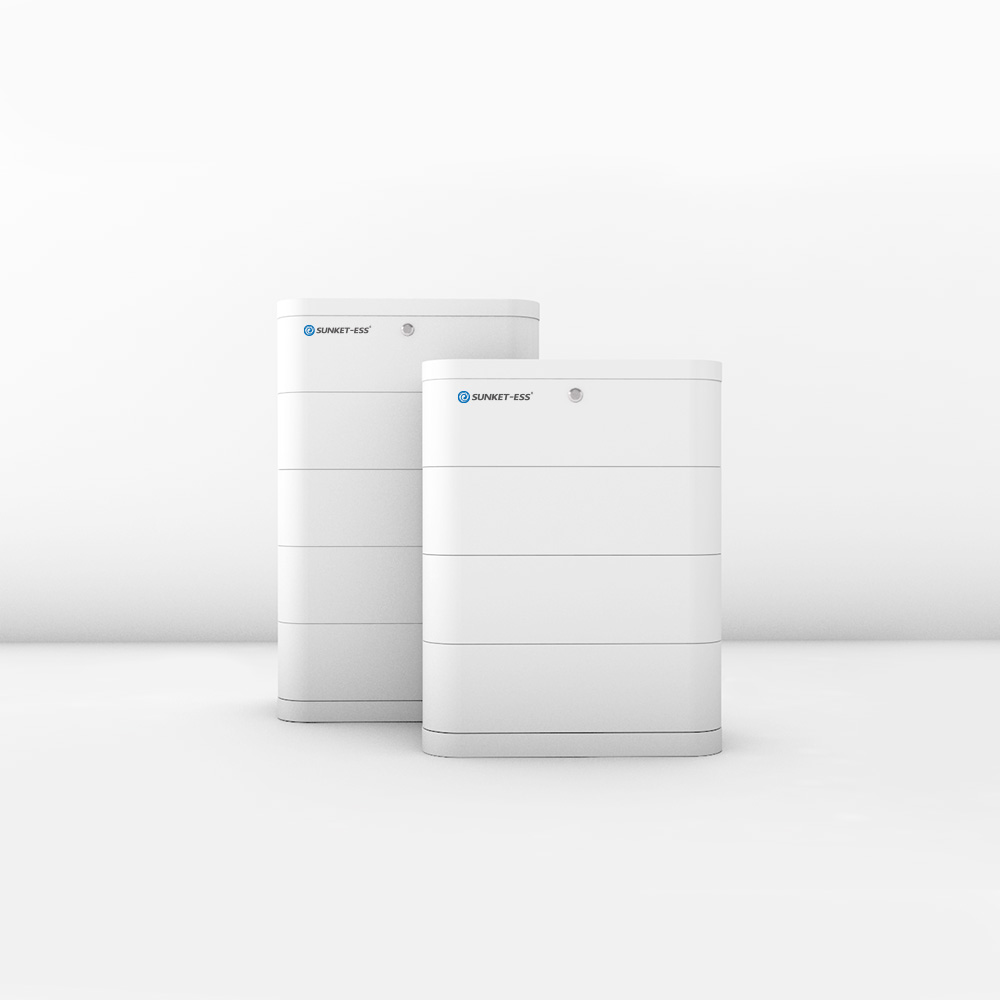

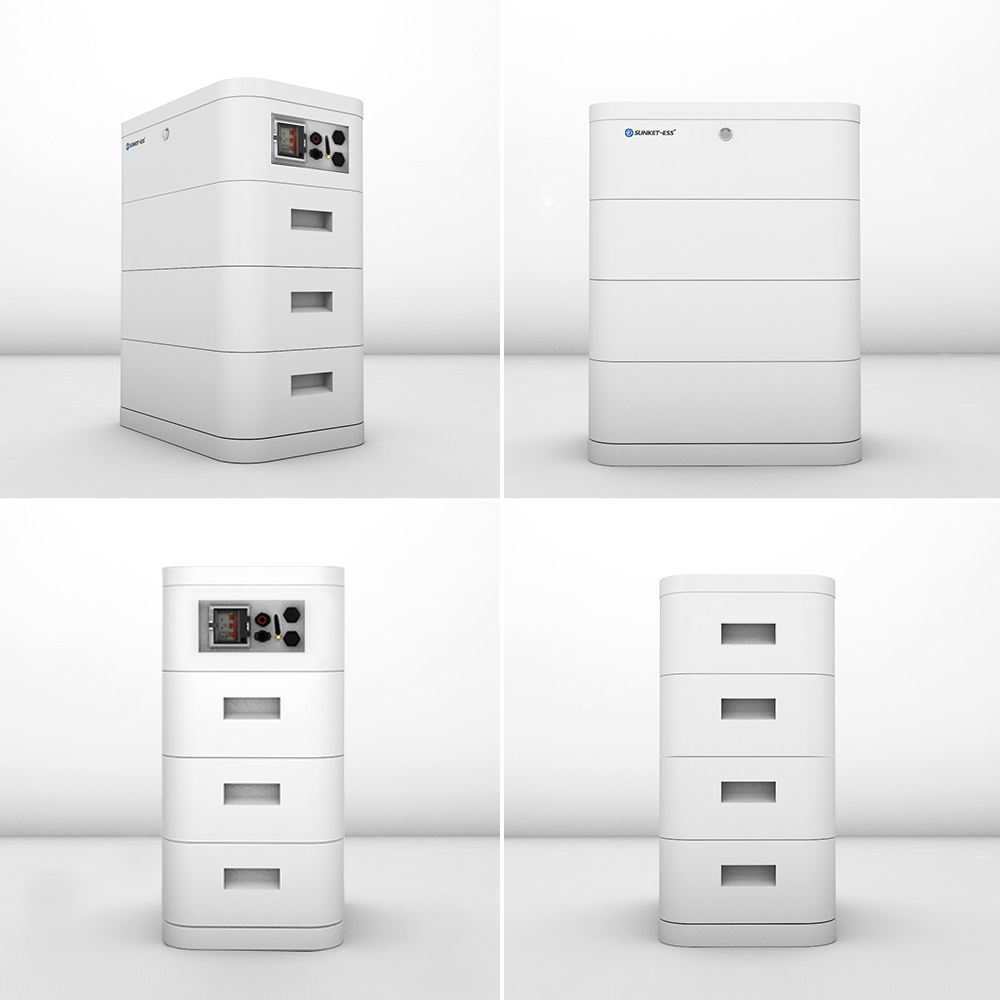

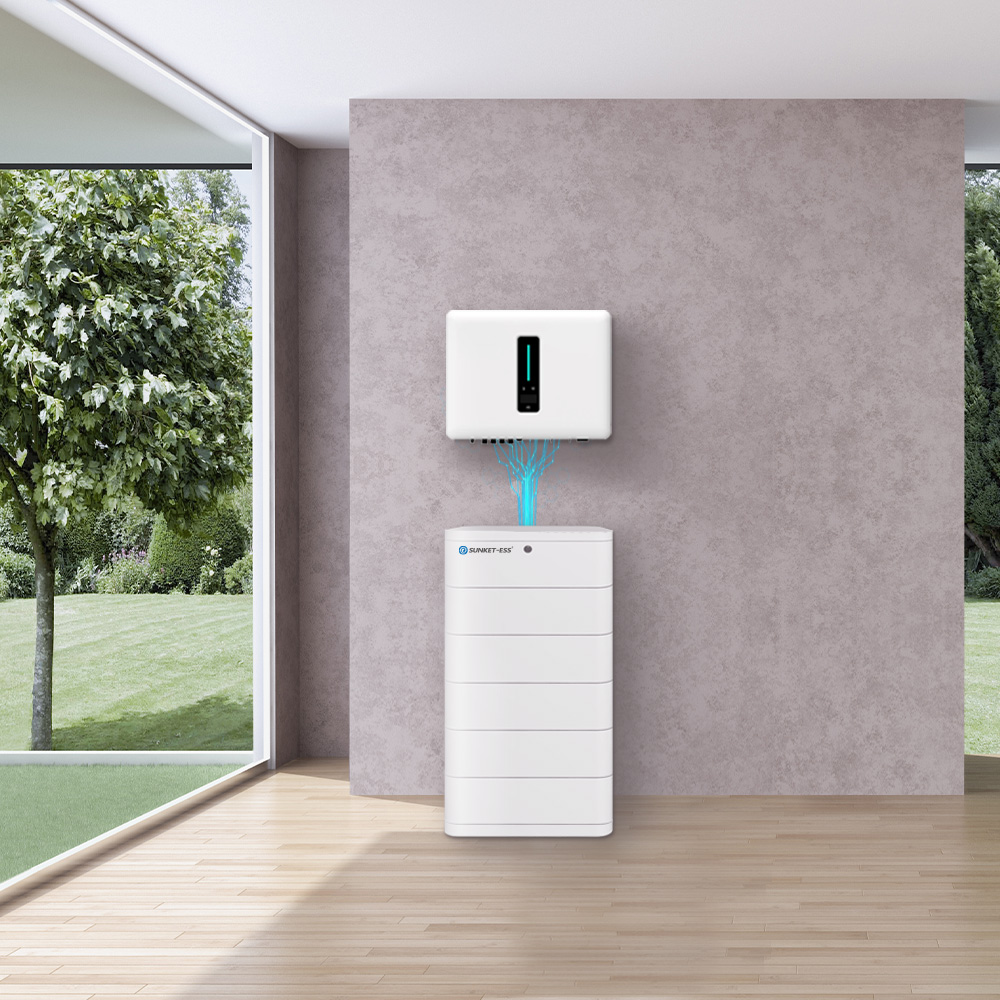

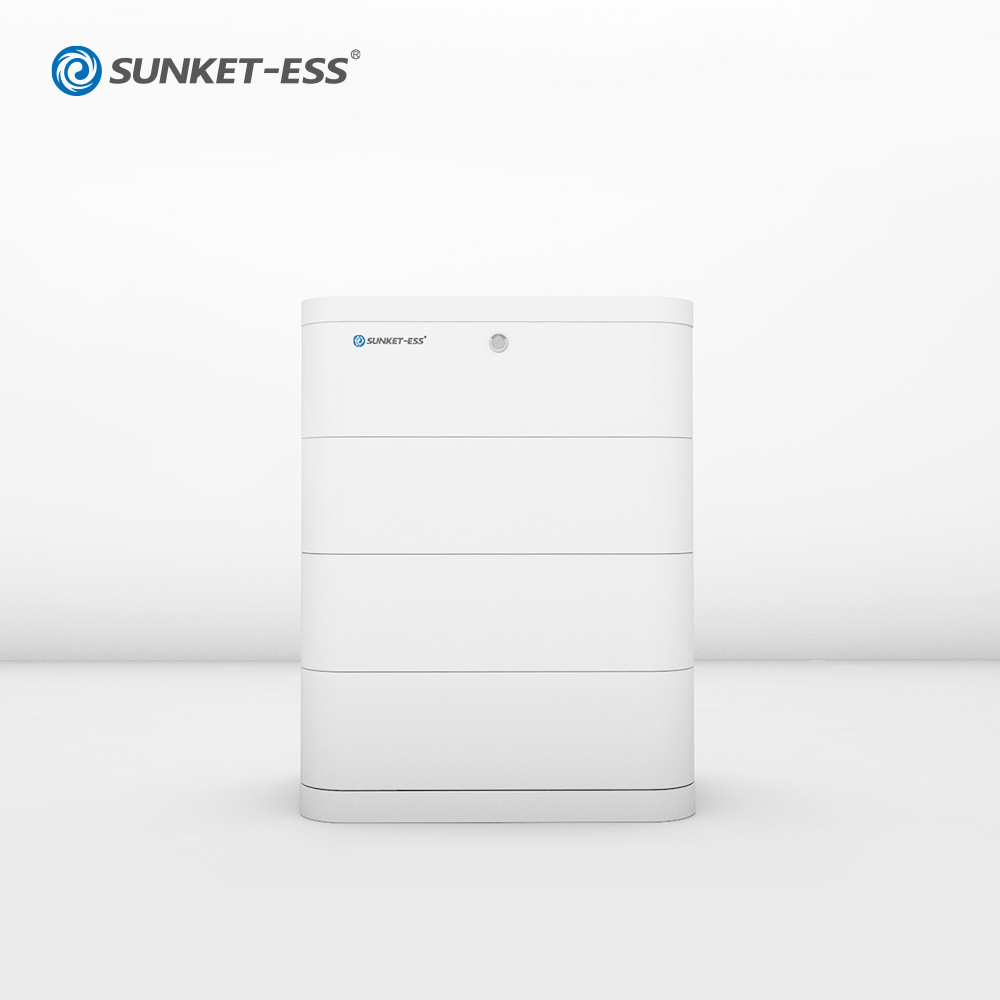

The LFP 9kWh/HV home battery is modular in 2.88 kWh increments, providing a capacity range of 8.64kWh-28.8kWh per stack. This also allows for easy servicing and future expansion. With continuous output at up to 14.4kW, true full-home backup is here.

Product Introduction

The lithium iron phosphate battery (LiFePO4 or LFP) is the safest of the mainstream lithium battery types. A single LFP cell has a nominal voltage of 3.2V. A 57.6V LFP battery consists of 18 cells connected in series. LFP is the chemistry of choice for very demanding applications.

✓

Rugged: It can operate in deficit mode during long periods of time.

✓

High Round Trip Efficiency: Optimal energy conversion.

✓

High Energy Density: More capacity with less weight and volume.

✓

High Charge/Discharge: Fast charges and discharges are possible.

✓

Flexible: Supports versatile charge voltages.

Technical Specifications

Module Type	LFP 9kWh	LFP 12kWh	LFP 15kWh	LFP 18kWh	LFP 21kWh	LFP 24kWh	LFP 27kWh	LFP 30kWh
Usable Energy	8.64kWh	11.52kWh	14.40kWh	17.28kWh	20.16kWh	23.04kWh	25.92kWh	28.80kWh
Battery Module	LFP 3000 / HV : 57.6V 50Ah
Number of Modules	3	4	5	6	7	8	9	10
Nominal Voltage	172.8V	230.4V	288V	345.6V	403.2V	460.6V	518.4V	576V
Operating Range	135-197.1V	180-262.8V	225-328.5V	270-394.2V	315-459.9V	360-525.6V	405-591.3V	450-657V
Dis-/Charge Current	25 / 50A
Weight	102kg	131kg	160kg	189kg	218kg	247kg	276kg	305kg
Dimension (mm)	670330697	670330855	6703301013	6703301171	6703301329	6703301487	6703301645	6703301803
Safety	CE, UN38.3, IEC62619, IEC63056, IEC62477

Compatible Inverters

Professional Packing & Project Case

Recommend Products

Wall Mounted Series

Wall Mounted Battery Solution
48v / 51.2v
5kWh (100AH) / 10kWh (200AH)

Rack Mounted Series

Rack Mounted Battery Solution
51.2V
5kWh - 80kWh

Stack Mounted Series

Stack Mounted High Voltage Battery Solution
Voltage 172.8V - 576V
9kWh - 30kWh

Frequently Asked Questions

What is the advantage of using LiFePO4 (LFP) chemistry?

LFP is the safest lithium chemistry available, offering high thermal stability, a long cycle life, and a high round-trip efficiency. It is also more environmentally friendly compared to other lithium types.

Can I expand the battery capacity in the future?

Yes, the LFP 9kWh/HV system is modular. You can start with a 3-module stack (8.64kWh) and expand up to 10 modules (28.8kWh) as your energy needs grow.

Is this battery system compatible with my existing inverter?

Our HV battery system is compatible with most leading high-voltage hybrid inverters on the market. Please refer to our compatible inverter list or contact technical support for verification.

What safety certifications do these batteries hold?

The products are fully certified with CE, UN38.3, IEC62619, IEC63056, and IEC62477, ensuring they meet international safety and transport standards.

What is the expected lifespan of the modular battery?

LiFePO4 batteries typically offer over 6,000 cycles at 80% Depth of Discharge (DoD), which translates to 10-15 years of daily use depending on operating conditions.

Does the system support full-home backup?

Yes, with a continuous output power of up to 14.4kW, the system is designed to handle high-load appliances and provide comprehensive backup for residential properties.
