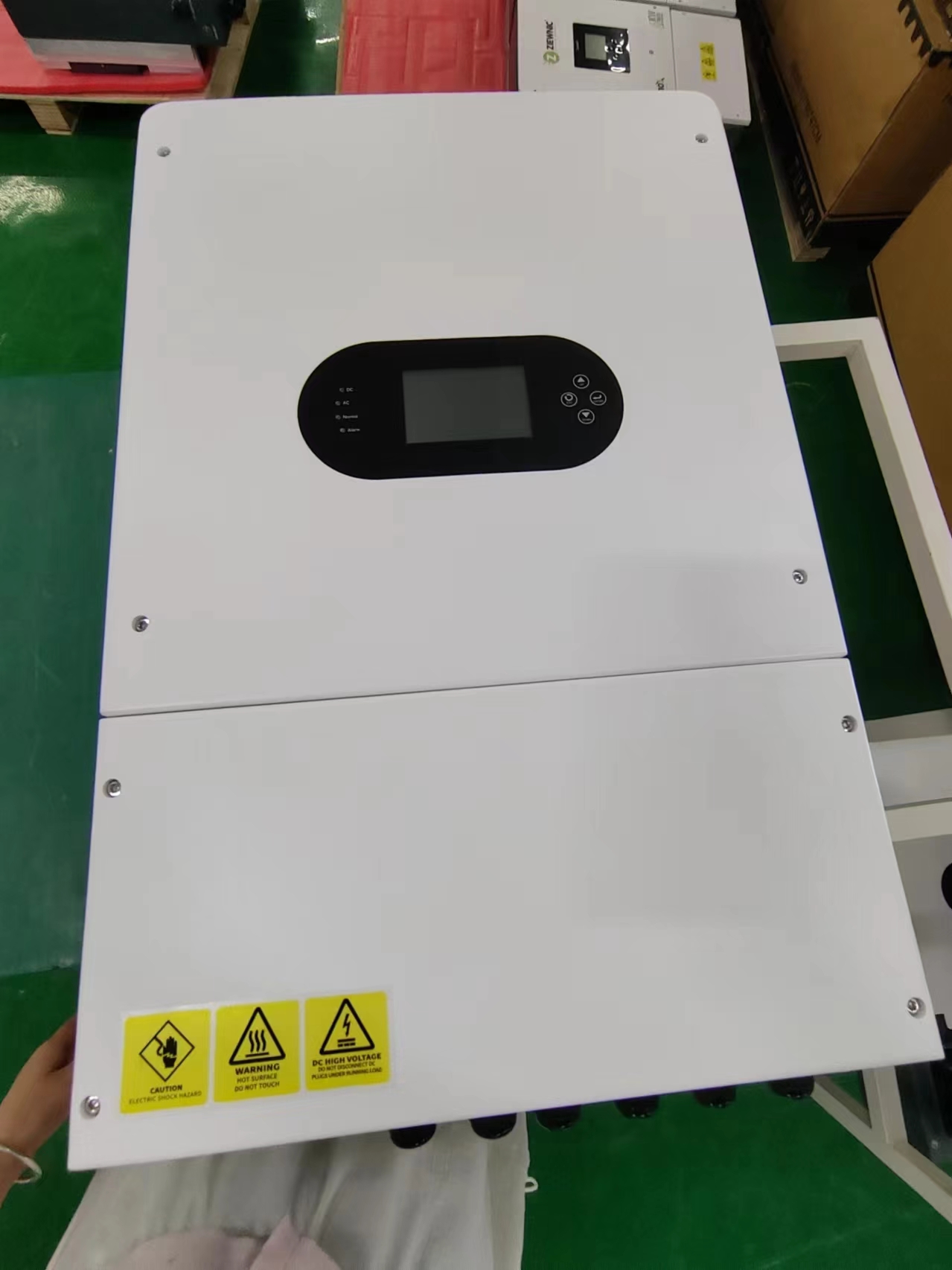

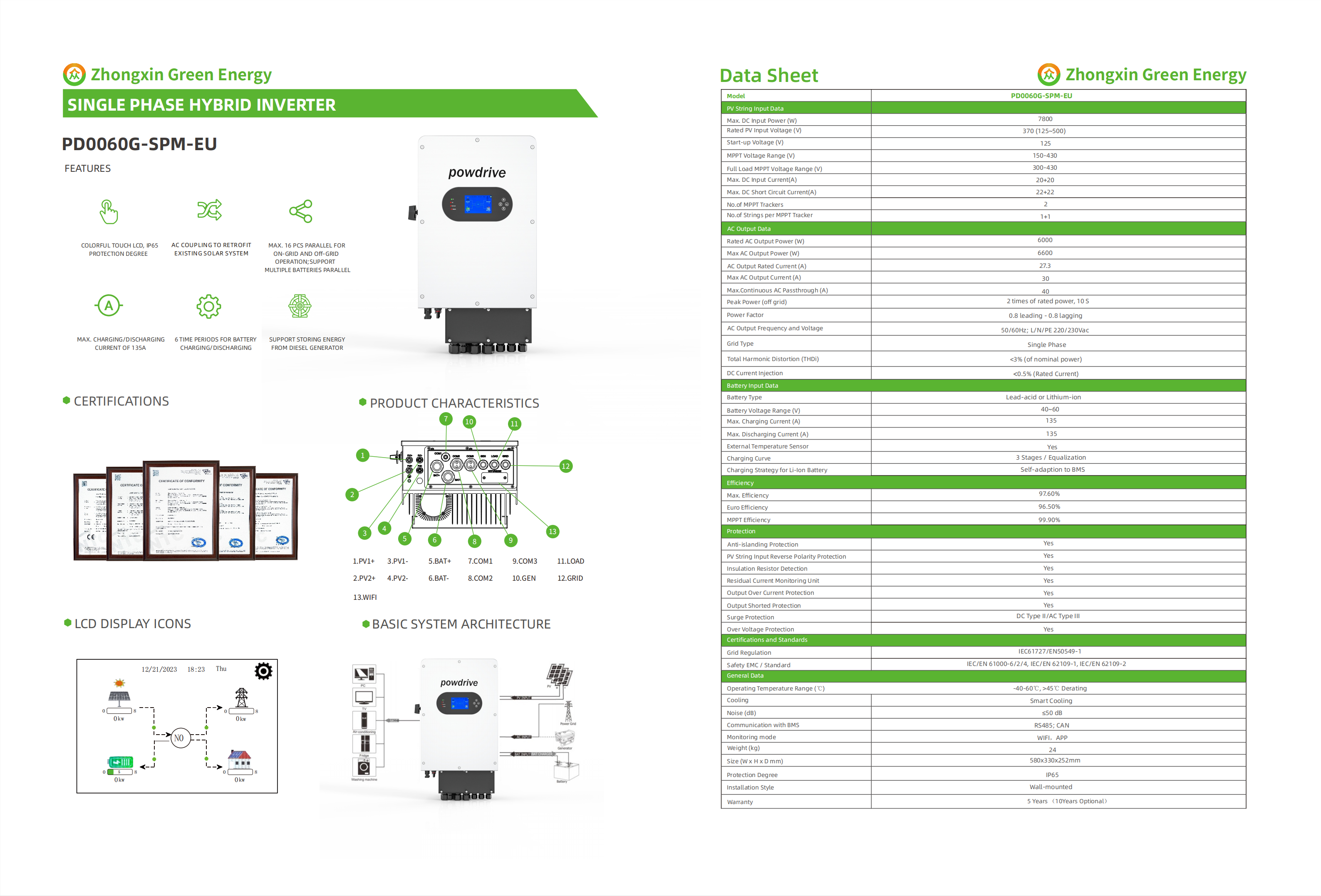

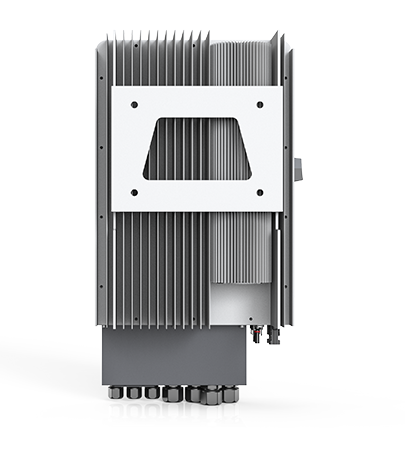

| Model | PD0060G-SPM-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 40-60 | ||
| Max. Charging/Discharging Current (A) | 135 | 120 | 135 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 7800 | 6500 | 7800 |
| Rated PV Input Voltage (V) | 370 (125-500) | ||
| MPPT Voltage Range (V) | 150-430 | ||
| No.of MPP Trackers / Strings | 2 / 1+1 | ||
| AC Output Data | |||
| Rated AC Output Power (W) | 6000 | 5000 | 6000 |
| Max AC Output Power (W) | 6600 | 5500 | 6600 |
| AC Output Rated Current (A) | 27.3 | 22.7/21.7 | 27.3/26.1 |
| Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac | ||
| Grid Type | Single Phase | ||
| Efficiency | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 96.50% | ||
| General Data | |||
| Operating Temperature Range | -40~60℃, >45℃ Derating | ||
| Communication with BMS | RS485; CAN | ||
| Cabinet Size (WxHxD mm) | 580x330x252mm | ||
| Protection Degree | IP65 | ||
| Warranty | 5 Years (10 Years Optional) | ||
