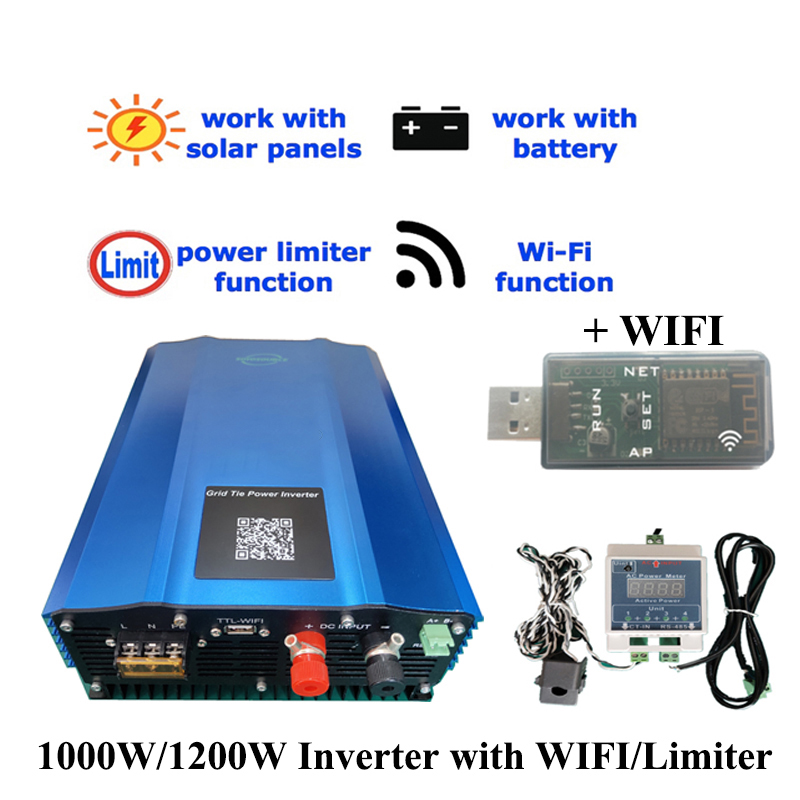

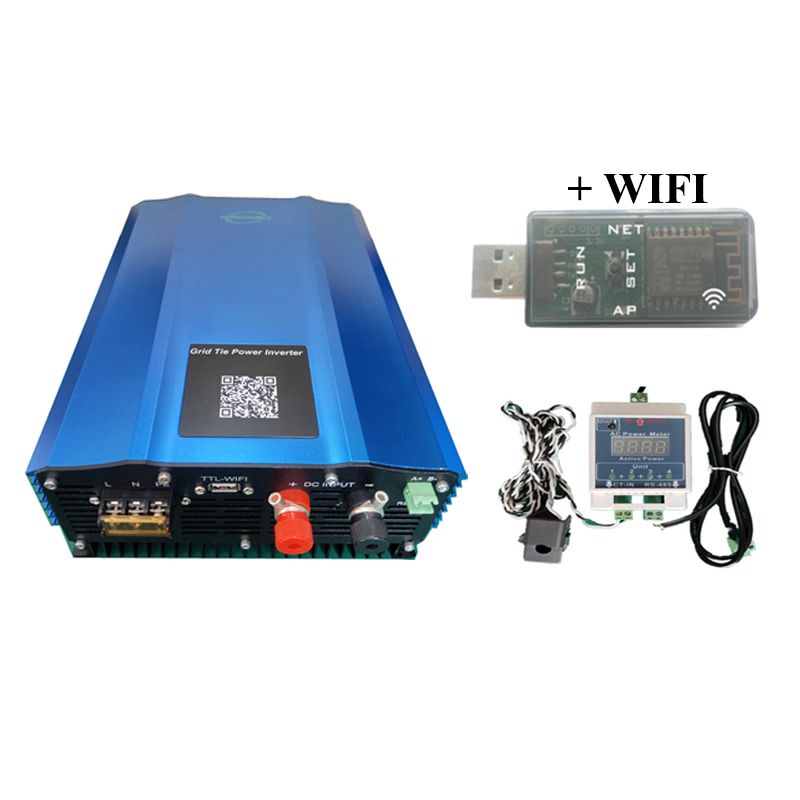

1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1 / 5
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge
1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge

1000W/1.2KW MPPT WIFI Solar Grid Tied Power Inverter DC48V 72V 96V AC110V/240V 50/60HZ with NEW Limiter Sensor Battery Discharge

Send Inquiry

Product Description

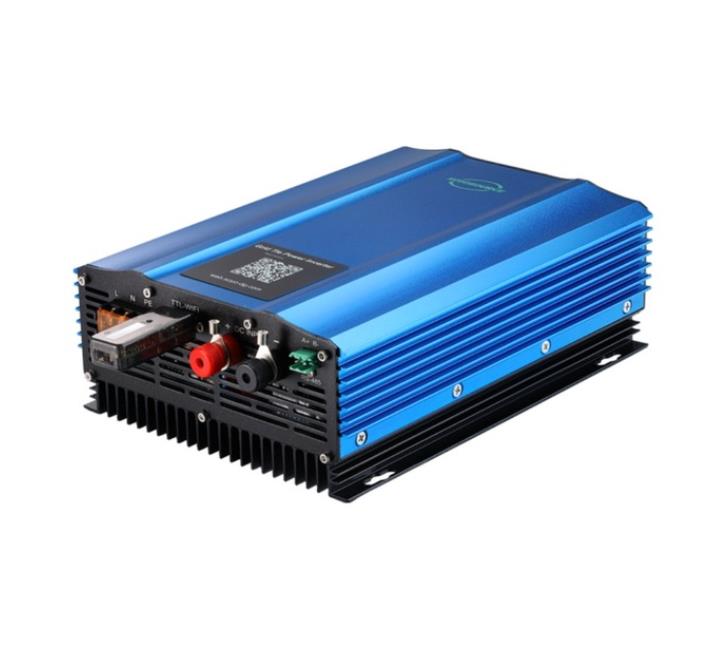

Solar Grid Tied Power Inverter
DC Input Voltage Specifications

For 1000W Inverter (5 Models Available):

✓PV-voc: 26V-45V (for 24V Battery)
✓PV-voc: 40V-60V (for 36V Battery)
✓PV-voc: 55V-90V (for 48V Battery)
✓PV-voc: 85V-130V (for 72V Battery)
✓PV-voc: 120V-180V (for 96V Battery)

For 1200W Inverter (3 Models Available):

✓PV-voc: 55V-90V (for 48V Battery)
✓PV-voc: 80V-125V (for 72V Battery)
✓PV-voc: 120V-180V (for 96V Battery)
Technical Parameter Table
Model Parameter GTN-100024 GTN-100036 GTN-100048 / 120048 GTN-100072 / 120072 GTN-100096 / 120096
Recommended PV Module Power 1000W Model: 200W-1100W | 1200W Model: Less than 1300W
DC Input Branch Number 1
PV No-load Voltage Voc(V) 26V-45V 39V-62V 55V-90V 85V-130V 120V-180V
MPPT Tracking Range(V) 21~31V 32~45V 44~70V 65V~100V 90~135V
Suitable Battery Voltage 24V 36V 48V/60V 72V 96V
Battery Start Voltage (Settable) 24-31V 35-45V 47-70V 70-100V 94-120V
Low Voltage Shutdown (Settable) 21-30V 33-44V 44-69V - -
Frequently Asked Questions
Q1: How do I choose the right inverter for my solar panel voltage?
A: You should match the Voc (Open Circuit Voltage) of your solar panel with the PV-voc range of the inverter. For example, if your panel has a Voc of 36V, the 24V battery model (26V-45V range) is suitable.
Q2: Can I use this inverter with a battery system?
A: Yes, this series is designed to work with batteries ranging from 24V up to 96V depending on the specific model selected. It includes adjustable battery discharge settings.
Q3: What is the benefit of the MPPT tracking range?
A: The MPPT (Maximum Power Point Tracking) ensures that the inverter extracts the maximum possible power from your solar panels even under varying light conditions by tracking the optimal voltage.
Q4: Is the battery shutdown voltage adjustable?
A: Yes, the low voltage shutdown range is settable to protect your battery from over-discharge, ensuring a longer battery lifespan.
Q5: Can the 1200W model handle high-voltage PV modules?
A: Yes, the 1200W model is available in high-voltage versions that support PV-voc inputs up to 180V for 96V battery systems.
Q6: Does this inverter support different AC output standards?
A: Yes, it is compatible with AC110V/240V and 50/60HZ power grids, making it versatile for different regional requirements.
