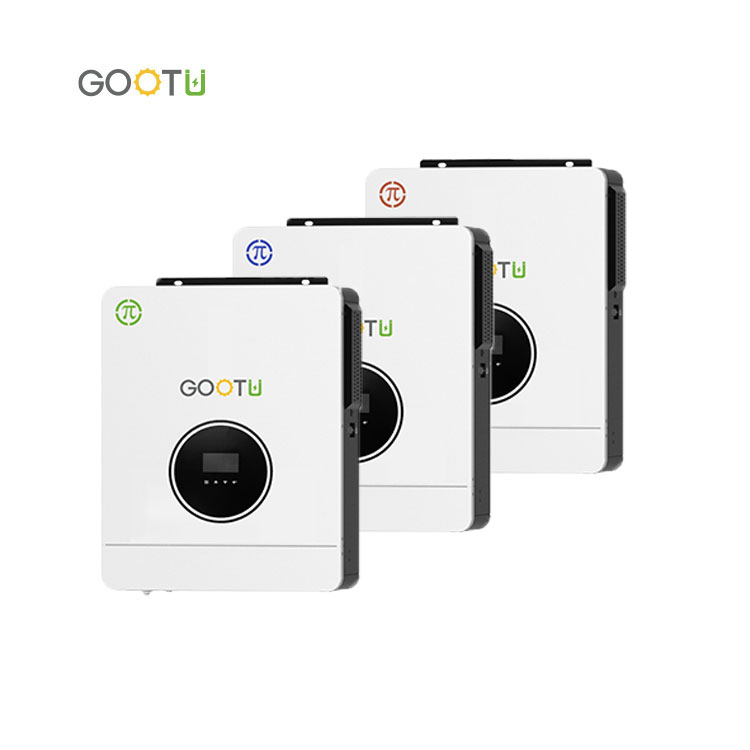

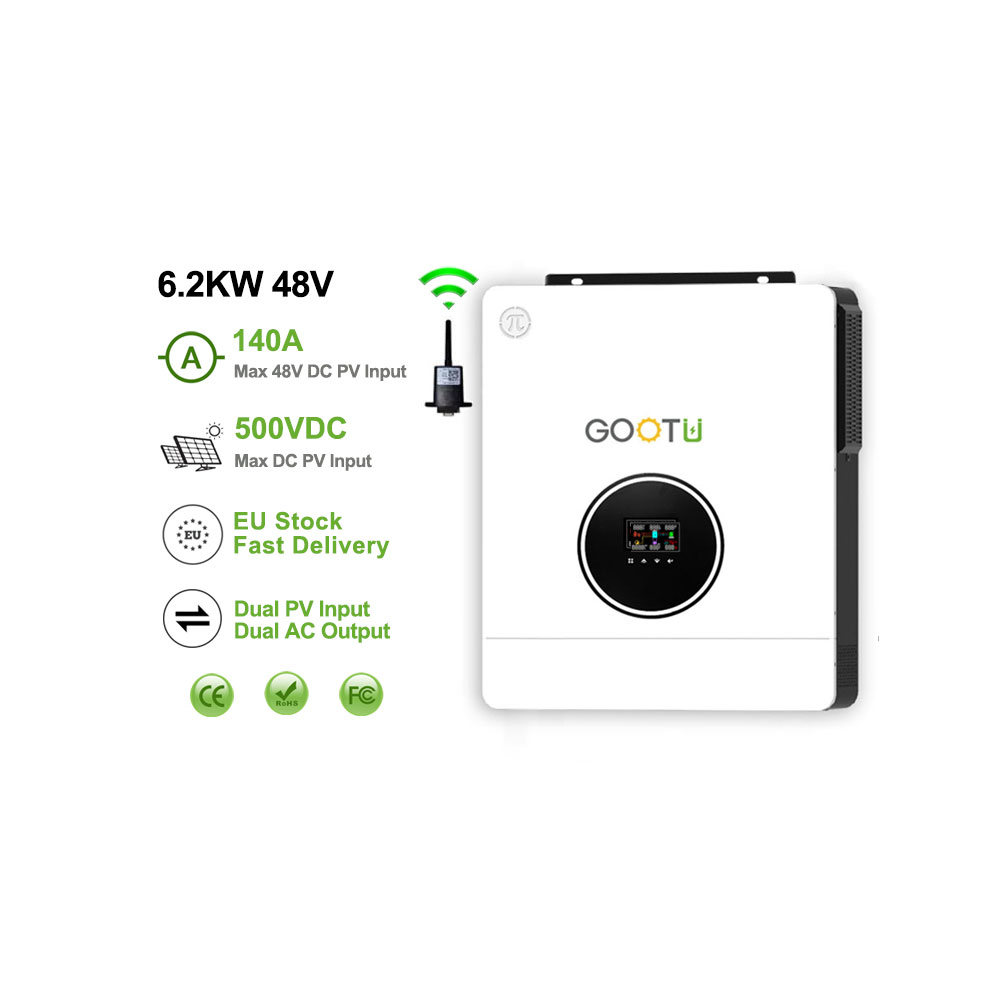

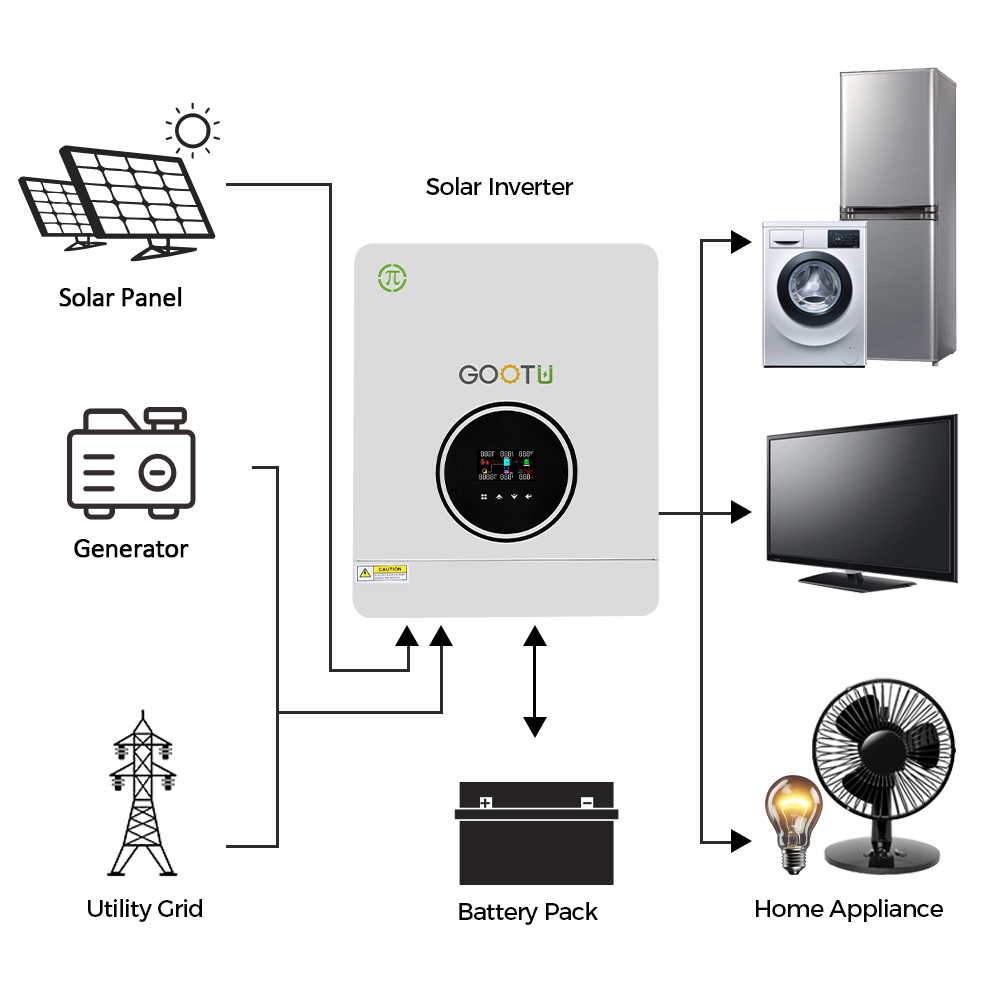

The 6.2KW dual output hybrid solar inverter is a high-performance power solution featuring two separate AC outputs. This advanced design enables the inverter to be utilized in diverse applications, such as supplying power to two distinct buildings or managing a home load and a backup generator simultaneously.
The dual output functionality offers significant flexibility in system configuration, allowing users to optimize both energy production and distribution. These hybrid inverters are ideal for residential and light commercial solar installations seeking efficiency and versatility.
NOTE: The JSY Series Inverters are wide voltage Hybrid Inverters. The start-up voltage for solar panel connection must be above 120V for the inverter to operate normally.
| Model | JSY-H4862E120-D |
| Maximum PV Input Power | 6500W |
| Rated Output Power | 6200W |
| Maximum Solar Charging Current | 120A |
| GRID TIE OPERATION / PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360VDC / 500VDC |
| Start-up Voltage / Initial Feeding Voltage | 90VDC / 120VDC |

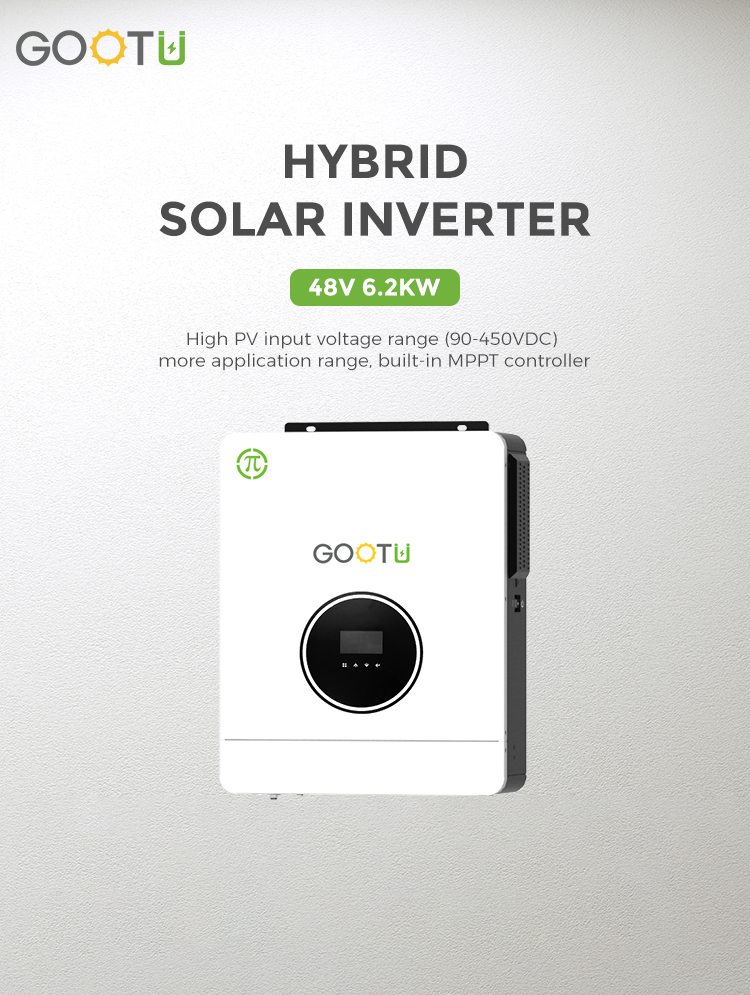

| MPPT Voltage Range | 90VDC - 450VDC |
| MPPT Trackers / Maximum Input Current | 1 / 27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Nominal Output Current | 27A |
| TWO LOAD OUTPUT POWER | |
| Full Load | 6200W |
| Maximum Second Load (battery mode) | 2067W |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48V DC |
| Maximum AC Charging Current | 100A |
