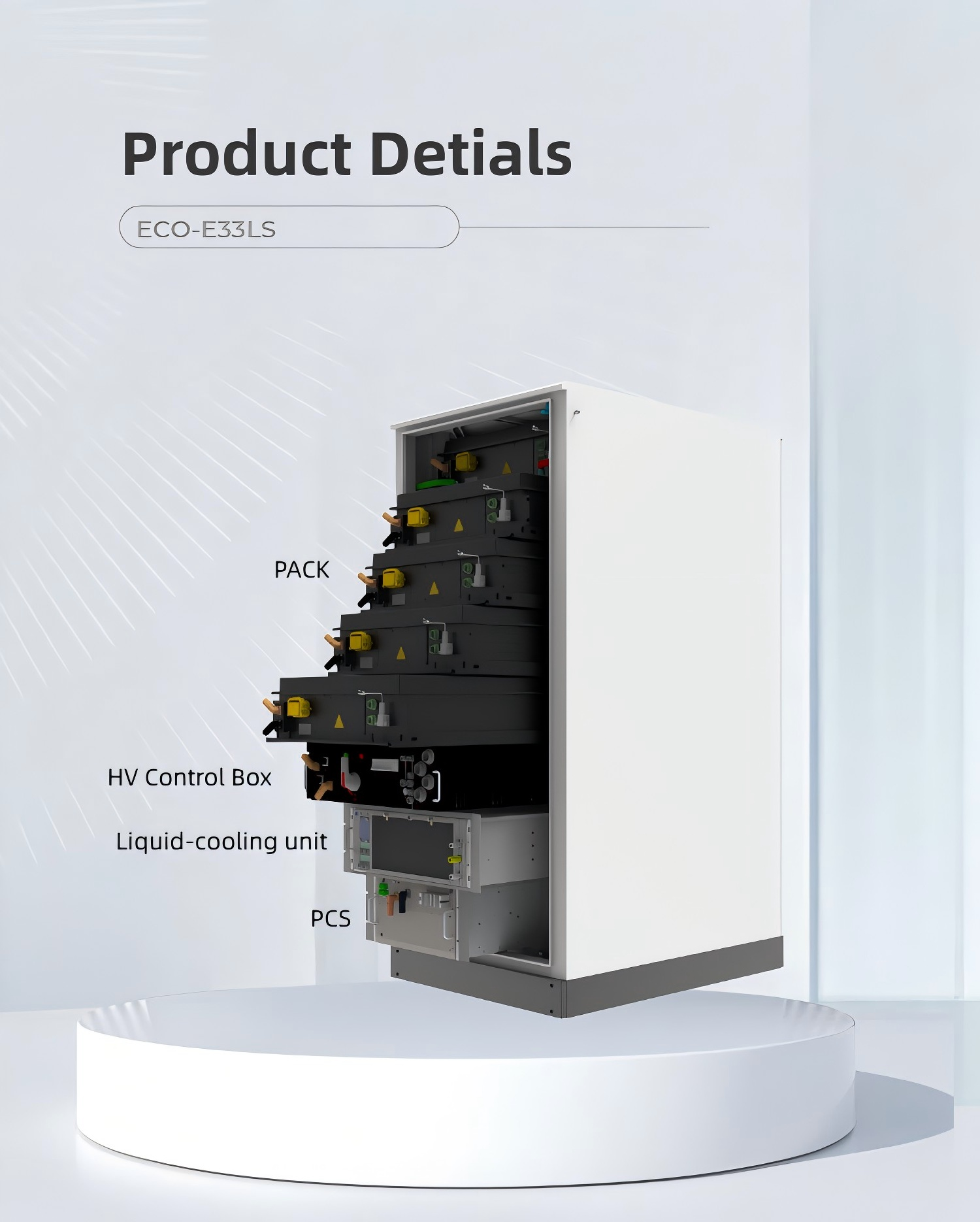

| DC Side Parameters | |
|---|---|
| Cell Type | LFP 280Ah |
| PACK | 46.592kWh / 1P52S |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728 ~ 936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side Parameters | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| THDi | ＜ 3% |
| DC Ratio | ＜ 0.5%Ip |
| Nominal Voltage | 400Vac / 3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General Data | |

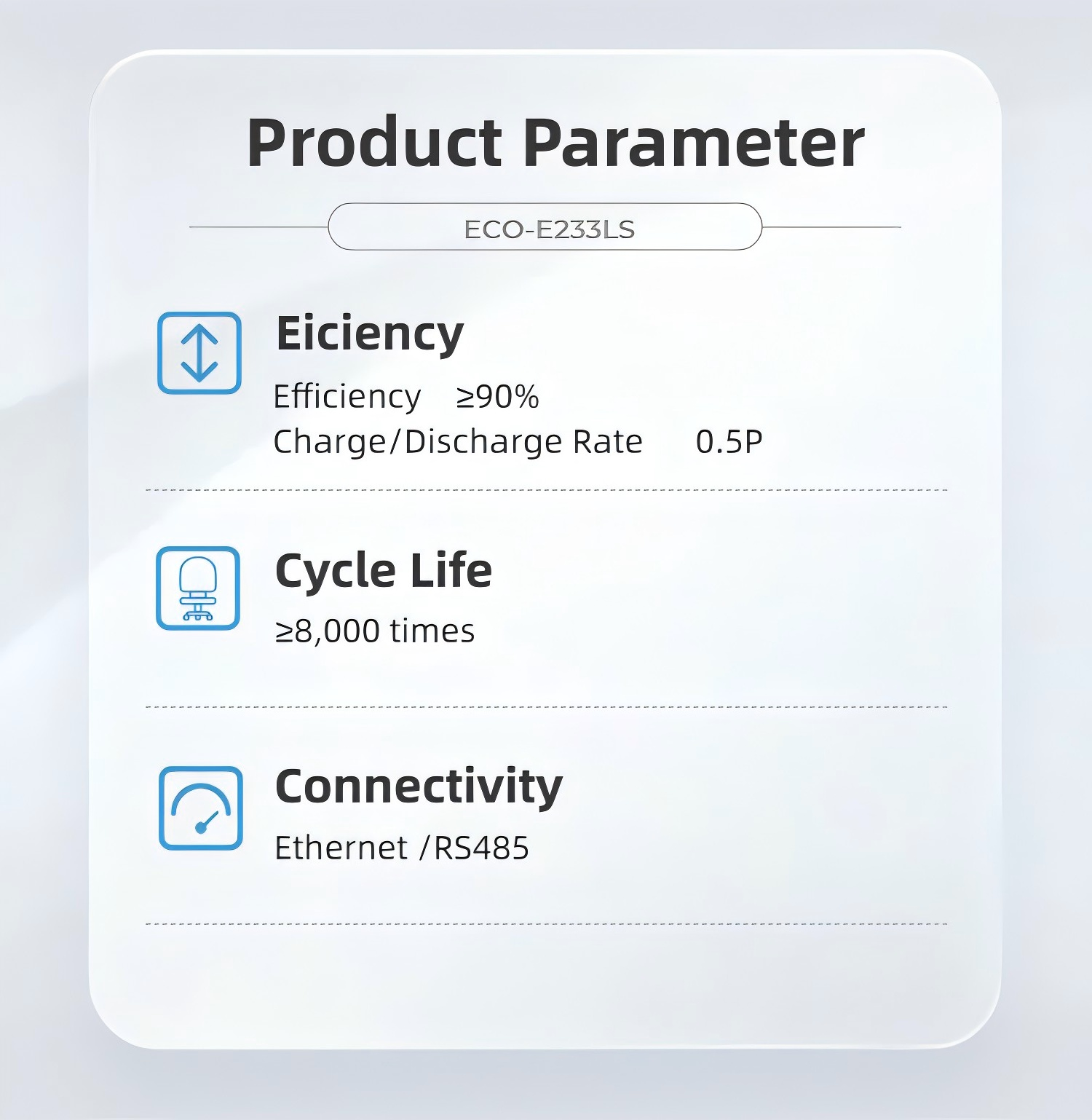

| System Efficiency | ≥ 90% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% |
| SOC Accuracy | ＜ 3% |
| Cycle Life | ≥ 8,000 times |
| Switching Time | ＜ 100ms |
| Connectivity | Ethernet / RS485 |
| Ingress Rating | IP55 |
| Cooling | Active liquid cooling |
| Operating Temperature | -25℃ ~ 55℃ |
| Humidity | 5-95%RH, non-condensing |
| Fire Safety | Aerosol |
| Dimensions (W*D*H) | 1,050 * 1,350 * 2,400 (mm) |
| Weight | 2,570kg |
We are a technology-based enterprise focusing on overall solutions for energy storage systems. Our capabilities include comprehensive supporting systems for the integration of PACK, PCS, and BMS. We aim to meet diversified energy requirements across segmented markets with products at the core and quality as the cornerstone. We are committed to providing high-quality customized products for various energy consumption scenarios on the power generation side, grid side, and user side.
