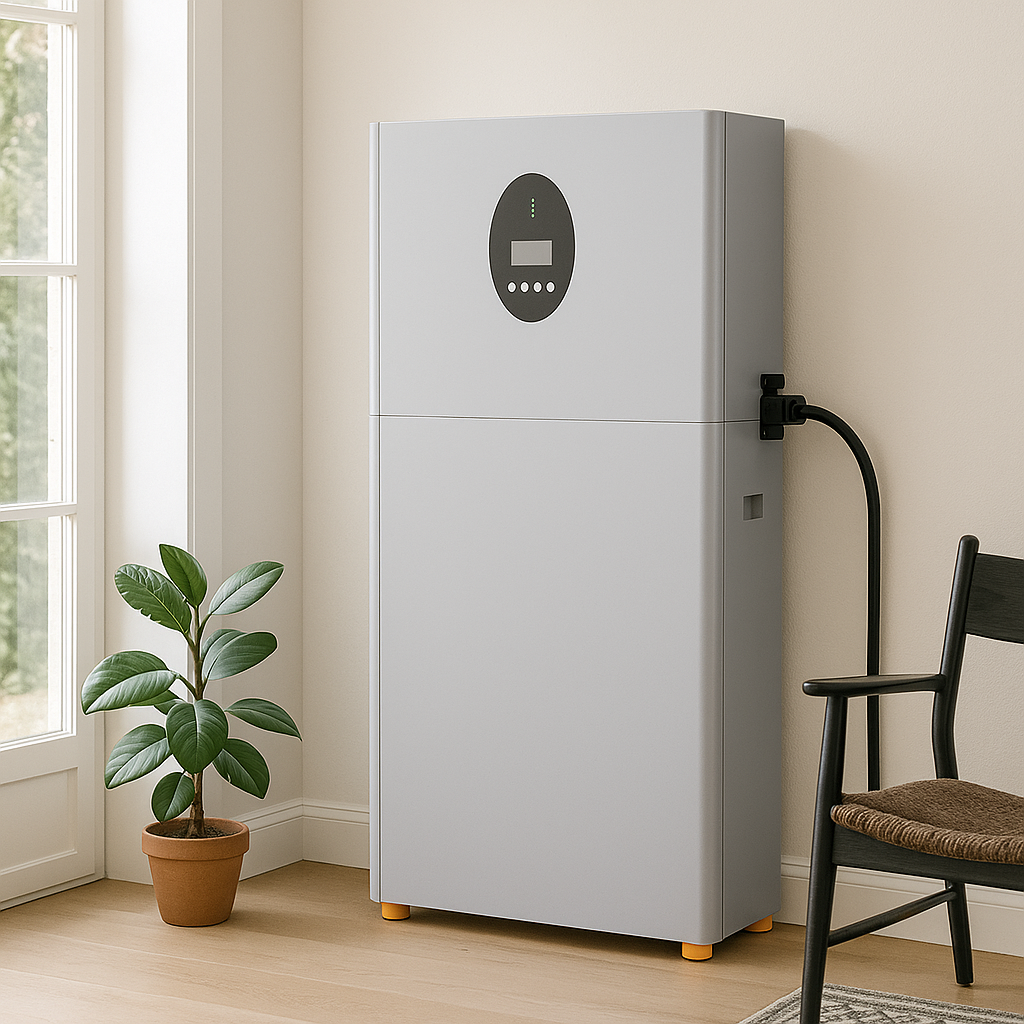

All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
1 / 5
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley
All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley

All-in-One ESS 5-10kW Hybrid Inverter LiFePO4 Battery Solar Storage CAN Plug Play Time Use Tariff Grid Sell Back Peak Valley

Send Inquiry

Product Description

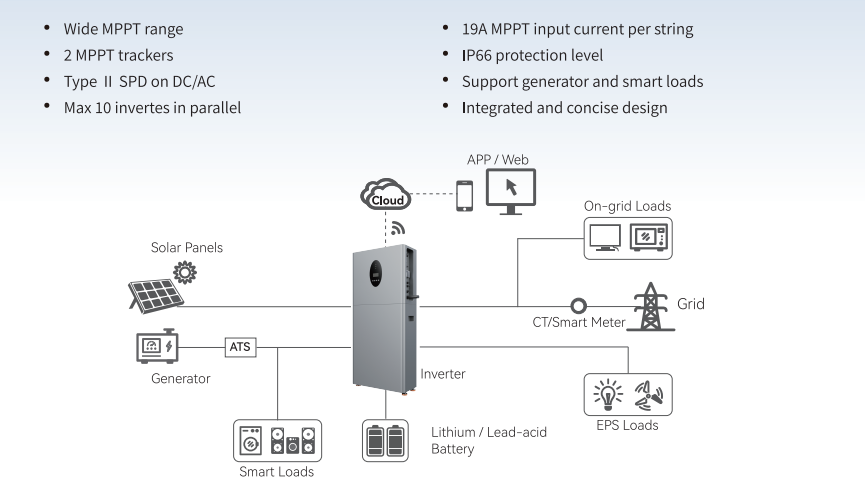

Product Showcase
Features & Specifications

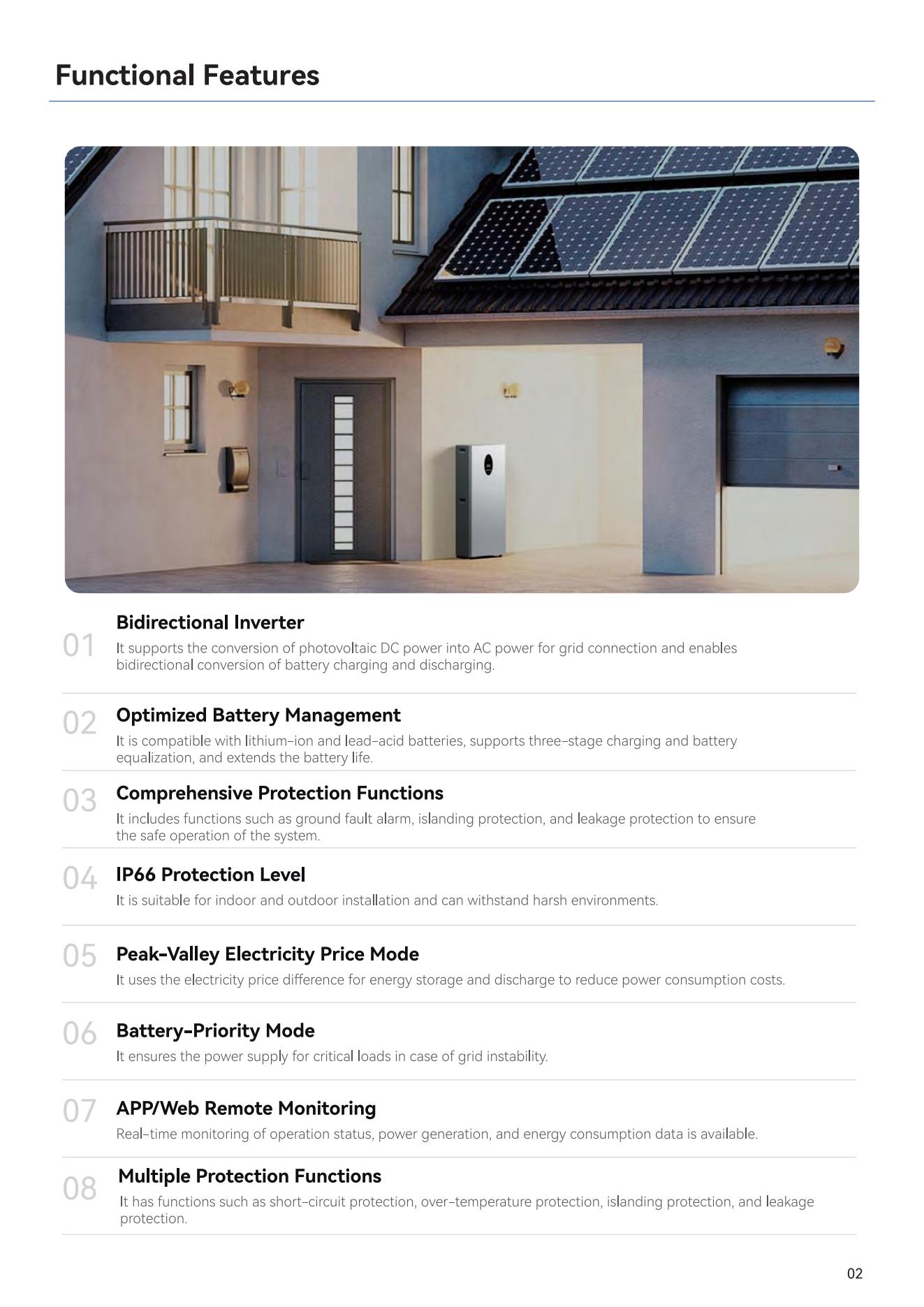

🌙 Smart Operating Modes
✔
Self-Use Mode: Prioritize PV + battery for household loads
✔
TOU Tariff Mode: Charge/Discharge based on electricity prices
✔
Battery-Priority Mode: Keep the battery full for emergency backup
✔
Scheduled Charging/Discharging: Up to 6 custom periods
✔
PV Emergency Mode: PV supplies loads even without grid/battery

Ensuring maximum flexibility for every European home.

📱 Intelligent APP Control
⚙
Set TOU tariff periods
⚙
Enable Grid-Sell
⚙
Control charging/discharging
⚙
Monitor PV / battery / grid / load in real time
⚙
Review daily, monthly & yearly statistics

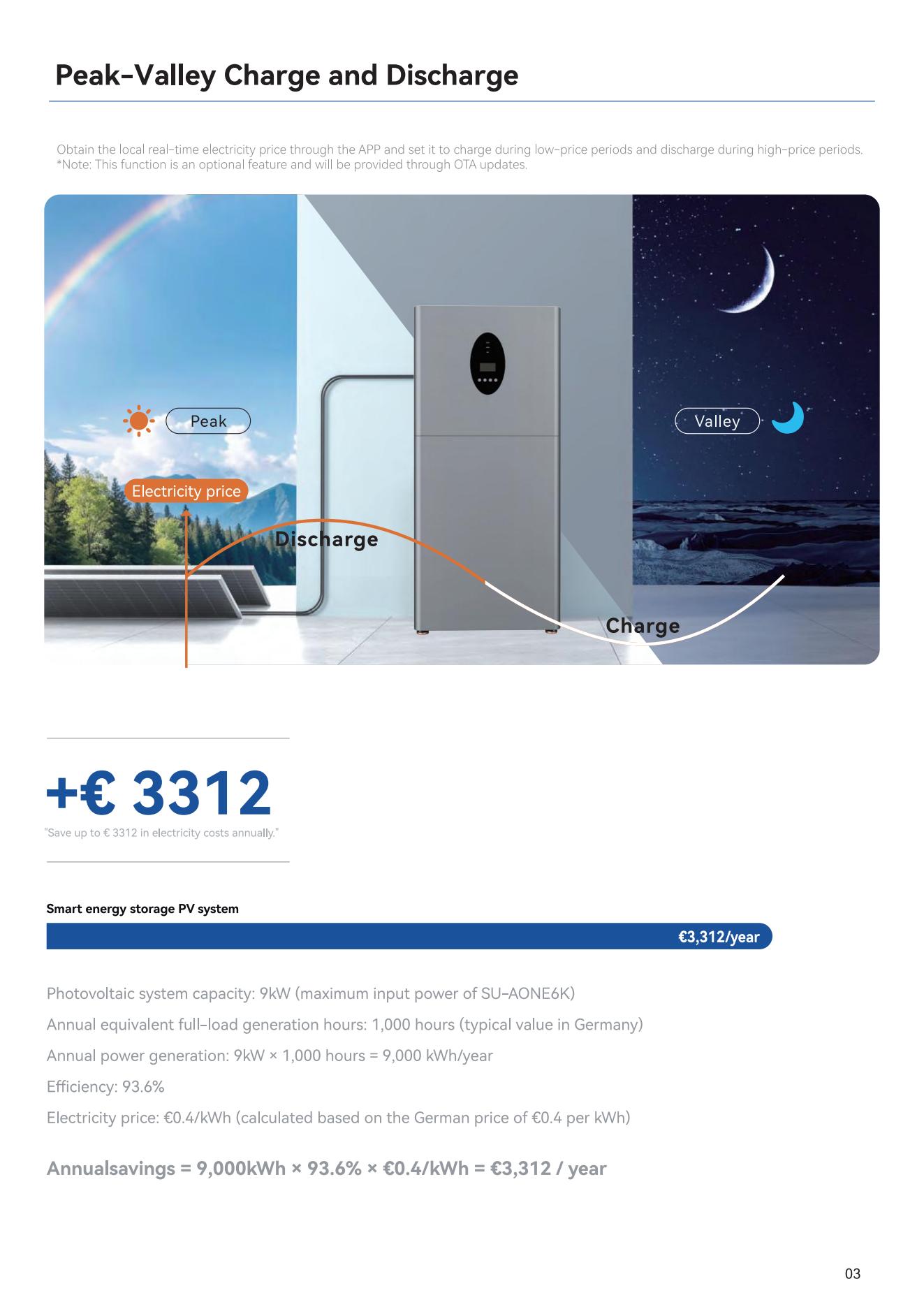

🔥 Maximum Savings with TOU Tariff & Grid Sell-Back
💰
Charge automatically during low-price (valley) hours
💰
Discharge or sell electricity back to the grid during high-price (peak) hours
💰
Increase self-consumption and ROI
💰
Fully compatible with EU dynamic tariff systems (NL/BE/DE/IT/ES)

Up to 6 configurable time periods, giving users full control of charging/discharging behavior.

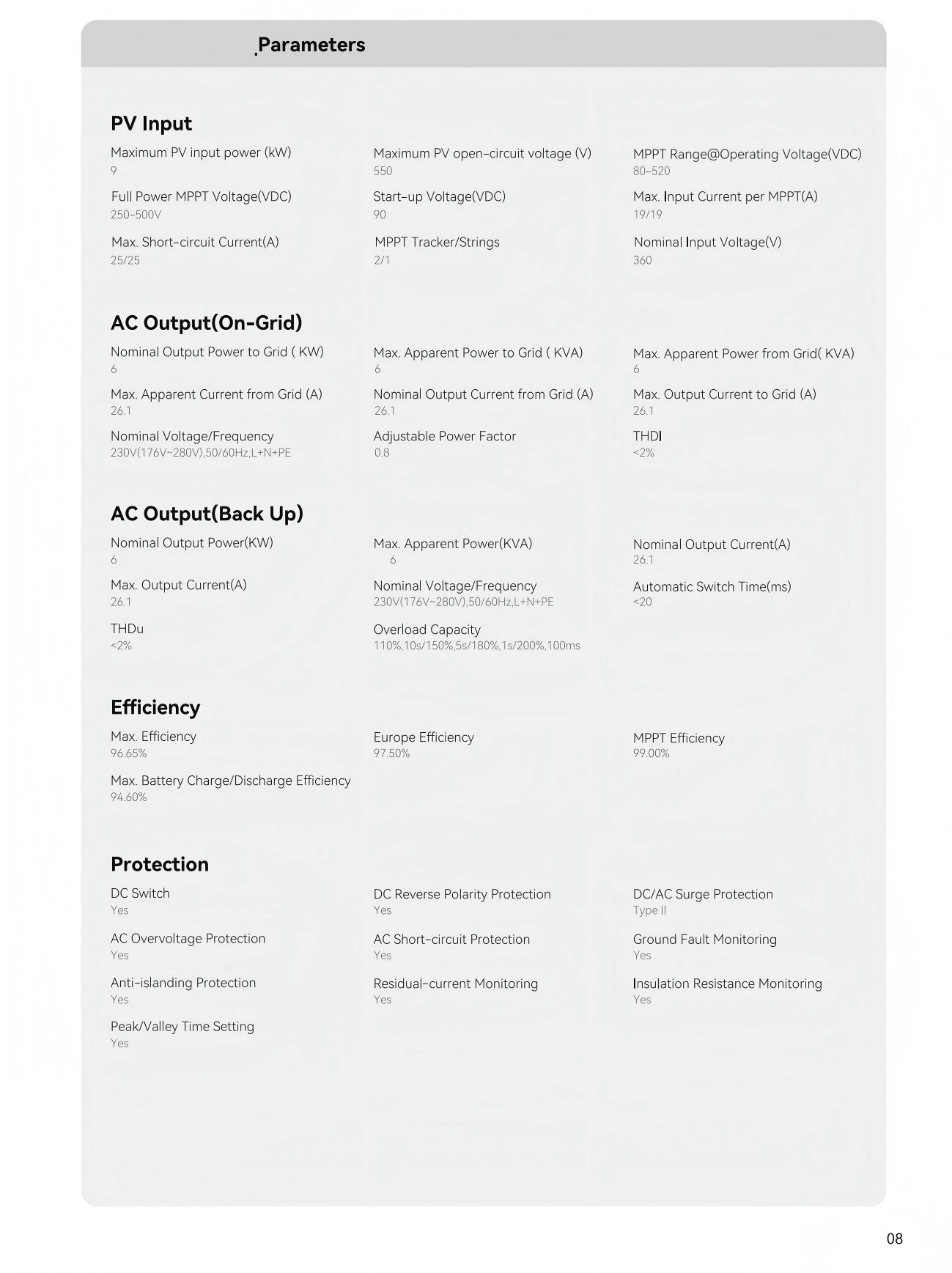

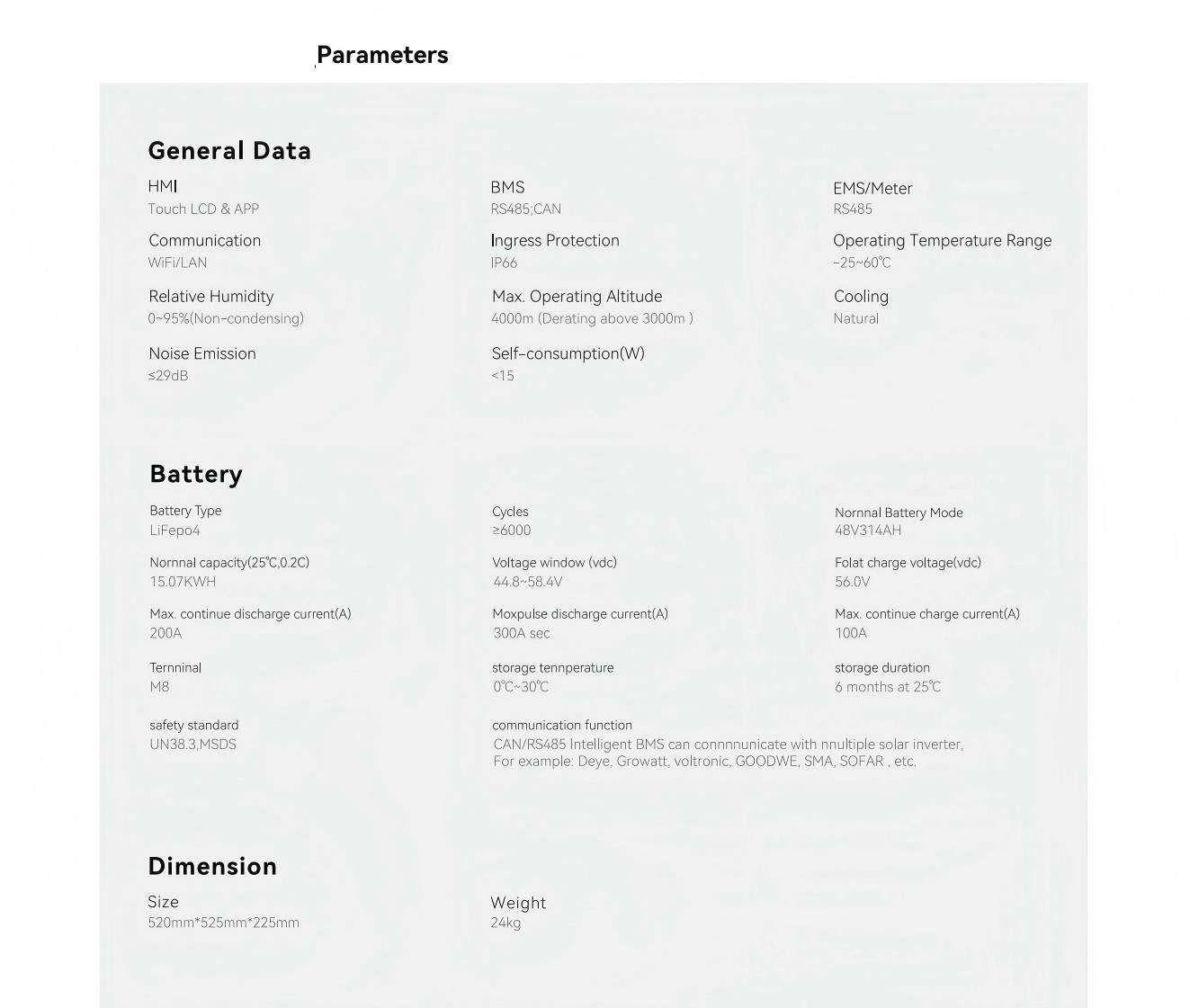

Technical Specifications
Battery Type LiFepo4 Voltage window (vdc) 44.8~58.4V
Nominal capacity(25°C,0.2C) 15.07KWh Max. continue discharge current(A) 200A
Max. PV Input Power( Kw) 9KW MPPT Range@Operating Voltage(vDC) 80-520
PV Open Circuit Voltage(v) 550V Full Power MPPT Voltage Range(VDC) 250-500V
Nominal Output Power to Grid ( Kw) 6KW Max. Apparent Current from Grid (A) 26.1
Apparent Power to Grid ( KVA) 6KW Nominal Voltage/Frequency 230V(176V~280V),50/60hZ,L+N+PE
Product Details

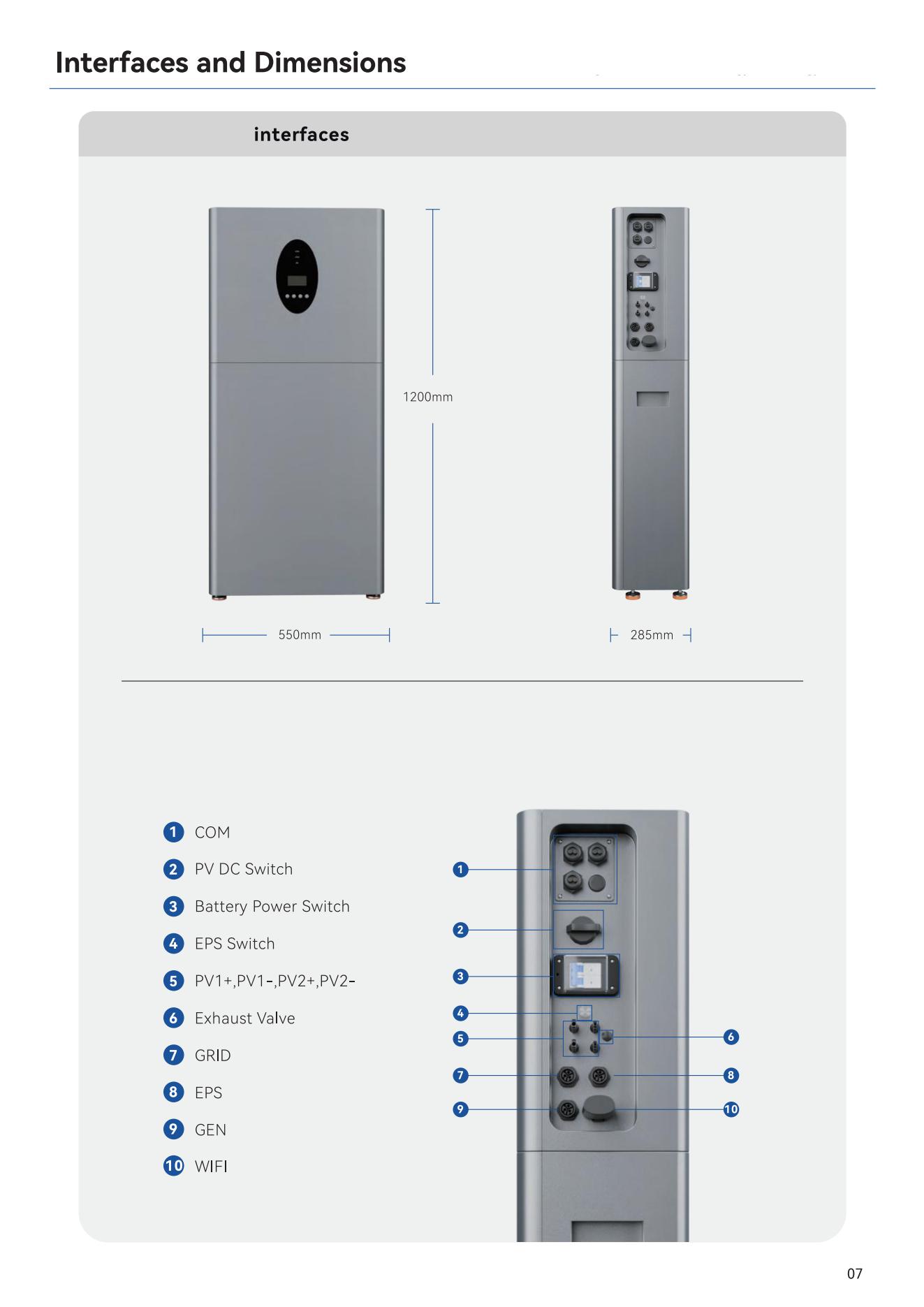

⚡ True Plug & Play Design

No complex wiring. The system integrates:

▶
6kW hybrid inverter
▶
48V LiFePO4 battery
▶
Dual MPPT PV controller
▶
EMS smart energy management
▶
WiFi monitoring & APP settings

Designed to let end-users start using solar storage faster, safer, and easier.

Manufacturing Technique
✓
3-in-1 design = fewer parts, faster install, lower cost
✓
Built-in smart EMS = no external controller needed
✓
Supports dynamic TOU tariffs & load shifting
✓
Plug & play commissioning via mobile app
✓
OEM support available for global partners

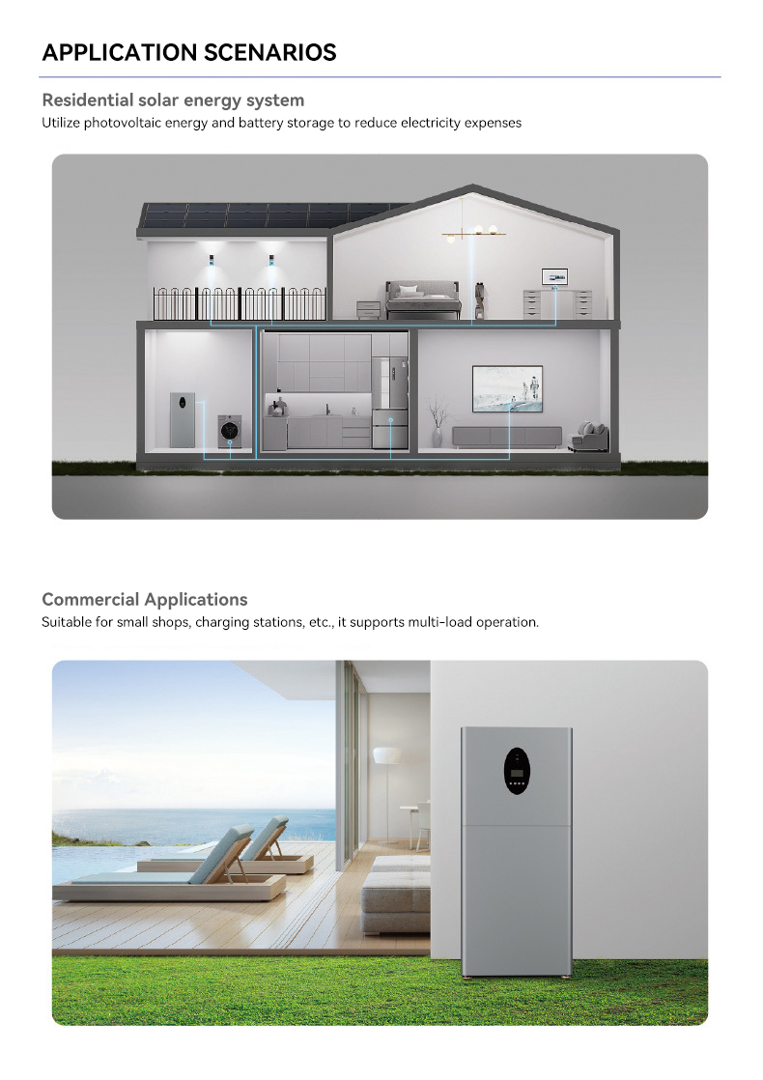

Applications
🏠 Residential Homes 🏢 Small Commercial Buildings 🚜 Farms & Remote Cabins 🏥 Emergency Backup
Our Advantages
⭐
OEM/ODM is welcome
⭐
Stable supplying chain
⭐
5 YEARS WARRANTY
⭐
Online After Sales Team
⭐
Fully qualified certificates for Australia & EU market (Germany, Holland, Austria, etc.)
Recommend Products
Frequently Asked Questions
1. What is the "True Plug & Play" design?
It means the hybrid inverter, LiFePO4 battery, MPPT controller, and EMS are all integrated into one unit. This eliminates complex external wiring and reduces installation time and costs significantly.
2. How does the TOU (Time-of-Use) Tariff Mode work?
The system can be programmed to charge the battery when electricity prices are low (off-peak) and discharge or sell power back to the grid when prices are high (peak), maximizing your savings.
3. Can the system work without the grid or battery?
Yes, in PV Emergency Mode, the solar panels can supply power directly to your loads even if the grid is down or the battery is disconnected.
4. Is the mobile APP mandatory for operation?
While the system functions automatically, the APP is highly recommended for real-time monitoring, setting custom charging periods, and enabling advanced features like grid sell-back.
5. Is this system compatible with European electrical standards?
Absolutely. The system is fully qualified with certificates for the EU market (including Germany, Netherlands, Italy, etc.) and supports standard 230V/50Hz/60Hz configurations.
6. What kind of warranty is provided?
We provide a comprehensive 5-year warranty along with an online after-sales support team to assist with any technical queries or maintenance needs.
