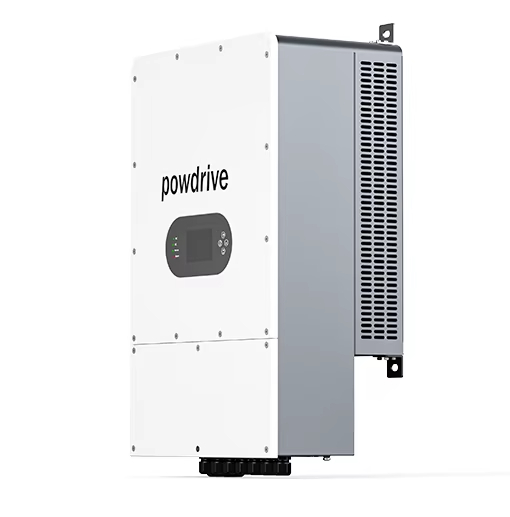

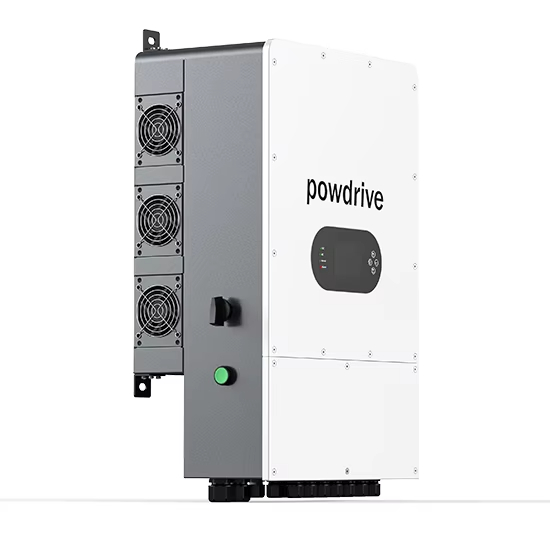

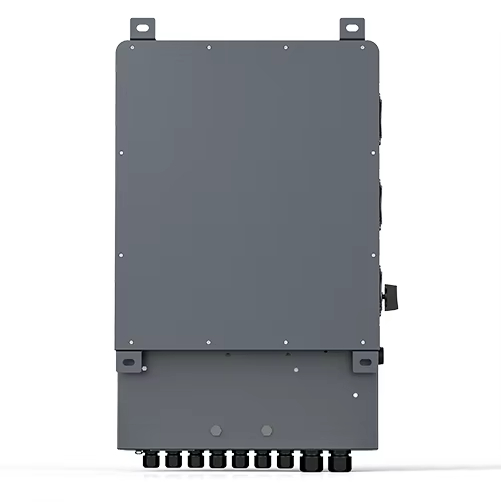

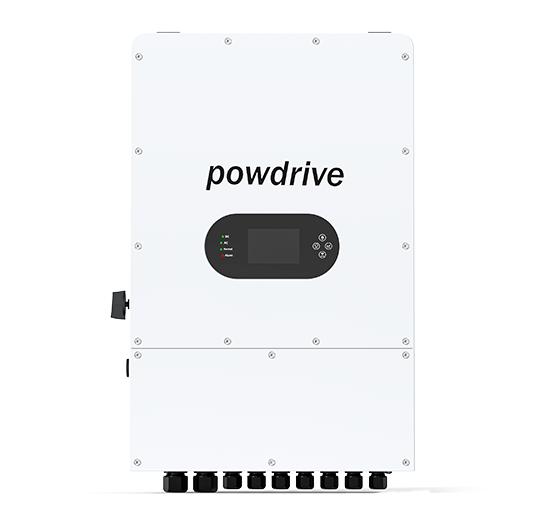

Hybrid Solar Inverter 220V/230V 9.2KW Single Phase String MPPT | Grid Tie + Backup | Home Energy Storage (Lead-Acid/Lithium)

1 / 5

Hybrid Solar Inverter 220V/230V 9.2KW Single Phase String MPPT | Grid Tie + Backup | Home Energy Storage (Lead-Acid/Lithium)

Send Inquiry

Product Description

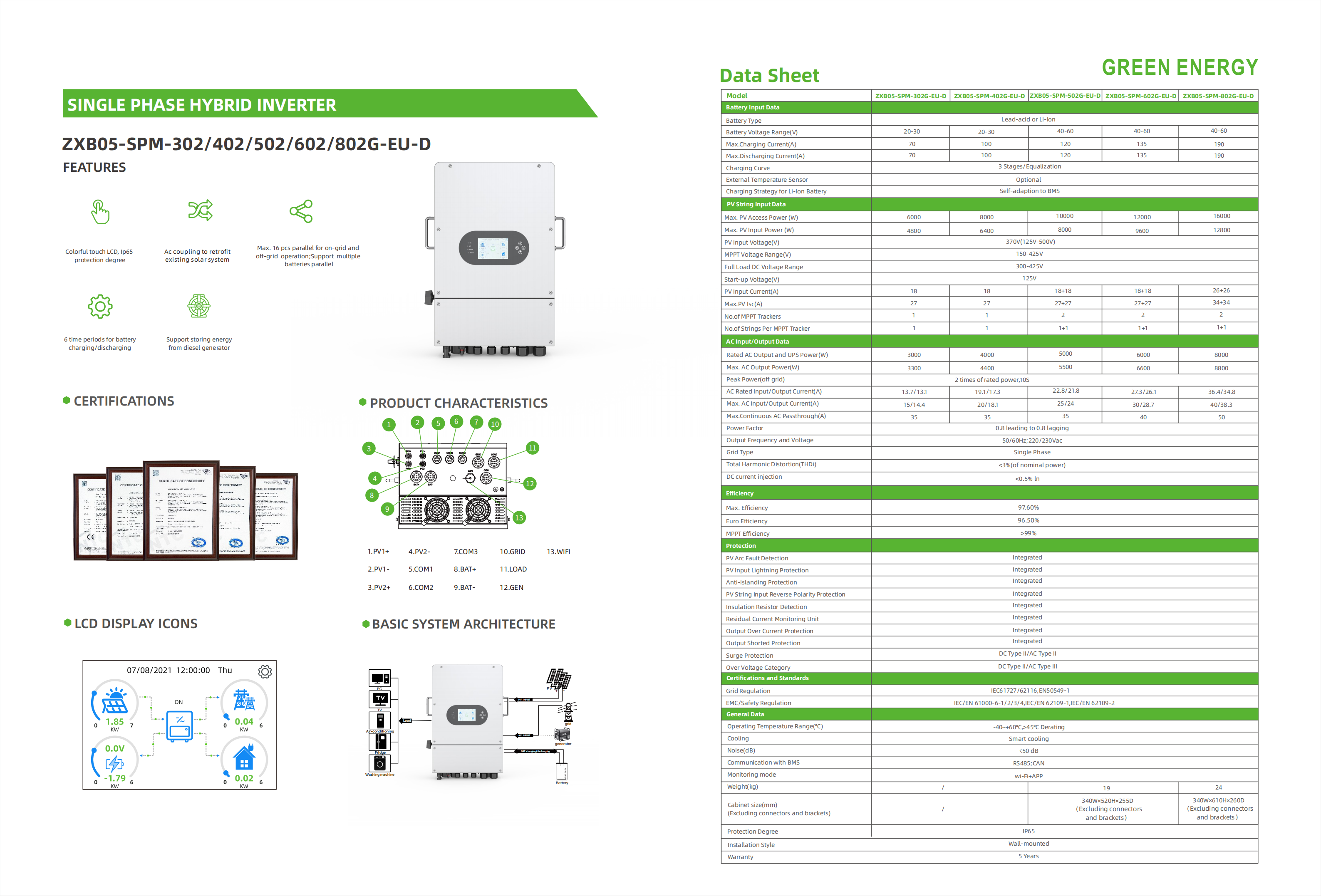

Technical Specifications		Model: PD0060G-SPM-EU	Model: SUN-5K-SG03LP1-EU	Model: SUN-6K-SG03LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	135	120	135	135
Max. Discharging Current (A)	135	120	135	135
Charging Strategy	Self-adaption to BMS / 3 Stages / Equalization
PV String Input Data
Max. DC Input Power (W)	7800	6500	7800	7800
MPPT Voltage Range (V)	150-430 (Start-up 125V)
PV Input Current (A)	20+20 (Max 22+22)
No. of MPP Trackers	2 (1+1 Strings per Tracker)
AC Output Data
Rated AC Output Power (W)	6000	5000	6000	6000
Max AC Output Current (A)	30	25/23.9	30/28.7	30
Output Frequency/Voltage	50/60Hz; L/N/PE 220/230Vac (Single Phase)
Efficiency & Protection
Max. Efficiency	97.60% (MPPT 99.90%)
Protection	Anti-islanding, Reverse Polarity, Insulation Detection, Over Current, Shorted Protection, IP65

✓

Advanced MPPT Technology: High efficiency up to 99.9% for maximum energy harvest from PV panels.

✓

Versatile Battery Compatibility: Compatible with both Lead-acid and Lithium-ion battery systems with BMS self-adaption.

✓

Robust Protection: Integrated IP65 protection degree, suitable for wall-mounted installation in various environments.

Frequently Asked Questions

1. What is the difference between PWM inverter and MPPT inverter?

PWM (Pulse Width Modulation) is an older solar controller technology with about 70% efficiency. MPPT (Maximum Power Point Tracking) is the latest technology, offering up to 95% efficiency by tracking the optimal power point of the solar array.

2. How to distinguish between Low voltage and High voltage inverters?

Low voltage inverters typically have a Max PV voltage Voc < 150V. High voltage inverters usually have a Max PV voltage Voc > 450V.

3. What is the difference between modified sine and pure sine wave inverters?

Modified sine wave inverters are lighter and more cost-effective, suitable for simple resistive loads. Pure sine wave inverters provide clean, high-quality power equivalent to the grid, essential for sensitive devices like air conditioners, freezers, and medical equipment.

4. Do you support customized OEM and ODM services?

Yes, we provide full OEM and ODM service support to meet specific project requirements and branding needs.

5. What is the standard lead time for orders?

Sample orders are typically processed within 3 days. For wholesale orders (e.g., 1000pcs), the delivery time is approximately 7-15 working days.

6. How do I determine which inverter capacity I need?

You can calculate the required wattage by checking your device ratings. Formula: Amps x 120 (or local voltage) = Watts. For example, a 20 Amp unit at 120V requires 2400 Watts.
