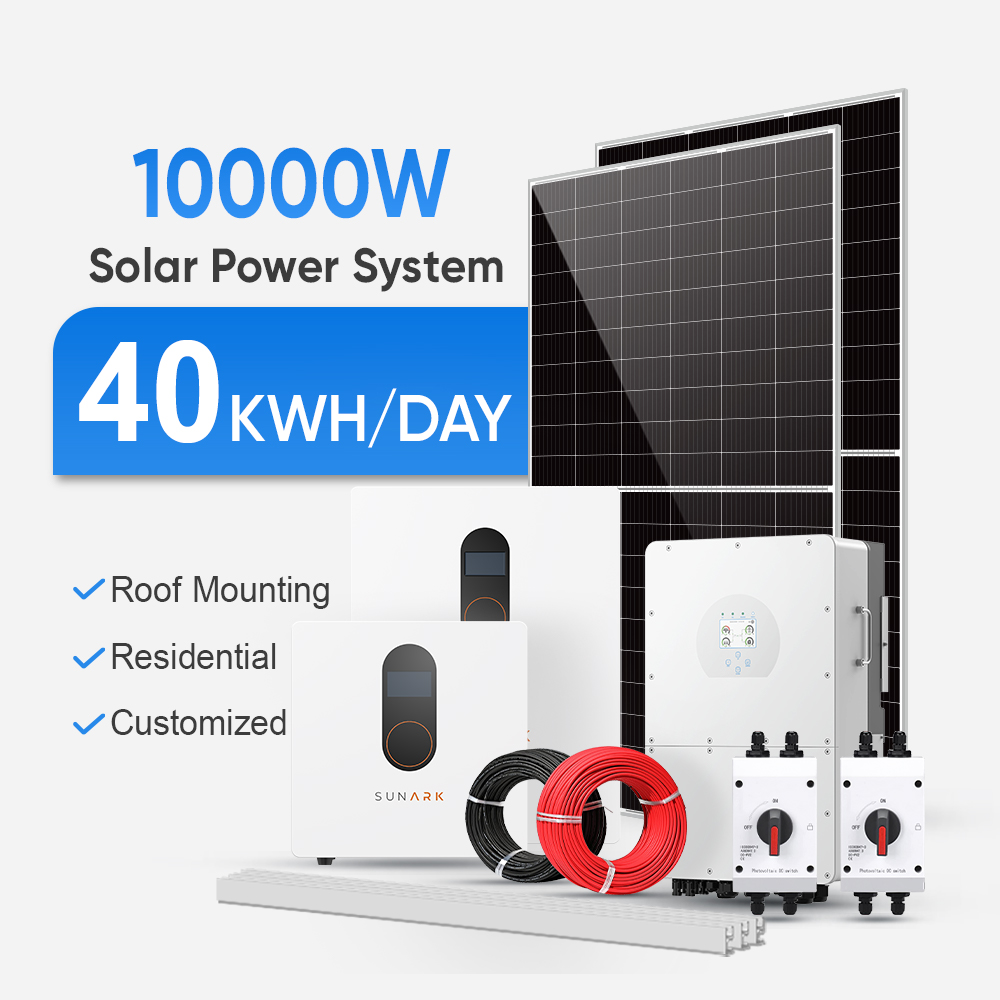

Photovoltaic Hybrid Solar Energy System 3Kw 5Kw 10Kw 15Kw 20Kw 30Kw Complete Off Grid Solar Power System Kit For Home

1 / 5

Photovoltaic Hybrid Solar Energy System 3Kw 5Kw 10Kw 15Kw 20Kw 30Kw Complete Off Grid Solar Power System Kit For Home

Send Inquiry

Product Description

We offer professional technical solutions for your solar system. Please contact us if you have any problems.

Model	SE-3KW-HY	SE-5KW-HY	SE-10KW-HY
Half Cut Mono 750W Solar Panel	6 Pieces	10 Pieces	21 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Model	SE-15KW-HY	SE-20KW-HY	SE-30KW-HY
Half Cut Mono 750W Solar Panel	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	SUN-5K-SG03LP1-EU 3 Pieces	SUN-10K-SG04LP3-EU 2 Pieces	SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

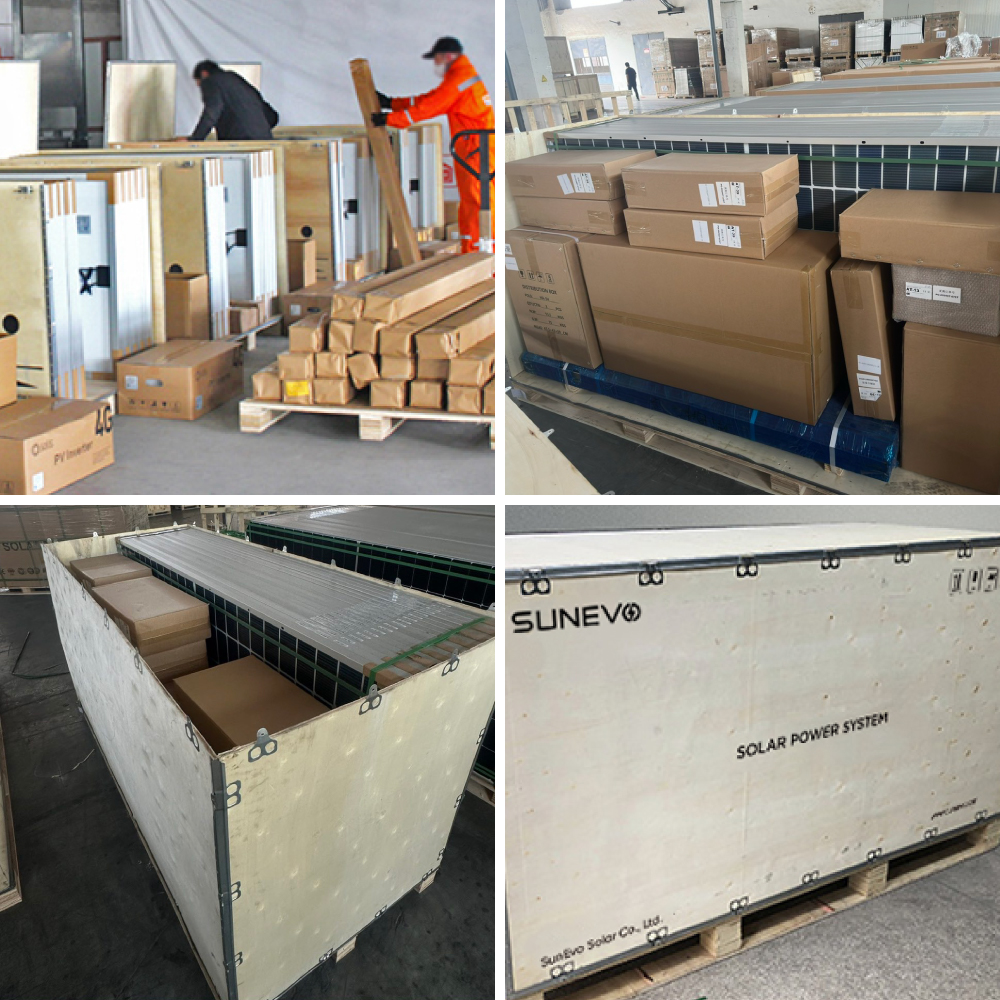

Product Packaging

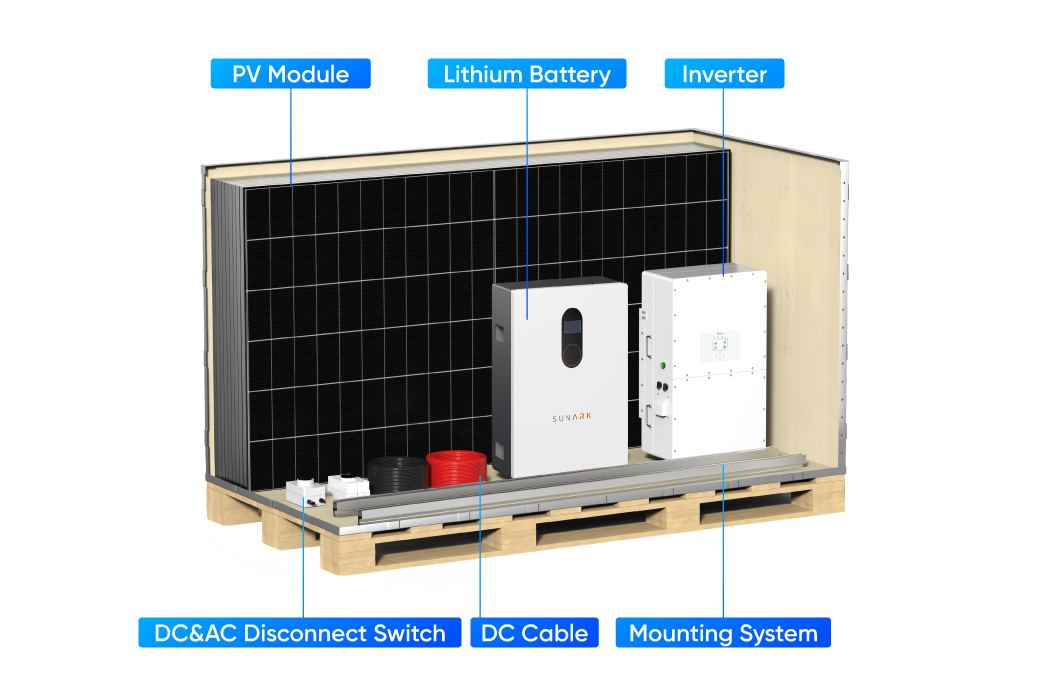

Below is the packaging diagram of the 10kw system. It includes internal components, inverter, lithium battery, circuit breaker, MC4 connector, cables, distribution box and other auxiliary materials.

What's Included

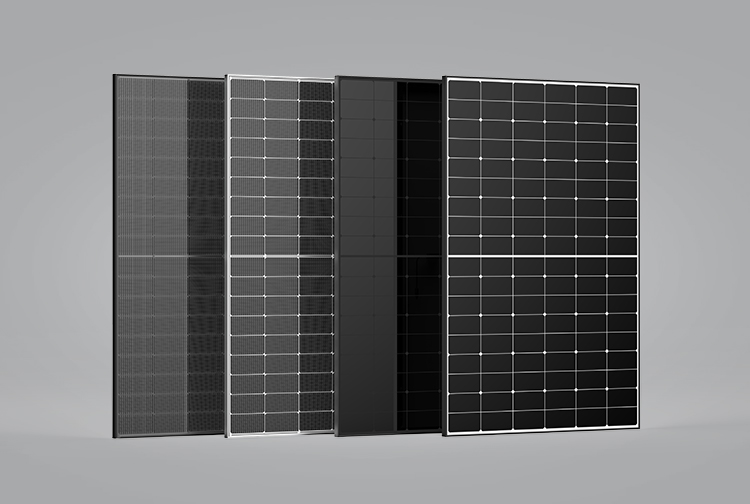

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm
Weight: 26.9 kg

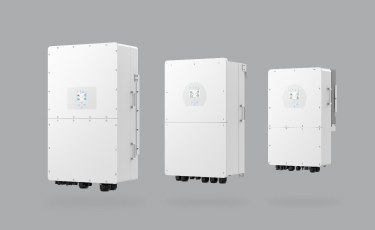

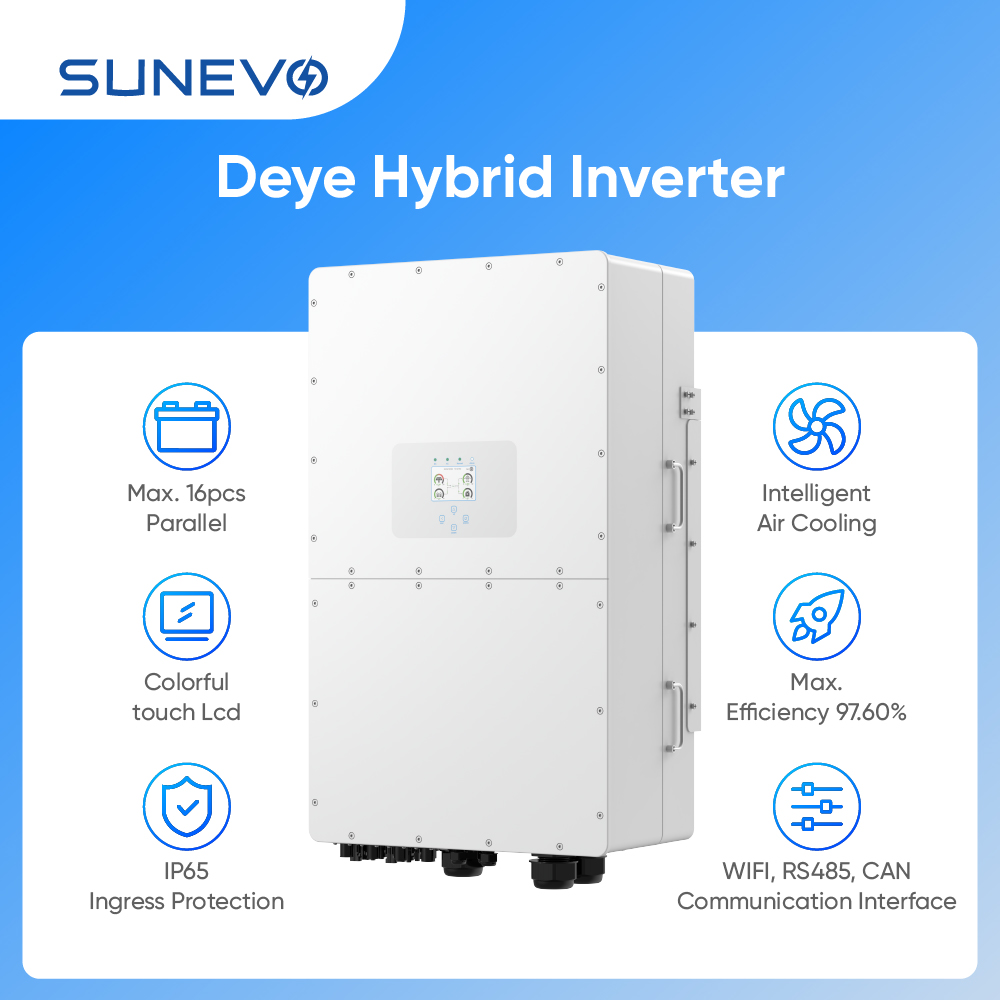

Hybrid Solar Inverter

Support both single phase and three phase, transformer isolation design. Different modes make system work more efficiency.
Max. charging/discharging current of 240A
Max. 6pcs parallel
DC couple and AC couple to retrofit existing solar system

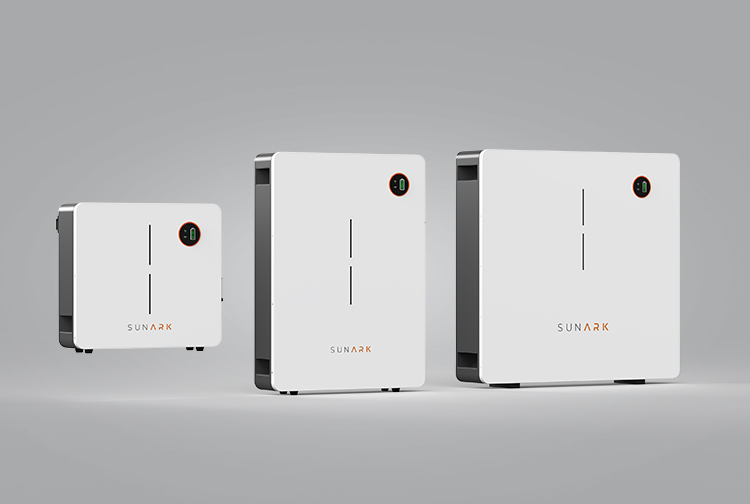

Low Voltage LiFePo4 Battery Bank

12V, 24V, 48V, 51.2V available.
15-20 years design life. Up to 6000+ cycle life.
Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

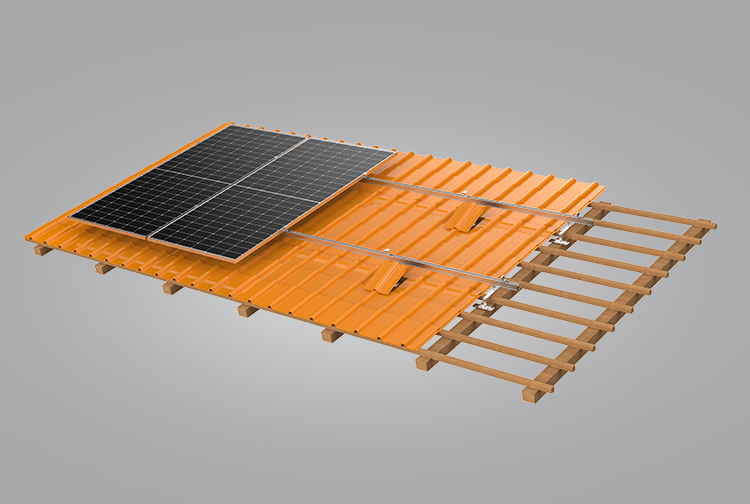

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

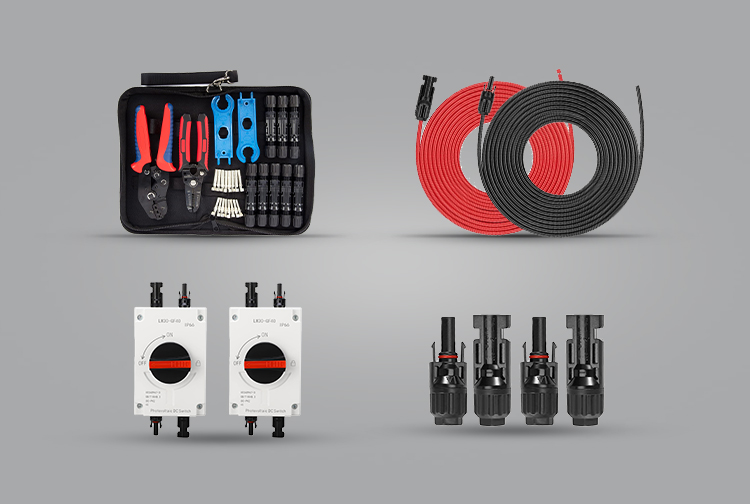

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

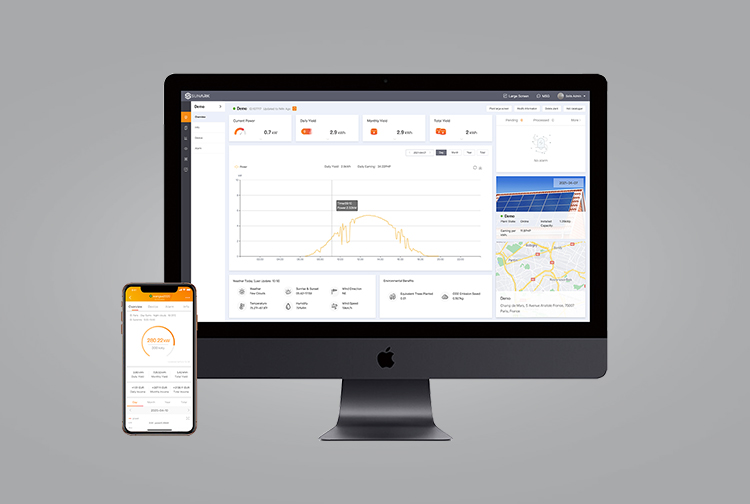

Monitoring System

Open station supports one-click installation and registration. Problem support one-click dispatch and navigation.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.

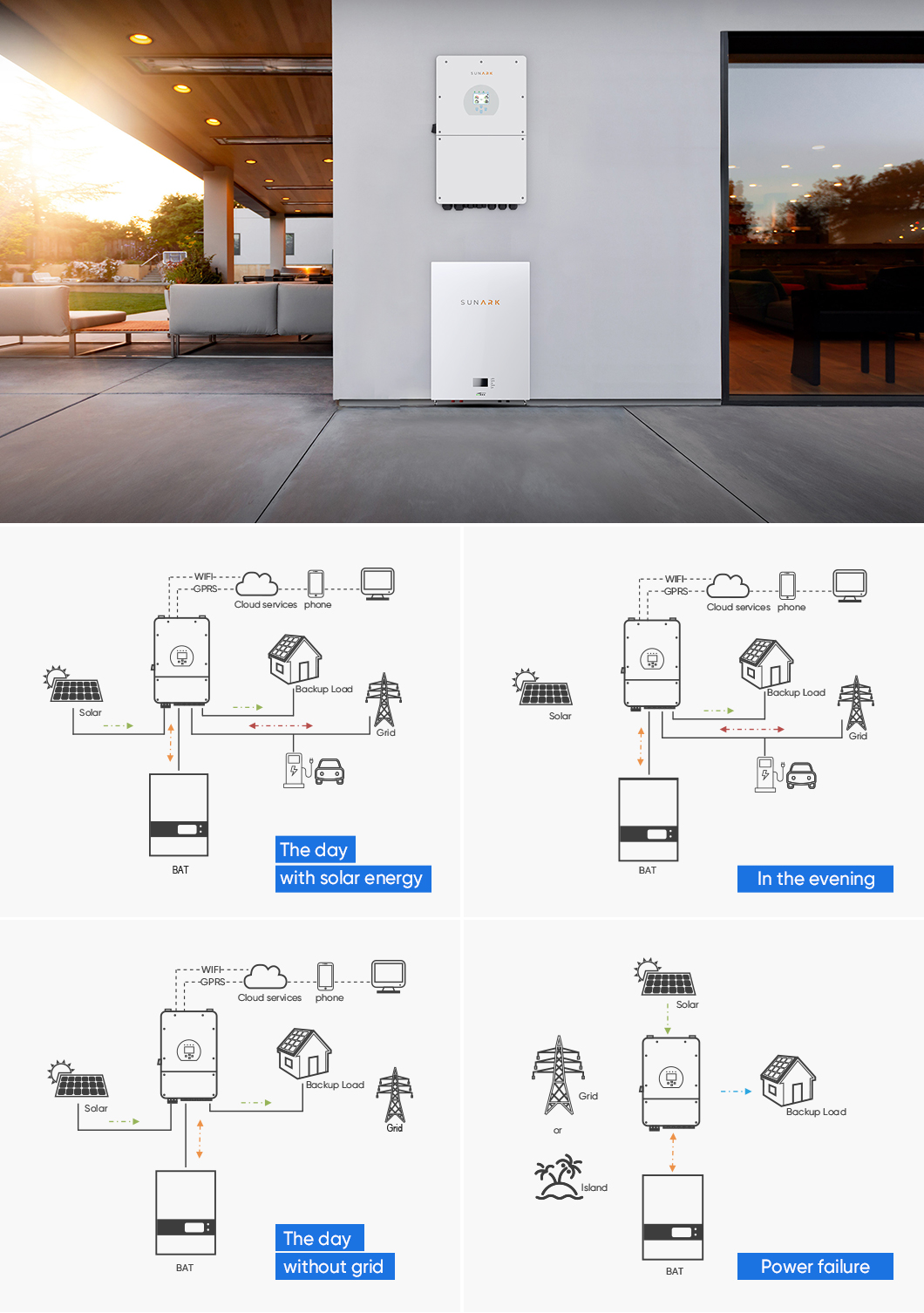

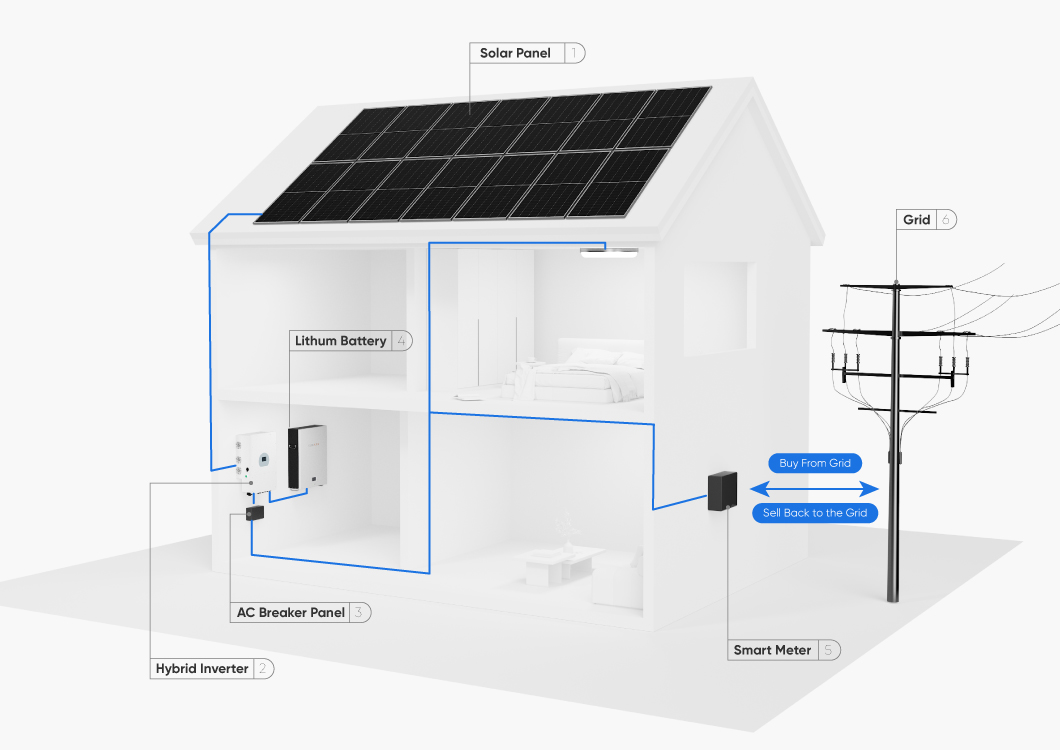

How it works

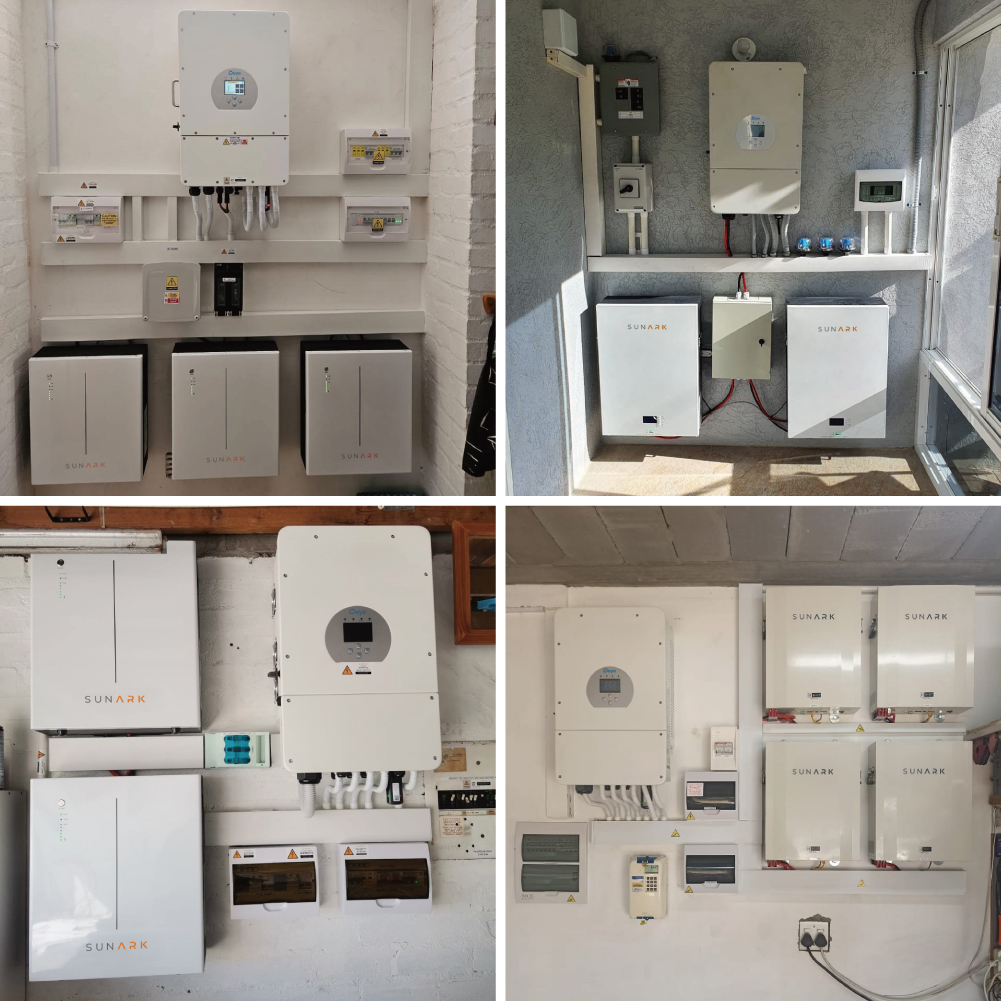

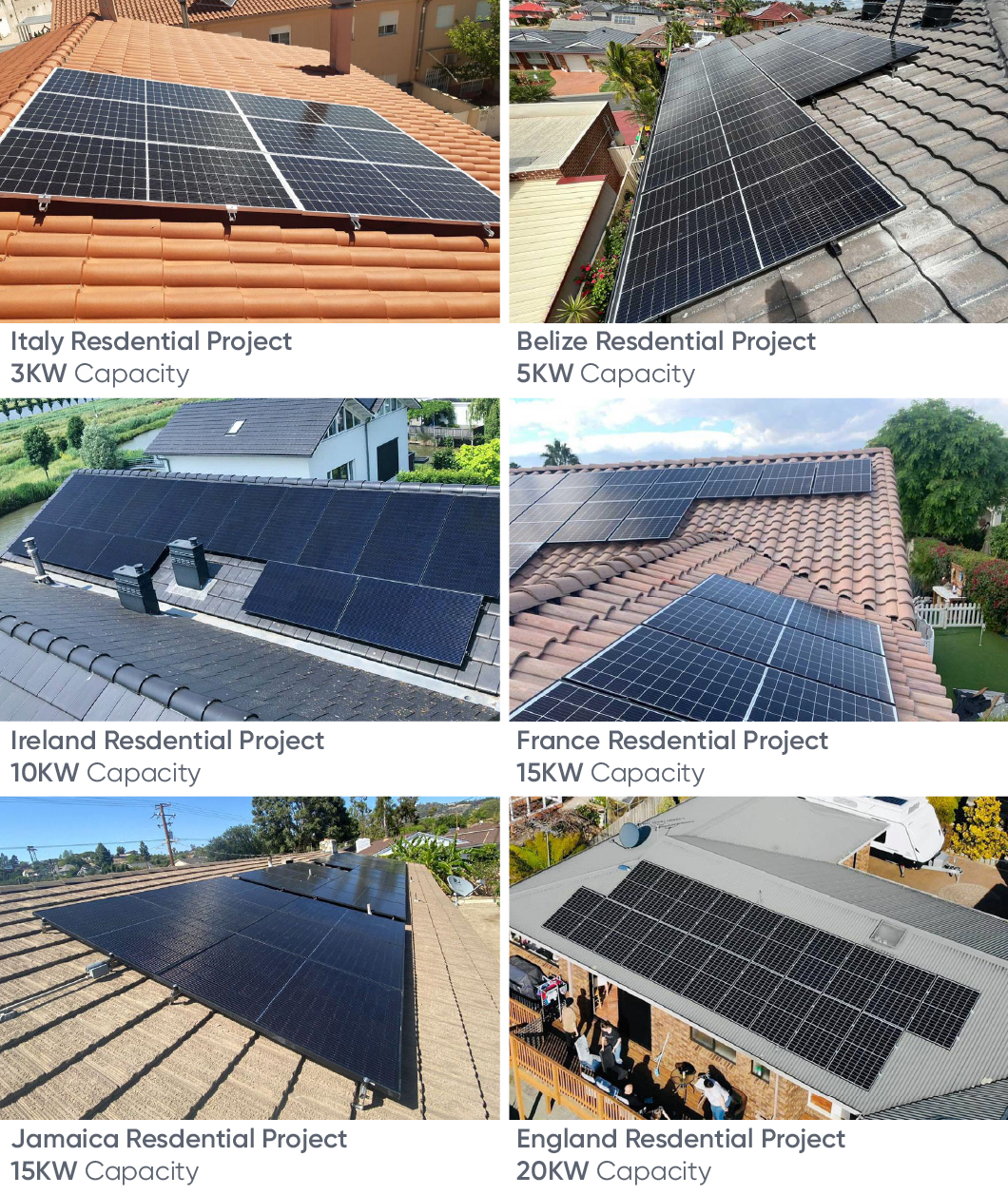

Project Case

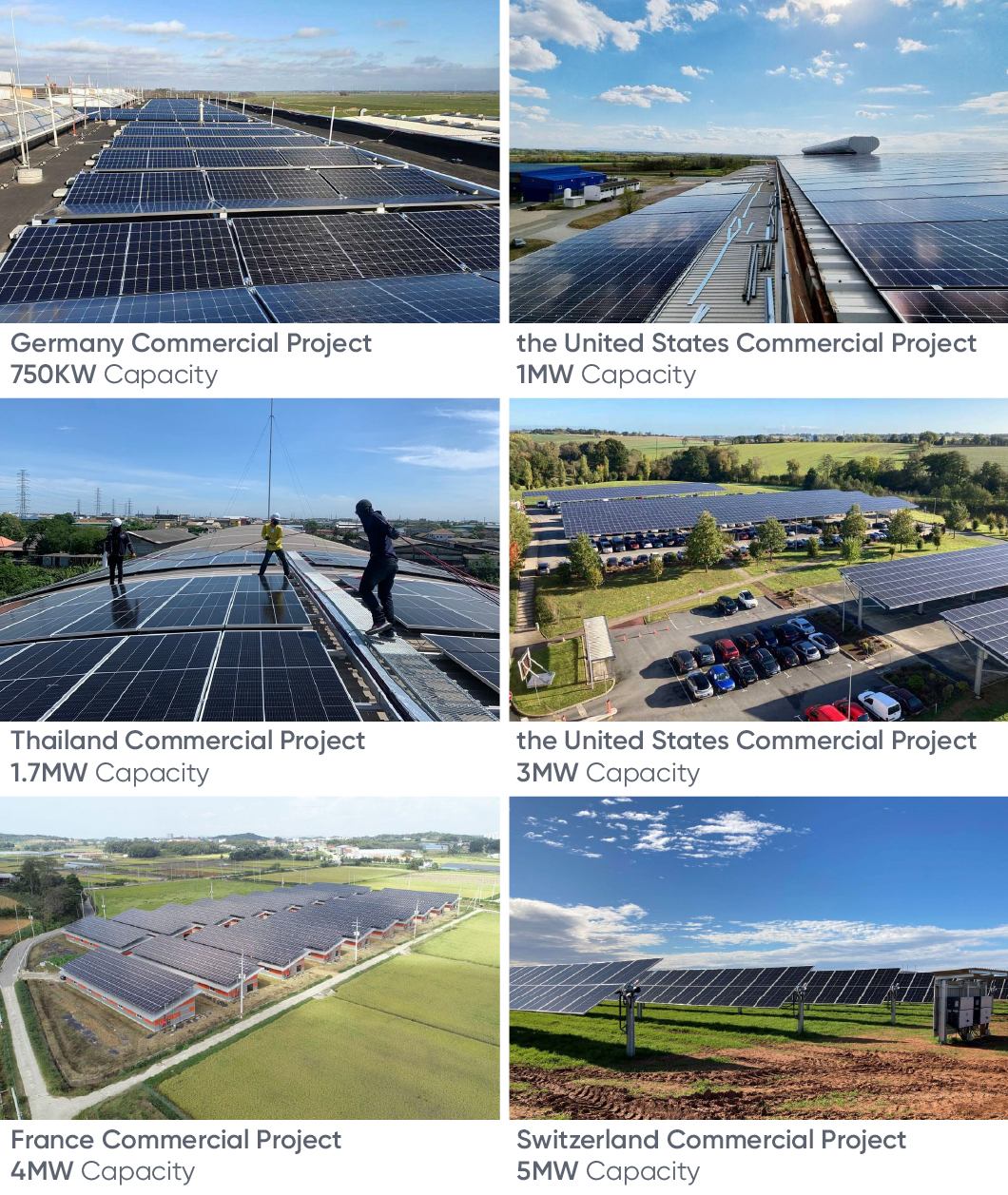

Applications

Why Choose Us

About Us

Frequently Asked Questions

What components are included in a complete hybrid solar system?

A complete hybrid solar system includes half-cut mono solar panels, a hybrid inverter, a wall-mounted LiFePo4 battery bank, DC and AC disconnect switches, a PV mounting system customized to your roof or ground installation, MC4 connectors, DC cables, and a smart monitoring system.

How does a hybrid solar system work?

A hybrid solar system combines solar panels, a battery storage bank, and a hybrid inverter connected to the utility grid. The inverter processes the DC power from the panels to supply your home appliances, charges the batteries with excess power, and draws energy from the grid or battery when solar generation is insufficient.

What is the lifespan of the LiFePo4 battery bank?

The low-voltage LiFePo4 battery bank has a design life of 15 to 20 years. It supports up to 6000+ charge-discharge cycles and features a built-in high-quality battery management system (BMS) to protect cells at all times.

Can I monitor the system performance remotely?

Yes, our system comes with a smart monitoring system that supports one-click installation and registration. It provides full lifecycle data storage to ensure data security, system efficiency monitoring, traceable logs, and diagnostic support.

Is the mounting system customizable for all types of roofs?

Yes, the PV mounting system is fully customized based on your specific installation requirements, whether it is for a pitched shingle roof, tile roof, metal roof, or ground installation.

What safety mechanisms are built into the system?

The system features IP66 rated DC and AC disconnect switches designed for up to 1000VDC configurations. Additionally, the lithium iron phosphate batteries are equipped with a high-performance built-in BMS for comprehensive cell protection and fire safety assurance.
