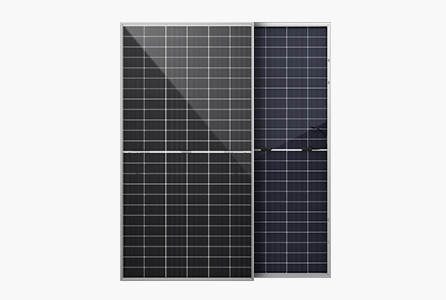

Peak Power Watts: 580W
Maximum Power Voltage: 42.71V
Maximum Power Current: 13.58A
Open Circuit Voltage: 51.79V
Short Circuit Current: 14.29A
Size: 2279*1134*30mm
Weight: 31.5 kg
Open station supports one-click installation and registration. Features include problem dispatch, safe operation traceable logs, and full lifecycle data storage to ensure security and reliability.

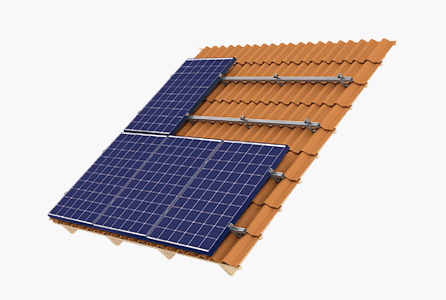

Applicable for various tile roofs. Pre-assembled components save on-site installation time and cost.
4mm²/6mm² optional. Rated for 600VDC/1000VDC (TUV). Lifetime up to 25 years.

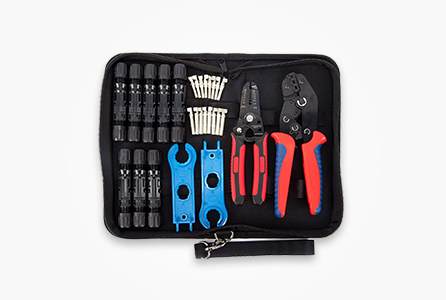

Includes cable cutters, strippers, crimpers, and MC4 assembly/disassembly tools.

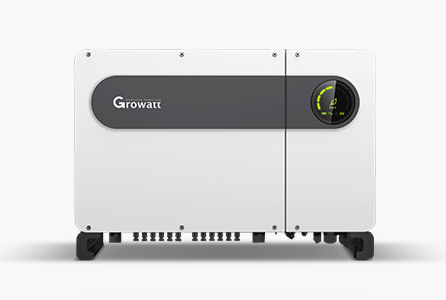

| MAX 100KTL3-X LV Datasheet | |
|---|---|
| Input Data (DC) | |
| Max. DC voltage | 1100V |
| MPP voltage range | 180V-1000V |
| No. of MPP trackers | 10 |
| No. of PV strings per MPP tracker | 2 |
| Max. input current per MPP tracker | 32A |
| Output Data (AC) | |
| AC nominal power | 100000W |
| Nominal AC voltage(range) | 400V/380V(340-440VAC) |
| AC grid frequency | 50/60 Hz |
| AC grid connection type | 3W/N/PE |
| General Data | |
| Dimensions (W / H / D) | 970/640/345mm |
| Weight | 84kg |
| Topology | Transformerless |
| Protection degree | IP66 |

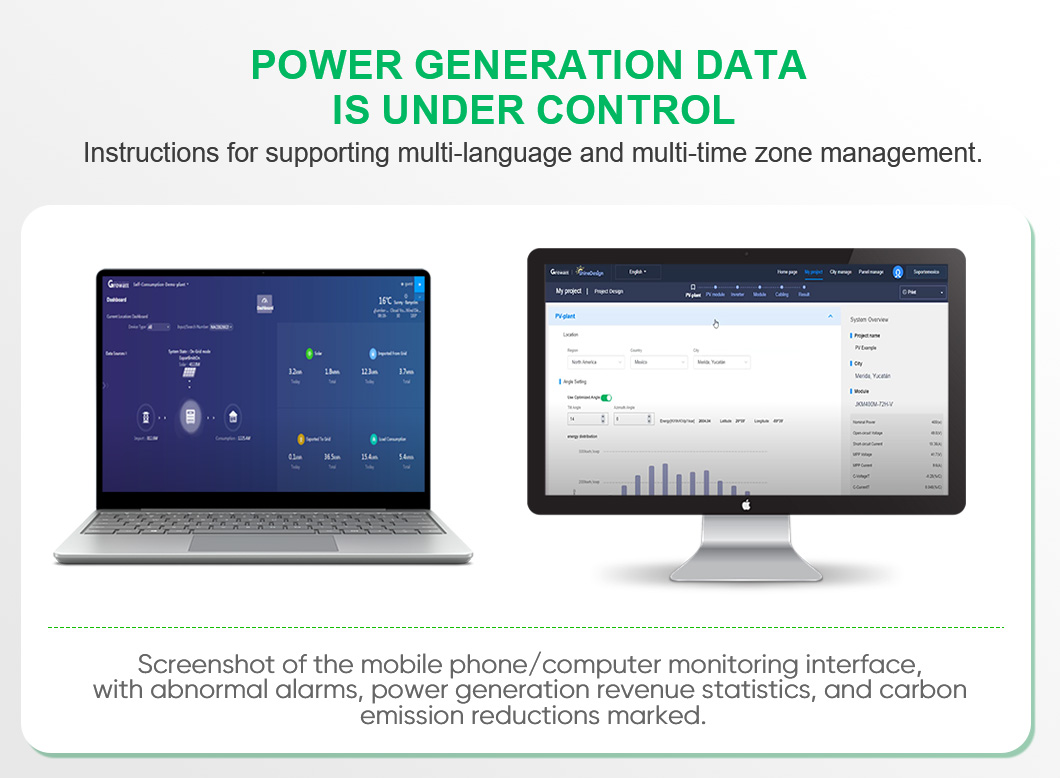

Carbon Emission Tracking

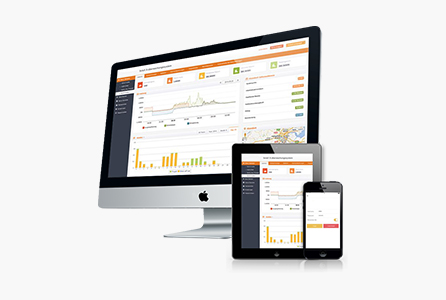

Real-time data with multi-language support.
Global Standards

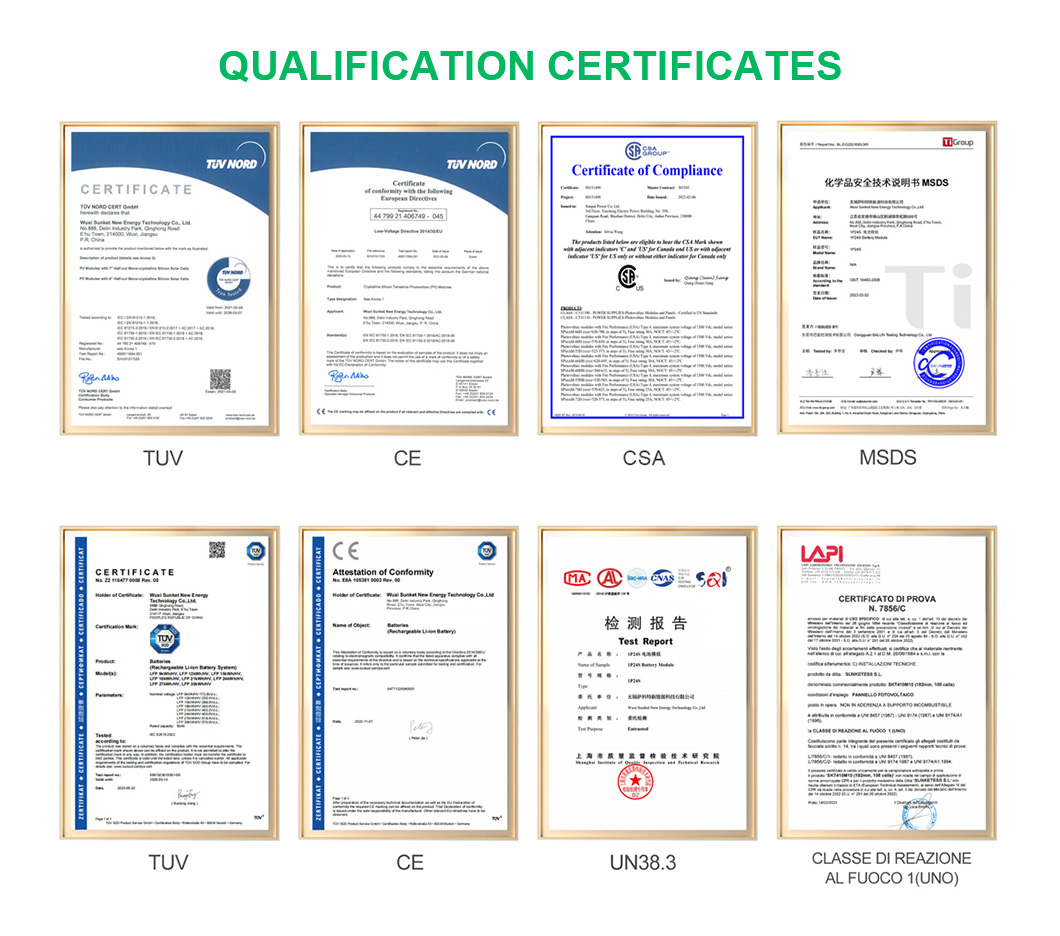

CE, TUV, CSA, CEC, IEC, and VDE Certified.
Our on-grid solar systems have been exported to more than 50 countries and regions. We provide comprehensive quality assurance and after-sales service.
As a world-class solar products manufacturer, we specialize in the research, development, production, and sales of high-efficiency solar PV products. Focused on innovative solar panel technology since 1998, we have exported to 86 countries and built a reputation for superior quality. Our factory area covers 150,000 square meters with over 600 experienced professionals dedicated to clean energy solutions.
