| Utility Mode | SUN-E3800-2400W |
| Battery Input Data | |
| Rated Capacity | 3686Wh / 3800Wh |
| Configuration | 16S1P |
| Nominal Voltage | 51.2V |
| Standard Cycle | >4000 Cycles |

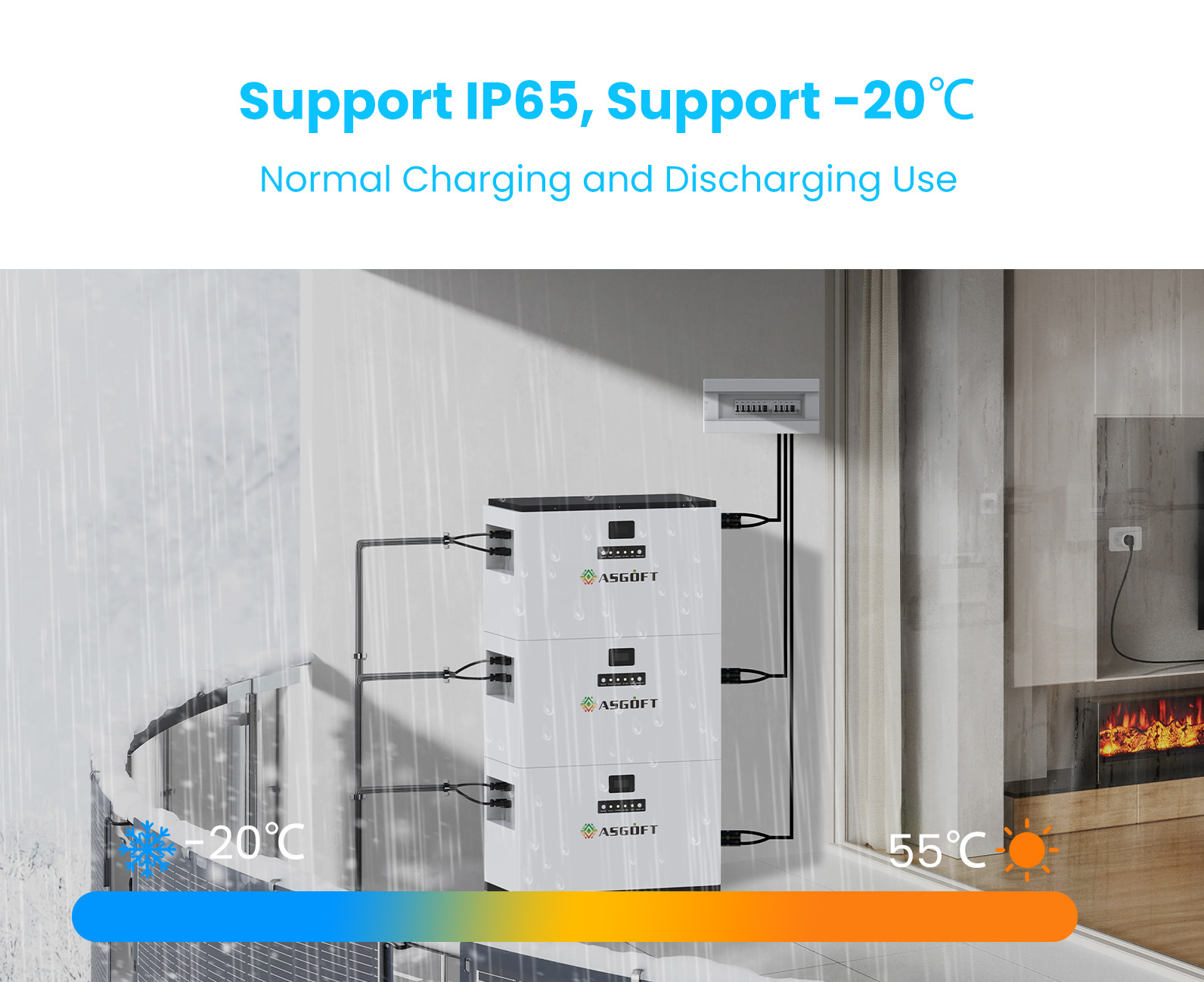

| Operating Temperature Range | Charge: -20℃ ~ 55℃ / Discharge: -20℃ ~ 55℃ |
| AC Input (Pure Sine Wave) | |
| Rated AC Input Voltage | 220/230/240V AC |
| AC Input Voltage Range | 90-280V AC (APL Mode) / 170-280V AC (UPS Mode) |
| Frequency Range | 50~60Hz |
| AC Output | |
| Rated Output Power | 2400W (Surge 4800AV) |
| Waveform | Pure Sine Wave |
| Overload protection | 5 mins @ 102%-120% load; 10s @ 120%-150% load |
| PV String Input Data | |
| Maximum Power | 2*800W |
| Solar Voltage Range | 10V ~ 100V DC |
| Maximum Current / MPPT | 16A Max / 2 MPPT |
| Structural Shape | |

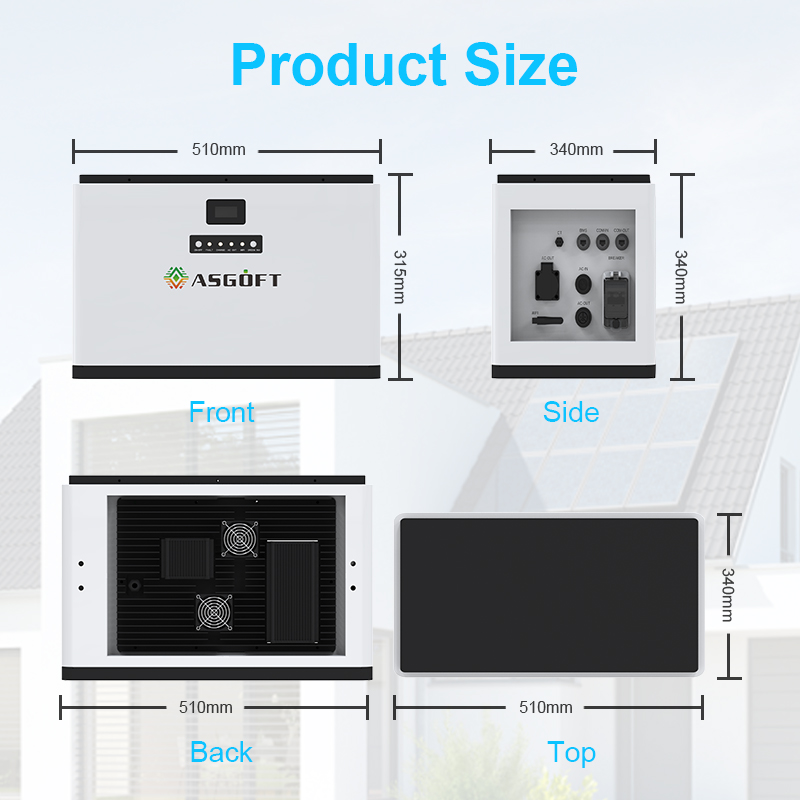

| Size / Weight | L510*W340*H315mm / 45±1KG |
