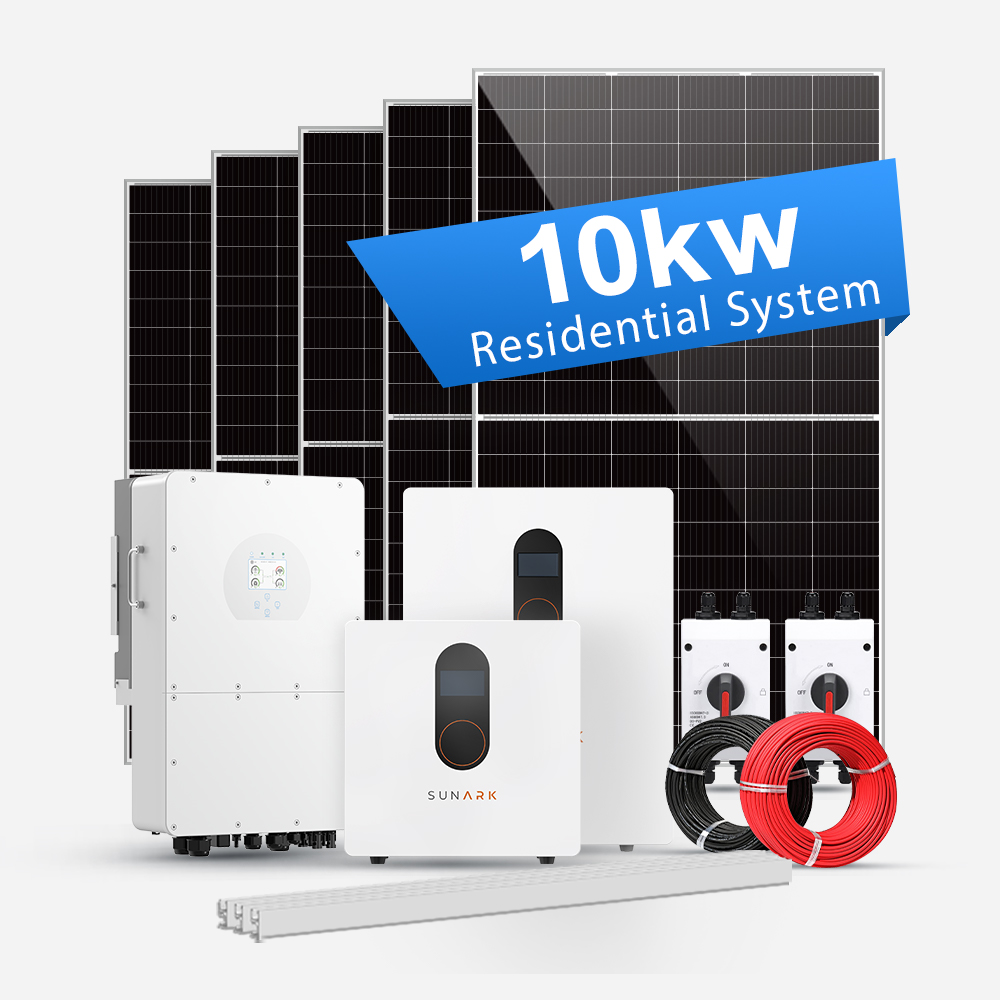

Sunevo Off Grid Hybrid Solar Energy System Kit For Home 5Kw 10Kw 15Kw 20Kw 30Kw With Battery Backup To Reduce Power Bills

Product Description

Model	SE-10KW3-HY
Half Cut Mono 550W Solar Panels	20 pcs
Hybrid Solar Inverter	1 pc
Lithium Batteries 48V 200Ah	1 pc
PV Cable 4mm2	200m
Earthing cable 6mm2	100m
MC4 Connector	20 pcs
PV Tools	1 pc
Roof Mounting System	1 set
Wooden box	1 pc

Warranty

What's Included

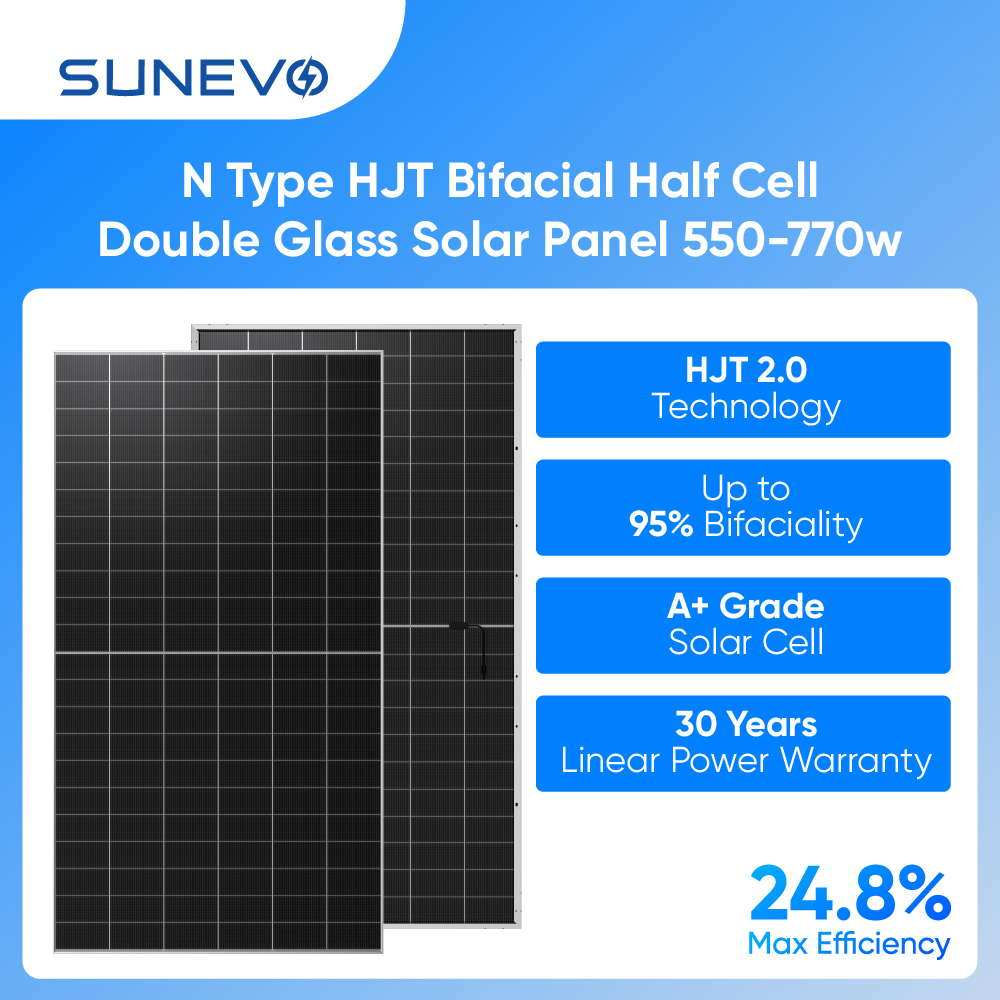

Half Cut Mono 590W Solar Panel

Peak Power Watts: 590W
Maximum Power Voltage: 44.17V
Maximum Power Current: 13.36A
Open Circuit Voltage: 52.90V
Short Circuit Current: 14.07A
Dimensions: 2278*1134*30mm
Weight: 31kg

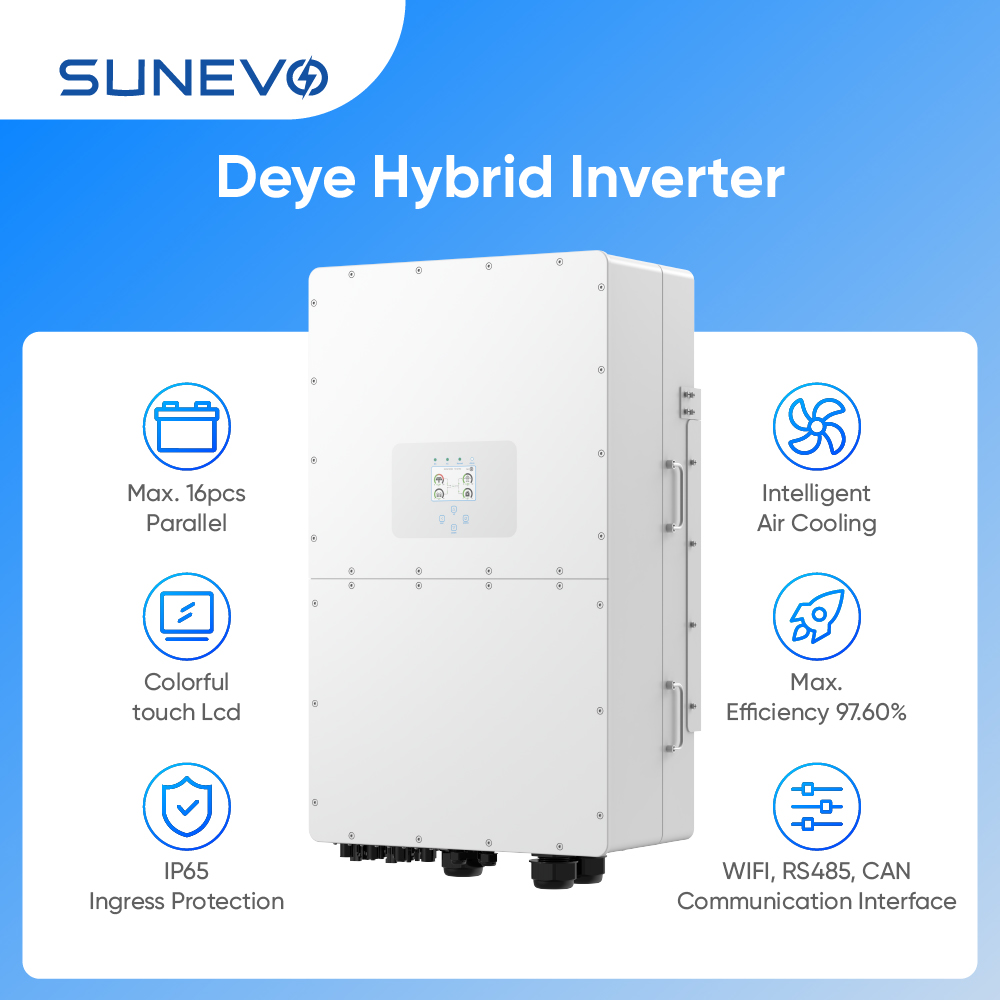

Hybrid Solar Inverter

Support both single phase and three phase, transformer isolation design. Different modes make system work more efficiency.

Max.charging/discharging current of 240A
Max.6pcs parallel
DC couple and AC couple to retrofit existing solar system

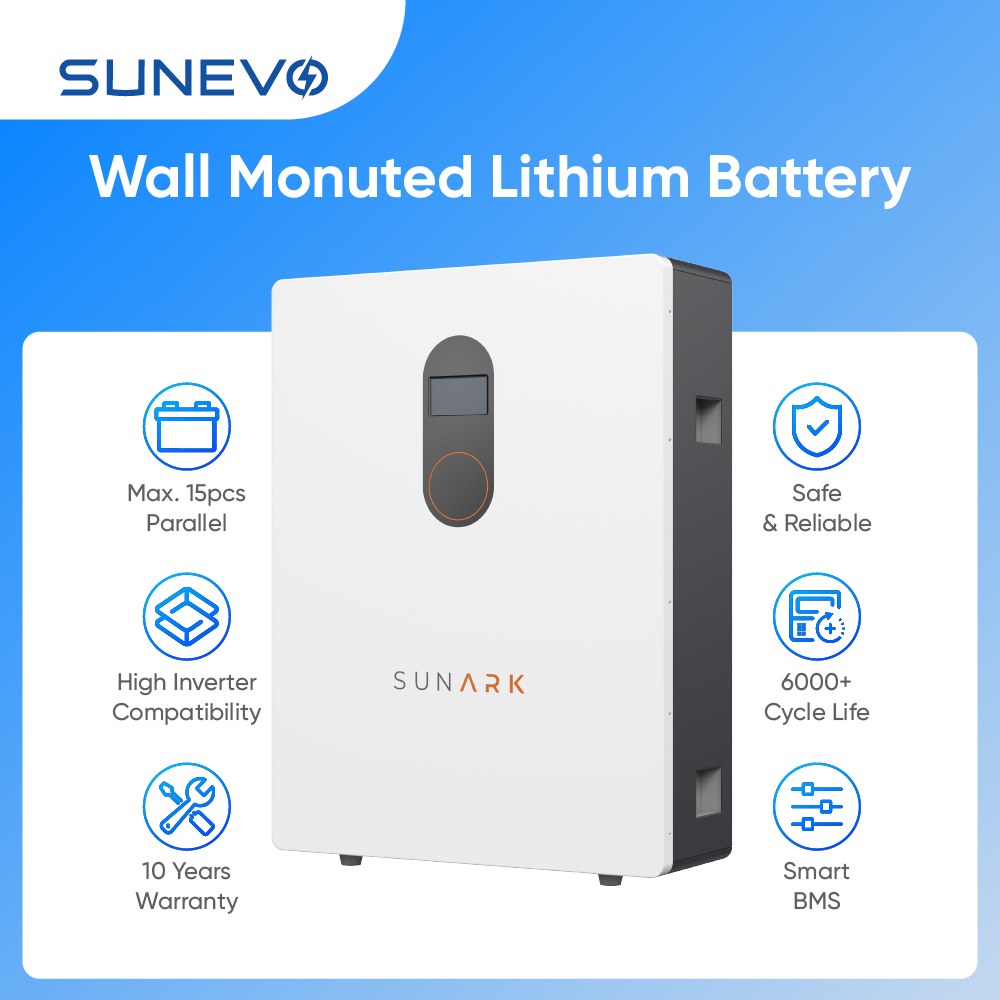

Low Voltage LiFePo4 Battery Bank

12V, 24V 48V, 51.2V available. 15-20 years design life. Up to 6000 + cycle life. Wall mount or ground stack brick, simply connecting to inverter. Battery module is scalable for any larger storage system.

Battery modular built in high quality BMS. Protect battery cells all the way. Lithium iron phosphate battery cell, stay safe with battery storage at home.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A

Monitoring System

Open station supports one-click installation and registration. Problem support one-click dispatch and navigation. Safe operation, traceable logs, etc.

Support full lifecycle data storage to ensure data security and reliability.

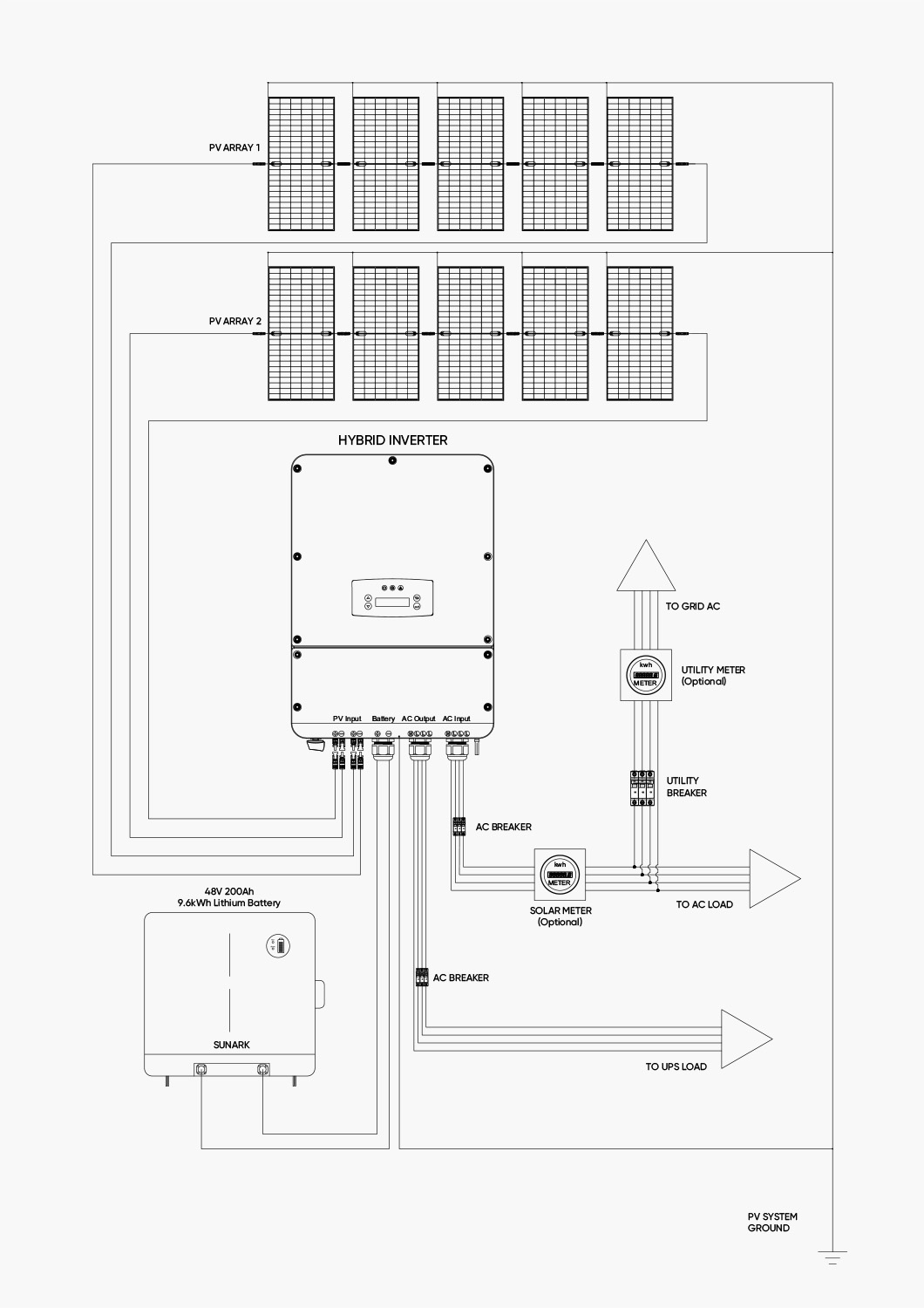

How It Works

Product Packaging

Certifications

Project Case

Our Factory

About Us

Frequently Asked Questions

What components are included in the complete SE-10KW3-HY Solar System?

The complete system includes 20 pieces of Half Cut Mono 550W Solar Panels, 1 Hybrid Solar Inverter, 1 unit of Lithium Batteries (48V 200Ah), 200 meters of PV Cable (4mm2), 100 meters of Earthing Cable (6mm2), 20 MC4 Connectors, a PV installation tool set, and a complete Roof Mounting System. The entire package is secured inside a protective wooden box.

What makes the Hybrid Solar Inverter in this kit unique?

The hybrid solar inverter supports both single-phase and three-phase outputs. It features a high-grade transformer isolation design for safety, delivers a maximum charging/discharging current of 240A, handles up to 6 units in parallel, and is compatible with both DC and AC coupling setups to retrofit existing layouts.

What is the lifespan and safety standard of the Lithium Batteries?

The system is equipped with a low-voltage LiFePo4 (Lithium Iron Phosphate) battery bank. It features an integrated high-quality Battery Management System (BMS) for full-cell protection. These batteries are designed for a 15-20 year service life and can support up to 6000+ duty cycles.

How is the solar power system monitored?

An open-station monitoring system is included. It offers easy one-click installation and digital registration, problem dispatching, and secure operations logs. It retains data over its entire lifecycle to ensure reliability and traceability.

What type of roof installations does the PV Mounting System support?

The PV Mounting System includes high-durability Al6005 rails and SUS304 bolts. It provides mid and end clamps ranging from 35mm to 50mm, with options for L Foot asphalt shingle mounts, hanger bolts, cable clips, ties, grounding clips, and grounding lugs to suit a variety of rooftop types.
