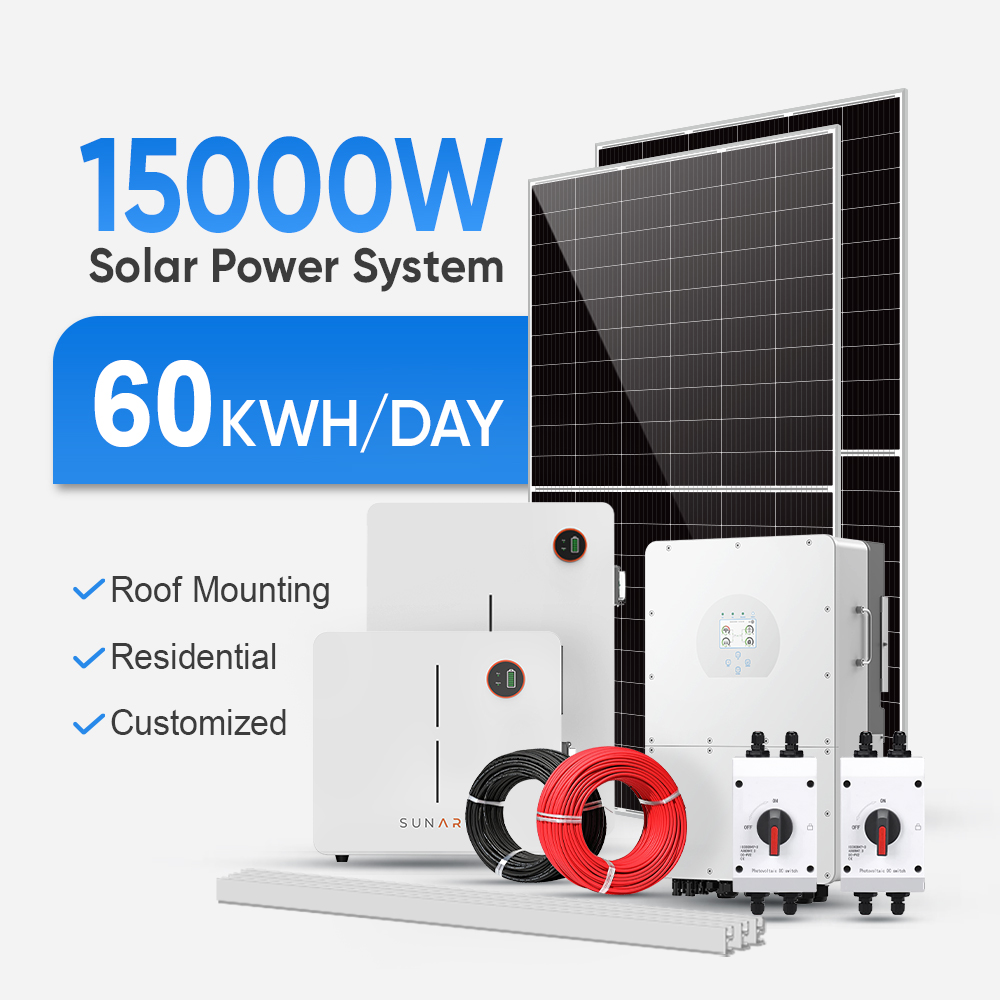

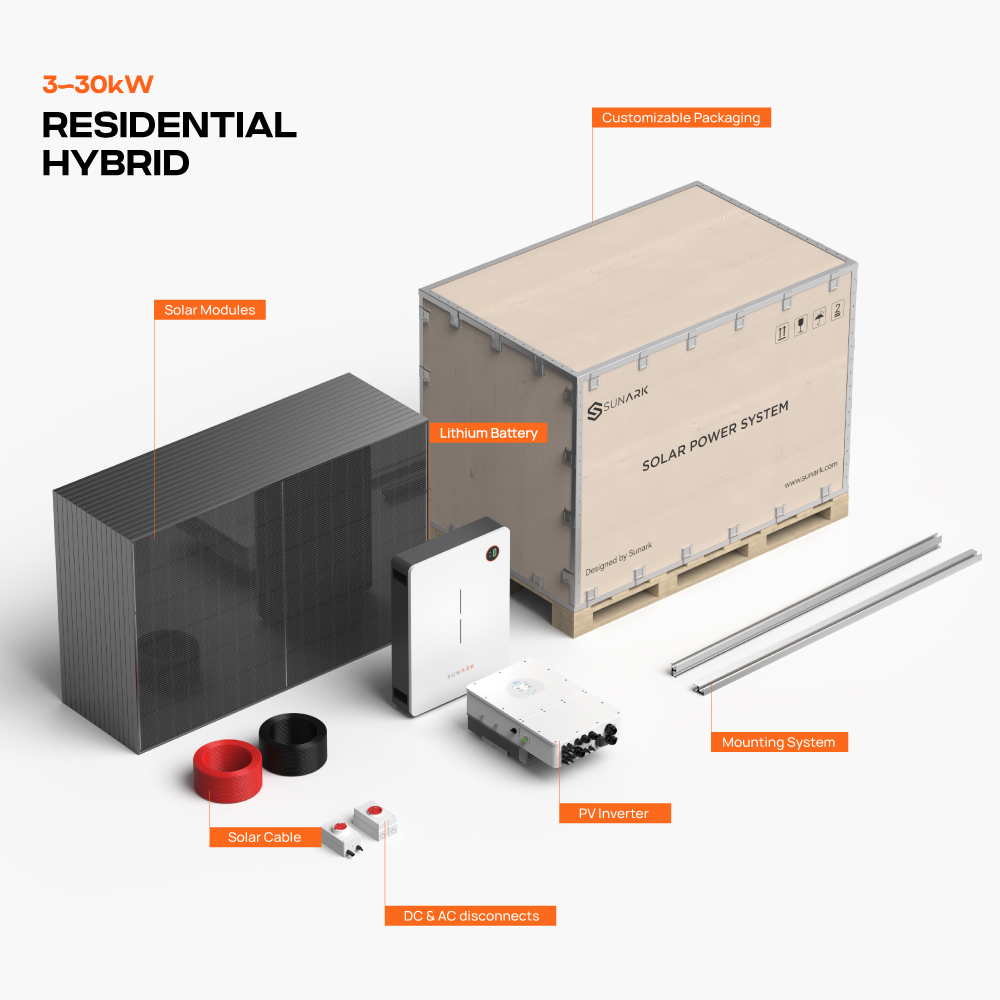

Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
1 / 5
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home
Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home

Sunevo Complete Off Grid Solar Power System 5kw 10kw 15kw 20kw 30kw Hybrid Solar Energy System For Home

Send Inquiry

Product Description

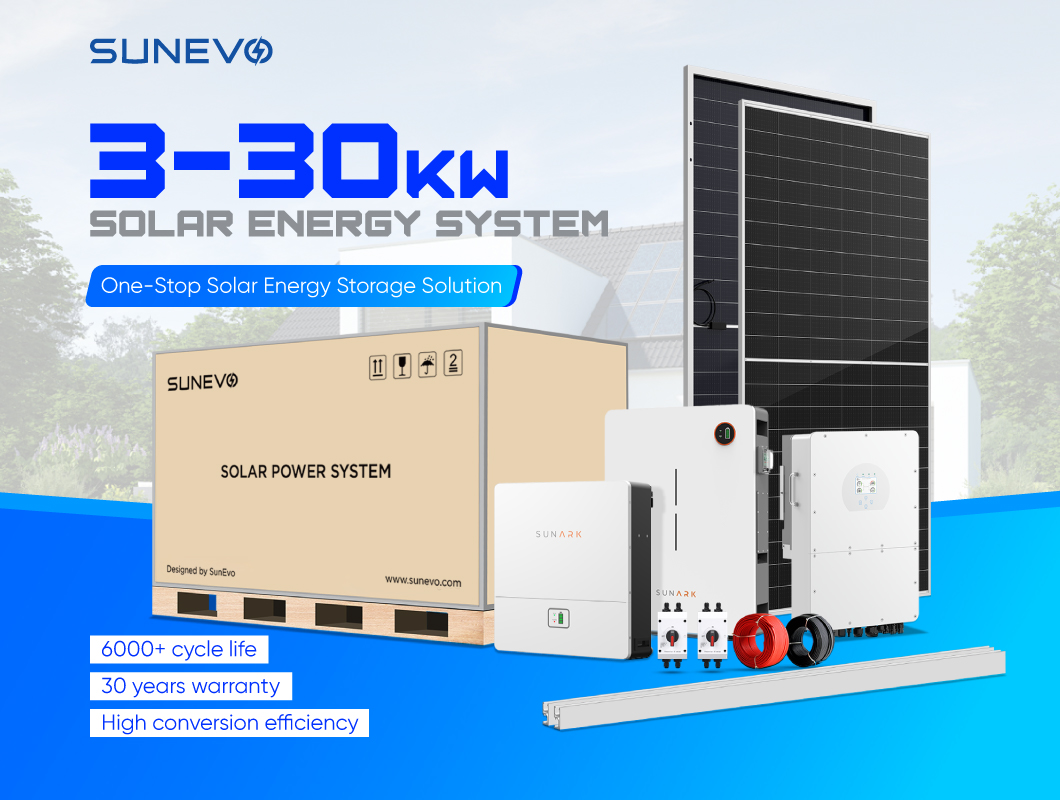

Energy Solution System
We are committed to becoming the leading provider of all-scenario one-stop energy solution systems.
Product Specifications
Model SE-10KW3-HY SE-20KW3-HY
Half Cut Mono 550W Solar Panels 20 pcs 40 pcs
Hybrid Solar Inverter 1 pc 1 pc
Lithium Batteries 48V 200Ah 1 pc 2 pcs
PV Cable 4mm2 200m 300m
Earthing cable 6mm2 100m 200m
MC4 Connector 20 pcs 30 pcs
PV Tools 1 pc 1 pc
Roof Mounting System 1 set 1 set
Wooden box 1 pc 2 pcs
Warranty Information
Warranty Details
What's Included
Solar Panel
Half Cut Mono 750W Solar Panel
Peak Power Watts: 750W
Maximum Power Voltage: 42.68V
Maximum Power Current: 17.58A
Open Circuit Voltage: 50.77V
Short Circuit Current: 18.71A
Dimensions: 2384*1303*33mm
Weight: 37.9kg
Hybrid Solar Inverter
Support both single phase and three phase, transformer isolation design. Different modes make system work more efficiency.
Max.charging/discharging current of 240A
Max.6pcs parallel
DC couple and AC couple to retrofit existing solar system
Hybrid Inverter
LiFePo4 Battery
Low Voltage LiFePo4 Battery Bank
12V, 24V 48V, 51.2V available.
15-20 years design life. Up to 6000 + cycle life.
Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mounting System
Disconnect Switch
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A
Monitoring System
Open station supports one-click installation and registration.
Problem support one-click dispatch and navigation.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.
Monitoring System

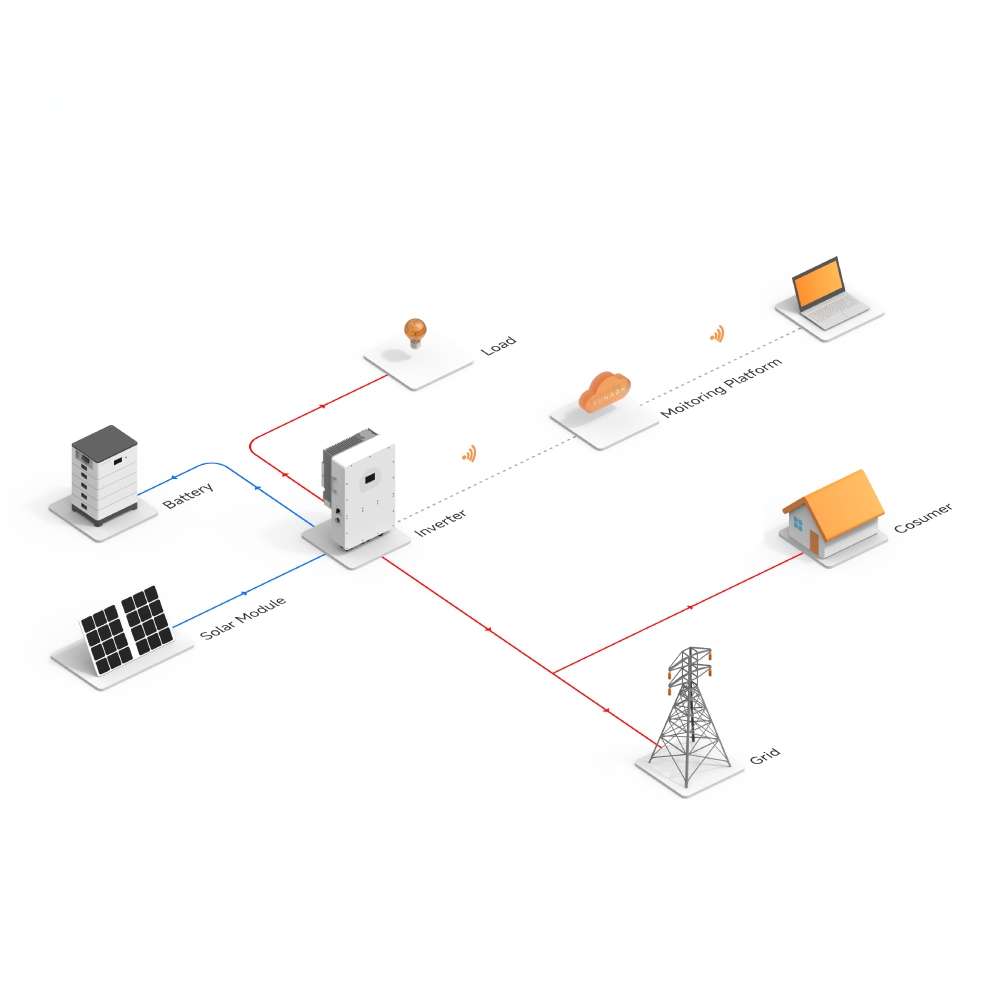

How it Works

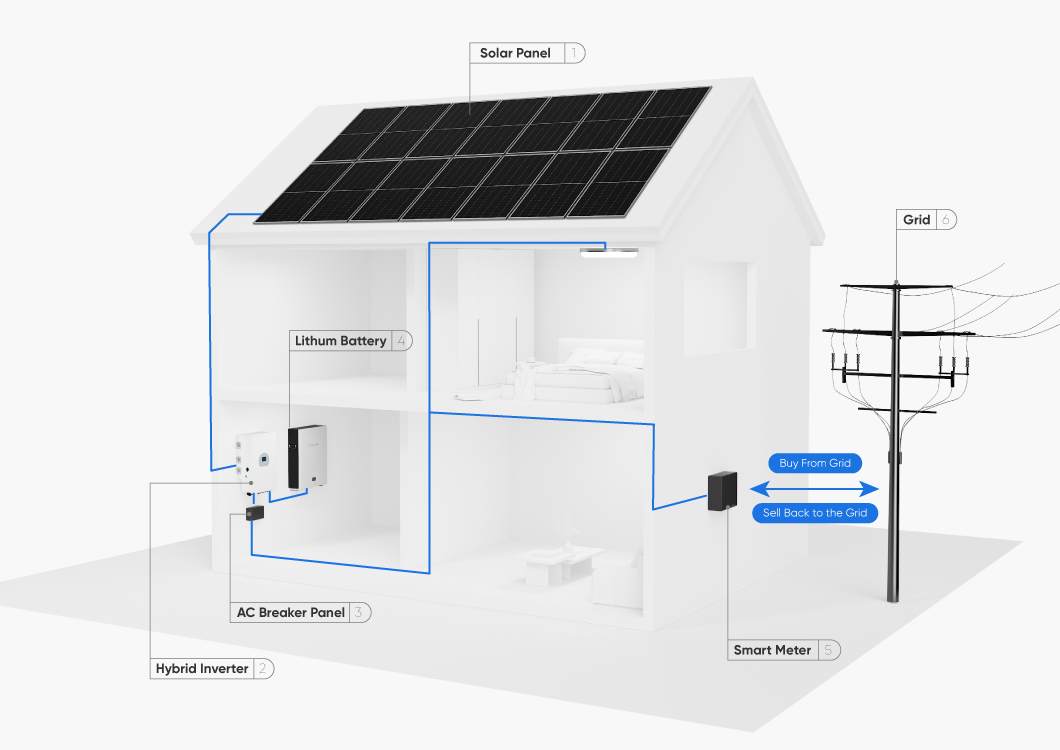

Workflow 1

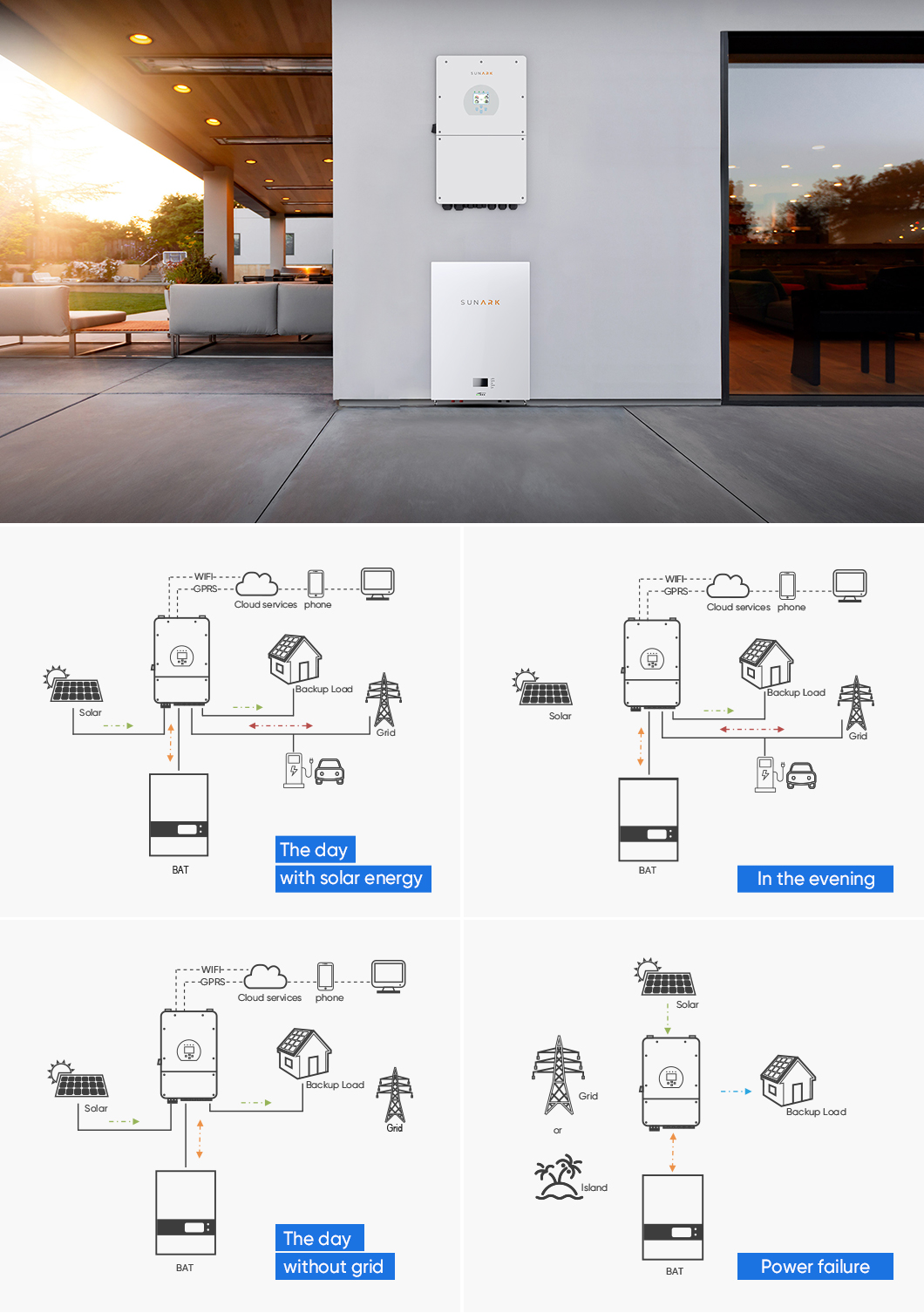

Workflow 2
Product Packaging

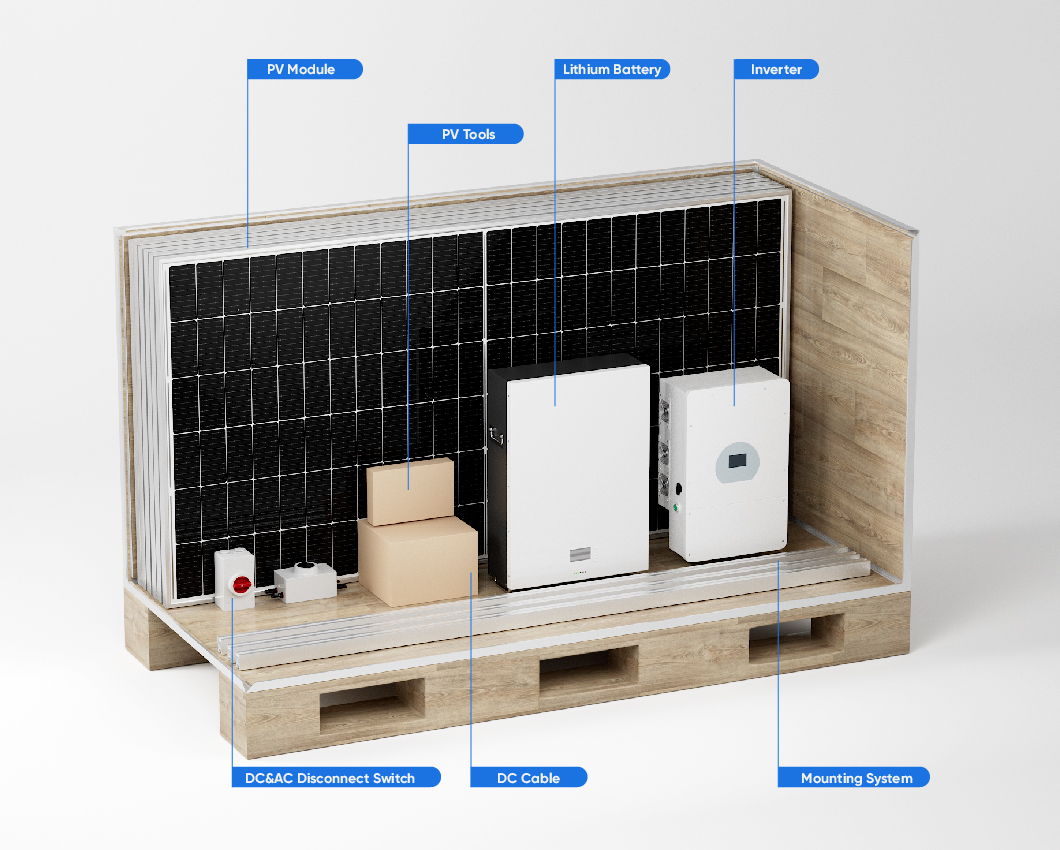

Packaging Detail 1
Packaging Detail 2
Our Factory & Projects

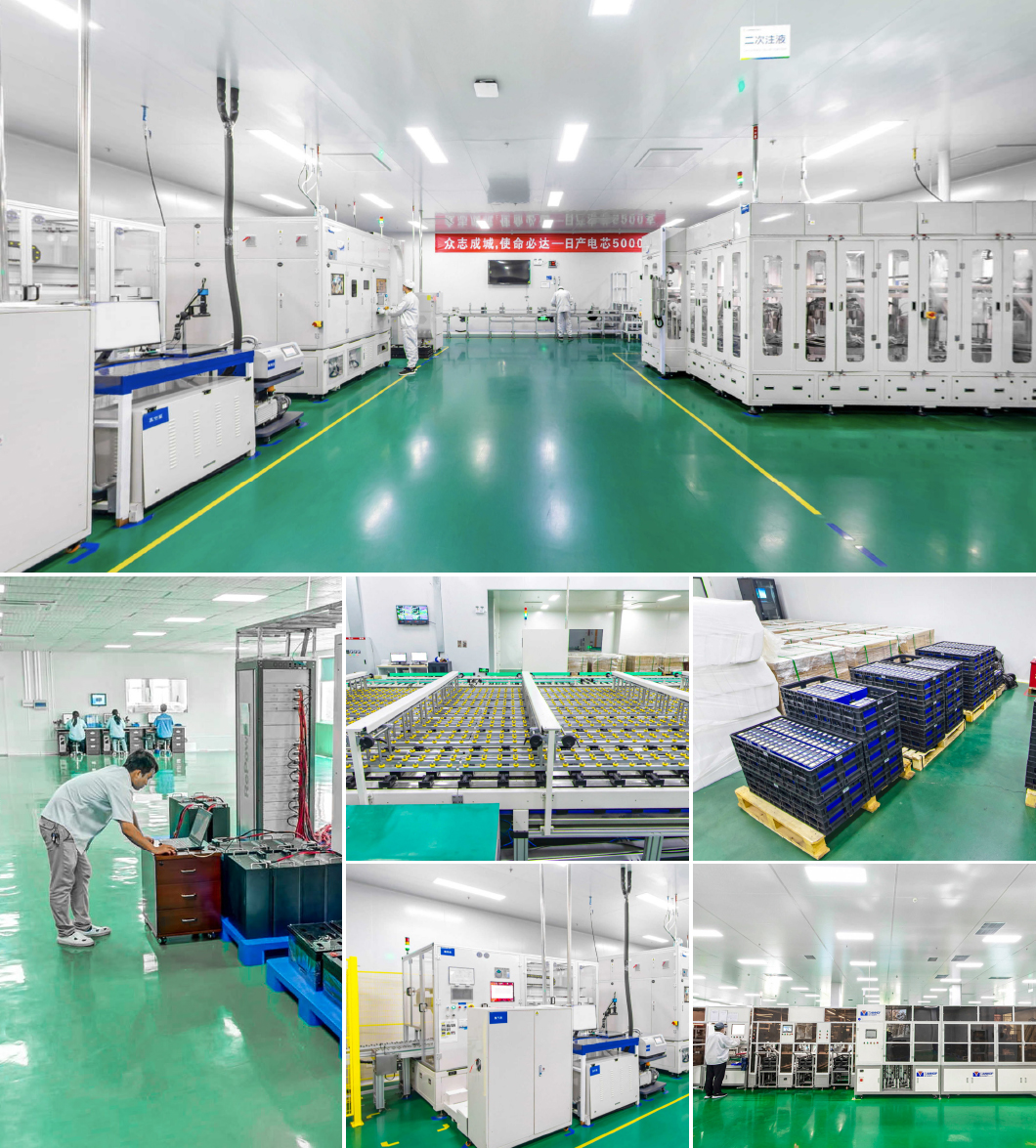

Factory Overview
Certifications
Project Case
About Us
About Us Team
About Us Facility
Contact Us
Wish You Have A Pleasant Purchasing Time! You can contact us at any time if you have any questions!
Frequently Asked Questions
What is the expected lifespan of the LiFePo4 battery bank?
The battery bank is designed with a service life of 15-20 years and can sustain up to 6000+ charge cycles, ensuring long-term reliability for home energy storage.
Can the hybrid inverter support three-phase power systems?
Yes, our hybrid solar inverter supports both single-phase and three-phase configurations, making it versatile for various residential and commercial applications.
Is the monitoring system easy to set up?
Absolutely. The monitoring system supports one-click installation and registration. It provides a user-friendly interface for safe operation and traceable logs.
What safety features are included in the battery modules?
Each battery module comes with a built-in high-quality Battery Management System (BMS) that protects the cells from overcharge, over-discharge, and temperature fluctuations.
Can I expand my energy storage system later?
Yes, the battery modules are scalable, allowing you to easily add more units to create a larger storage system as your energy needs grow.
What is the weather protection rating for the disconnect switches?
The DC & AC disconnect switches have an IP66 rating, providing excellent protection against dust and high-pressure water jets, suitable for outdoor installation.
