Certified with CE, CB, IEC, MSDS, and UN38.3, this LiFePO4 solution features Smart App/OTA monitoring, easy installation (52kg/105.8lb per box, cable-free quick connectors), and wide temperature operation (-20°C~55°C, IP65). Delivering 90% DoD and 6000+ cycles (0.5C, 25°C), its modular design scales from 5.22kWh to 62.64kWh. Built-in triple safety (BMS, fuse, aerosol) ensures reliable, long-term performance for over 15 years.
| CELL PARAMETERS | |
|---|---|
| Cell Type | LiFePO4 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 102Ah |
| Cycle Life | ≥6000 @25℃, 80%EOL |
| BATTERY MODULE PARAMETERS | |
| Configuration | 1P16S |
| Rated Capacity | 102Ah |
| Rated Energy | 5.2kWh |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 45.6-56.8V |
| Max Discharge Current | 100A |
| GENERAL PARAMETERS | |
| Modular Combination Quantity | 4-12 pos |
| Max Expansion Size(W*H*D) | 500*2190*560mm |
| Operation Temperature | 0-50℃ |
| Working Altitude | <2000m |
| Fire Protection System | Passive (high-temperature triggered) |
| Fire Extinguishing Agent | Thermal aerosol |
| Local Display | Yes |

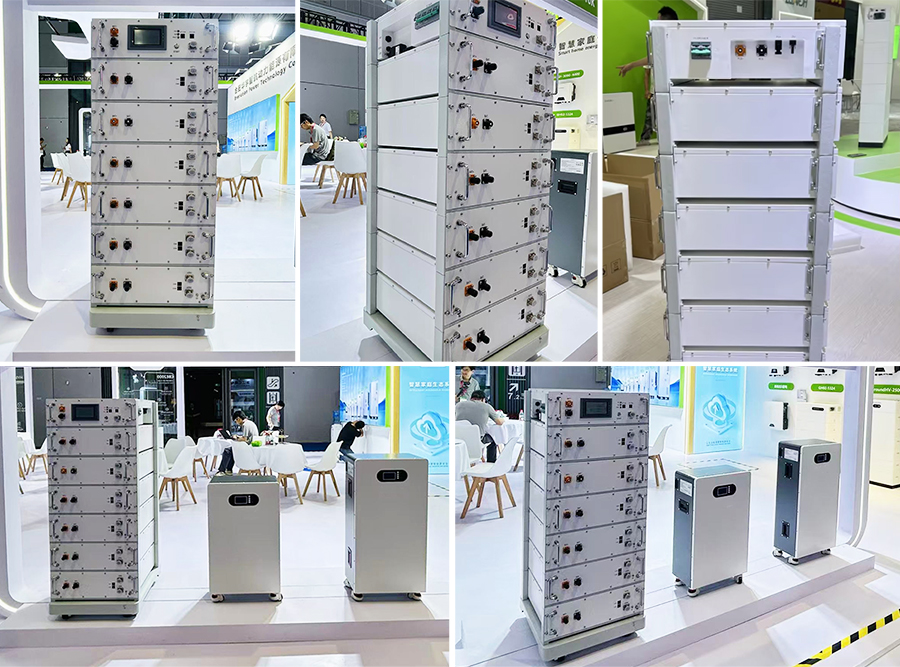

Rack-Mounted Indoor Energy Storage Lithium Battery 5kwh-60kwh Over 6000 Cycle Life Solar Energy Storage Battery
