| Electrical Characteristics | |
|---|---|
| Electrical Characteristics | LFP 5000 |
| Total Energy* | 5kWh |
| Usable Energy(DC)* | 4.6kWh |
| Nominal Dis-/Charge Power | 3kW |
| Peak Power(Only Discharge) | 7kWh for 3 seconds |
| Constant Current(Only Discharge) | 100A |
| Voltage | 43.2~56Vd.c |
| Nominal Voltage | 51.2Vd.c |
| Nominal Current | 50A |
| Max. Charge Current | 50A |
| Max. Discharge Current | 50A |
| Max. Charge Voltage | 58.4V d.c |
| Weight | 65kg |

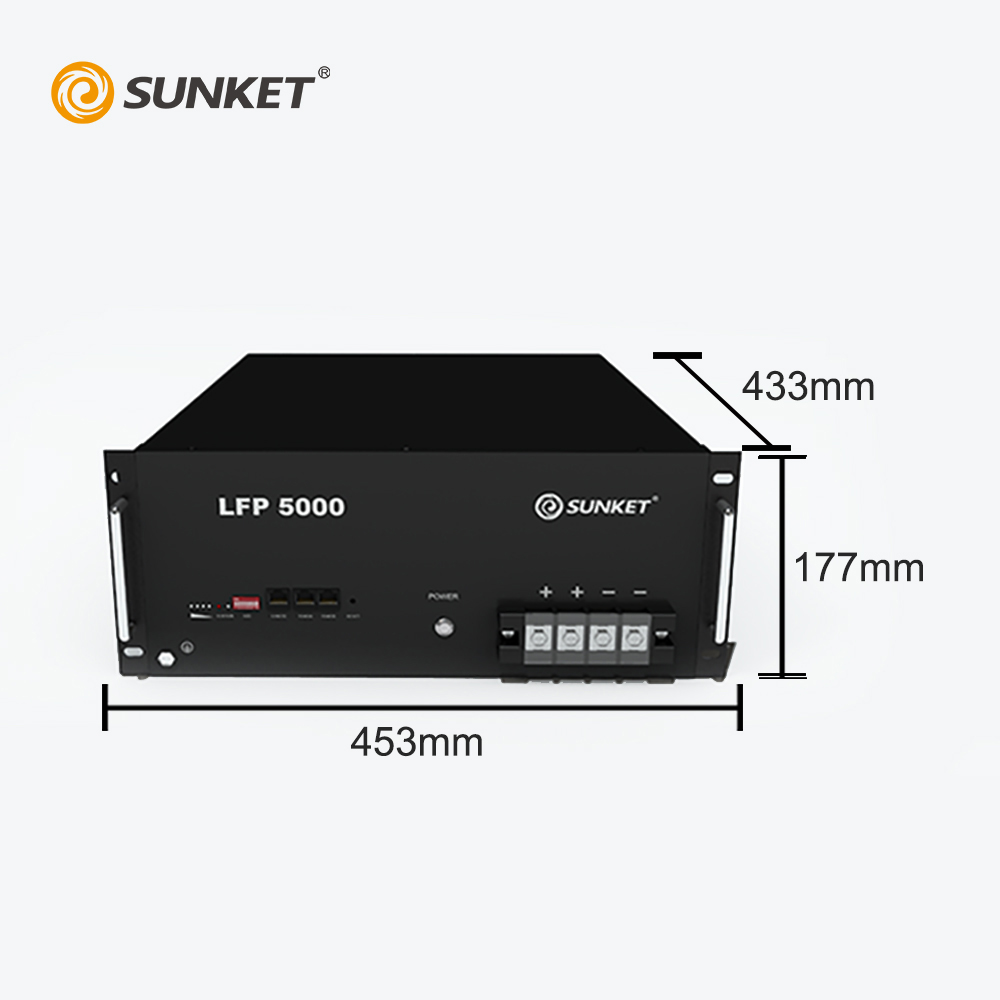

| Dimension(mm) | 453×433×177mm |
| Safety | CE UN38.3 |
| Max.recommended DOD | 90% |
| Operating Condition | Indoor |
| Operating Temperature（Charge） | From 0~45℃ |
| Operating Temperature（Discharge） | From -10~50℃ |
| Storage Temperature | From -20~50℃ |
| Humidity | 4~100%(No condensed water) |
| Pollution Degree | 3 |
| Over Voltage Category | II |
| Cooling Type | Natural cooling |
| IP rating | IP20 |
| Protective Class | I |

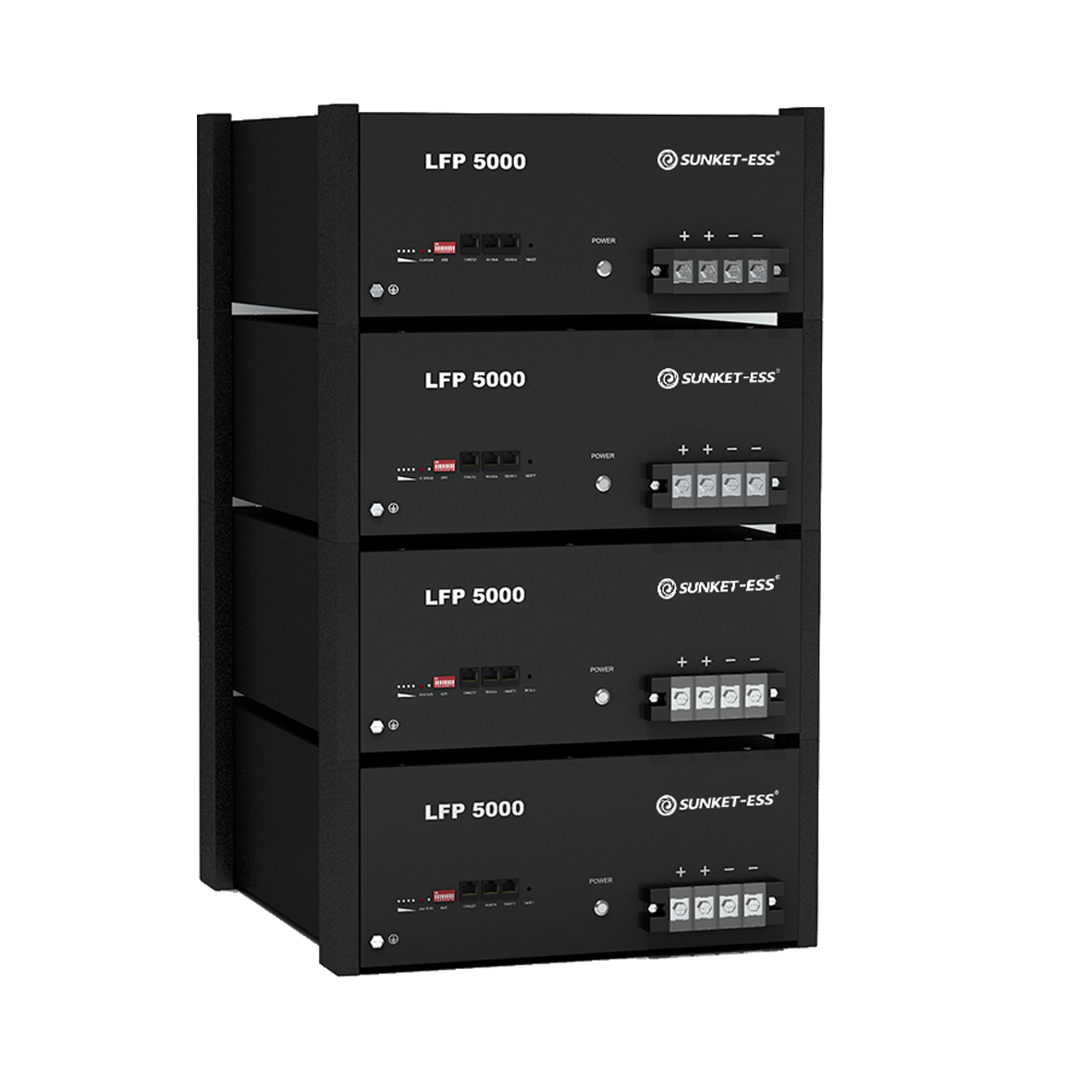

| Max. Number of Parallel | 16 |
| Warranty | 10 years |
| Life Span | >15 years |
| Communication | CAN/RS485 |
| Protection Mode | Triple hardware protection |
| Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage |
